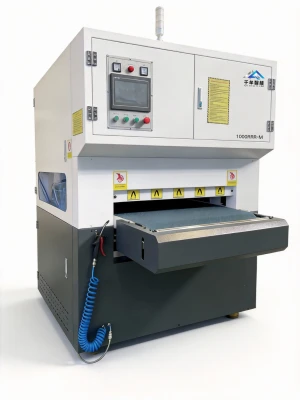

Metal Deburring Machine Sheet Metal Components Carbon Steel and Stainless Steel Sanding Machine

FOB Price 10000 - 30000 USD / Each unit

Quantity	1 -
Price	Price on request

MOQ	1 Unit
Port	Goods can be picked up or shipped from Qingdao Port, China, which is the nearest and most convenient port for shipment
Packaging	All products are securely packed in standard export wooden cases. The wooden packaging is solid, durable and professionally reinforced, providing excellent protection against collision, extrusion and damage. Suitable for long-distance international logistics and transportation.
Lead Time	30 days

Contact Now

Quick Details (View All)

Equipment Model

1000RRR-M

Product Details

QMZN-1000RRR-M Intelligent Deburring Machine | Triple-Belt High-Efficiency Precision Grinding Solution

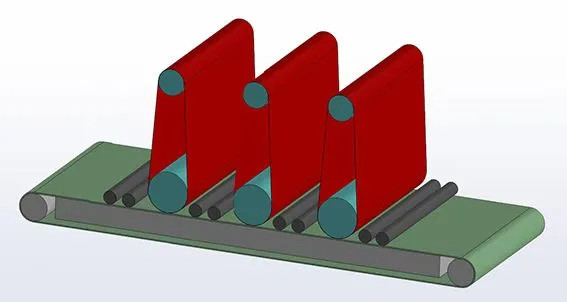

🔧 Core Structure Diagram

Visually understand the modular layout and intelligent workflow of the QMZN-1000RRR-M through the diagram below:

Diagram Guide:

Extended Magnetic Conveyor Platform: The infeed and outfeed sections are extended by approximately 20% compared to standard designs, supporting continuous material feeding, facilitating batch loading/unloading, and improving production efficiency.
（Stations 1-3）Triple-Belt Precision Grinding Stations: Three independent abrasive belt stations can operate sequentially or individually, enabling flexible process combinations from coarse to fine grinding to meet diverse surface finish requirements.
Intelligent Photoelectric Belt Alignment System (FDCR): Automatically detects and real-time corrects abrasive belt misalignment, ensuring precise and stable grinding trajectories, reducing workpiece waste and downtime.
Integrated Touchscreen Control Center: Delta PLC control system integrates all operation and monitoring functions, featuring an intuitive interface and accurate parameter setting.
Automatic Air-Jet Cleaning Unit: Equipped with dedicated air nozzles to automatically remove grinding chips and dust from the conveyor belt during processing intervals, maintaining equipment cleanliness and extending the service life of core components.
High-Efficiency Dust Extraction Interface: Optional wet dust collection system is available to effectively collect grinding dust, ensuring a clean working environment and operator health.
Discharge Area: Workpieces completed with multi-stage grinding are output smoothly, featuring uniform and consistent surface quality.

✨ Core Advantages Explained

Advantage Module

Technical Features & Customer Value


Triple-Belt Collaborative Process	Three independent abrasive belt stations deliver unprecedented process flexibility, configurable into coarse, medium, and fine grinding sequences to achieve a full workflow from deburring to surface finishing in one stop, doubling efficiency.
Intelligent CNC & Belt Alignment	Delta PLC CNC + touchscreen enables precise control; the FDCR photoelectric alignment system automatically maintains belt centering, significantly improving processing consistency and reducing manual intervention.
Robust & Durable Construction	The abrasive belt frame adopts high-strength automated robotic welding and quenching treatment, boasting excellent hardness, rigidity, and wear resistance to ensure stable operation under long-term heavy-load conditions.
High-Efficiency Production Design	The 20% extended conveyor platform and VFD-adjustable drive perfectly support continuous high-volume production; independent air-jet cleaning significantly reduces maintenance frequency and improves Overall Equipment Effectiveness (OEE).
Flexible Customizable Worktable	Worktable width supports customized solutions, with multiple options ranging from 450mm to 1600mm, perfectly adapting to your production line layout and diverse workpiece dimensions.
Reliable Electrical System	Core power is supplied by Huarui solid copper-core motors, and the control system adopts Chint electrical components, ensuring strong power output, safe operation, and long service life.

📋 Principal Technical Specifications

Item

Specification Details


Model	QMZN-1000RRR-M (PLC Touchscreen Control)
Control System	Delta PLC CNC
Max. Processing Width	1000 mm (Custom widths available from 450 mm to 1600 mm)
Processing Thickness Range	0.6 – 80 mm (Flatness must be ensured for thick plates)
Feed Speed	0.7 – 8 m/min (VFD Stepless Adjustable)
Number of Abrasive Belts	3 Sets
Abrasive Belt Specification	1020 mm × 1900 mm
Approximate Total Installed Power	34 kW
Machine Overall Dimensions	2500 mm (L) × 1640 mm (W) × 2100 mm (H)
Approximate Machine Weight	2884 kg
Standard Color	White + Grey (Customizable)

🛠️ Application Scenarios

Sheet Metal Precision Finishing: High-efficiency deburring and surface brushing/polishing for various cabinets, enclosures, and panels after stamping or laser cutting.
Stainless Steel Product Processing: Removes weld oxide scale from stainless steel workpieces and performs surface precision grinding, preparing for subsequent mirror polishing.
Metal Component Surface Treatment: Batch and consistent surface cleaning and beautification for structural parts and profiles after welding or cutting.
Automated Production Line Integration: Easy integration into intelligent manufacturing cells thanks to stable PLC control and customizable width.

📦 Installation & Service Support

Installation Requirements: Level and solid foundation, 380V/60Hz (±10%) power supply, 0.5-1 MPa compressed air source.
Delivery Documentation: Includes wear parts list, product certificate of conformity, English and Chinese operation & maintenance manuals, circuit diagrams, PLC program diagrams, installation layout drawings, and instructional videos.
Professional Services: Free on-site installation guidance, equipment commissioning, and systematic operator training.

🚀 Request Your Custom Solution

With its outstanding flexibility of triple-belt collaboration, intelligent precision control, and robust reliable design, the QMZN-1000RRR-M is the ideal choice for users pursuing high-efficiency and high-quality surface treatment.
