Manufacturer of Precision Deburring, Chamfering and Polishing Machines for Metal Components

FOB Price 12000 - 30000 USD / Each unit

Quantity	1 -
Price	Price on request

MOQ	1 Unit
Port	Goods can be picked up or shipped from Qingdao Port, China, which is the nearest and most convenient port for shipment
Packaging	All products are securely packed in standard export wooden cases. The wooden packaging is solid, durable and professionally reinforced, providing excellent protection against collision, extrusion and damage. Suitable for long-distance international logistics and transportation.
Lead Time	30 days

Contact Now

Quick Details (View All)

Equipment Model

800CRSR

Product Details

Description

QMZN-800CRSR-M Intelligent Deburring Machine

One-Stop High-Precision Surface Treatment Solution

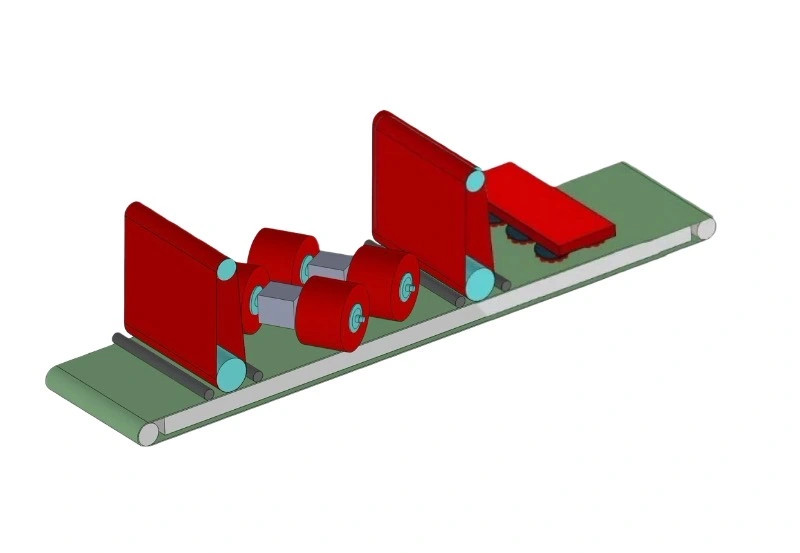

🔧 Core Structure Diagram

Gain a quick understanding of the QMZN-800CRSR-M’s intelligent layout and efficient processing workflow through the schematic diagram below:

Diagram Description:

Intelligent Feeding & Magnetic Conveying Platform: Powerful magnetic adsorption keeps workpieces flat and securely held for stable conveyance throughout the process.
(Station 1) High-Efficiency Slag Removal & Rough Grinding Zone: Oscillating impact hammers and heavy-duty brush wheel assemblies effectively remove large slag deposits and thick burrs.
(Station 2) Dual Abrasive Belt Precision Grinding Zone: Two sets of independent abrasive belt systems enable high-precision "true cold grinding" for superior surface finishing.
(Station 3) Integrated Chamfering Unit: Performs uniform and consistent chamfering on workpiece edges.
Central Intelligent Control Center (PLC): Integrated CNC operation panel for centralized control, real-time monitoring and alarm functionality.
Efficient Dust Removal System Interface: Enables quick connection to dust collection equipment, ensuring a clean and safe working environment.
Discharge Zone: Workpieces completing all processes are discharged neatly, ready for subsequent operations.

(The diagram intuitively illustrates the linear, high-efficiency workflow from feeding and multi-stage processing to final discharge.)

✨ Detailed Core Advantages

We provide more than just equipment—we deliver stable, efficient and low-maintenance productivity solutions tailored to your unique requirements.

Advantage Modules

Technical Features & Customer Value


Intelligent Abrasive Belt System	Real-time synchronization of abrasive belt speed and feed rate enables "true cold grinding", eliminating burn marks on thin workpieces and ensuring exceptional surface quality.
High-Precision Positioning Control	The platform lifting system adopts servo motor closed-loop control, featuring rapid response and positioning accuracy up to 0.01mm to meet rigorous precision machining demands.
Super Strong Stable Adsorption	Two high-efficiency solutions are available: 1. Professional Fan System: Delivers a full pressure difference of up to 9000Pa, offering strong, adjustable adsorption force. 2. High-Strength Magnetic Adsorption Platform: Utilizes a high-performance permanent magnet array to provide stable, long-lasting adsorption without additional energy consumption, ensuring easy maintenance. Both solutions securely hold various workpieces—especially thin sheets—in place during high-speed processing.
Long-Lasting Durable Design	Industrial-grade conductive slip rings (80 million revolutions service life) and wear-resistant brush wheels (38.4% extended service life) substantially reduce long-term operational costs.
Comprehensive Safety Monitoring	The PLC system integrates real-time monitoring and alarm functions, paired with full-range splash guards and explosion-proof components to ensure operator and equipment safety.
Intelligent Wear Compensation	Automatic wear compensation technology ensures uniform abrasive wear, maintaining consistent processing results over time, reducing manual adjustments and enhancing quality stability.
Sturdy Bed Structure	One-piece welded construction with stress relief treatment ensures a table flatness of <0.02mm, laying a solid foundation for long-term precision machining performance.

📋 Main Technical Parameters

Items

Parameter Details


Equipment Model	QMZN-800CRSR-M (PLC Controlled)
Maximum Processing Width	800 mm (Customized widths available 450mm-1600mm)
Processing Thickness Range	0.8 – 80 mm
Minimum Processing Size	20 mm × 20 mm
Feeding Speed	1 – 5 m/min (Stepless adjustment)
Total Installed Power	Approx. 32 kW
Brush Wheel System	2 sets of oscillating brush wheels + 7 disc brushes
Abrasive Belt Stations	2 independent stations
Equipment Overall Dimensions	3990L × 1600W × 2250H mm
Equipment Weight	Approx. 4,186 kg
Standard Color	White (Customized colors available)

Note: The above are standard configuration parameters. We offer customized configurations based on your specific workpiece materials, process cycles and workshop conditions.

🛠️ Application Scenarios

Sheet Metal Processing: Efficient processing of chassis, control panels, elevator panels and other components after laser cutting or stamping.
Mechanical Manufacturing: Batch deburring and chamfering of structural parts, flanges, bearing seats and other components.
Steel Structures & Shelving: Oxide scale removal and surface finishing for large workpieces.
Automotive Components: Automatic, consistent surface treatment for various metal parts.

📦 Installation & Service Support

Installation Requirements: Level and solid foundation, 380V/60Hz power supply, 0.5-1MPa air source.
Delivery Documents: Includes operation manual, circuit diagram, wearing parts list, certificate of compliance and instructional videos.
Professional Services: Free on-site installation guidance, commissioning and operator training are provided.

🚀 Get Your Custom Solution

Each QMZN-800CRSR-M can be customized and optimized to your exact specifications. We strive to provide you with:

Detailed technical data and targeted solution documents.
Free test grinding analysis and performance evaluation based on your workpieces.
Arrangement of factory site visits and equipment demonstrations.

—— Your Trusted Partner for Surface Treatment Solutions ——
