Factory DR130 Car Paint Detector R&d Paint Thickness Tester Checker Coating Thickness Gauge

Name: Factory DR130 Car Paint Detector R&d Paint Thickness Tester Checker Coating Thickness Gauge
Brand: Guangzhou Dongru Electronic Technology Co., Ltd.
SKU: Tradewheel_2542721
Price: 78 USD
Availability: InStock

FOB Price 78 - 89 USD / pieces

Contact Now

Quick Details (View All)

Warranty	1 Year	Place of Origin	Guangdong, China
Brand Name	DONGRU	Model Number	DR130

Product Details

Product Overview

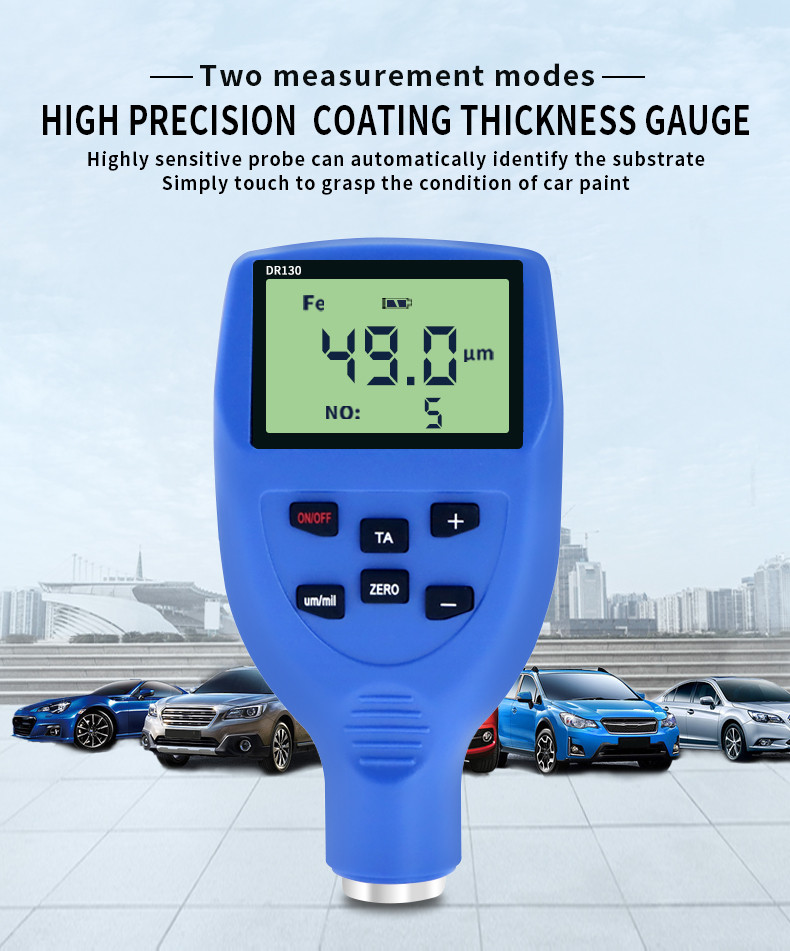

Coating thickness gauge

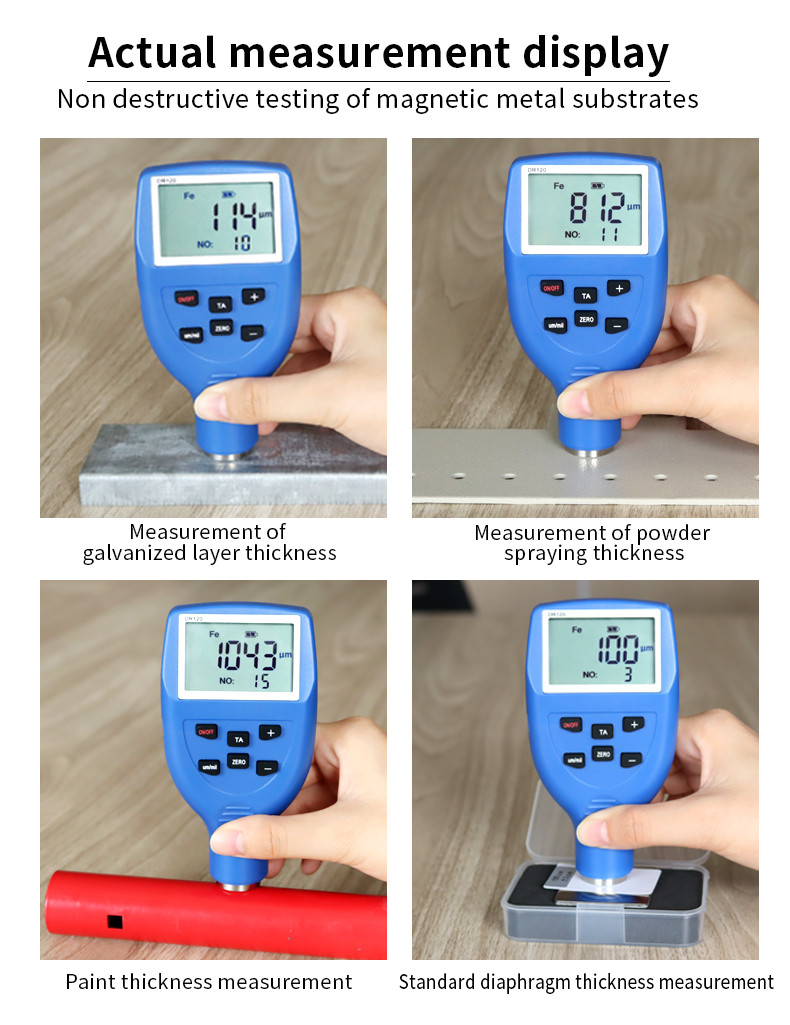

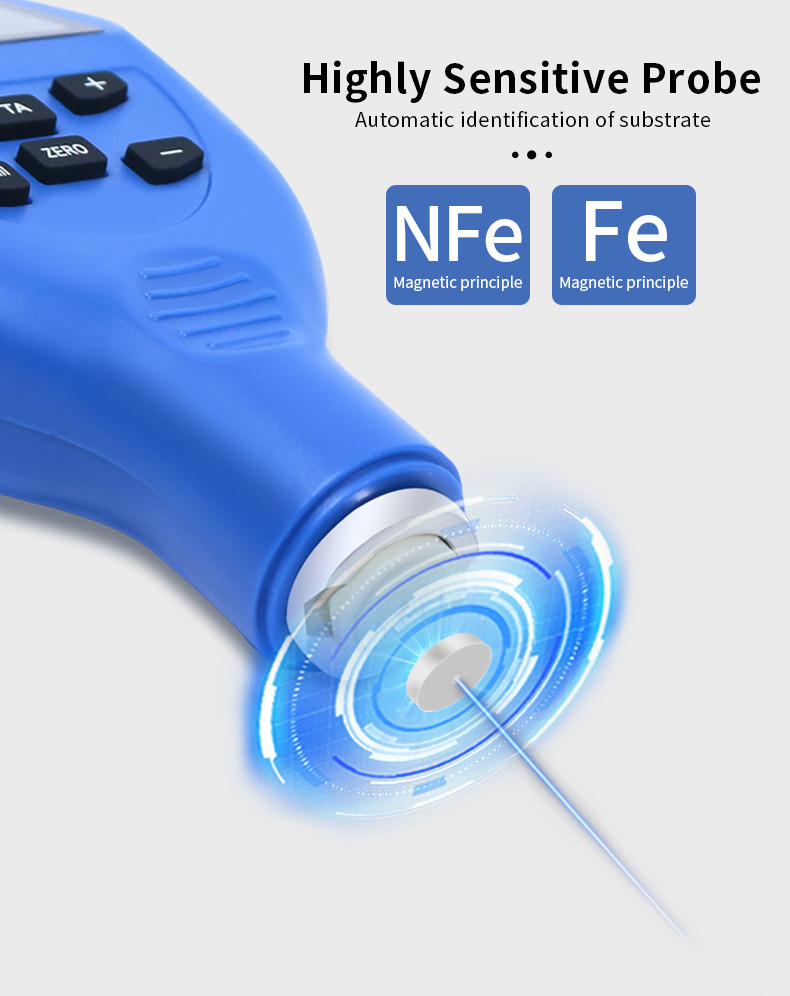

DR130 Coating thickness gauge is a professional measurement of metal material surface coating layer thickness of the major object of non-destructive testing equipment. According to the different metal substrates using different measuring methods. A、Magnetic thickness method, can be nondestructively measuring magnetic metal matrix ( such as: steel, iron, nickel ) on non magnetic coatings thickness ( such as: galvanized, chrome, paint, electrophoresis, enamel, rubber, powder coating, enamel, etc.) B.eddy current thickness method, can be nondestructively measuring non-magnetic metal substrate ( such as: aluminum, copper, stainless steel ) of non-conductive coating thickness ( such as: paint, powder, plastic, rubber, enamel, enamel, coating etc.)

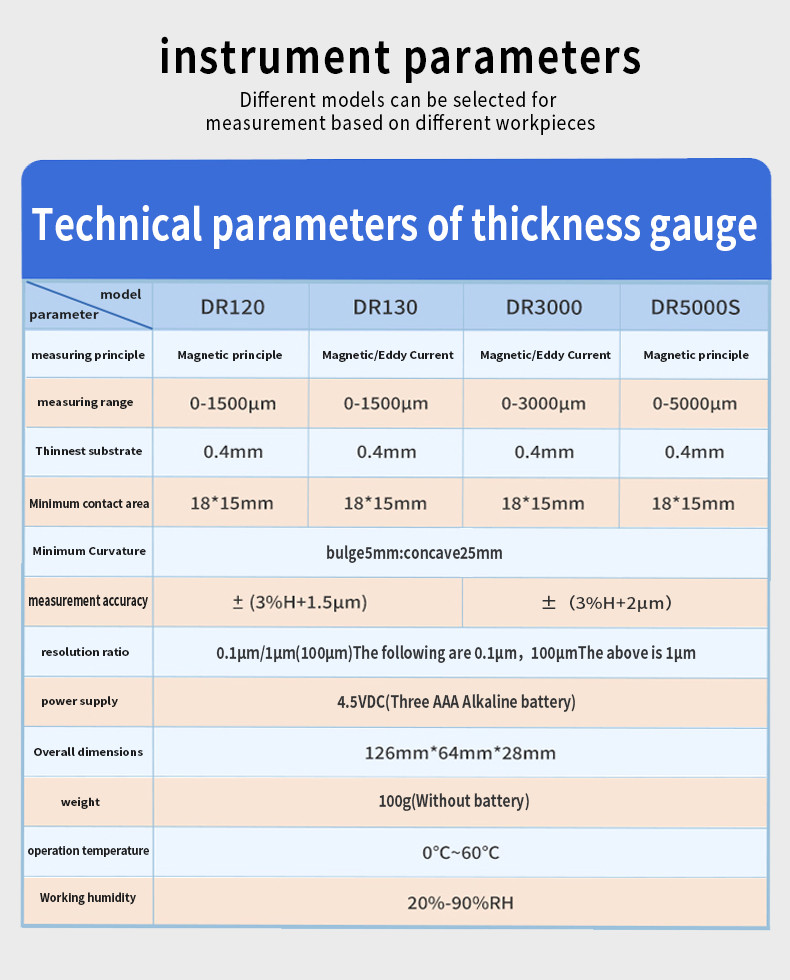

PRODUCT SPECIFICATIONS

Measuring range	0-1500μm
Using environment	0℃-50℃ and 20%RH—90%RH,not strong magnetic place.
the thinnest matrix	0.4mm
measurement accuracy	±（3%H+1.5μm）
resolution ratio	0.1μm /1μm
minimum curvature	Convex 5mm;concave25mm
minimum matrix	18*15mm
power	three (7) alkaline battery
size	126mm64mm28mm
weight	106G (excluding battery)

FAQ

Q1：Are you a factory or trading company?

A1：We are a factory.

Q1：MOQ?

A1：We dont have MOQ limit, you can order any quantity you want. If you need scales with your specification, logo, packing,etc,please negotiate with us.

Q1：Can I add my logo on the machine?

A1：Yes,OEM is available for us.But you should send us the Trademark authorization letter.

Q1：Do you have inspection procedures for these machine?

A1：100% self-inspection before packing

Q1：Payment Method?

A1：L/C at sight, T/T, Western Union and Paypal are all available. 30% deposit T/T in advance, rest against the Shipping Doc. 100% T/T in advance for sample order.

Q1：Shipping?

A1：

a. International Experess: DHL/TNT/FEDEX/UPS (For sample) b. By air (For sample orders.) c. By sea (15-45days), port of loading: Guang zhou d. By domestic logistics to your forwarder. (2-3days)
