DR260 New Thickness Gauge Coating Measuring Tester For Car Paint Tester Coating Thickness Gauge plating thickness meter

Contact Now

Quick Details (View All)

Warranty	1year	Place of Origin	Guangdong, China
Brand Name	DONGRU	Model Number	DR260
Measuring range	0-1250um

Product Details

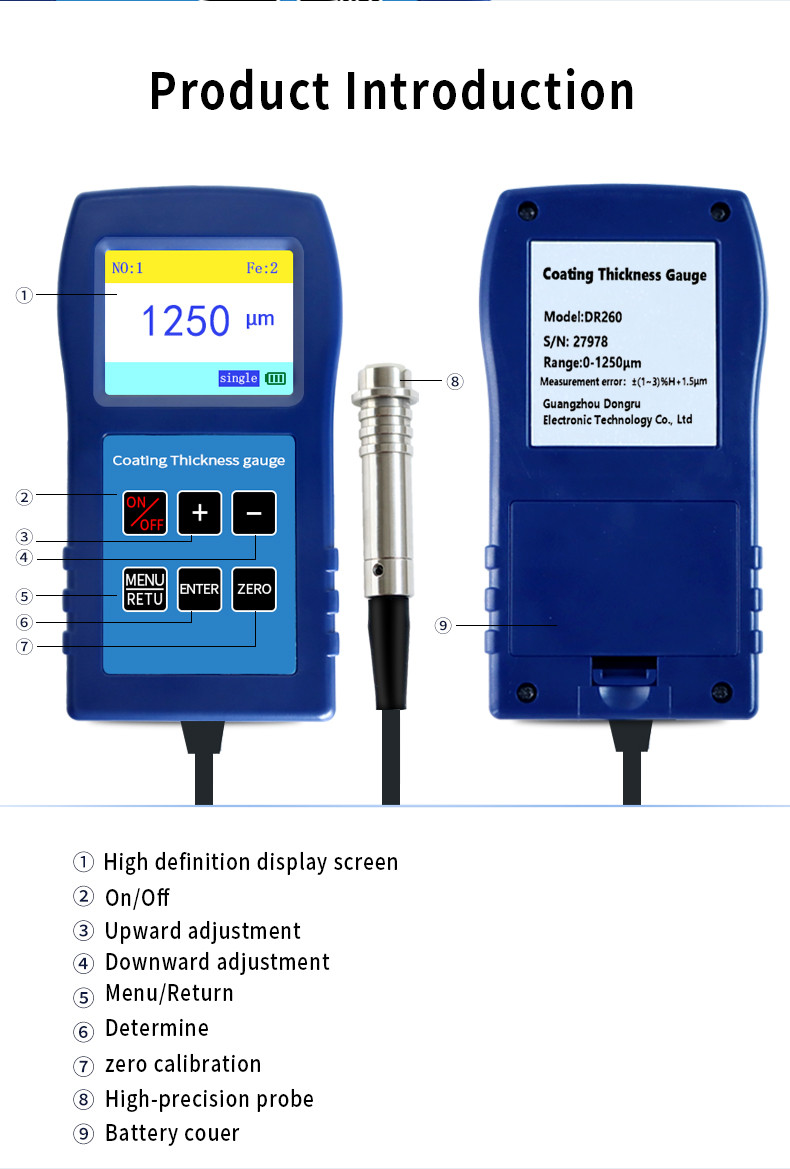

Product Overview

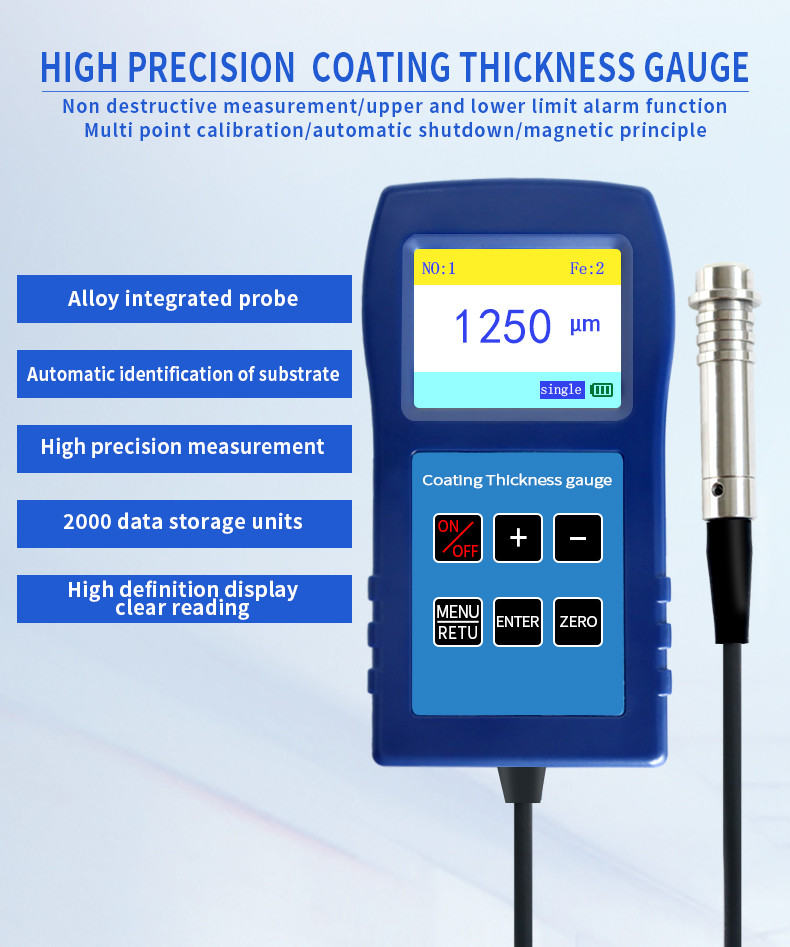

Coating Thickness Gauge

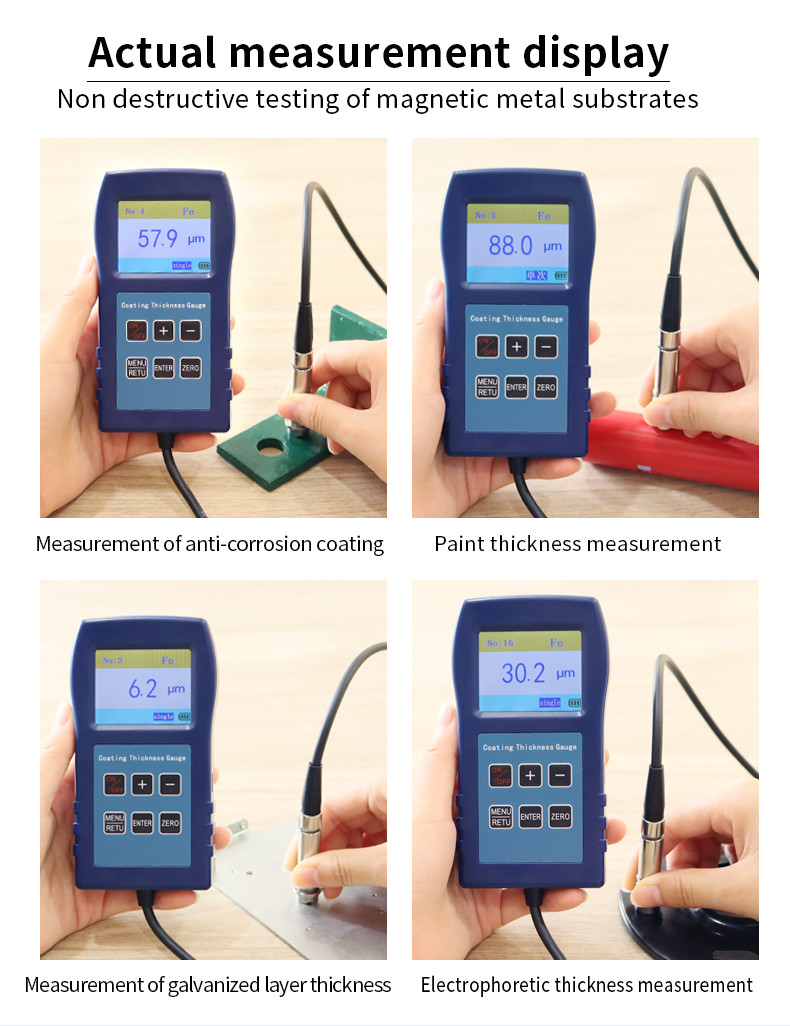

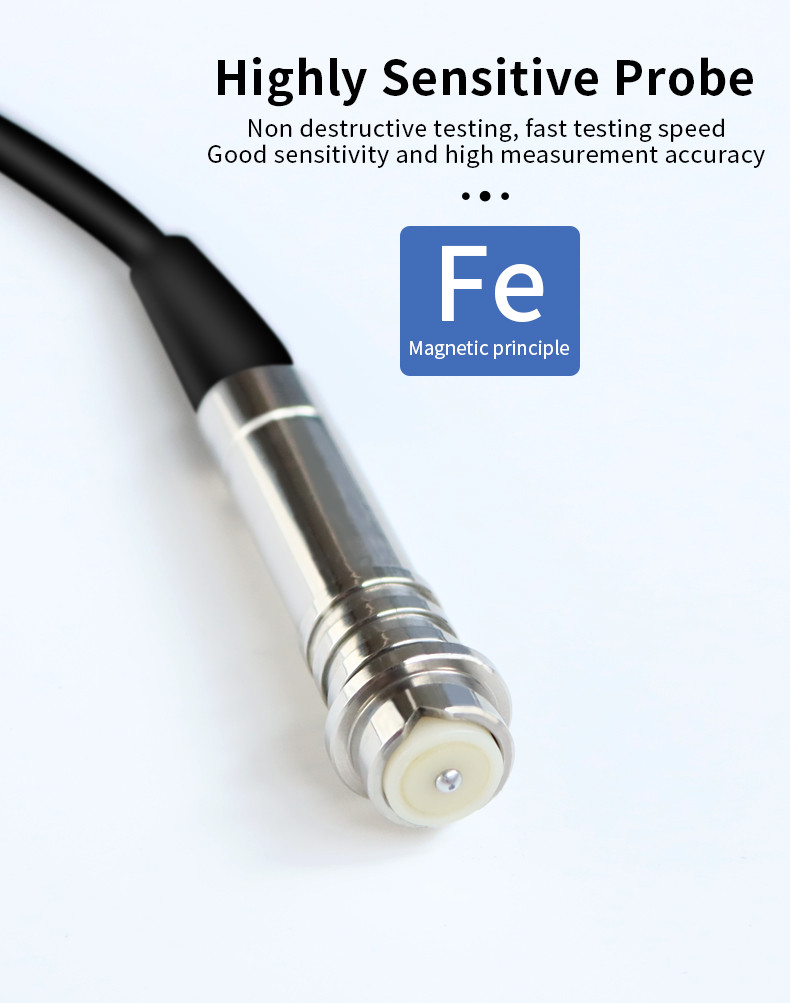

DR260 coating thickness gauge is a professional non-destructive testing instrument used to measure the thickness of nonmagnetic coatings and coatings on the surface of magnetic metal materials such as steel. Use the principle of magnetic induction measurement for fast non-destructive measurements. Magnetic thickness measurement method can be used to measure the thickness of non-magnetic coating on magnetic metal substrate (such as steel and iron) without damage (such as zinc plating, chromium, Gu, enamel, rubber, powder, paint, electrophoresis, enamel, plastic spraying, coating, anti-corrosion and fireproof coating, etc.). Application: Widely used in coating industry, manufacturing industry, metal processing industry, chemical industry, commodity inspection and other testing fields.

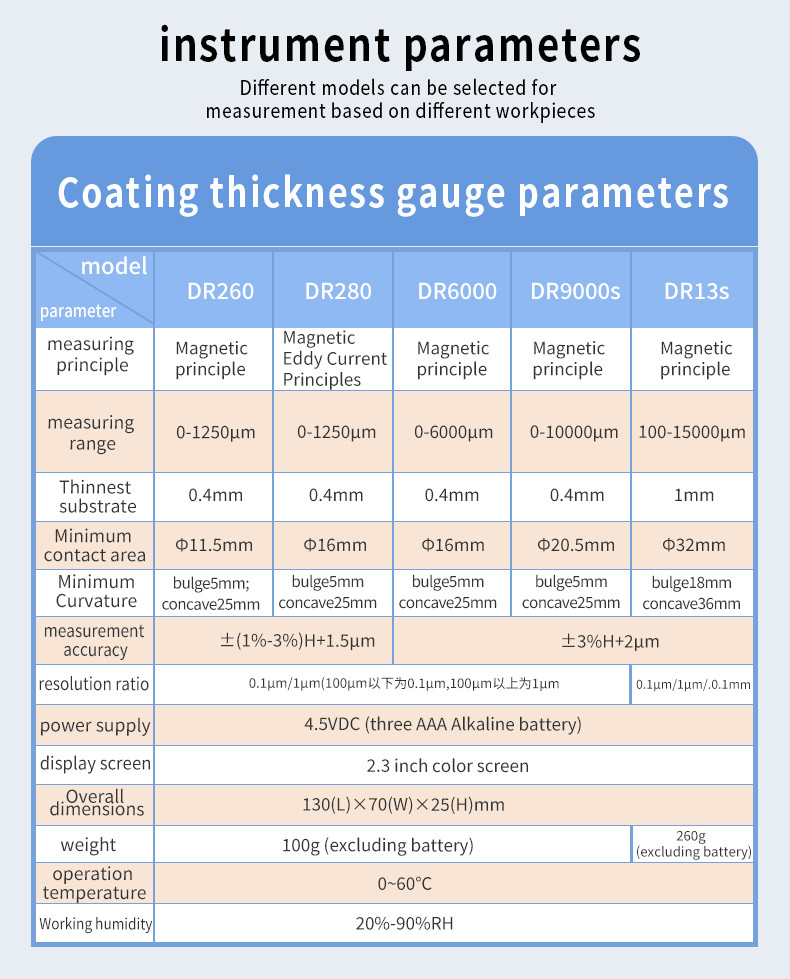

PRODUCT SPECIFICATIONS

Measuring range	0-1250μm
Minimum contact area	Φ11.5mm
Measurement accuracy	±(1%-3%)H＋1.5μm
Thinnest substrate	0.4mm
Minimum Curvature	Convex 5mm; concave 25mm
Resolving power	0.1μm /1μm
power source	three alkaline batteries
Size	130（L）×70（W）×25（H）mm

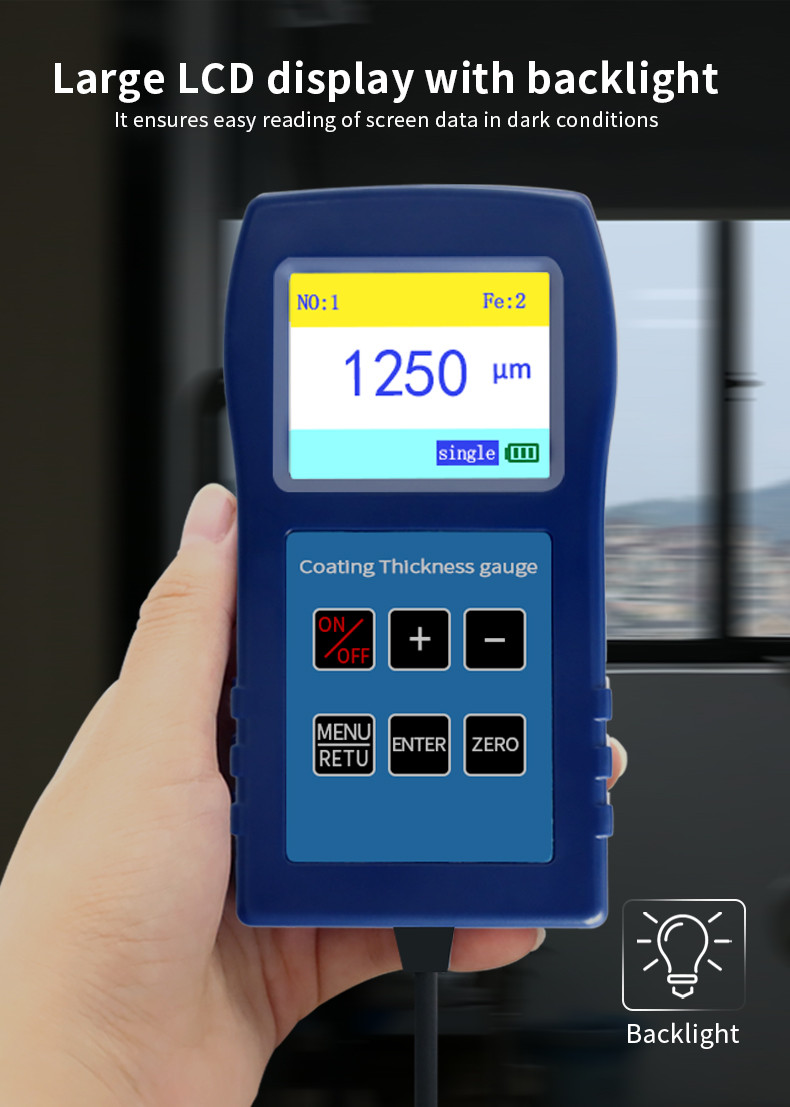

Display	2.3 inch color screen
Weight	100g
Using environment	0℃-60℃and 20%RH—90%RH,not strong magnetic place.
