DR220 High Quality Easy Use Coating Thickness Meter Gauge Measuring Film Coating Thickness Gauge

Contact Now

Quick Details (View All)

Warranty	1year	Place of Origin	Guangdong, China
Brand Name	DONGRU	Model Number	DR220

Product Details

Product Overview

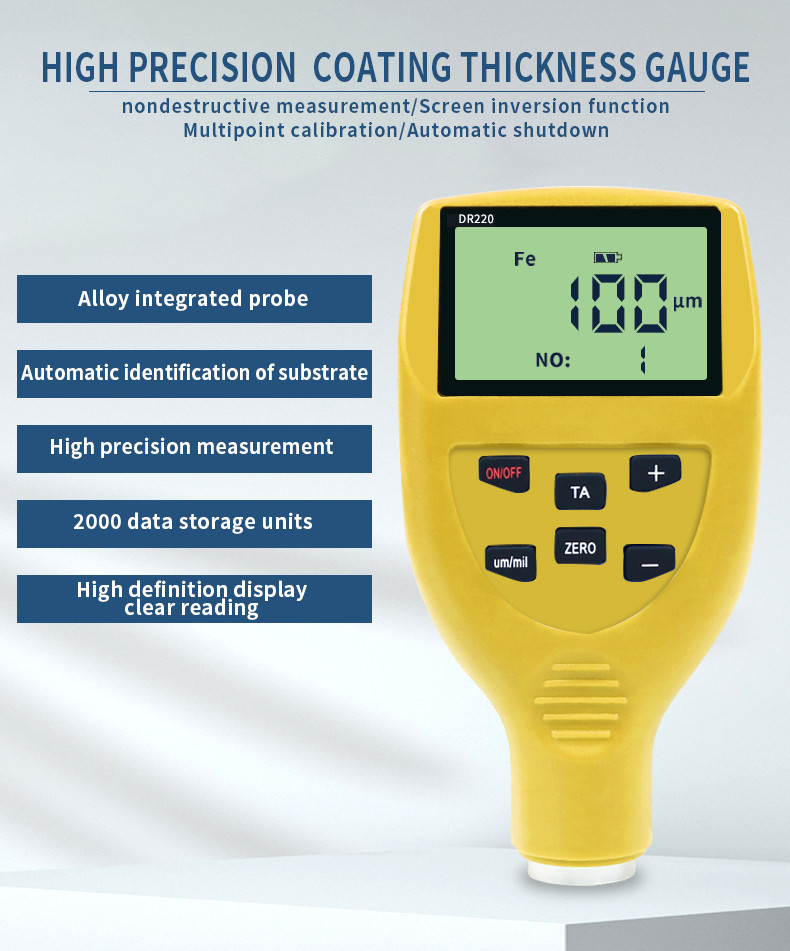

Coating thickness gauge

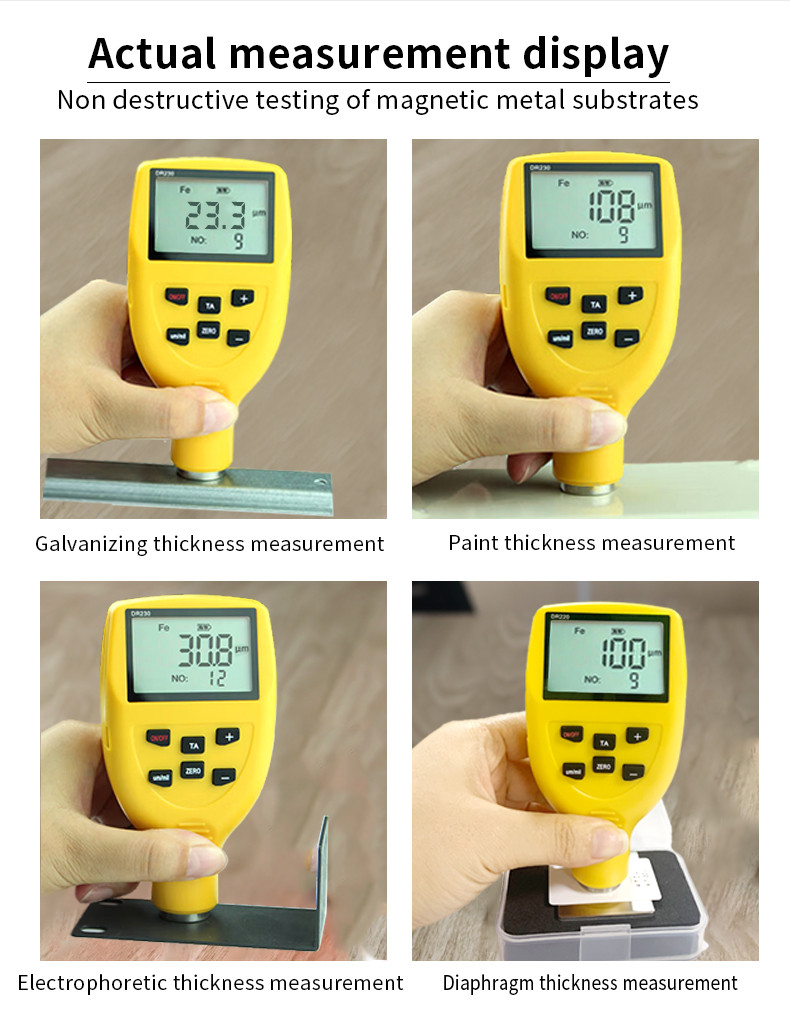

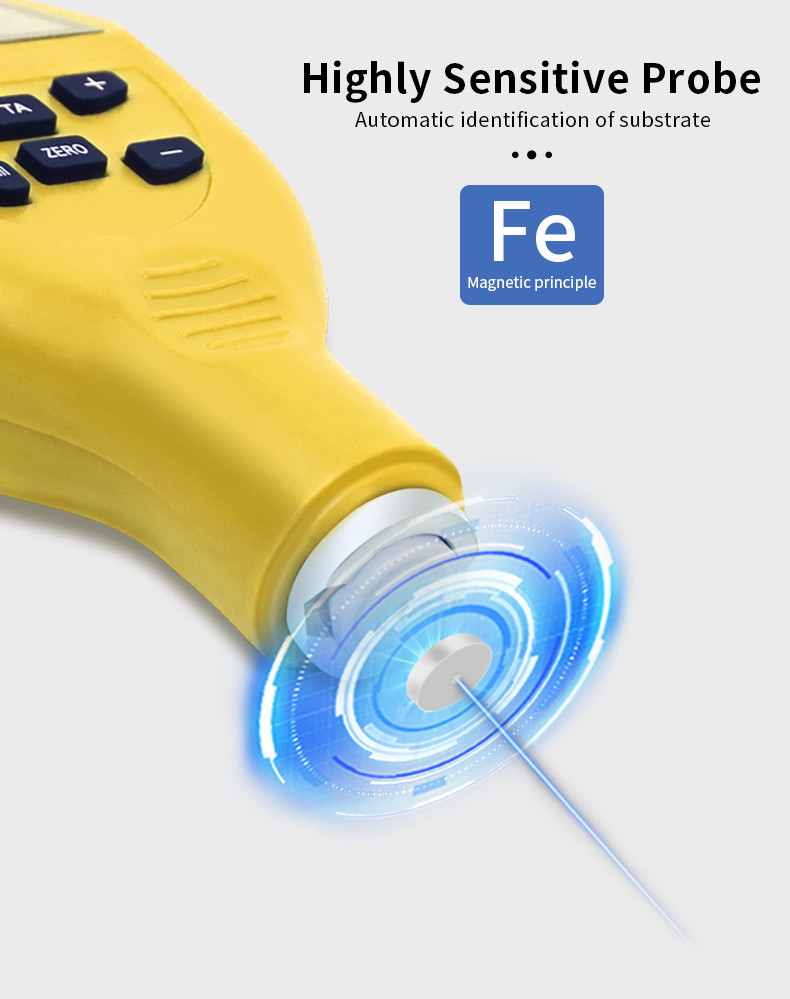

DR220 Coating thickness gauge ,test Magnetic thickness method, can be nondestructively measuring magnetic metal matrix ( such as: steel, iron, nickel ) on non magnetic coatings thickness ( such as: galvanized, chrome, paint, electrophoresis, enamel, rubber, powder coating, enamel, etc.)

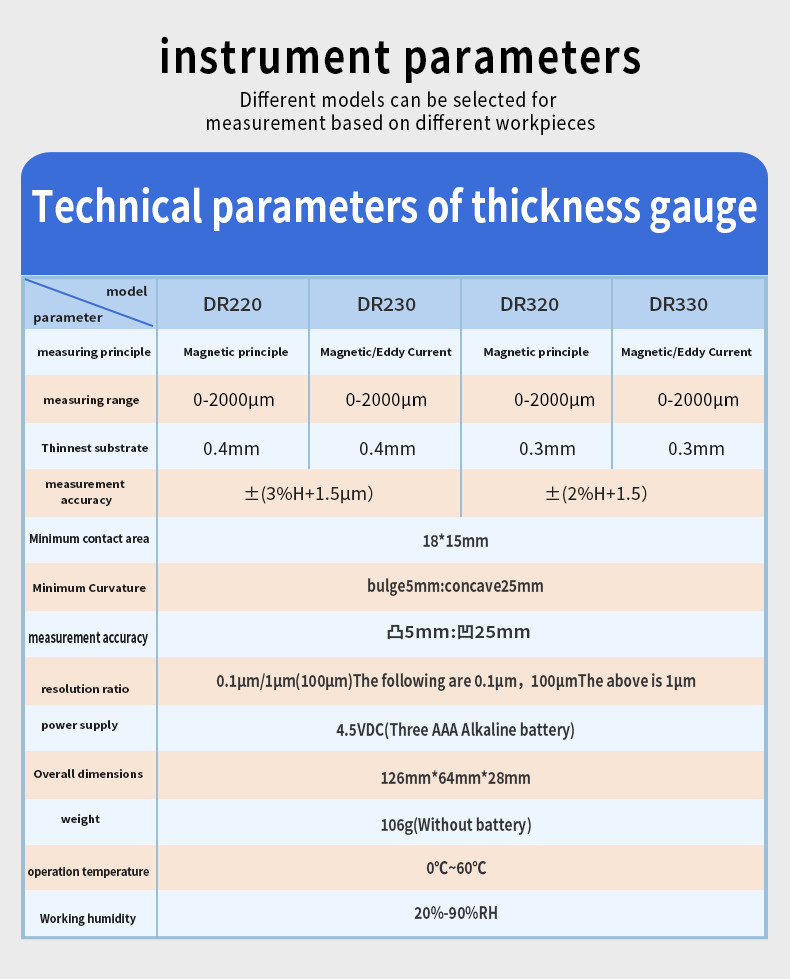

PRODUCT SPECIFICATIONS

Measuring range	0-2000μm/3000μm
Using environment	0℃-50℃ and 20%RH—90%RH,not strong magnetic place.
the thinnest matrix	0.4mm
measurement accuracy	±（3%H+1.5μm）
resolution ratio	0.1μm /1μm
minimum curvature	convex 5mm concave25mm
minimum matrix	18*15mm
power	three (7) alkaline battery
size	126mm64mm28mm
weight	106G (excluding battery)

FAQ

Q1：Are you a factory or trading company?

A1：We are a factory.

Q1：MOQ?

A1：We dont have MOQ limit, you can order any quantity you want. If you need scales with your specification, logo, packing,etc,please negotiate with us.

Q1：Can I add my logo on the machine?

A1：Yes,OEM is available for us.But you should send us the Trademark authorization letter.

Q1：Do you have inspection procedures for these machine?

A1：100% self-inspection before packing

Q1：Payment Method?

A1：L/C at sight, T/T, Western Union and Paypal are all available. 30% deposit T/T in advance, rest against the Shipping Doc. 100% T/T in advance for sample order.

Q1：Shipping?

A1：

a. International Experess: DHL/TNT/FEDEX/UPS (For sample) b. By air (For sample orders.) c. By sea (15-45days), port of loading: Guang zhou d. By domestic logistics to your forwarder. (2-3days)
