DR380 High Precision Coating Thickness Gauge Measuring Instrument

Name: DR380 High Precision Coating Thickness Gauge Measuring Instrument
Brand: Guangzhou Dongru Electronic Technology Co., Ltd.
SKU: Tradewheel_2542750
Price: 261 USD
Availability: InStock

FOB Price 261 - 302 USD / pieces

Contact Now

Quick Details (View All)

Warranty	1 Year	Place of Origin	Guangdong, China
Brand Name	DONGRU	Model Number	DR380

Product Details

Product Overview

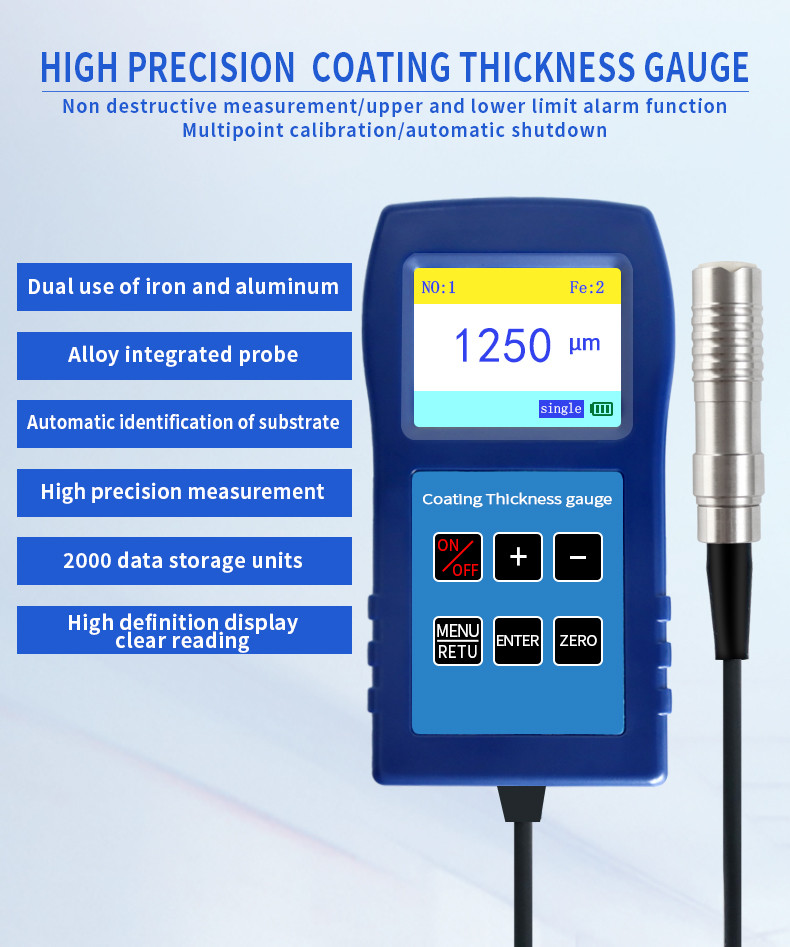

Coating Thickness Gauge

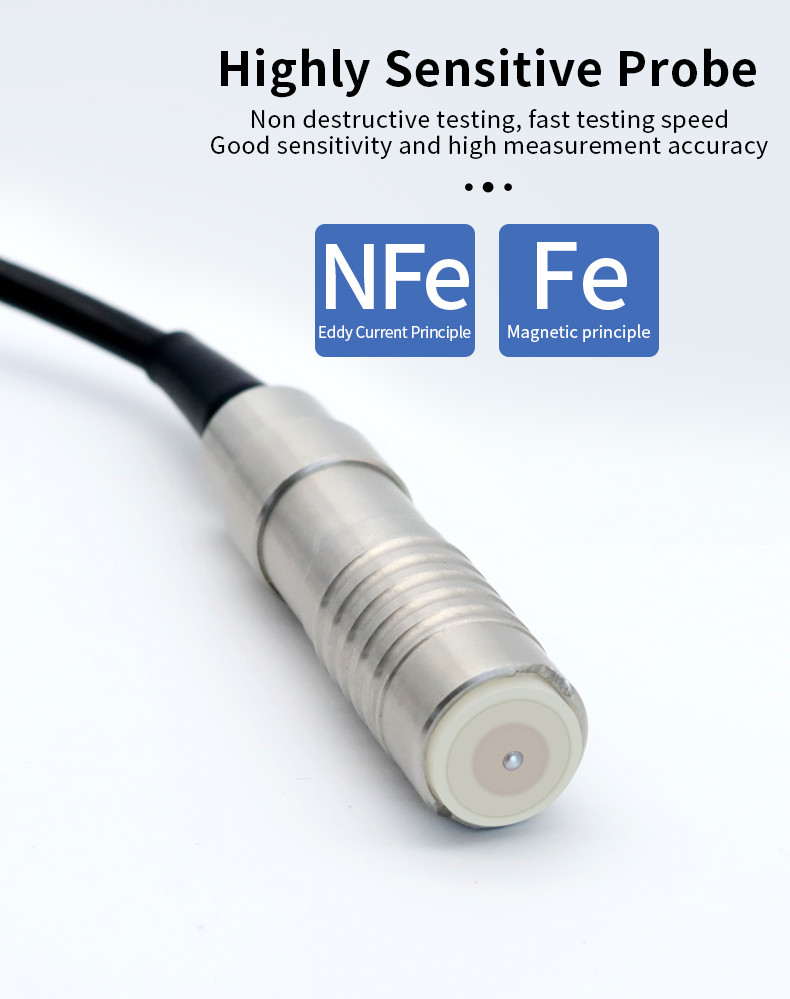

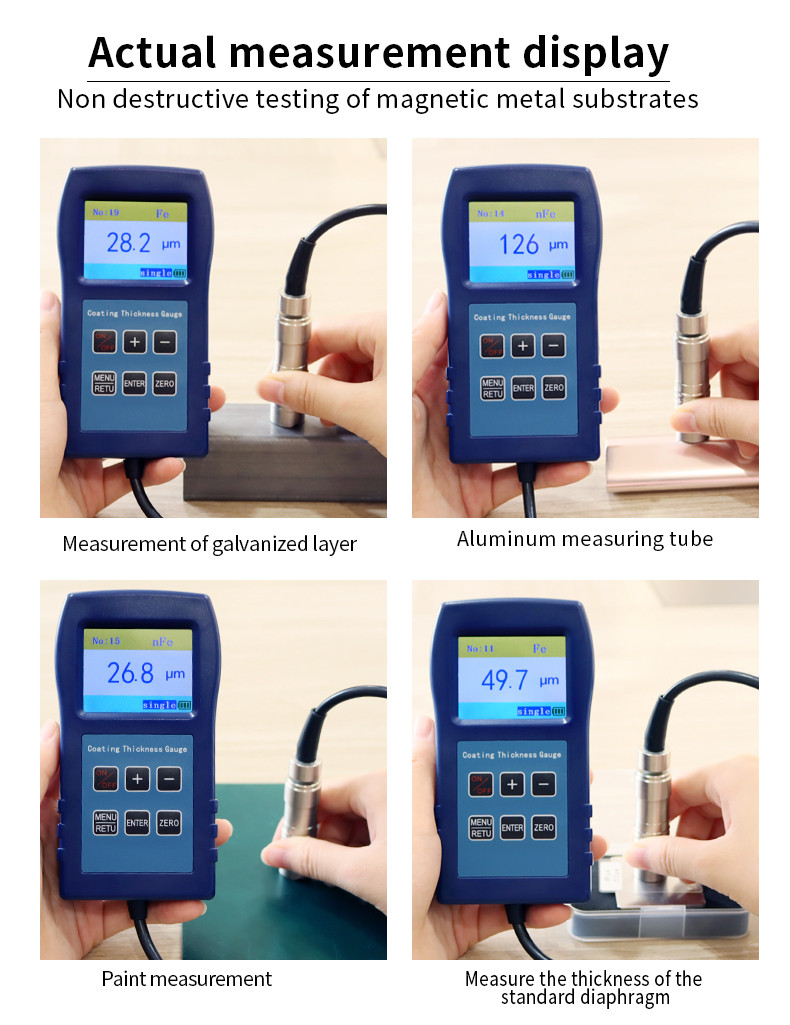

DR380 Coating thickness gauge is a professional non-destructive testing instrument for measuring the thickness of coating on the surface of metal materials and anti-corrosion and fireproof coatings. Different measuring methods are used according to different metal substrates. A. Magnetic thickness measurement method can be used to measure the thickness of non-magnetic coating on magnetic metal substrate (such as steel and iron) without damage (such as zinc plating, chromium, Gu, enamel, rubber, powder, paint, electrophoresis, enamel, plastic spraying, coating, anti-corrosion and fireproof coating, etc.). B.Eddy current thickness measurement method can measure the thickness of non-conductive coating on non-magnetic metal substrate (such as aluminum, copper, stainless steel) non destructively (such as paint, powder, plastic, rubber, enamel, enamel, electrophoresis, etc.). Application: Widely used in coating industry, manufacturing industry, metal processing industry, chemical industry, commodity inspection and other testing fields.

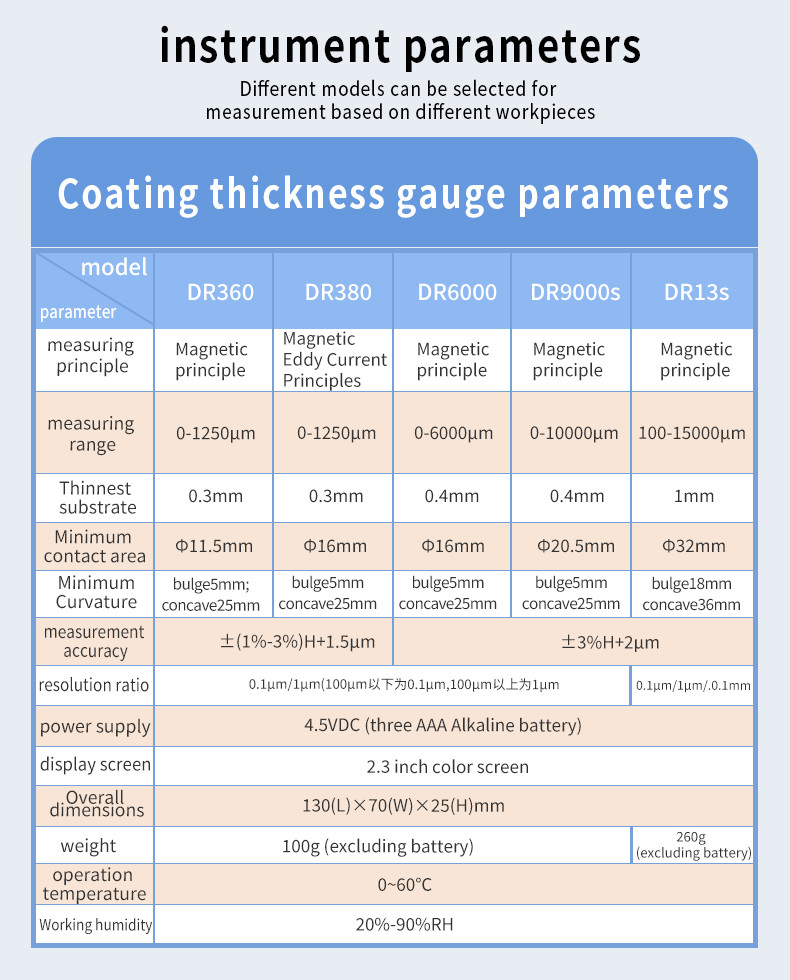

PRODUCT SPECIFICATIONS

Measuring range	0-1250μm
Minimum contact area	Φ16mm
Measurement accuracy	±(1%-3%)H＋1.5μm
Thinnest substrate	0.3mm
Minimum Curvature	Convex 5mm; concave 25mm
Resolving power	0.1μm /1μm
power source	three alkaline batteries
Size	130（L）×70（W）×25（H）mm

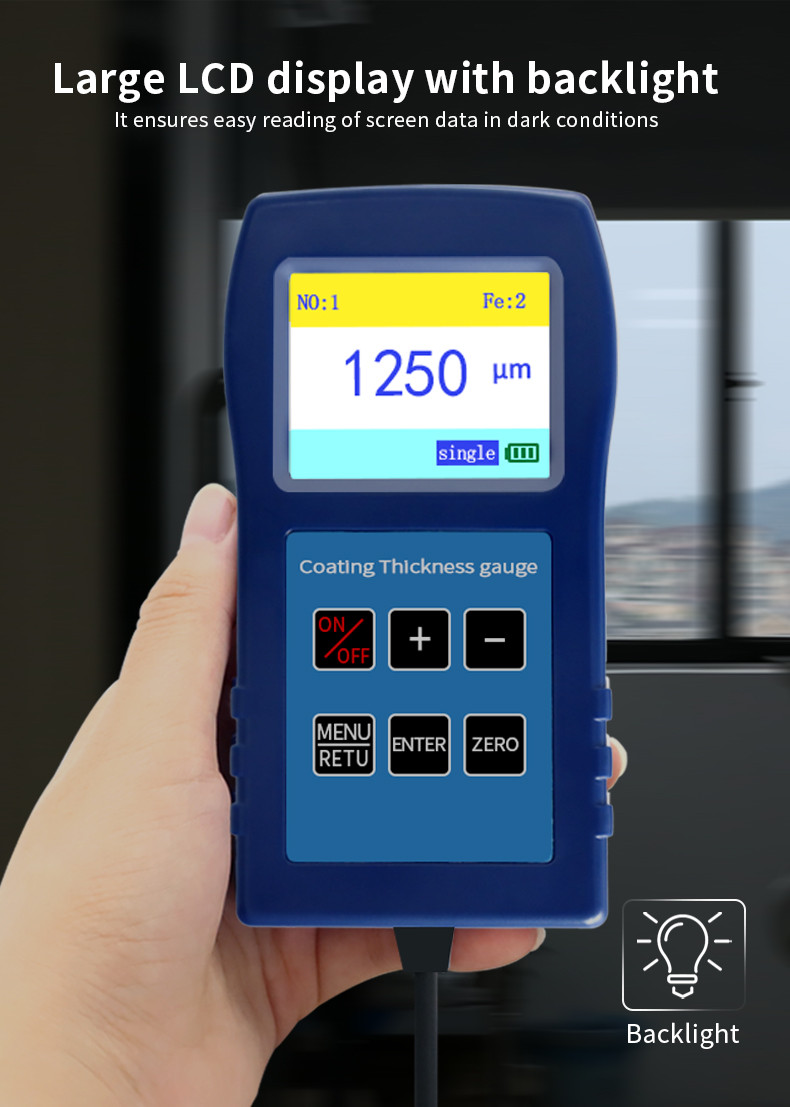

Display	2.3 inch color screen
Weight	100g
Using environment	0℃-60℃and 20%RH—90%RH,not strong magnetic place.

FAQ

Q1：Are you a factory or trading company?

A1：We are a factory

Q1：MOQ?

A1：We dont have MOQ limit, you can order any quantity you want. If you need scales with your specification, logo, packing,etc,please negotiate with us.

Q1：Can I add my logo on the machine?

A1：Yes,OEM is available for us.But you should send us the Trademark authorization letter.

Q1：Do you have inspection procedures for these machine?

A1：100% self-inspection before packing

Q1：Payment Method?

A1：L/C at sight, T/T, Western Union and Paypal are all available. 30% deposit T/T in advance, rest against the Shipping Doc. 100% T/T in advance for sample order.

Q1：Shipping?

A1：

a. International Experess: DHL/TNT/FEDEX/UPS (For sample) b. By air (For sample orders.) c. By sea (15-45days), port of loading: Guang zhou d. By domestic logistics to your forwarder. (2-3days)
