DR360 Surface Coating Thickness Gauge Meter Digital Coating Thickness Gauge

Name: DR360 Surface Coating Thickness Gauge Meter Digital Coating Thickness Gauge
Brand: Guangzhou Dongru Electronic Technology Co., Ltd.
SKU: Tradewheel_2542736
Price: 220 USD
Availability: InStock

FOB Price 220 - 247 USD / pieces

Contact Now

Quick Details (View All)

Warranty	1 Year	Place of Origin	Guangdong, China
Brand Name	DONGRU	Model Number	DR360

Product Details

Product Overview

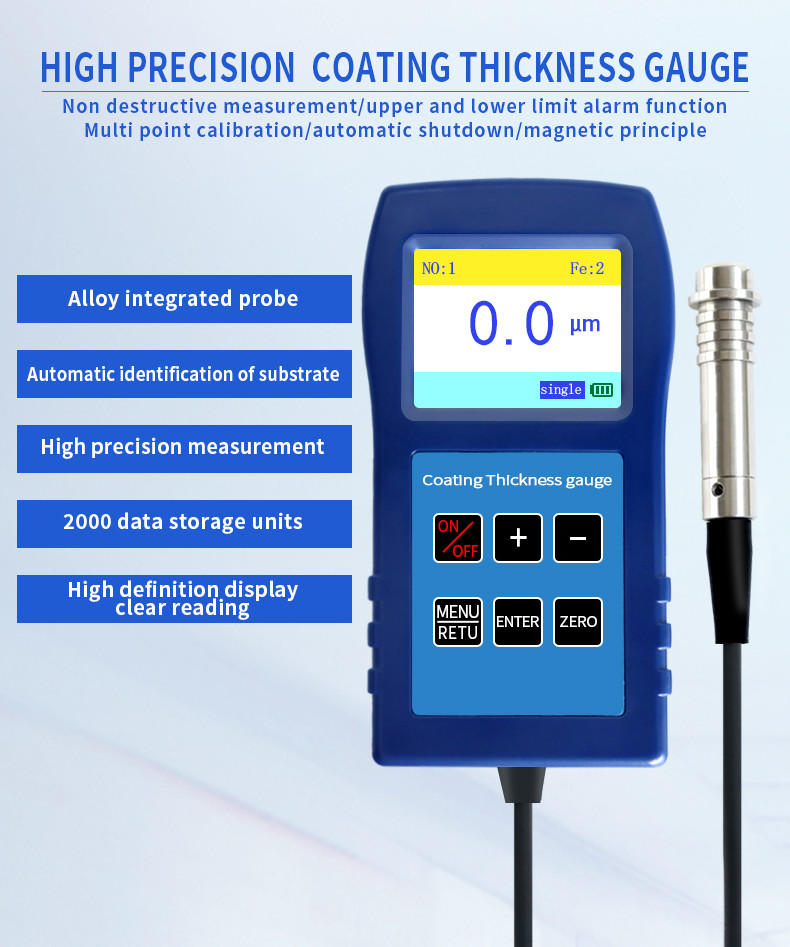

Coating Thickness Gauge

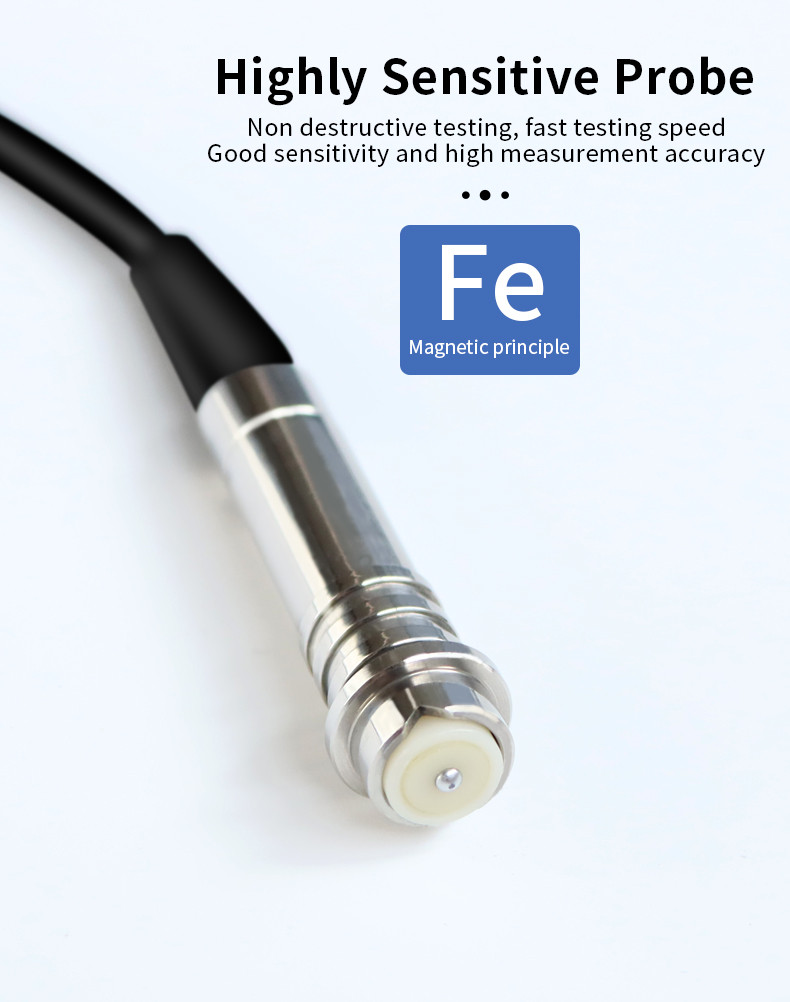

DR360 coating thickness gauge is a professional non-destructive testing instrument used to measure the thickness of nonmagnetic coatings and coatings on the surface of magnetic metal materials such as steel. Use the principle of magnetic induction measurement for fast non-destructive measurements.

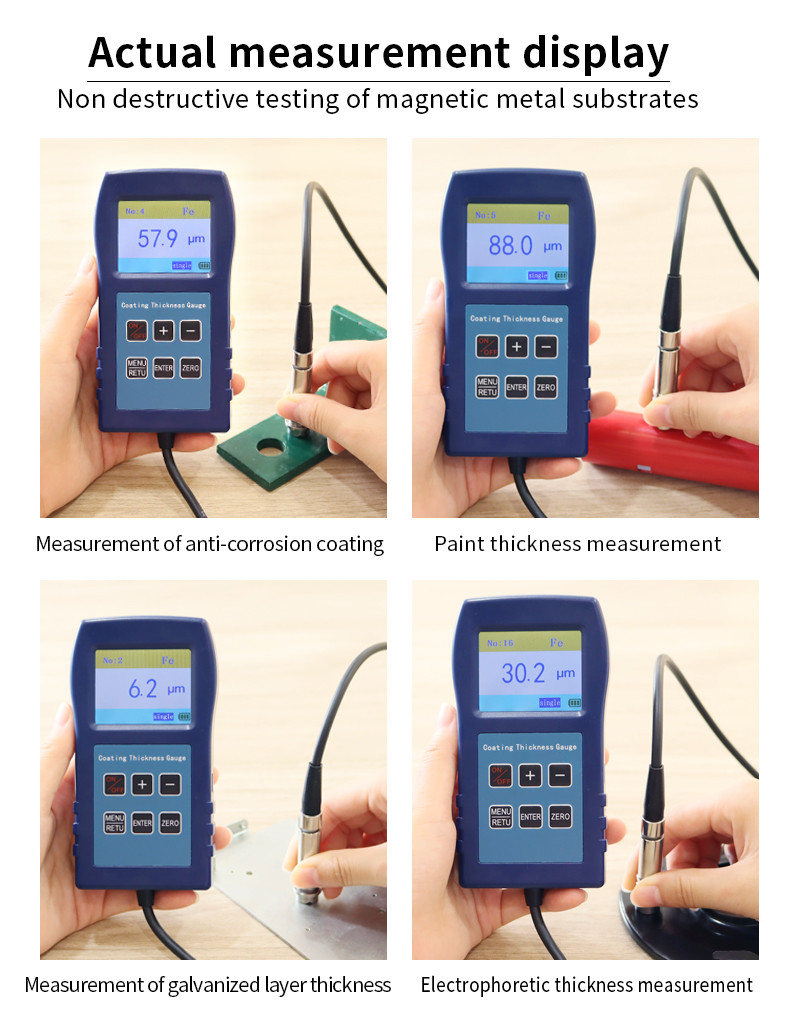

Magnetic thickness measurement method can be used to measure the thickness of non-magnetic coating on magnetic metal substrate (such as steel and iron) without damage (such as zinc plating, chromium, Gu, enamel, rubber, powder, paint, electrophoresis, enamel, plastic spraying, coating, anti-corrosion and fireproof coating, etc.). Application: Widely used in coating industry, manufacturing industry, metal processing industry, chemical industry, commodity inspection and other testing fields.

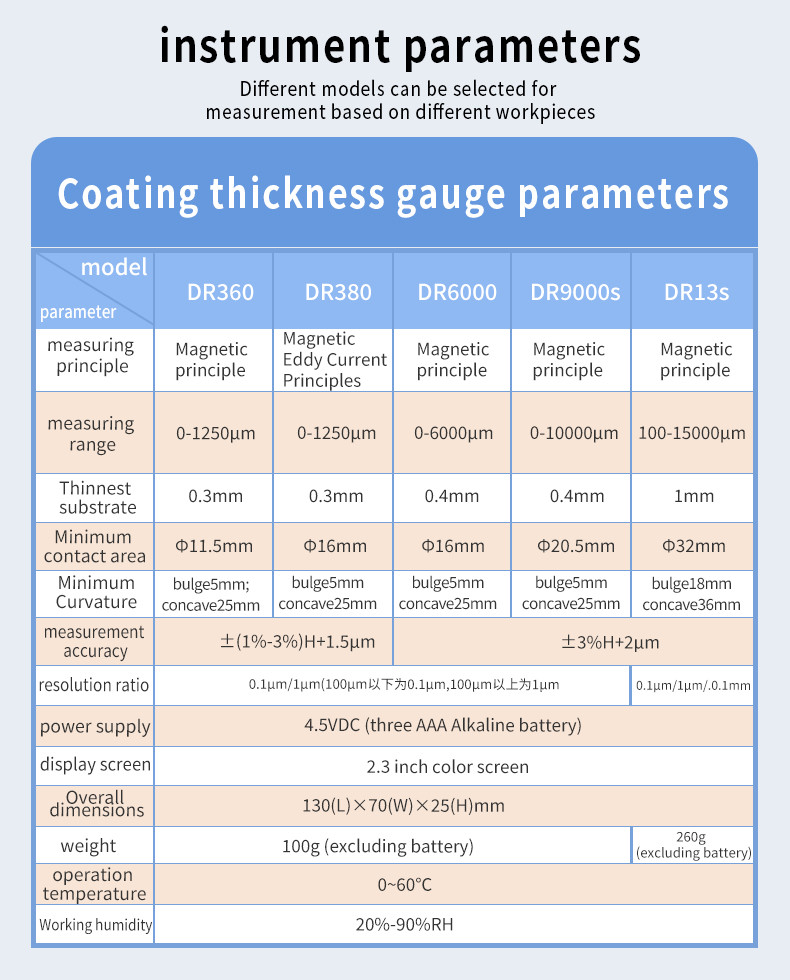

PRODUCT SPECIFICATIONS

Measuring range	0-1250μm
Minimum contact area	Φ11.5mm
Measurement accuracy	±(1%-3%)H＋1.5μm
Thinnest substrate	0.3mm
Minimum Curvature	Convex 5mm; concave 25mm
Resolving power	0.1μm /1μm
power source	three alkaline batteries
Size	130（L）×70（W）×25（H）mm

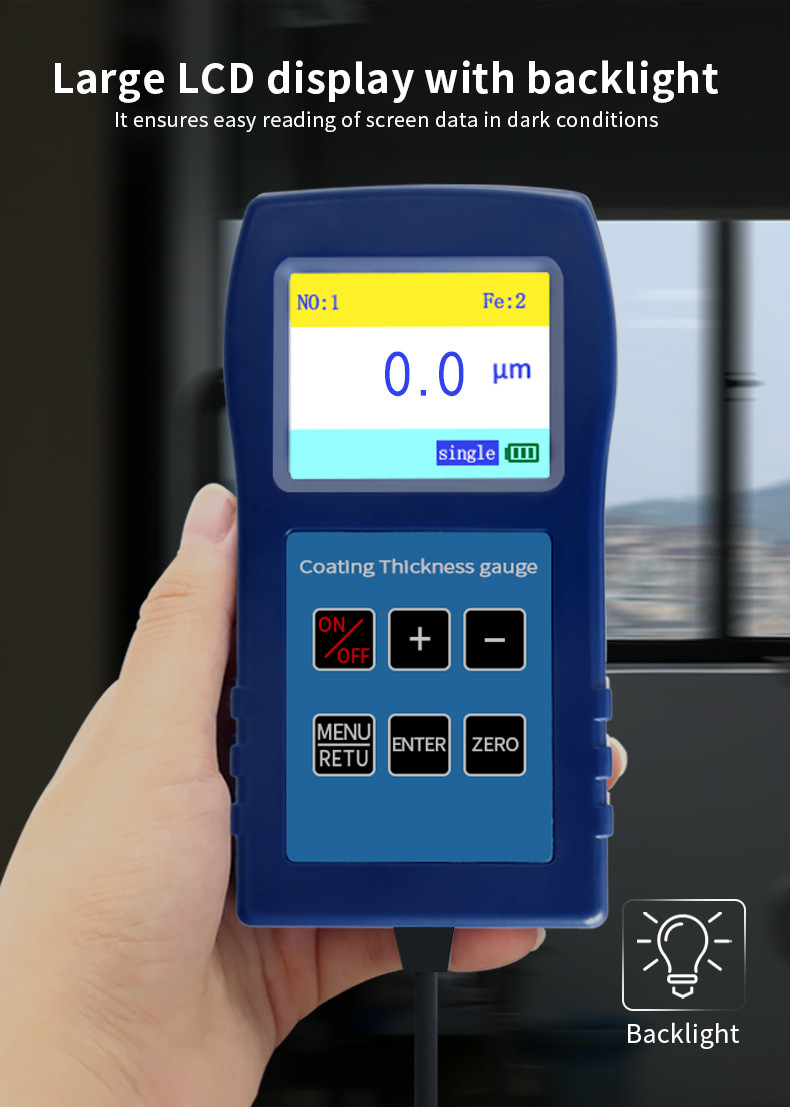

Display	2.3 inch color screen
Weight	100g
Using environment	0℃-60℃and 20%RH—90%RH,not strong magnetic place.

FAQ

Q1：Are you a factory or trading company?

A1：We are a factory

Q1：MOQ?

A1：We dont have MOQ limit, you can order any quantity you want. If you need scales with your specification, logo, packing,etc,please negotiate with us.

Q1：Can I add my logo on the machine?

A1：Yes,OEM is available for us.But you should send us the Trademark authorization letter.

Q1：Do you have inspection procedures for these machine?

A1：100% self-inspection before packing

Q1：Payment Method?

A1：L/C at sight, T/T, Western Union and Paypal are all available. 30% deposit T/T in advance, rest against the Shipping Doc. 100% T/T in advance for sample order.

Q1：Shipping?

A1：

a. International Experess: DHL/TNT/FEDEX/UPS (For sample) b. By air (For sample orders.) c. By sea (15-45days), port of loading: Guang zhou d. By domestic logistics to your forwarder. (2-3days)
