Skl3 Rail Fastening System

Name: Skl3 Rail Fastening System
Brand: Shanghai Suyu Railway Material Co., Ltd
SKU: Tradewheel_2523303
Price: 5.8 USD
Availability: InStock

FOB Price 5.8 - 6.2 USD / pieces

Contact Now

Quick Details (View All)

Model NO.	SKL3, W3	Transport Package	Woven Bags & Pallets
Specification	SKL3, W3	Trademark	SUYU or customized
Origin	China	HS Code	73029090
Production Capacity	100000PCS/Per Day

Product Details

Product Description

Company Info.

Product Description

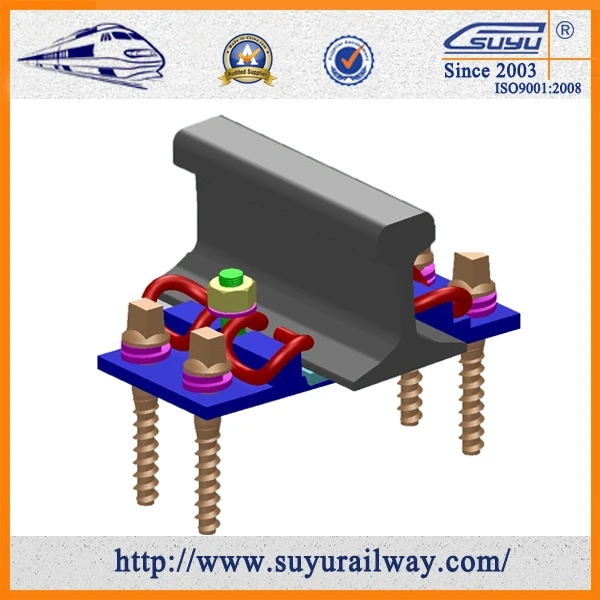

SKL3/W3 rail fastening system

Suyu Railway is your specialist for rail fastening system.

As a typical type of SKL rail fastening system, SKL 3 rail fastening system is normally used in the ballast less track, which belongs to the separate rail fastening system of sleeper track plate without concrete retaining shoulder.

Mainly used in Europe, Middle Asia, Russia, South America, Latin America .

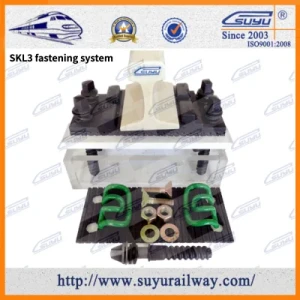

One complete set includes 4 pcs SKL 3 rail tension clips, 4 pcs T-bolts, 2 pcs tie plates and pads, 2 pcs rail pads, 8pcs screw spikes, 8 pcs flat washers, 8 pcs nuts , 8 pcs spring washers and 8 pcs plastic dowels.

Products Parameters

Technical Specification of W3 Fastening system

	SKL tension clip	Ss35 screw spike	Flat washer	Plastic dowel	Guide plate	Rail pad
Pieces required	4	8	4	8	2	2
Material	60Si2CrA, 60Si2CrA, 38Si7	Grade 4.6: Q235; Grade 5.6: 35# Grade 8.8: 45#	Q235	HDPE, Reinforced Nylon 66 (PA66)	Reinforced Nylon 66 (PA66)	EVA, or rubber
Size	skl1,skl3,skl12,skl14	M24×150mm	Uls7	For different sizes of screw spike	UIC54, UIC60, 50kg rail, 60kg rail, and other sizes as ordered
NOTE	Hardness: 42-47HRC 5 millions cycles without breaking. Standard: DIN17221, GB/T1222	Standard: ISO898-1, UIC864-1 and NF F500-50	Standard: EN10025, EN10139	To insert into concrete sleeper	Customized products available.

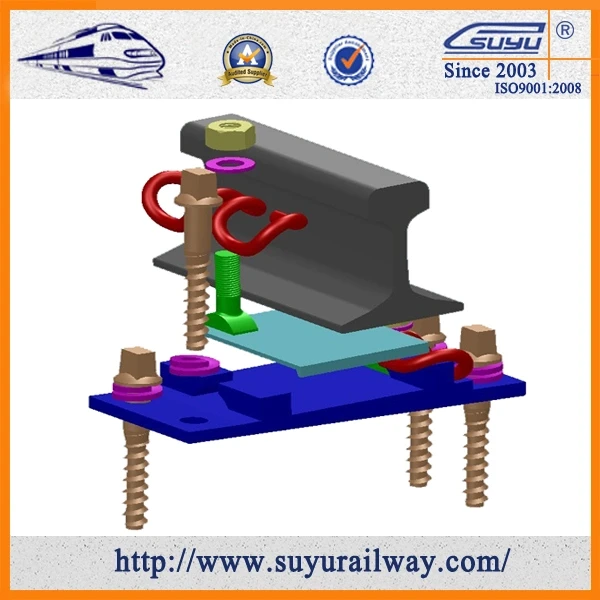

The complete SKL fastening system for each sleeper consists of the following components

4 pcs Screw spike
4 pcs Spring washer
4 pcs Concrete insert /Plastic dowel
4 pcs T Bolt HS32/26-M22
4 pcs Nut M22
4 pcs Flat washer
4 pcs SKL3 tension clip
2pcs Guide plate
2 pcs Rail pad
2 pcs Base Plate
