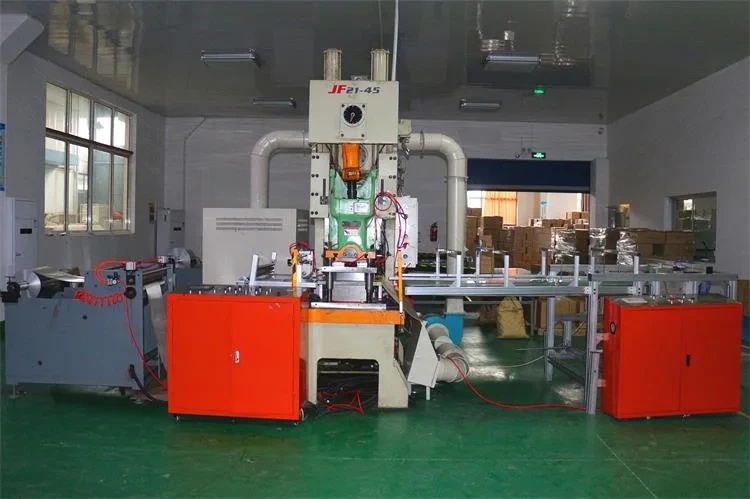

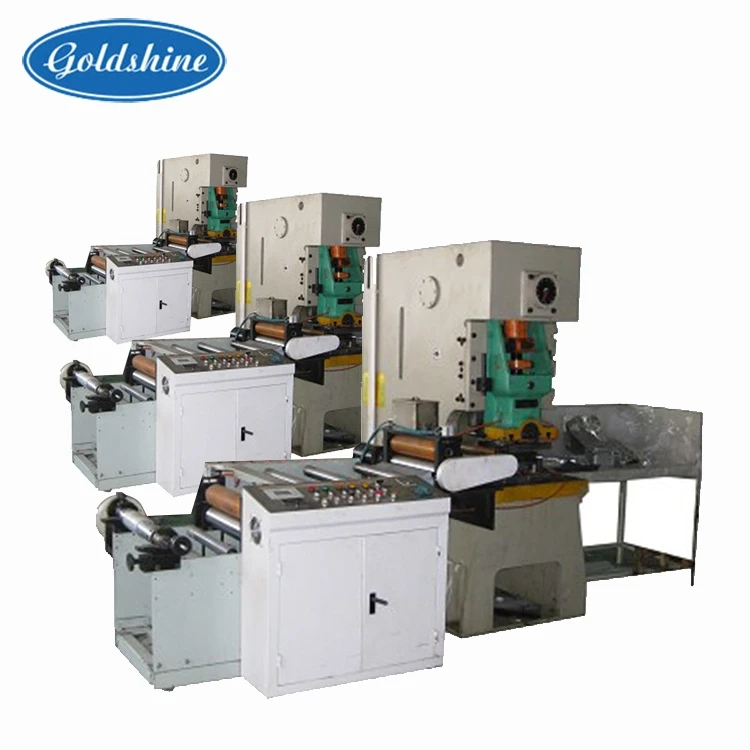

Production Line of Aluminium Foil Container Making Machine (JF21-80)

Aluminium Foil Tray Making Machine

If you are interested in it, please dont hesitate to contact us.
1. Auto Feeder (with an auto-lubricator)
2. Electrical control panel
3. Air output control equipment
4.80ton pneumatic press
5. Mould
6. Auto-stacker or conveyor(including scrap collector)
7. Collection desk
*
Model: JF21-80
Nominal PRESSURE(KN): 800
Slide Block Stroke(mm): 140-260mm(5.5" -10.24" )
Slide Stroke Per Minutes: 60-45
Maximum Die Set Height(mm): 325-450(12.7" -17.74" )
Die Set Height Adjustment(mm)80mm(3.14" )
Slide Bottom Size(mm): 560*460mm(22" *18.1" )
Stemhole Size(mm): 60*75mm(2.36" *2.36" )
Bolster Surface Size(mm) 100*680/1200*800mm(39.3" *23.6" /47.2" *31.4" )
Total Power(KW): 7.5
Weight(Kg): 8000-9000
Overall Dimension Before Changed(mm):
2000*1300*2900mm(78.7" *51.1" *114" )
Overall Dimension After Changed(mm): 2200*1450*3100mm(86.6" *57" *122" )
1)Main advantages:

1. JH21-Series Aluminum Foil Container Production Line (Upgraded Model) is composed of auto-lubricated feeder, length controller, control panel, Pneumatic punch, mould (price is not included), conveyor(including scrap collector), collecting table of finished product, and scrap presser (optional equipment). And its speed depends on containers size and complexity. It can be equipped with multi-cavity moulds.

2. It adopts the electrical stepping system (can be replaced by PLC controller as customers requirement) to realize the function of positive and negative rotary of motor. With the adoption of double electromagnetism valves and pressure relay, the operational safety is guaranteed. Safe and reliable. Feeding length and production speed and other parameters simply setting, Gas/electrical integration, centralized control. Full Automatic production, only need people collect products

3. The frames of equipmints are made of the holstic steel which has the advantages of high rigidity and reasonable structure. Thanks to inside installation of driving system, the layout of the equipment is compact. With the adoption of dry friction clutch, the slide area can stop instantly at any height.

4. Working of feeding, stamping, waste collection, products send out from mould for automation

5. And the punch can realize the function of single-stroke, inching motion and continuous action, which is beneficial to regulate the mould position and improve the processing precision.

6. As customers requirement, the eletrical stepping system can be replaced by a PLC controller, which work better. It also can adopt the light screen protective device, so it is a safe press.

7. This production line adopts the independent removable panel which is colorful, convenient and has nice layout.

8. Feeding system employ stepping control, feeding length without error, length can accurate 30mm to 999mm by arbitrary setting.

2)Aluminum foil container machine composed of the followings:

1. Auto Feeder (with an auto-lubricator)
2. Electrical control panel
3. Air output control equipment
4.60 ton pneumatic press
5. Mould
6. Auto-stacker or conveyor(including scrap collector)
7. Collection desk

3)Main Features:

(1) This production line can work automatically. Worker control and regulate this production line through electric control panel.
(2) The width of decoiler is about 550mm.
(3)The feeding system control feeding length and stepping by computer, which assure a high-precision steps.
(4)We can design and manufacture different machines on request. There is some difference in machines outer-appearance.
(5)The press may be equipped with single cavity or multi-cavity moulds for wrinkle-wall or smooth-wall container production.
