Automatic Aluminium Foil Container Making Machine

Automatic Aluminium Foil Container Making Machine

1 High speed,
2. CE certificate
3. Operated easily,
4. Warranty times: 1year

Product Description

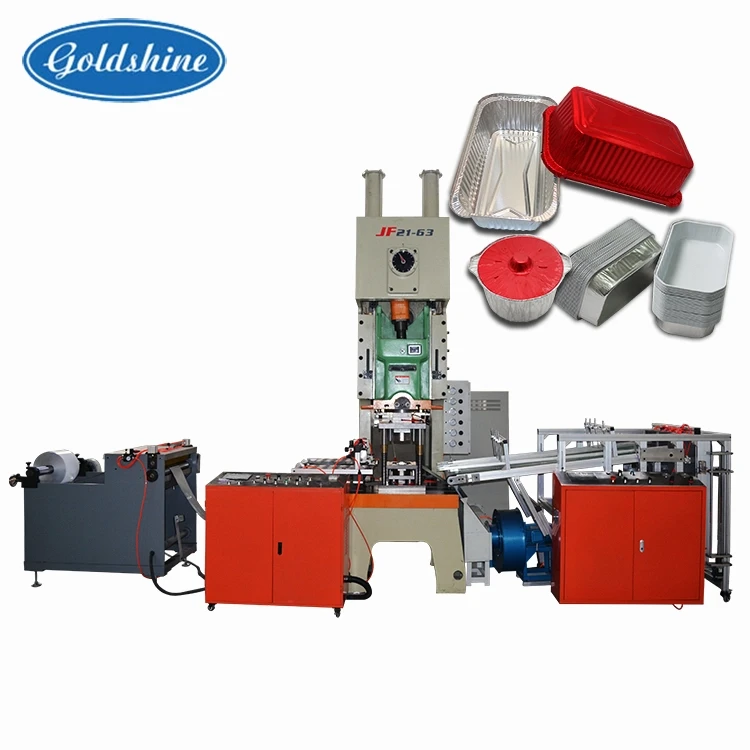

Disposable aluminium foil container making machine CTJF-63T can produce aluminium foil food containers, dishes and trays. The working speed of making machine CTJF-63T is 50-70 PCS/min, and its speed depends on containers size and complexity.

Disposable aluminum foil container making machine CTJF-63T is composed of the followings:
1. Decoiler (with an auto-lubricator)
2. Electrical control panel

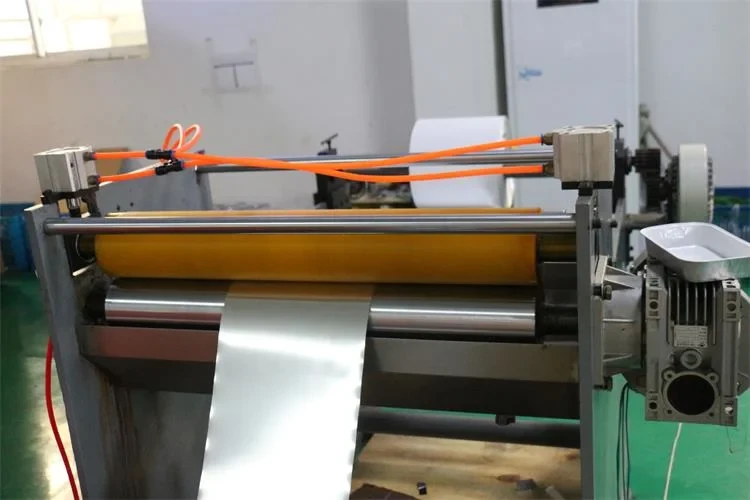

3. Foil feeder
4.63 ton pneumatic press

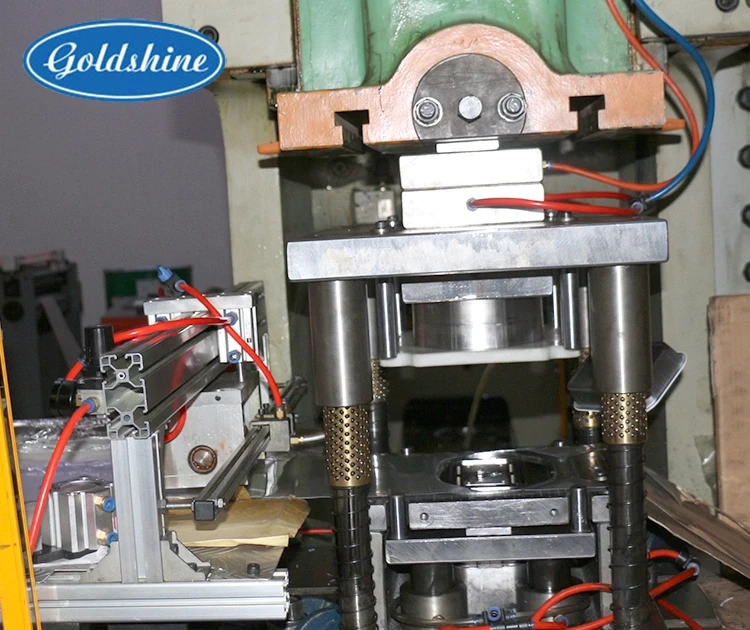

5. Aluminium foil container mould

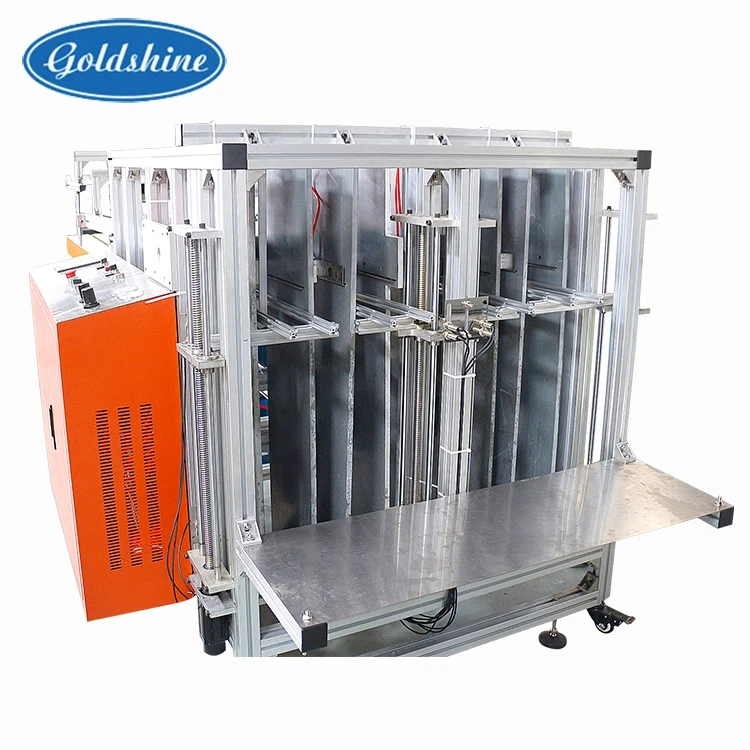

6. Container collector(semi-auto or full-auto)
7. Collection desk







Main Features:
(1)This full making machine work automatically. Worker control and regulate this plant through electric control panel, including the air-pressure and electricty.
(2)The Max. Width of decoiler is about 650mm. The Max. Diameter of foil roll is 600mm.
(3)There is an auto-lubricator on the feeder, which can lubricate aluminium foil automatically.
(4)The foil feeder provides the supply of right quantity and length of aluminium foil, and it is controlled by computer, which assure a high-precision step.
(5)The press can be equipped with single cavity or multi-cavity moulds for producing wrinkle-wall or smooth-wall container. It is equipped with a mould lifter which can lift and low the mould automatically when change a mould.
(6)We can design and manufacture different machines on different customers request.
The working flow of making machine CTJF-63T:
Aluminium foil roll---decoiler---foil feeder---63T pneumatic press---mould---container collector--- collection desk
