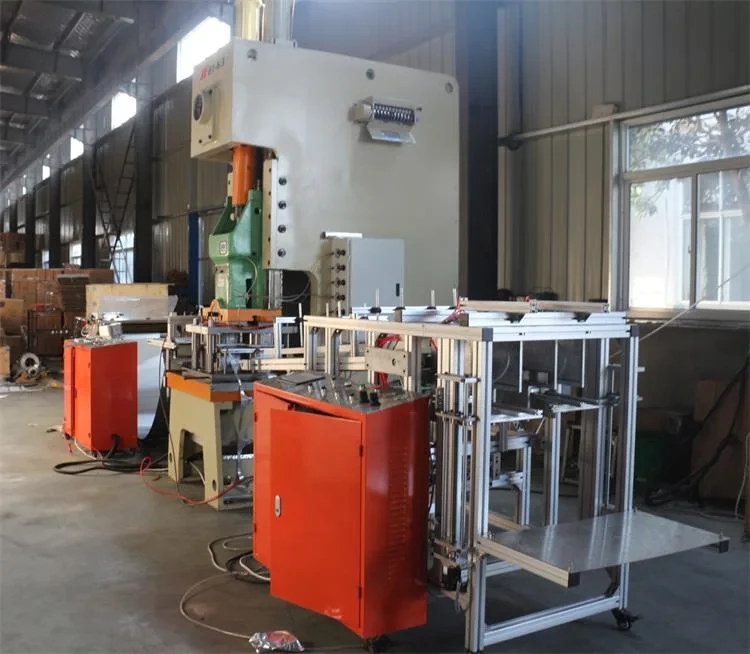

Airline Tray Making Machine
Line
1. This machine adopts Siemens CPU216 programmable logic
controller(PLC) as the controlling system, it is reliable.
The Feeding length, producing speed and other parameter are
easily set, it is integration of Gas&Electrical,
centralized control, automated production.
2. Feeding, punching, scrap collecting is running
automatically.
3. The accurate press adopts steel plates joining body,
variable frequency speed regulation, dry type friction clutch
to clutch-on-off, rigid over-load protector to protect the
press. In short, this is a high accuracy and reliability
press.
4. Feeding is controlled by stepper system, the feeding
length is accurate and can be adjusted from 20mm to
999mm.
Product Description
Disposable aluminium foil container making machine CTJF-63T
can produce aluminium foil food containers, dishes and trays.
The working speed of making machine CTJF-63T is 50-70
PCS/min, and its speed depends on containers size and
complexity.

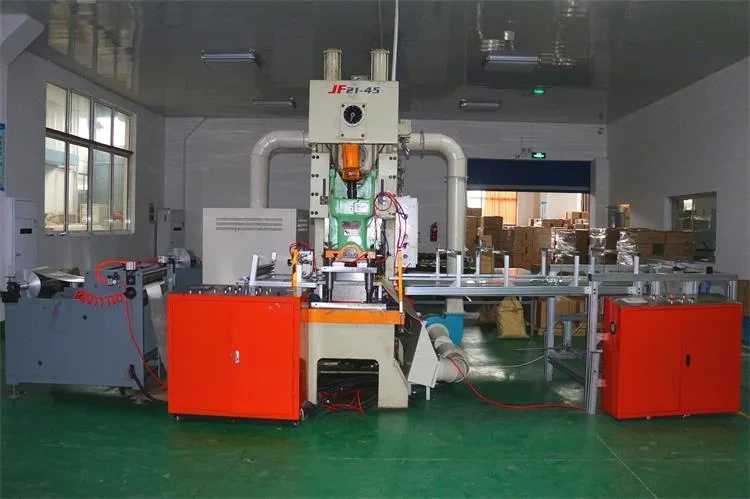

Disposable aluminum foil container making machine CTJF-63T is
composed of the followings:
1. Decoiler (with an auto-lubricator)
2. Electrical control panel
3. Foil feeder
4.63 ton pneumatic press
5. Aluminium foil container mould
6. Container collector(semi-auto or full-auto)
7. Collection desk
Main Features: (1)This full making machine work
automatically. Worker control and regulate this plant through
electric control panel, including the air-pressure and
electricty.
(2)The Max. Width of decoiler is about 650mm. The Max.
Diameter of foil roll is 600mm.

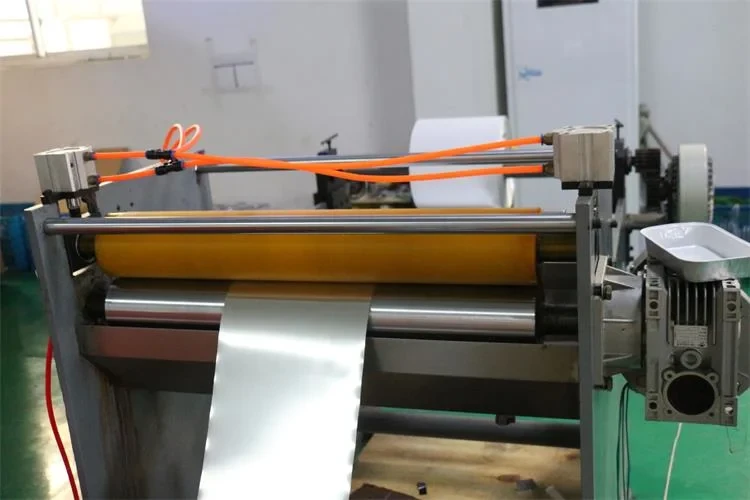

(3)There is an auto-lubricator on the feeder, which can
lubricate aluminium foil automatically.
(4)The foil feeder provides the supply of right quantity and
length of aluminium foil, and it is controlled by computer,
which assure a high-precision step.
(5)The press can be equipped with single cavity or
multi-cavity moulds for producing wrinkle-wall or smooth-wall

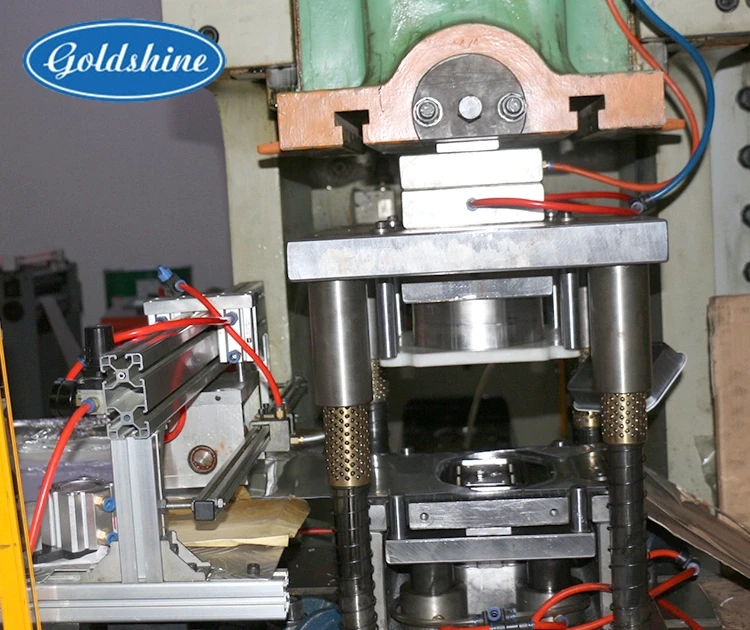

container. It is equipped with a mould lifter which can lift
and low the mould automatically when change a mould.
(6)We can design and manufacture different machines on
different customers request.

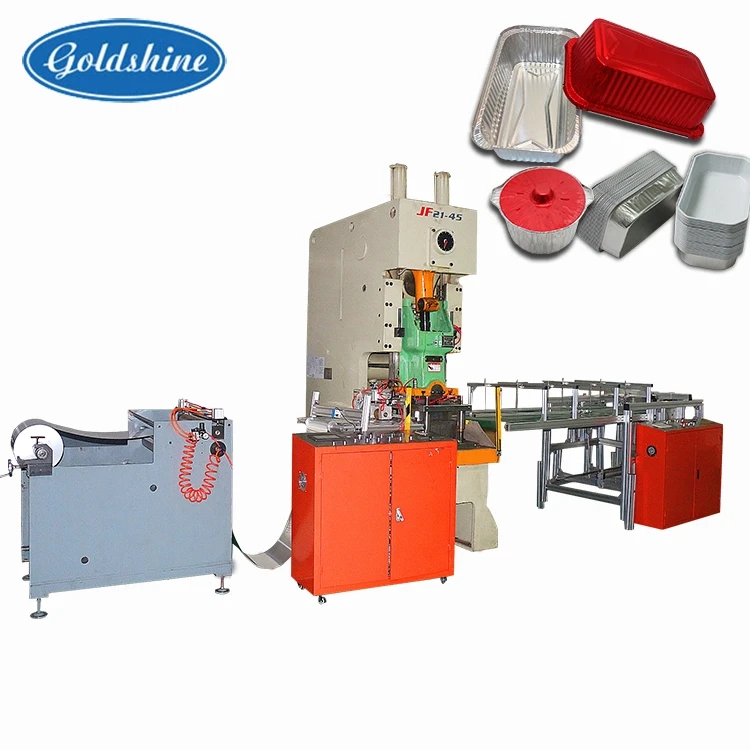

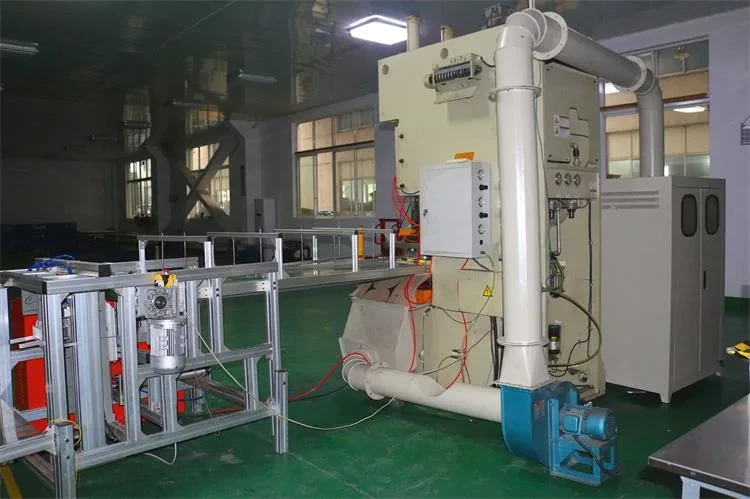

The working flow of making machine CTJF-63T: Aluminium foil
roll---decoiler---foil feeder---63T pneumatic
press---mould---container collector--- collection desk
Model
|
JF21-63
|
Nominal PRESSURE(KN)
|
630
|
Slide Block Stroke(mm)
|
120-260mm(4.72" -10.24" )
|
Slide Stroke Per Minutes
|
70-50
|
Maximum Die Set Height(mm)
|
310-450(12.2" -17.71" )
|
Die Set Height Adjustment(mm)
|
70mm(2.76" )
|
Slide Bottom Size(mm)
|
480*400mm(18.9" *15.75" )
|
Stemhole Size(mm)
|
φ 60*65mm(2.36" *2.56" )
|
Bolster Surface Size(mm)
|
870*520/1000*800mm(34.25" *20.47" /39.37" *31.5" )
|
Total Power(KW)
|
5.5-7.5
|
Weight(Kg)
|
5500-6300
|
Overall Dimension Before Changed(mm)
|
1610*1200*2500mm(63.39" *47.24" *98.43" )
|
Overall Dimension After Changed(mm)
|
1800*1300*2700mm(70.87" *51.18" *106.3" )
|
