MOQ | 25 ton |
Port | Tianjin port , China |

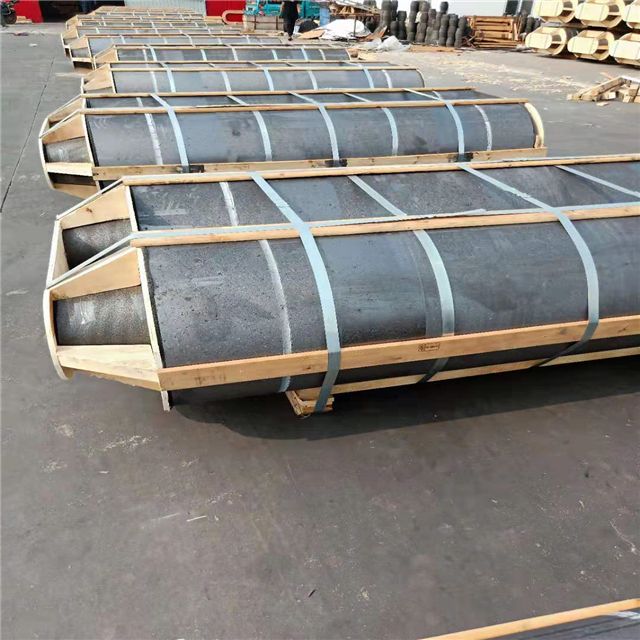

Packaging | wooden pallet with steel belt |
Lead Time | 7 days |
needle coke material | good consume | low ash | low resistance |
Jilin graphite electrode factory produce export sales RP 200mm for EAF LRF
1.Product Description:
Artificial graphite electrode is made of high-quality low ash materials, such as petroleum coke, needle coke and coal pitch.after calcining,burdening,kneading,forming,baking and pressure impregnation, graphitization and then precision machined with professional CNC machining. The graphite electrode type is RP / HP / UHP power grade.
2.The graphite / carbon electrode is used for electric arc furnace and smelting furnace ( EAF LF ).
3.. Graphite electrode low resistivity, good electrical conductivity ,low ash, compact structure,good anti oxidation and high mechanical strength.2.Graphite electrode advantage:
4.Graphite electrode size detail:
RP / HP / SHP / UHP Graphite electrode | ||||||
Standard sizes of electrode | ||||||
Specification ( Inch ) | Allow Diamater (mm) | Allowable Length (mm ) | ||||
|
Nominal Diamater | Max | Min | Nominal Length | Max | Min |
6 | 150 | 154 | 151 | 1600 | 1700 | 1500 |
1800 | 1875 | 1700 | ||||
8 | 200 | 205 | 200 | 1600 | 1700 | 1500 |
1800 | 1875 | 1700 | ||||
9 | 225 | 230 | 225 | 1600 | 1700 | 1500 |
1800 | 1875 | 1700 | ||||
10 | 250 | 256 | 251 | 1600 | 1700 | 1500 |
1800 | 1875 | 1700 | ||||
12 | 300 | 307 | 302 | 1800 | 1875 | 1700 |
14 | 350 | 357 | 352 | 1600 | 1700 | 1500 |
1800 | 1875 | 1700 | ||||
16 | 400 | 409 | 403 | 1600 | 1500 | 1500 |
1800 | 1875 | 1700 | ||||
2100 | 2175 | 1975 | ||||
18 | 450 | 460 | 454 | 1800 | 1875 | 1700 |
2100 | 2175 | 1975 | ||||
2400 | 2475 | 2275 | ||||
20 | 500 | 511 | 505 | 1800 | 1875 | 1700 |
2100 | 2175 | 1975 | ||||
2400 | 2475 | 2275 | ||||
22 | 550 | 562 | 556 | 2100 | 2175 | 1975 |
2400 | 2475 | 2275 | ||||
24 | 600 | 613 | 607 | 2100 | 2175 | 1975 |
2400 | 2475 | 2275 | ||||
2800 | 2850 | 2550 | ||||
28 | 700 | 714 | 708 | 2400 | 2475 | 2275 |
2800 | 2850 |
2550 |
