MOQ | 1 set |
Port | Qingdao |
Lead Time | 30days for production line,7 days for a single machine |
Energy Saving Heat Pump Dryer /Commercial Uniform Air Dryer/Commercial Uniform Air DryerNo-Pollution Air Source Heat Pump Dryer
Quick details
Applications: Condition:new
Agricultural products, food, tea, vegetables, fruits
Type:Drying oven Country of origin:Jinan, China
Brand name:
Jinan xinbeifa machinery equipment co. LTD
Voltage:
220v/380v can be customized according to different customer needs
Power (W) :7.5 kw Dimension (L * W * H)2.2 m * 1.9 m * 2.3 m
Weight:500 kg Certification:CE, ISO
Quality assurance:1 year
After-sales service: provide
Online support, video technical support, free spare parts, on-site installation, debugging training, on-site maintenance and repair services
Installation:Guided by our engineers Operation:Fully automatic
Material:Stainless steel, baking varnish Capacity:Can be customized
Color:Can be customized according to customer requirements
Fuel:electricity Item:air drying clothes machine
Product introducton
Air heat pump dryer is a new type high efficiency energy-saving dryer, its working principle is based on the principle of the reverse carnot cycle, use a small amount of electric energy, using the compressor, the working medium after expansion valve evaporated into gas in the evaporator, and a large number of absorbing heat from the air, gaseous medium by compressor compressed into high temperature and high pressure gas, and then into the condenser heat, heat drying medium, so heating cycle, can put the dry heating medium to 40 ℃ ~ 85 ℃.Compared with electric heating dryer, it saves two thirds of electric energy.
The principle

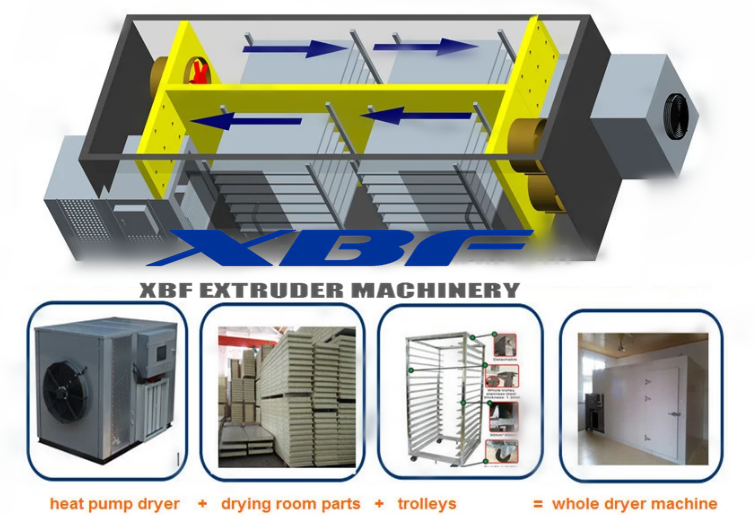

XBF dryer USES heat pump evaporator to absorb heat from the outside air.Or recover the waste heat from the drying process.Through the work of the compressor, the energy transport (transfer) drying box drying box repeated circulation after heating the hot air, absorbing moisture material, its temperature and humidification, through the hot air drainage or condensation process, water from the material, finally realize the continuous drying of materials.
Product Parameters
Vegetable Fruit Fish Grain Small Drying Oven Model:
Model |
XBF-100AB/AB1 |
XBF-100DB1 |
XBF-100GB/GB1 |
Power |
1.0kw |
1.0kw |
1.0kw |
Highest wind tempetature |
65ºC |
65ºC |
80ºC |
Best wind tempetature |
55ºC~63ºC |
35ºC~55ºC |
65ºC~78ºC |
Suitable environmental temperature |
-20ºC~+40ºC |
-20ºC~+40ºC |
-20ºC~+40ºC |
Dewaterability |
≥3.0kg/h (T50ºC,M80%) |
≥3.0kg/h (T50ºC,M80%) |
≥3.0kg/h (T50ºC,M80%) |
Tray Size(mm) |
780*510*40 |
780*510*40 |
780*510*40 |
Size(mm) |
1180*680*1820 |
1180*680*1820 |
1180*680*1820 |

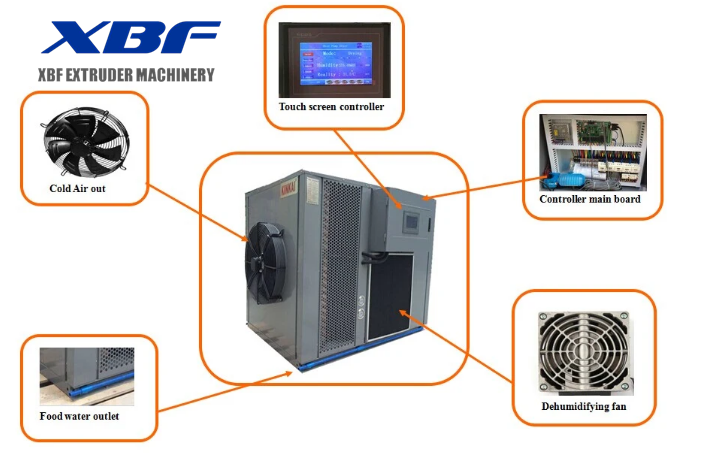

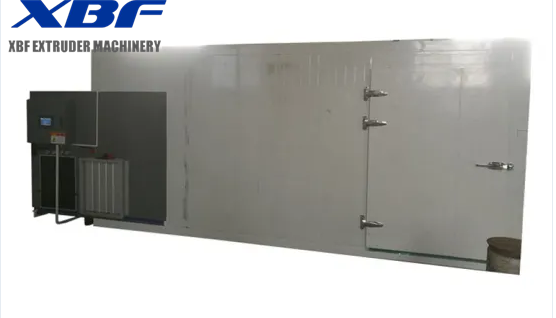

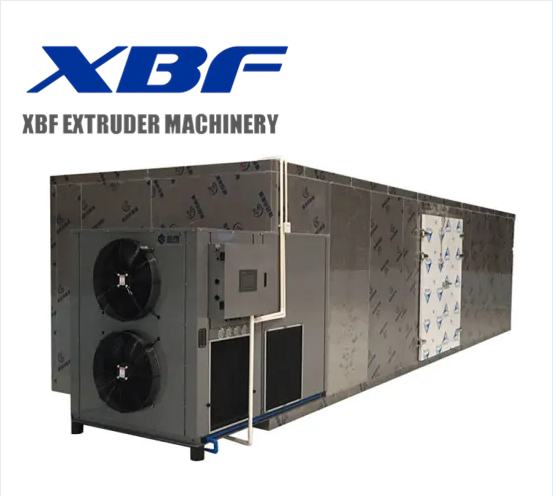

Product Details Show

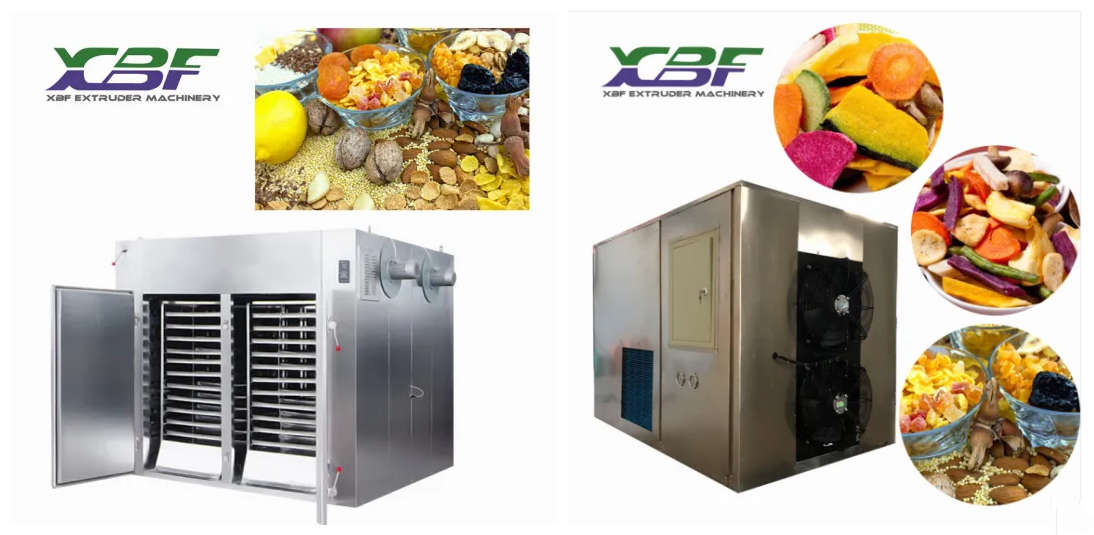

Application
Widely used in hot air drying below 85 degrees, such as: edible fungi (mushroom, fungus, morels, tea mushroom, bamboo sun);Chinese herbs (honeysuckle, panax notoginseng, gastrodia elata, rhubarb, ginseng);Fruits (jujube, kiwi, blueberry);Vegetables (pepper, daylily, dried vegetables, Chinese yam);Industrial (buddhist incense, preserved meat, bamboo products, tobacco, tea)
Why choose us
Our
Services
A.
Payment service
1, T/T
2, L/C (for container order only)
3, Western Union, (for sample order & parts)
B. Technical service
1, We calculate the capacity and recommend the best
models.
2, We supply you the professional refrigeration technical support
and electronic technical support for your installation, debugging
and operation.
3, We supply the spare parts and technical support in & after the
warranty time.
4, We supply the training course to your workers at our factory
if you need.
C.
After-sales service
1, Technical support for your installation, operation and
maintenance.
2, One year's warranty, and you can pay for extended
warranty.
3, Spare parts and technical support at most economic prices
after the warranty.
Machine packing & Shipping
company

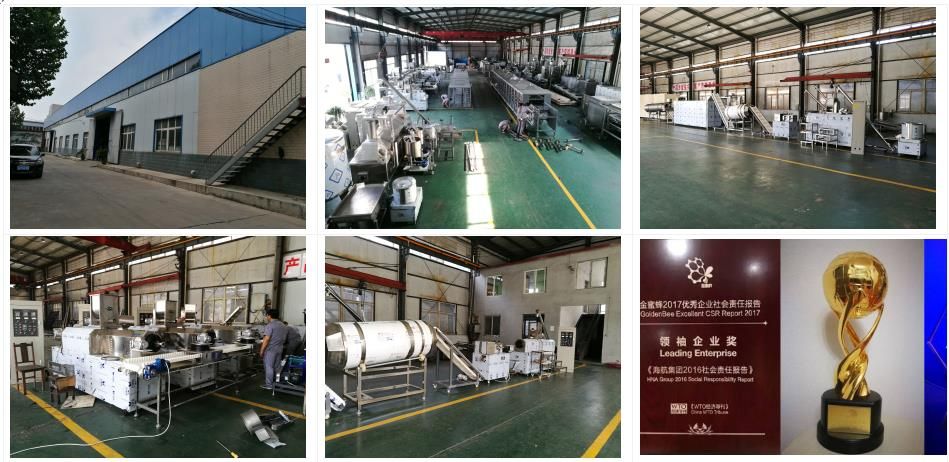

information
Jinan xinbeifa machinery equipment
co., LTD. Has professional designers, experienced technicians and
advanced processing equipment.With years of production
experience, our company has independently developed a variety of
types of expanded food equipment and before and after end
auxiliary equipment, product sales throughout all provinces,
cities, autonomous regions, and exports to Australia, the
Netherlands, Pakistan, Malaysia, myanmar and other Asia, Europe
and America.Our company adhering to the "service for you, let you
trust" business purposes;In the principle of mutual benefit and
common development, based on a high starting point, large
investment, high level of operation;Adhere to high standards,
refined production standards, ensure that every production link,
to create a safe brand.
