Banana fiber extraction machine, pineapple leaf fiber extractor, coconut shell sisal fiber extraction machine

FOB Price 15000 - 15000 USD / 1

Quantity	15000 - 15000
Price	Dollar

MOQ	1 Unit
Port	China
Packaging	container
Lead Time	15

Contact Now

Quick Details (View All)

warranty	1 Year	machinery test report	Provided
video outgoing-inspection	Provided	core components	Engine, Motor
brand name	KUNTENG	place of origin	Henan, China
weight (kg)	2400	application	separate coir fiber and peat from coconut husk
features	High-effect and easy to operate	production capacity	2000 pcs/h
dimension(lwh)	320022001500 mm	power(w)	75 KW
voltage	220-380V/(customized)	Product Name	Banana fiber extractor
Usage	Extracting coir fiber from coco husk	Capacity	2000 pcs/hour
Power	75KW	Type	Single Drum
Application	coconut,palm,hemp,jute,bamboo,banana leaf	Machine Size	3.22.21.5 M
After-sales Service Provided	Support on-site installation guidance	MOQ	1 Set

Product Details

Banana Leaf Fiber Extraction Making Machine Coconut Shell Pineapple Leaf Fiber Extracting Machine

Product Description

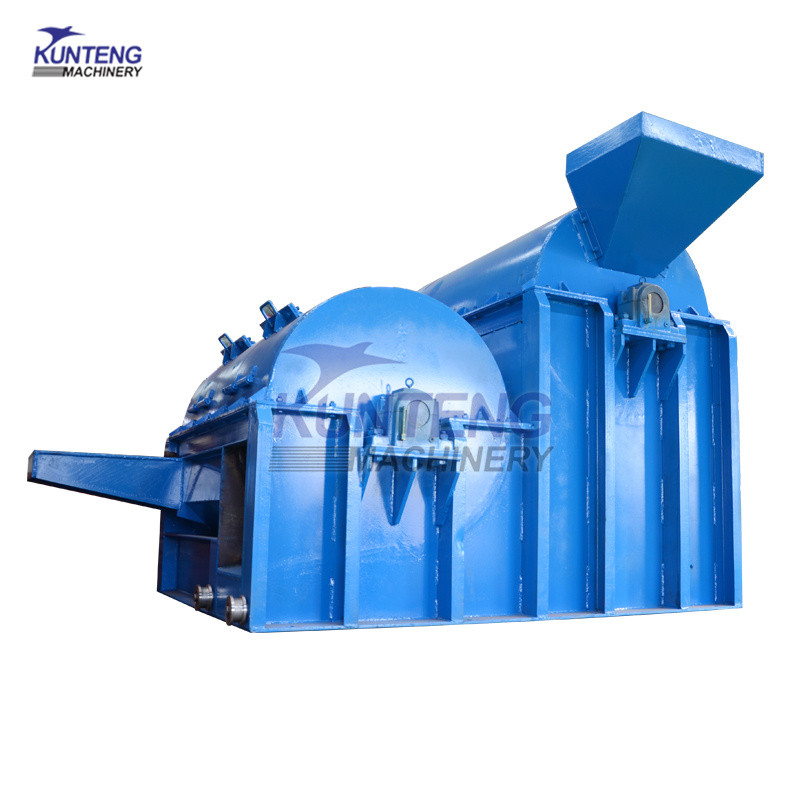

Coconut Shell Pineapple Leaf Fiber Extracting Machine is a kind of equipment that can process palm fruit bunches or coconut shells into palm silk.The material is put into the machine from the feeding port, and the wire cutter is driven by the motor to rotate through the V-belt to plan the material into silk. The fiber material is ejected from the discharge port, and the bran falls from the hole under the machine body.

The Main Parameters of Coconut Shell Pineapple Leaf Fiber Extracting Machine:

Banana Leaf Fiber Extraction Making Machine is divided into two types.Double drum and single drum. The double drum is used to process relatively hard materials, such as coconut husk etc. The single-drum can process oil-pressed palm fruit, banana leaves, bamboo, etc.

Details show about Source Manufacturer Coconut Shell Processing Line Fiber Extract Machine/Packing Press Machine/Dehydrator ,you can choose the one suit you the best,and we can also customize it for you :

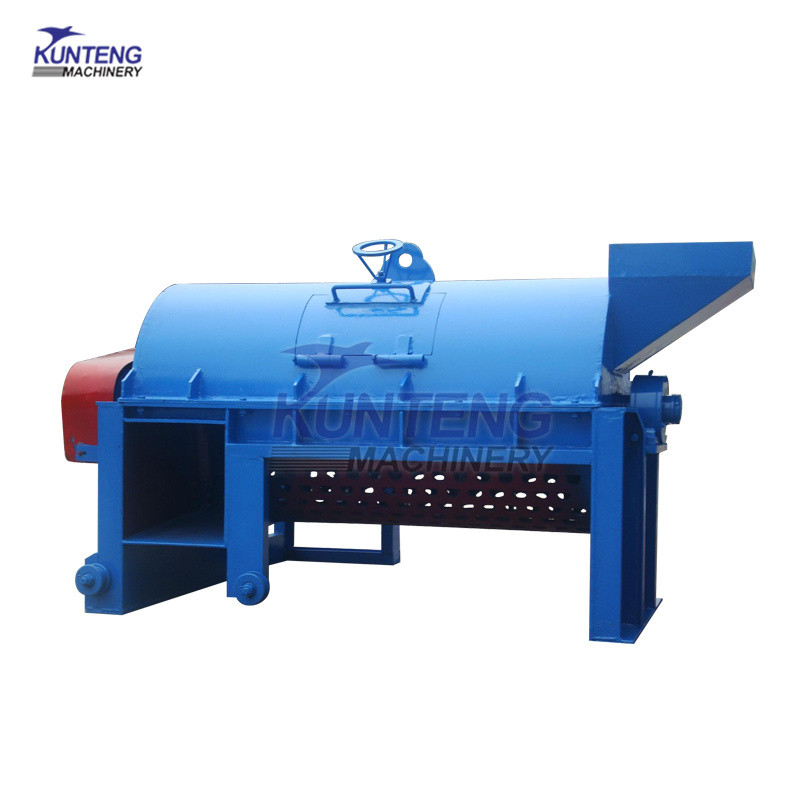

Single Drum Banana Leaf Fiber Extraction Making Machine:

Model	Power	Capacity(kg/h)	Weight(kg)	Dimension(mm)
JPD-I	37	300	1800	1800×1200×1600
JPD-II	45	400	2100	2000×1500×1600
JPD-III	55	500	2500	2200×1700×1700
JPD-XI	75	600~700	3100	2500×2000×1900
JPD-XII	110	800~900	3500	2700×2100×1900
JPD-XY	110	1200~1500	4200	3100×2200×2000

Double Drum Banana Leaf Fiber Extraction Making Machine:

Model	Power(kw)	Capacity(kg/h)	Weight(kg)	Dimension(mm)
JZD-I	37+55	500	3400	3410×2300×1720
JZD-II	55+75	600-700	4100	4800×2250×1800
JZD-III	75+95	900-1000	4800	5750×2400×1900
JZD-XI	95+110	1500-1800	5100	6100×2600×2100

Production Line

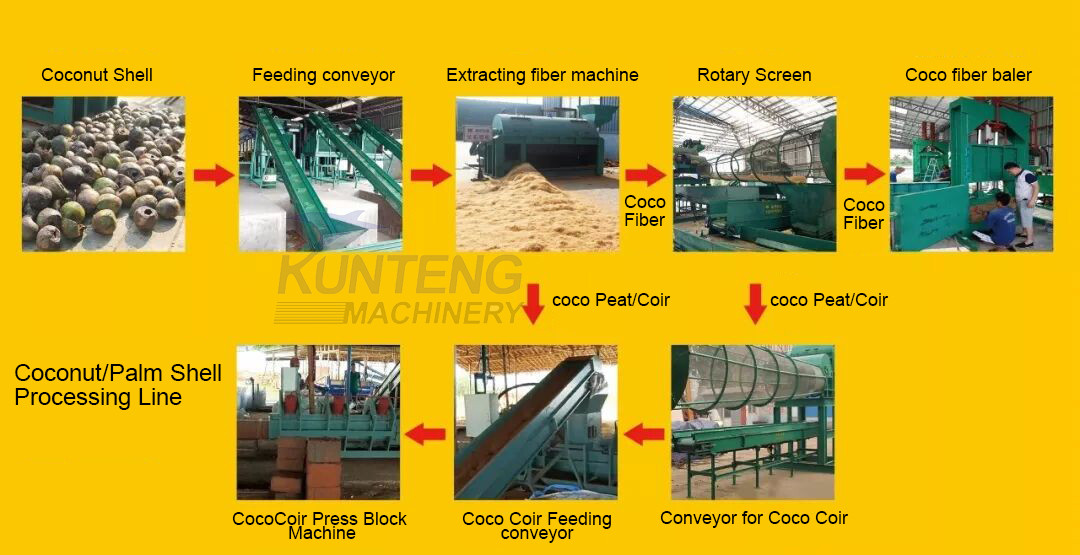

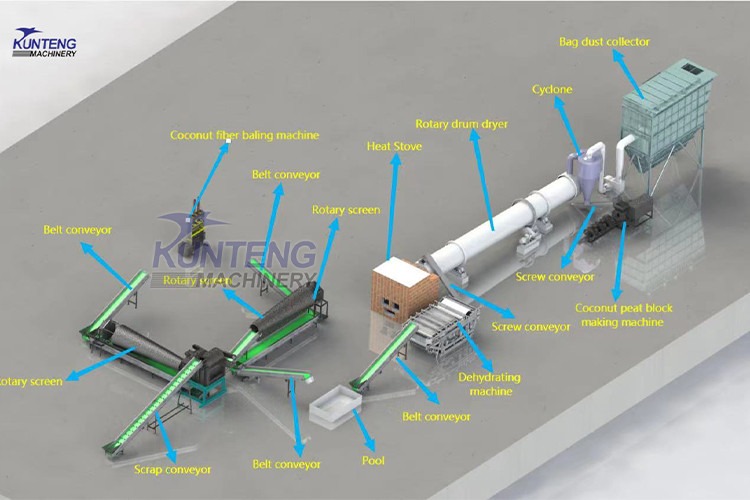

The whole processing line about coconut shell:

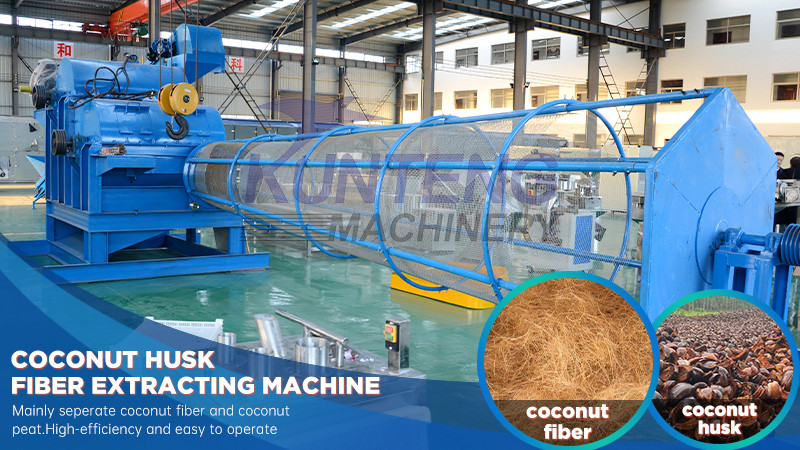

1. coconut fiber extraction machine
Mainly seperate coconut fiber and coconut peat.
2.Screen
The fiber blowing to screen and through screen forward to discharge port, it can collect pure fiber.
3.Baling machine
The coconut fiber can make bale and loading into container.
4.Coconut peat washing machine.
Reduce salt and EC inside.
5.Dewater machine.
Reduce moisture inside coconut peat around 50-60%
6.Coconut peat drying machine.
Using hot air dry coconut peat and get final product with moisture 12-15%.
7.Coconut peat block making machine.
Per block weight is customized, normally the block weight is 5kg,In order to facilitate transport

Customer Visit

2023 Indonesian customers visit our factory and sign the purchase contract for the coconut husk processing line:

Company Information

KUNTENG Machinery Factory Co., Ltd. is located in Gongyi City, Henan Province, focusing on the coconut shell production line(Banana Leaf Fiber Extraction Making Machine),garbage sorting production line,etc.

It is a comprehensive enterprise integrating product development, manufacturing and sales.After ten years of development, has developed into one of the most powerful manufacturers in Henan.Has now developed into three factories, has become a model enterprise in Zhengzhou.

Our service:
Improve the added value of our products, and let the clients free from the using troubles:
1) Assisting the clients preparing for the first construction scheme;
2) Installing and testing the equipment;
3) Training the first-line operators on site;
4) Examining the equipment regularly;
5) Taking the initiatives to eliminate the failure(s) rapidly at site;
6) Distributing the guarantee fittings door-to-door;
7) Providing technical exchanging;
8) Providing maintenance for big items.

FAQ:
1.How many days do you need to produce this machine?
This is specially designed machine according to your specific requirement. From engineer designing
to production completion, It needs about 20-30 days.
2. What does your factory do regarding quality control?
We pay much more importance to quality control from the very begining to the end of production. Every
machine will be fully assembled and carefully tested before shipment.
3. What's your machine quality guarantee?
Quality guarantee time is one year, we choose world famous brand components to keep our machine in
perfect working condition.
4. Are you able to give installation and commissioning overseas? How long will it take?
Yes, we supply overseas service, but customer needs to pay for the engineers flight tickets and hotel
foods.Small machine usually takes within 5 days.Big machine usually takes about 20 days.
