| Quantity | 15000 - 15000 |
| Price | Dollar |
| MOQ | 1 Unit |
| Port | China |
| Packaging | container |
| Lead Time | 15 |
| warranty | 1 Year | machinery test report | Provided |
| video outgoing-inspection | Provided | core components | Engine, Motor |
| brand name | KUNTENG | place of origin | Henan, China |
| weight (kg) | 5000 | application | separate coir fiber and peat from coconut husk |
| features | High-effect and easy to operate | production capacity | 4000 pcs/h |
| dimension(l*w*h) | 3700*2200*2700 mm | power(w) | 75+90 KW |
| voltage | 380V(customized) | Product Name | Sisal Fiber Extractor Machine |
| Usage | Extracting coir fiber from coco husk | Capacity | 4000 pcs/hour |
| Power | 75+90 KW or customized | Type | Double Drum |
| Application | coconut,palm,hemp,jute,bamboo,banana leaf | Machine Size | 3.7*2.2*2.7m |
| Keyword | Fiber making machine | After-sales Service Provided | Support on-site installation guidance |
| Knife quantity | 51 pieces |

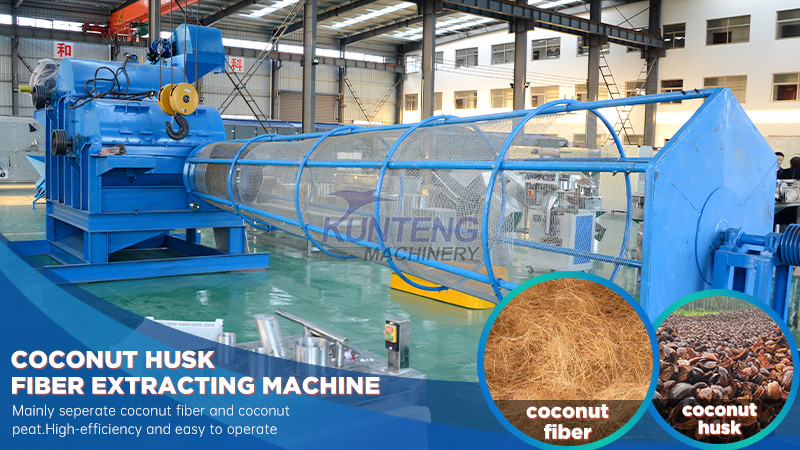

Coco Coir Separation Machine Coconut Fiber Extractor Dry Coconut Fiber Removing Machine

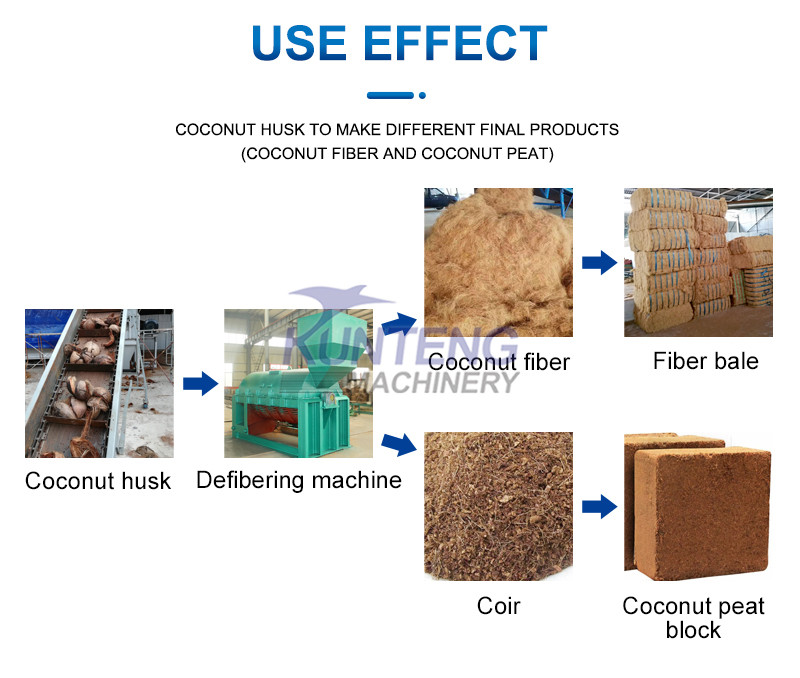

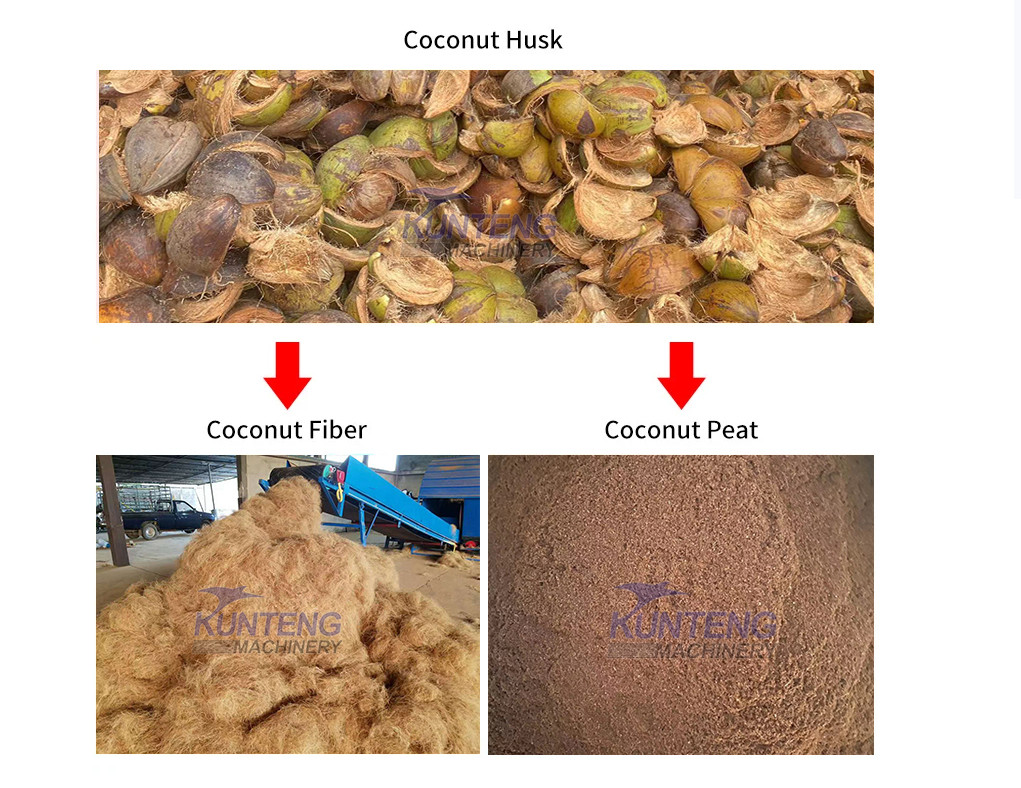

Coconut Coir Separation Machine is mainly extract fiber from coconut husk, oil palm, bamboo etc. There is currently a large market for processed coconut husk and fiber is used in mattresses. Coconut peat is used as fertilizer.
The Main Parameters of Coconut Coir Separation Machine:
Coconut Coir Separation Machine is divided into two types.Double drum and single drum. The double drum is used to process relatively hard materials, such as coconut husk etc. The single-drum can process oil-pressed palm fruit, banana leaves, bamboo, etc.
Details show about Source Manufacturer Coconut Shell Processing Line Fiber Extract Machine/Packing Press Machine/Dehydrator ,you can choose the one suit you the best,and we can also customize it for you :

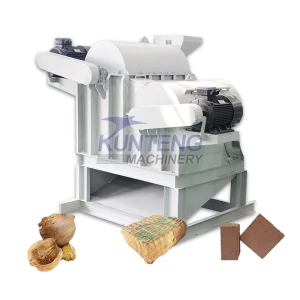

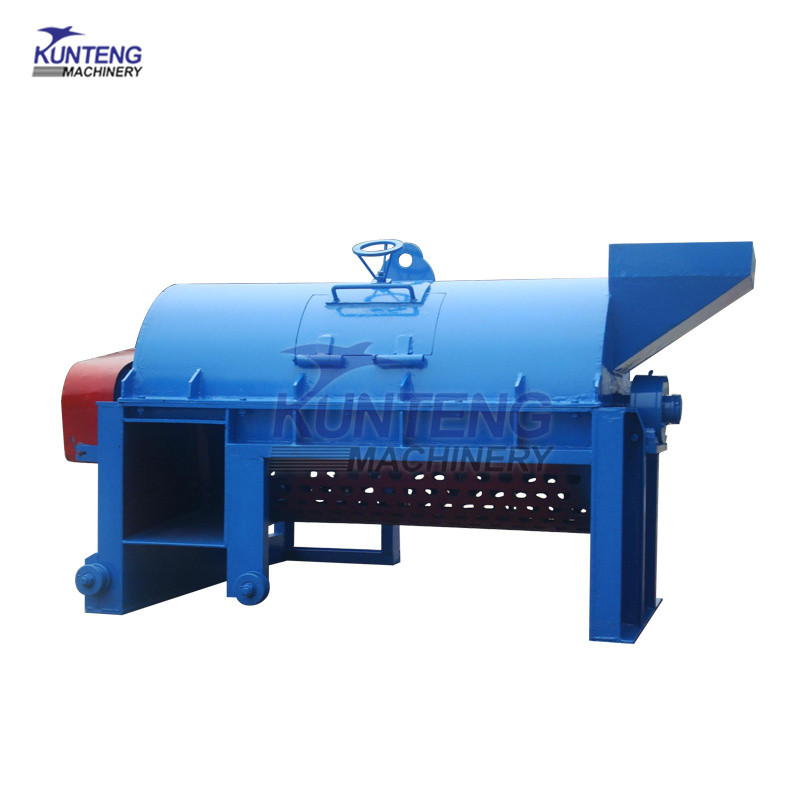

Single Drum Coconut Coir Separation Machine:
| Model | Power(KW) | Capacity(pcs/h) | Weight(kg) | Dimension(mm) |
| KS-1 | 37 | 1000 | 2300 | 2100*2200*1500 |
| KS-1 | 45 | 1200 | 2400 | 2100*2200*1500 |
| KS-1 | 55 | 1500 | 2400 | 2100*2200*1500 |
| KS-1Z | 75 | 2000 | 3300 | 3200*2200*1500 |
| KS-1Z | 110 | 3000 | 3600 | 3200*2200*1500 |
| KS-1Z | 160 | 4000 | 3800 | 3200*2200*1500 |

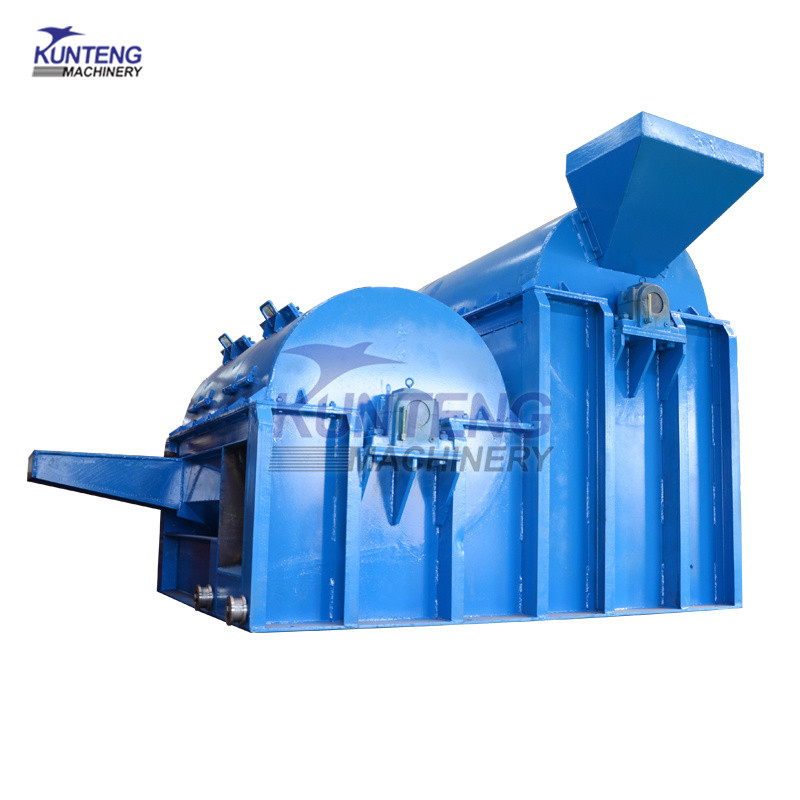

Double Drum Coconut Coir Separation Machine:
| Model | Power(KW) | Capacity(pcs/h) | Weight(kg) | Dimension(mm) |
| KS-2 | 45+55 | 2000 | 4500 | 3700*2200*2700 |
| KS-2 | 55+75 | 3000 | 4800 | 3700*2200*2700 |
| KS-2 | 75+90 | 4000 | 5000 | 3700*2200*2700 |

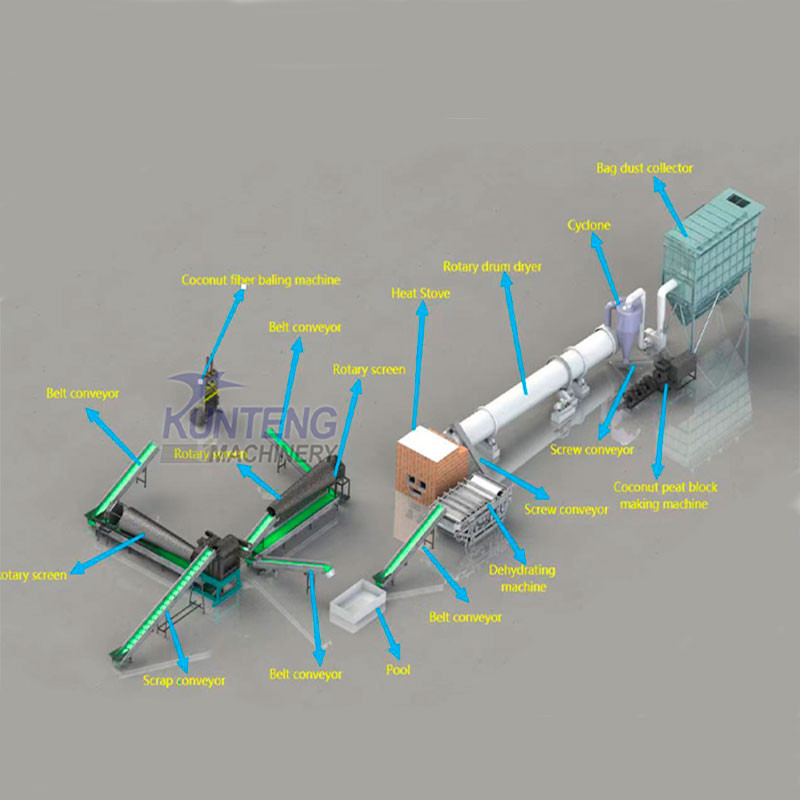

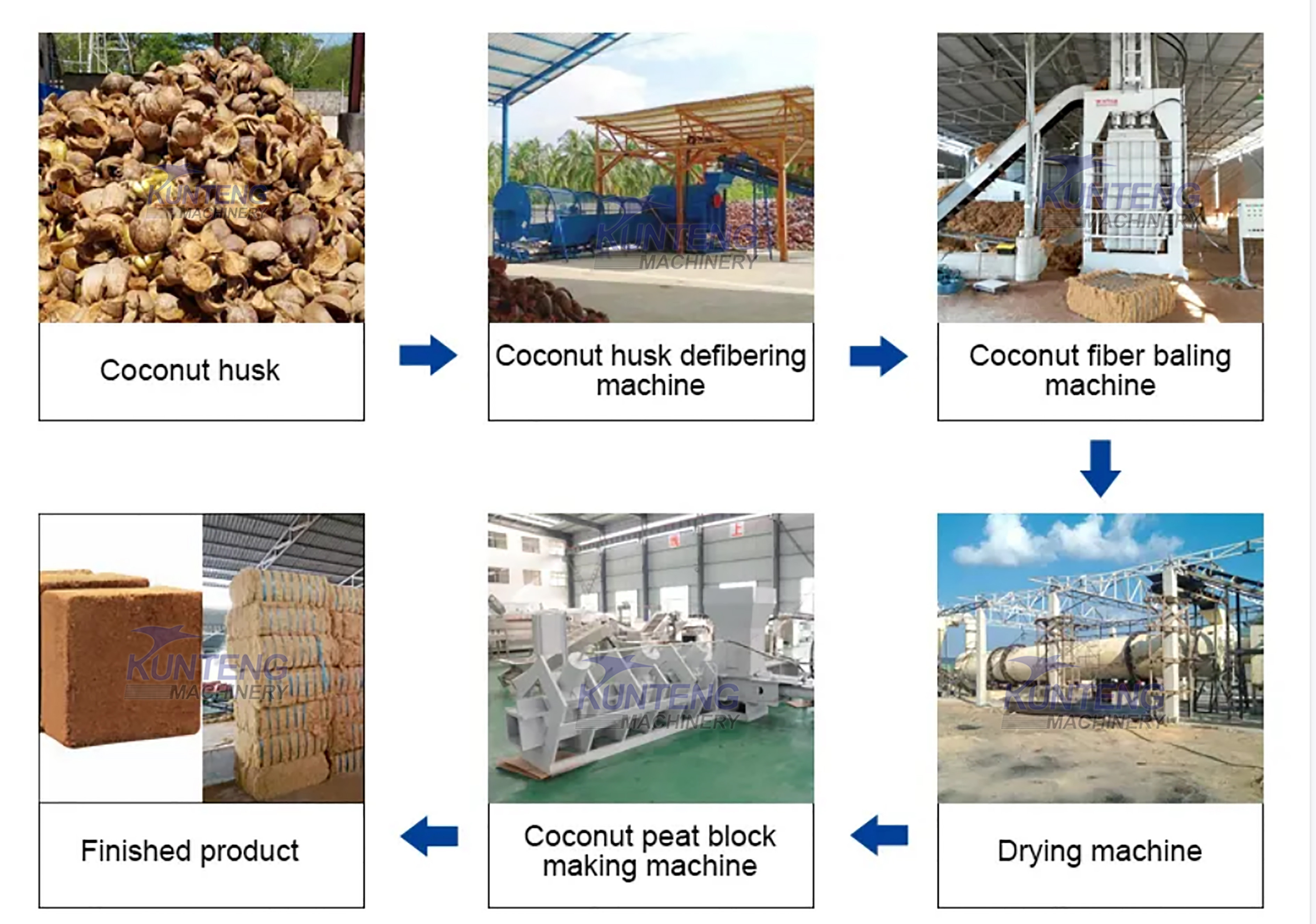

The whole processing line about coconut
shell:
1.Coconut Coir Separation
Machine
Mainly seperate coconut fiber and coconut
peat.
2.Screen
The fiber blowing to screen and through screen forward to
discharge port, it can collect pure fiber.
3.Baling machine
The coconut fiber can make bale and loading into
container.
4.Coconut peat washing
machine.
Reduce salt and EC inside.
5.Dewater machine.
Reduce moisture inside coconut peat around
50-60%
6.Coconut peat drying machine.
Using hot air dry coconut peat and get final product with
moisture 12-15%.
7.Coconut peat block making
machine.
Per block weight is customized, normally the block weight is
5kg,In order to facilitate transport.

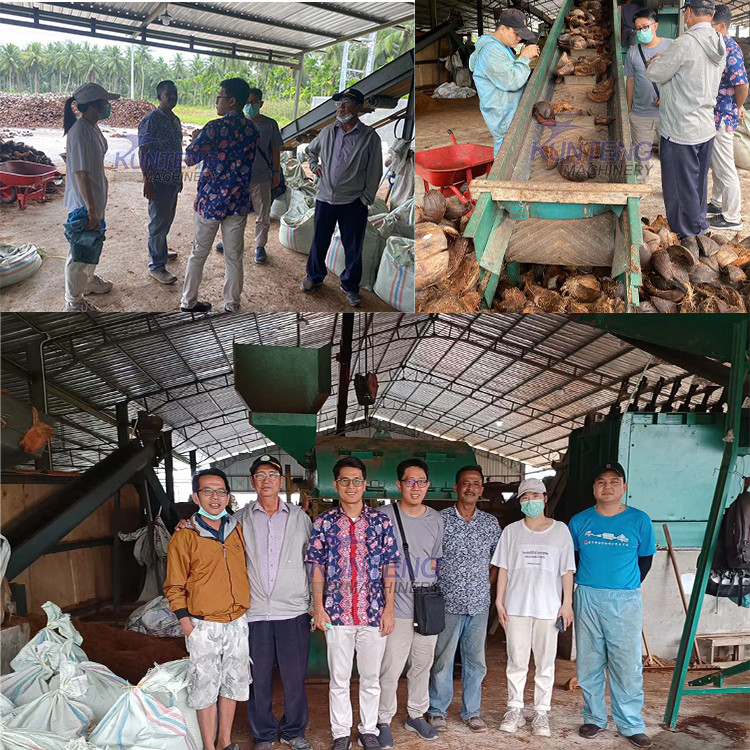

2023 Indonesian and other customers visit our factory and sign the purchase contract for the coconut husk processing line:
This is our Malaysian customer site for Coconut husk
processing line:

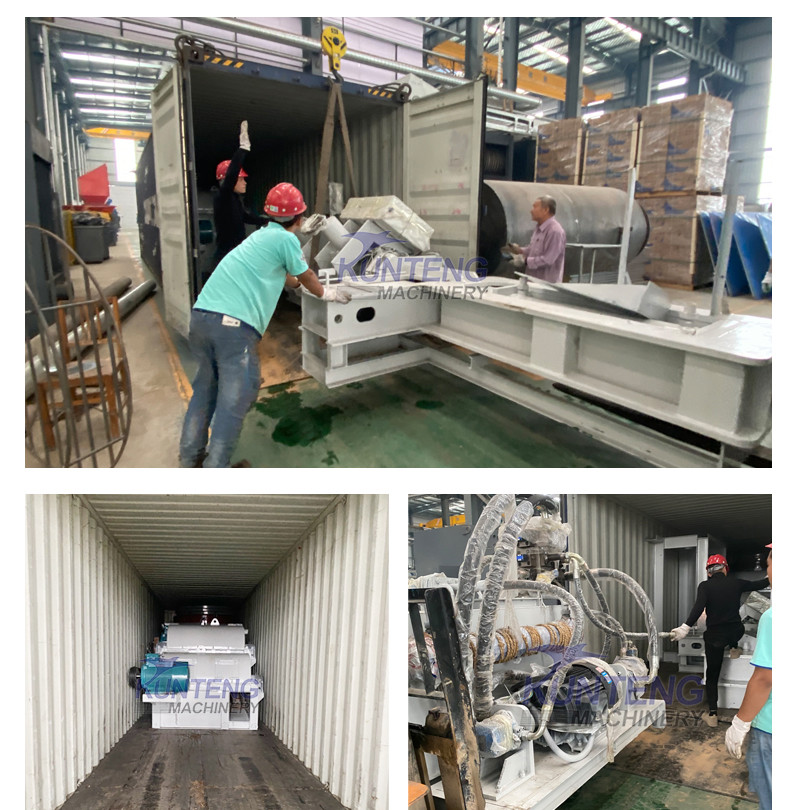

The machines for whole production line will be loaded into
the 20/40 GP container directly.
1.Founded in 1999, KUNTENG Machinery is a technology-based enterprise integrating R&D, manufacturing, sales and after-sales.
2.We have our own R&D(research and development)team. We have ability design the factory building, circuit direction, and machine assemble for the entire project.
3.The equipment is strictly controlled by the quality inspection department before loading to the container to ensure that each set of equipment work smoothly.
4.The company's products have passed more than 100 national patents, and passed passed ISO, CE quality system certification.
No. 58 Yinlan Road, High tech Industrial Development Zone, Zhengzhou City, Henan Province, China
