Artnet To DMX/SPI LED Controller For Madrix Touchdesigner

FOB Price 119 - 138 USD / 1

Quantity	1 - 5	6 - 50	51 - 200
Price	138	128	119

MOQ	1 set
Port	Shenzhen
Packaging	carton
Lead Time	3-16

Quick Details (View All)

name	Artnet to DMX/SPI controller	model	BC-204/216
working voltage	DC5-24V	WEIGTH	510-1100G
Output DMX512	1 or 2	output SPI	4 or 16
support IC	2811,8904,2904, etc

Product Details

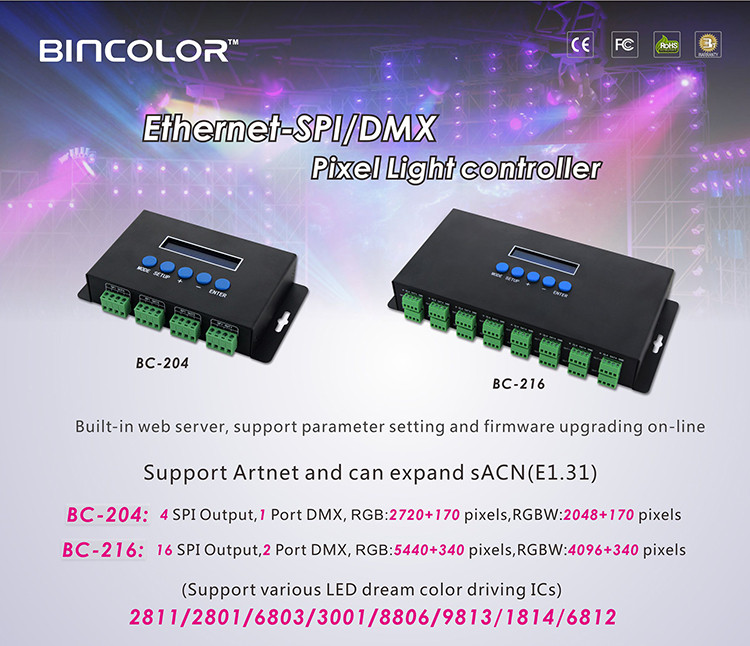

This Ethernet-SPI/DMX pixel light controller is dedicated to converting the Ethernet signal into SPI pixel signal, which is designed for large project with high-density pixel light, such as matrix panel lights, construction's contour lamp, etc. Besides converting Ethernet-based control protocols into various LED driving IC signal, it also outputs DMX512 signal at the same time, convenient for the connection of different types of led lamp, and to achieve the unified control of all kinds of led lamp in the same project.

This software have 2 versions V1 and V2 , V1 version is with Artnet protocol , V2 version is with Artnet and sACN E.1.31 protocol. Notice: The factory software of V1 can't be upgraded to V2 software, but factory software of V2 can be upgraded to V1 software.

Basic Features:

1. With LCD display and built-in WEB SERVER setting interface, easy operation.

2. Support Ethernet DMX protocol ArtNet, can be expanded to other protocols.

3. Multi SPI (TTL) signal output, up to 5440 pixels control.

4. Output DMX512 signal at the same time, convenient for the connection of different types led lamp.

5. Support various LED driving IC, flexible control.

6. Support online firmware upgrade.

7. Adopt DIP plug-in design for the easily-worn parts, Users can repair the damage caused by wrong wiring or short circuit.

8. Built-in test mode, using a network interface with indicator light, work status is clear when at a glance.

Click here to send us your enquiry!!!

Product Description

Specifications

Model	BC-204
Working Voltage	DC5-DC24V
Output Current	7A X 4CH(Built-in 7.5A fuse)
Input Ethernet control protocol	ArtNet
Output Control IC	2811/2801/6803/3001/8806/9813/APA102/TM1814/SK6812 Series
Control Pixels	RGB:680 Pixels X4CH RGBW:512 Pixels X4CH
Output DMX512	One port(1X512 Channels)
Working Temp	-20~55℃
Product Dimension	L166×W110×H31(mm)
Weight(G.W)	510g

Control ICs type:

IC Type	Compatible ICs	Type
2811	TM1803, TM1804, TM1809, TM1812, UCS1903, UCS1909,	RGB
	UCS1912, UCS2903, UCS2909, UCS2912, WS2811, WS2812B,
	SM16703P etc.
2801	WS2801, WS2803, etc.
6803	LPD6803, LPD1101, D705, UCS6909, UCS6912 etc.
3001	TLS3001, TLS3002 etc.
8806	LPD8803, LPD8806, LPD8809, LPD8812 etc.
9813	P9813 etc.
TM1814	TM1814 etc.	RGBW
SK6812	SK6812, UCS2904, P9412 etc.	RGBW

Changing patterns:

WIRING DIAGRAM

PRODUCT CATEGORIES

Shipping

INTERNATIONAL AIR MAIL

Payment

Fast Delivery

FAQ

1. How many years warranty of Bincolor items?

3 years warranty.

2. What kinds of export certifications of Bincolor items?

All Bincolor items pass CE, RoHS and FCC.

3. Could you provide the OEM or ODM service?

Bincolor have rich experience in OEM and ODM service, R&D te products completely according to customers’ demands.

4. Do all items design by your company?

All of our products are independent research and development production.

5. How long is the delivery time?

Within 1-3 working days for routine quantity, goods usually can be sent out on the same day or the next day. Within 20 working days for large quantity. Accurate time is according to the actual inventory.

Any other question, welcome to contact me, all question will be answered within 24 hours or immediately on instant contact!
