3 channel LED power repeater for signal color light strips and RGB strips

FOB Price 10 - 15 USD / 1

Quantity	1 - 10	11 - 100	101 - 500
Price	14	12	10

MOQ	1 set
Port	Shenzhen
Packaging	carton
Lead Time	3-20

Quick Details (View All)

name	power repeater	signal	PWM
WEIGHT	85-150G	FUNCTION	connect more LED strips
feature	high frequency

Product Details

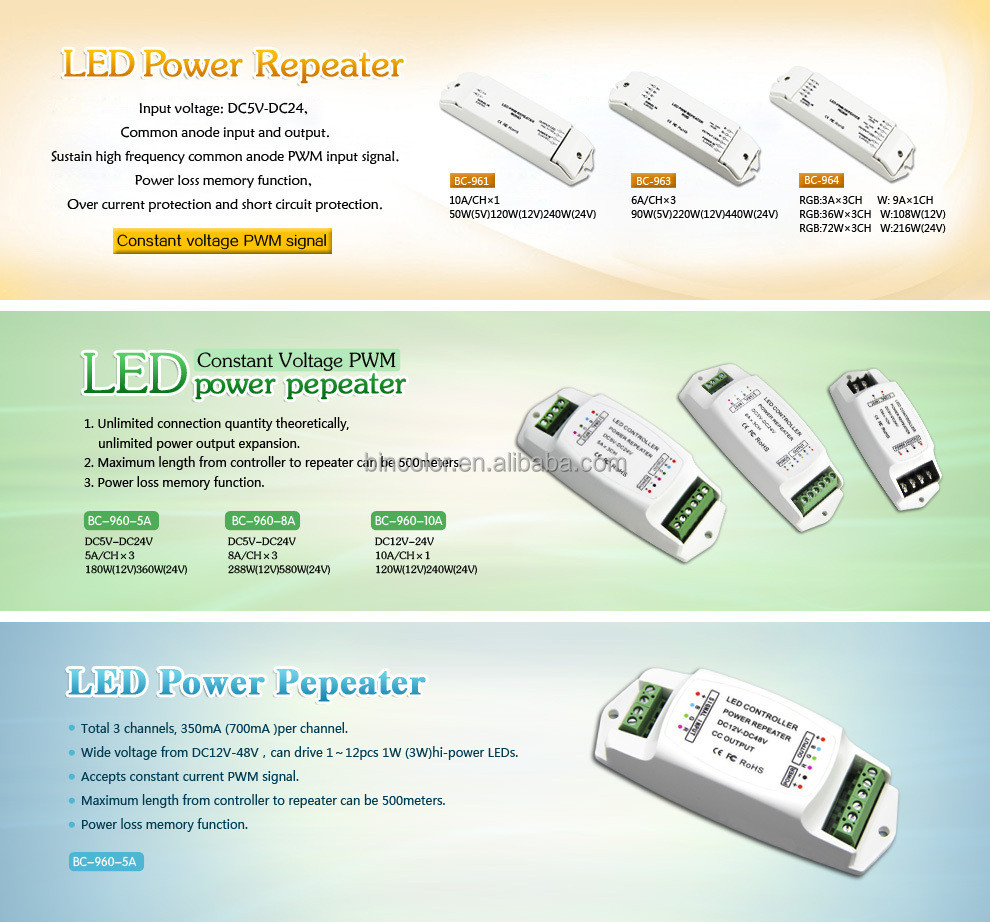

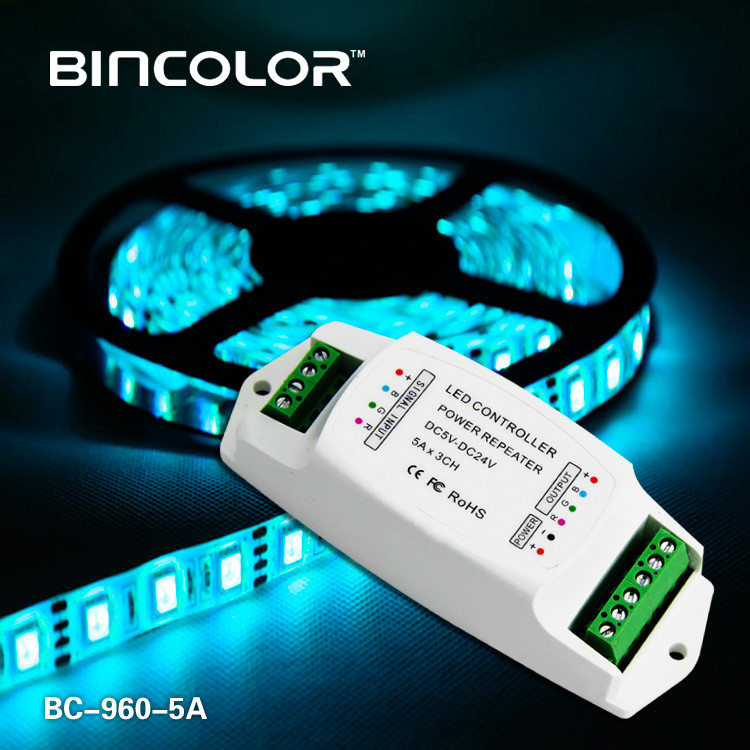

Zhuhai High quality dc24v 3 channels PWM signal RGB led POWER REPEATER

Introduction:

LED Power Repeater is suitable for all of our company's power-output style controllers’ power expansion, it accepts PWM control, the control quantity of LED lights would be twice as much by adding one more power repeater, unlimited quantity of power repeater to be connected theoretically. Also, the power repeater of constant voltage model and constant current model could be connected freely, suitable for synchronized controlling on different LED lamps.

Specification:

Name	Value
Brand	Bincolor
Model	BC-960-5A
Production Capacity	5000 Pieces per Month
Input voltage	DC5V-DC24V
Max Current Load	5A × 3 channels
Max output power	180W(12V) 360W(24V)
Channel	3CH
Output signal	constant current PWM
Certification	CE ,FCC, ROSH
Dimension(LWH)	L125xW45xH36 mm
Weight	105g
Package	L170xW76xH45 (mm)

Feature:

1. Wide voltage from DC5V-24V

2. Total 3 channels, 5A per channel

3. Common anode input and output

4. Accepts PWM signal

5. power loss momery function .

6. Work with RGB controller ,DMX 512 decoder ,LED dimmer for synchronous contrl, to fulfll abundant color changings.

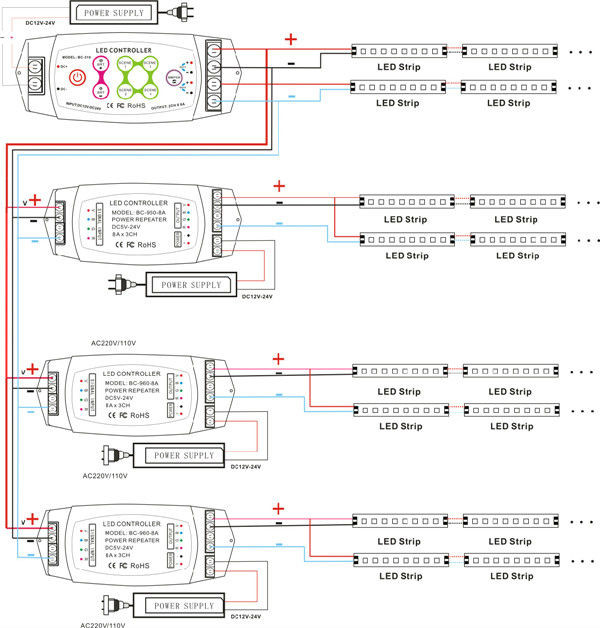

WIRING DIAGRAM

Shipping

INTERNATIONAL AIR MAIL

Payment

Fast Delivery

Our Services

1. Professional advice according to your needs.

2. Instant response to your inquiries.

3. Short lead-time, quick delivery.

4. Three years warranty for all of our products.

5. Samples orders, OEM/ODM orders are also welcomed.

1. How many years warranty of Bincolor items?

3 years warranty.

2. What kinds of export certifications of Bincolor items?

All Bincolor items pass CE, RoHS and FCC.

3. Could you provide the OEM or ODM service?

Bincolor have rich experience in OEM and ODM service, R&D the products completely according to customers’ demands.

4. Do all items design by your company?

All of our products are independent research and development production.

5. How long is the delivery time?

Within 1-3 working days for routine quantity, goods usually can be sent out on the same day or the next day. Within 20 working days for large quantity. Accurate time is according to the actual inventory.
