Y Pattern Flanged OS&Y CF8 Flush Bottom Valve for Tank

Introduction

Fush bottom valve is installed at the bottom of the reactor, storage tank and other containers, so that the chemical liquid or slurry deposited in the reactor, storage tank or pipeline can circulate smoothly.


Use

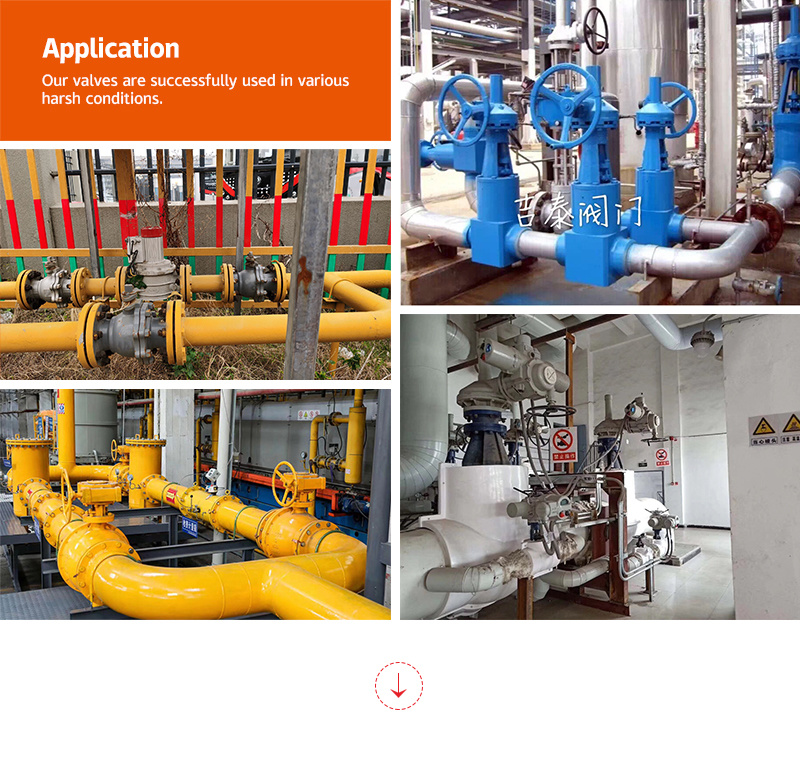

This valve is widely used in petroleum, metallurgy, chemical industry, papermaking and more industrial fields (for the transportation of chemical liquids, coal slurry, mineral slurry, etc).



Features

1. The valve is easy to operate, flexible and reliable in movement;

2. The valve flap device is easy to maintain, the sealing structure is reasonable, and the sealing ring is convenient and practical to replace;

3. The bottom structure of the valve body is designed as a flat bottom type, the valve body is a V type, and two working modes of lifting and lowering discs are provided;

4. The inner cavity of the valve body is equipped with erosion-resistant and corrosion-resistant sealing rings. When the valve is opened, it can protect the valve body from being washed and corroded by the medium. The sealing ring is specially treated to make the surface hardness reach HRC56-62, which has a high Wear-resistant and corrosion-resistant functions;

5. The cover of the valve disc seal is surfacing with cemented carbide when required, and the sealing pair adopts line sealing to ensure the reliability of the seal and prevent scarring.



Major Specification

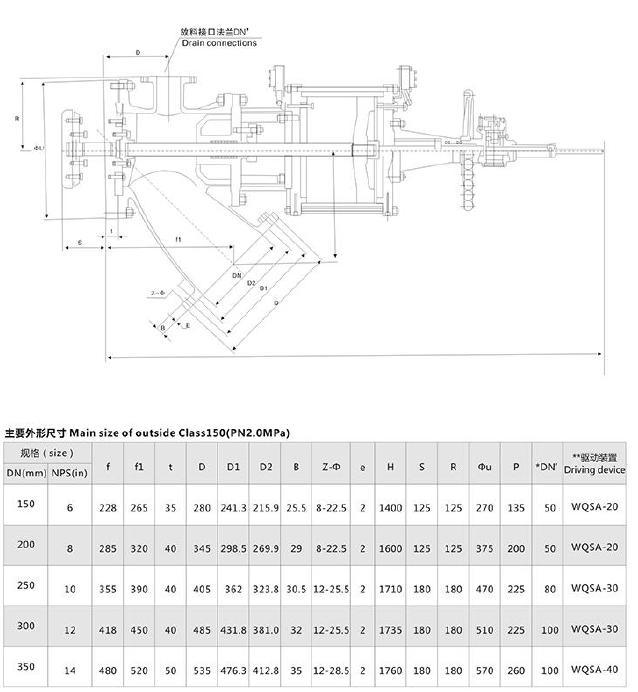

Nominal size: 2"~24"
Nominal pressure: Class150~2500
Standard: BS1873, ASME B16.34

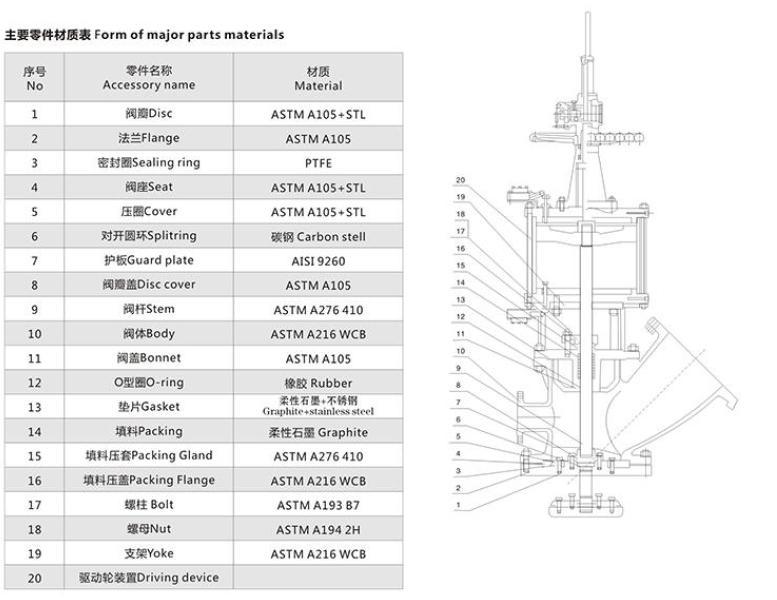

Body material:WCB, WC6, WC9, LCB, LCC, C5,C12, CF8, CF8M, CF8C, bronze, Inconel, monel
End connection:RF, BW, RTJ,
Operation:handwheel, bevel gear, Pneumatic, Electric, Hydraulic

• Heavy-duty valve expert with proven expertise in harsh environment;
• Stringent quality control and traceable reports to provide zero-defect products;
• Rugged and durable configuration according to API, ASME, BS, JIS, EN standards;
• All kinds of UG, PRO/E, Solidworks software simulations ensure the efficiency and robustness for tailored components;

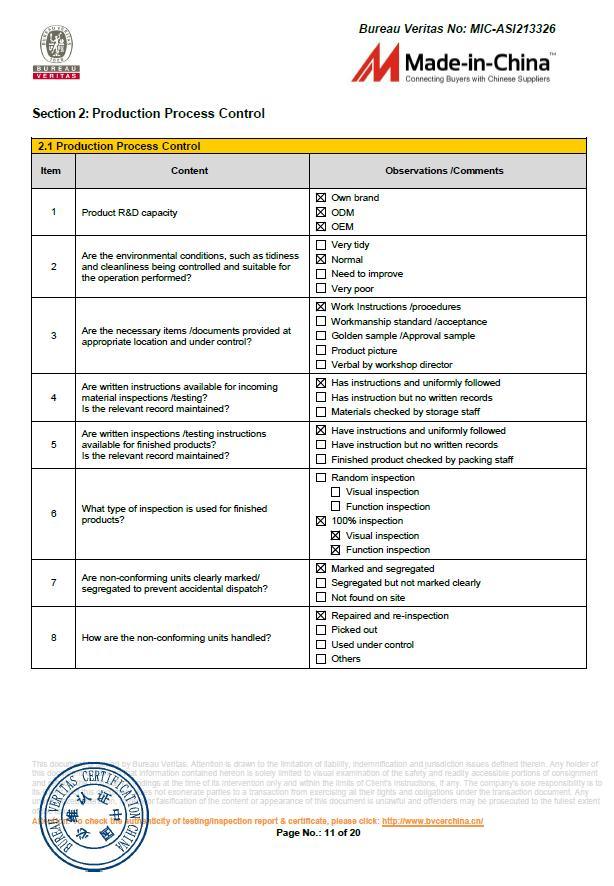

• Complete BV report can be downloaded on our page About us .

FAQ


1.Q:Are you are a trading company or manufacturer?
A:We are a manufacturer with 7000-sqm factory and 100 employees.

2.Q: Can you provide the assembly drawing for confirmation ?
A: Yes, we can give the relavant drawing within 24 hours.

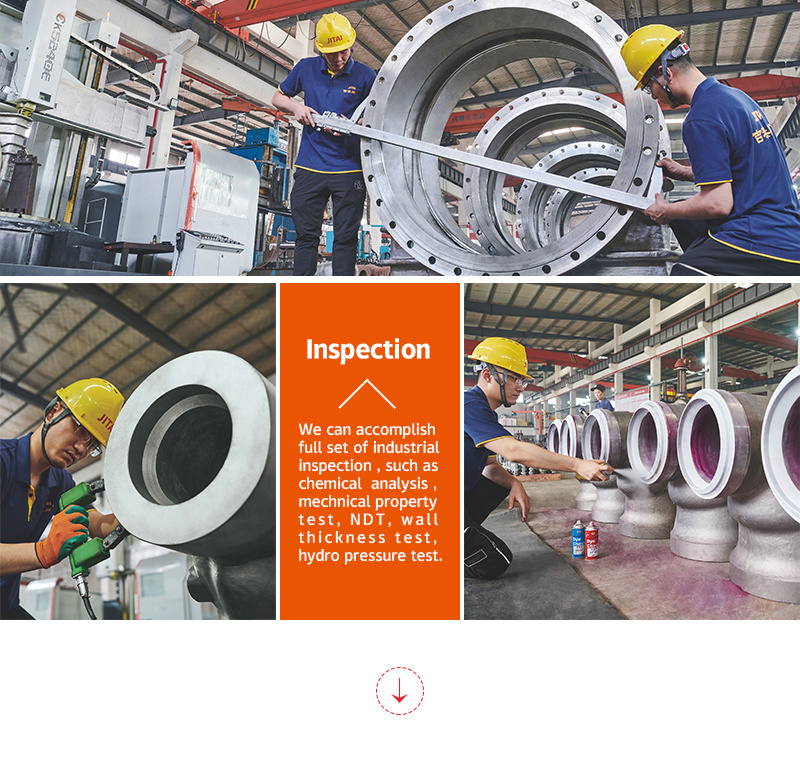

3.Q: Can you do non destructive test for valve components ?
A: Yes, we can perform radiographic testing, penetration testing, ultrasonic testing, magnetic particle testing, etc

4.Q: How can I vist you when I am in China?
A: We are near the Wenzhou Airport. If you take a plane, it takes 2 hours to reach our factory from Shanghai, 2 hours from Guangzhou, 3 hours from Beijing.

5.Q: Can we take sample for quality check?
A: Definitely. You can advise the model number and we will prepare the sample within 7 days.

6.Q: How can I become your distributor or agent?
A: You can send your company profile and reference list to our sales manager.

7.Q: Can you help with site maintenance and commissioning?
A: Yes, we are glad to offer our assistance whenever you need it. We can send our after sales team to address the issue within 14 days
