Model NO. | Z61Y-800LB | Actuator | Manual |
Seal Surface | Wedge Gate Valve | Thread Position of Valve Rod | Outside Gate Valve |
Usage | Shut-off | Standard | ANSI |
Application | Industrial Usage | Bonnet Type | Bolted Bonnet |
Body | A105 | Pressure Rating | Cl150-Cl2500 (Pn10-Pn420) |
Warranty Time | 120 Days After Shipment | Certificates | API 6D, CE, ISO9001, Eac 010/032, API 607, Sil, Is |
Trim | F6a | End Connection | ASME B16.5, ASME B16.47, En1092 |
Size Range | Nps 1/2- Nps 2 (DN15-DN50) | Inspection and Test | API 598, En 12266 |
Face to Face | ASME B16.10, En558 | Design | ASME B16.34, API 598 |
Transport Package | Plywood Case | Specification | 1 1/2′′ (DN40, 40MM) |
Trademark | Jitai | Origin | China |
HS Code | 8481804090 | Production Capacity | 10000 Sets Per Month |
Introduction
Forged steel gate valve is suitable for small-diameter
pipelines with Class150 ~ 2500 and operating temperature of
-29~425ºC (carbon steel) or -29~500ºC (stainless steel). It
is used to cut off or connect the medium in the pipeline. It
can be applied respectively. It is suitable for water, steam,
oil, nitric acid, acetic acid, oxidizing medium, urea and
other media.
Features
1. Compact and convenient
2. Solid wedge, OS&Y
3. Renewable seat
Major
Specification
Nominal size | 1/2"~2" |
Nominal pressure | Class150~2500 |
Standard: | ASME B16.34, API 602 |
Body material | Carbon steel, Stainless steel, Alloy steel, Duplex stainless steel |
End connection | THD, SW, BW, RF, RTJ |
Operation | Manual, Pneumatic, Electric, Hydraulic |
1.Q:Are you are a trading company or manufacturer?
A:We are a manufacturer with 7000-sqm factory and 100
employees.
2.Q: Can you provide the assembly drawing for confirmation
?
A: Yes, we can give the relavant drawing within 24
hours.

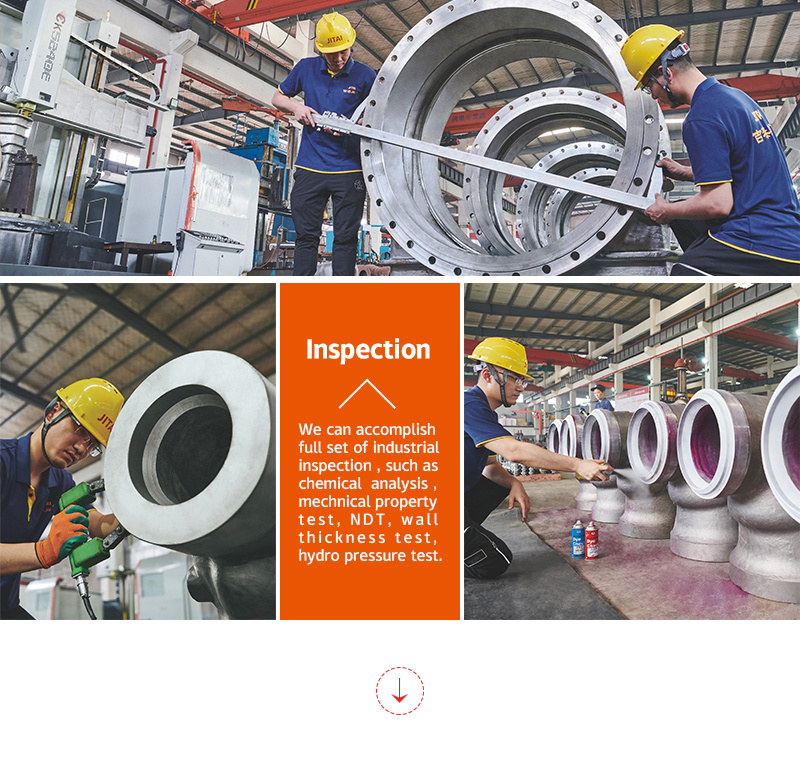

3.Q: Can you do non destructive test for valve components
?
A: Yes, we can perform radiographic testing, penetration
testing, ultrasonic testing, magnetic particle testing,
etc
4.Q: How can I vist you when I am in China?
A: We are near the Wenzhou Airport. If you take a plane, it
takes 2 hours to reach our factory from Shanghai, 2 hours
from Guangzhou, 3 hours from Beijing.
5.Q: Can we take sample for quality check?
A: Definitely. You can advise the model number and we will
prepare the sample within 7 days.
6.Q: How can I become your distributor or agent?
A: You can send your company profile and reference list to
our sales manager.
7.Q: Can you help with site maintenance and
commissioning?
A: Yes, we are glad to offer our assistance whenever you
need it. We can send our after sales team to address the
issue within 14 days
