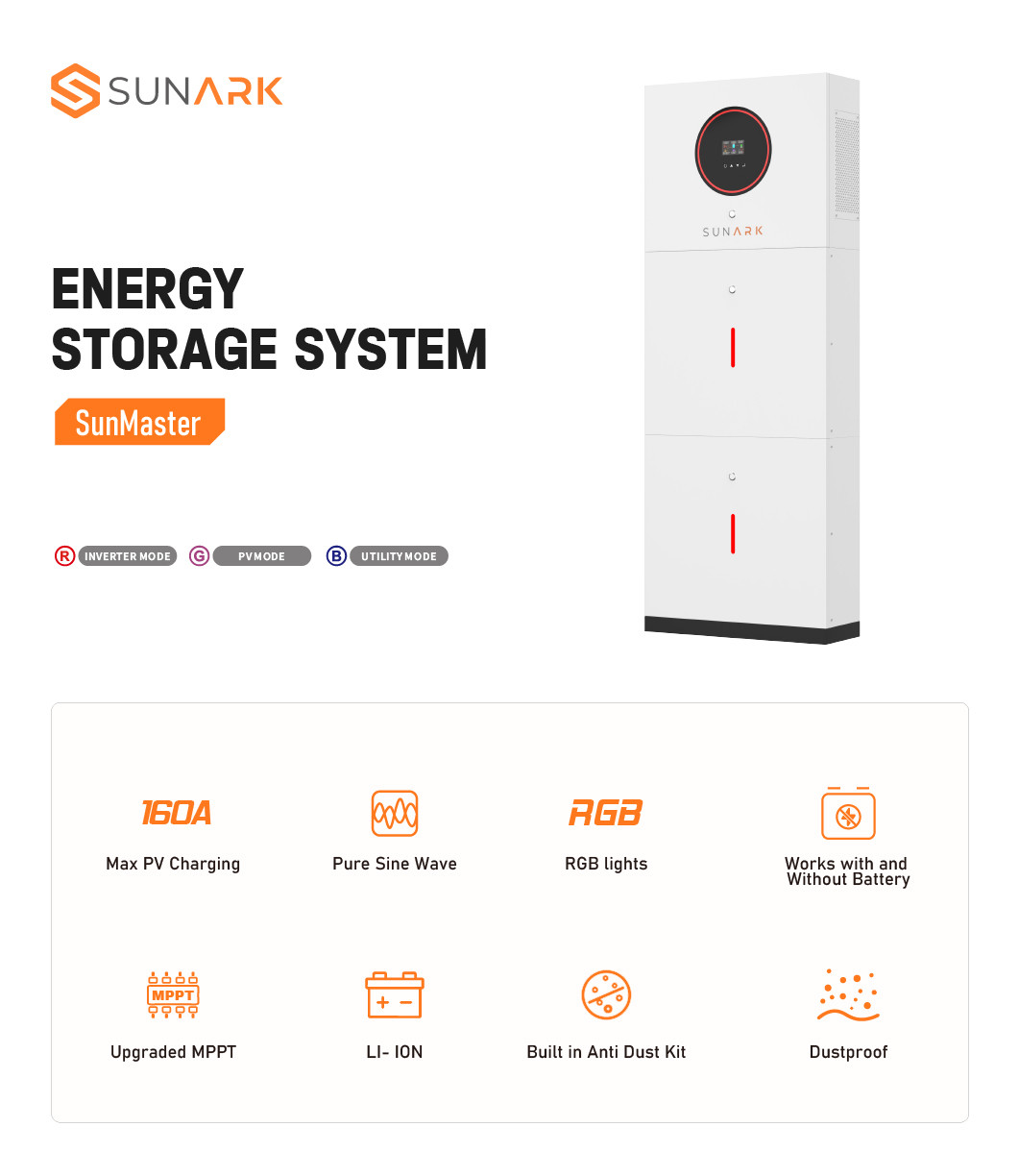

Sunark All In One Ess Energy Storage 4Kw 6Kw 10Kw Inverter Battery For Bedroom

Name: Sunark All In One Ess Energy Storage 4Kw 6Kw 10Kw Inverter Battery For Bedroom
Brand: SunArk Power Co., Ltd.
SKU: Tradewheel_2667228
Price: 209 USD
Availability: InStock

FOB Price 209 - 490 USD / pieces

Contact Now

Quick Details (View All)

Battery Type	Lithium Ion, LI- ION and Lead Acid	Model Number	SunMaster
Brand Name	SunArk	Place of Origin	Anhui, China
Output Power Range	5~10 kWh	Dimension (LWH)	541922190mm
Weight	47-140 Kg	System Type	Stackable
Type	All-in-one	Communication Port	CAN, RS232, RS485
Protection Class	IP65	Grid connection	Off grid, Hybrid grid
Keyword	All In One Energy Storage Inverter	RGB Lights	With RGB Lights
Working Model	Works with and Without Battery	Anti Dust Kit	Built in Anti Dust Kit
Max PV Charging	160A	WIFI & GPRS	Yes
App	Yes	Protection Degree	IP65
Dual communication	Battery communication and Wifi communication

Product Details

Products Description

· Pure sine wave solar inverter(on/off Grid) · Output power factor 1.0
· WIFI&GPRS available for IOS and Android
· Inverter can run without battery
· One-key restoration to factory Settings
· Built-in Lithium battery automatic activation
· Built-in anti-dust kit for harsh environment

· Built-in 140A (for 4.2KW)/120A(for 6,2KW)/160A(MPPT Solar charge: max 6200W(for 4,2KW),max6500(for
6.2KW),max10200W(for 10.2KW)
· High PV input voltage range(60~ 500VDC)
· Intelligent fan speed adjustment
· Smart battery charge design to optimize battery life
· Dual output

Model	SunMaster-4.2KW	SunMaster-6.2KW	SunMaster-10.2KW
Phase	1-pase
Maximum PV Input Power	6200W	6500W	5400W +5400W
Rated Output Power	4200W/4200VA	6200W/6200VA	10200W/10200VA
Maximum Solar Charging Current	140A	120A	160A
GRID-TIE OPERATION
PV INPUT (DC)
Nominal DC Voltage/Maximum DC Voltage	360/500VDC
Start-up Voltage/Initial Feeding Voltage	60VDC/90VDC			90VDC/120VDC
MPPT Voltage Range	60~450VDC			90~450VDC
Maximum Input Current	1/18A	1/22A	2/18A
GRID OUTPUT (AC)
Nominal Output Voltage	220/230/240VAC
Output Voltage Range	195.5~253VDC			190~253VDC
Nominal Output Current	18.2A	27.0A	44.3A
Power Factor	>0.99
EFFICIENCY
Maximum Conversion Efficiency (DC/AC)	98%
TWO LOAD OUTPUT POWER
Full Load	4200W	6200W	10200W
Maxium Main Load	4200W	6200W	10200W
Maxium Second Load(battery mode)	1400W	2067W	3400W
Maxium Load Cut Off Voltage	26VDC	52VDC
Maxium Load Return Voltage	27VDC	54VDC
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage/Auto Restart Voltage	120-140VAC/180VAC
Acceptable Input Voltage Range	90-280VACor170-280VAC
Frequency Range	49-51±1HZ
Maximum AC Input Current	30A	40A	50A
PV INPUT (DC)
Nominal DC Voltage/Maximum DC Voltage	360/500VDC
MPPT Voltage Range	60-450VDC 90-450VDC
Maximum Input Current	1/18A 1/22A 2/18A
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage	220/230/240VAC
Output Waveform	Pure sine wave
Efficiency (DC to AC)	94%
BATTERY & CHARGER
Nominal DC Voltage	24VDC	48VDC
Maximum Solar Charging Current	140A	120A	160A
Maximum AC Charging Current	100A	100A	140A
Maximum Solar+AC Charging Current	140A	120A	160A
HYBRID OPERATION
PV INPUT (DC)
Nominal DC Voltage/Maximum DC Voltage	360/500VDC
Start-up Voltage / Initial Feeding Voltage	90VDC/120VDC
MPPT Voltage Range	60~450VDC 90~450VDC
Maximum Input Current	1/18A 1/22A 2/18A
GRID OUTPUT (AC)
Nominal Output Voltage	220/230/240VAC
Output Voltage Range	195.5~253VDC			190~253VDC
Nominal Output Current	18.2A	27.0A	44.3A
AC INPUT
AC Start-up Voltage / Auto Restart Voltage	120-140VAC/180VAC
Acceptable Input Voltage Range	90-280VAC or170-180VAC
Maximum AC Input Current	30A	40A	50A
Maximum AC Charging Current	100A			140A
GENERAL
PHYSICAL
Dimension,DWH(mm)	541442190
Cartoon Dimension,D W H(mm)	600550240
Net Weight (kgs)	18.5	27.8	25.5
Gross Weight(kgs)	20.5	29.4	27.5
INTERACE
Communication Port	RS232/RS485/WIFI/GPRS/LITHIUM BATTERY
ENVIRONMENT
Humidity	5% to 95% Relative Humidity(Non-condensing)
Operating Temperature	-10°C-50°C
STANDARD
Compliance Safety	CE

Model	25.6V 100AH	25.6V 200AH	48V 100AH	48V 200AH
Normal charging voltage	29.2V	29.2V	54.75V	54.75V
Maximum charging current	100A	100A	100A	100A
Discharge termination voltage	21.6V	21.6V	40.5V	40.5V
Recommended discharge termination voltage	22.4V	22.4V	42V	42V
Maximum discharge current	100A	100A	100A	100A
Single cell charging overvoltage protection	3.8V	3.8V	3.8V	3.8V
Overvoltage protection for the whole battery	29.2V	29.2V	54.75V	54.75V
Low voltage protection for single cell discharge	2.7V	2.7V	2.7V	2.7V
Low voltage protection for whole group discharge	21.6V	21.6V	40.5V	40.5V
Charge overcurrent protection	102~112A	102~112A	102~112A	102~112A
Discharge overcurrent protection	102~122A	102~122A	102~122A	102~122A
BMS Features	High accuracy cell level voltage, current measuring Over-charge, over-discharge protection Short-circuit protection Self-learning intelligent SOC calculation Cell level active equalization Multiple communication type Parallel connect function
Working temperature	-15°C~+55°C
Storage temperature	-20°C~+50°C

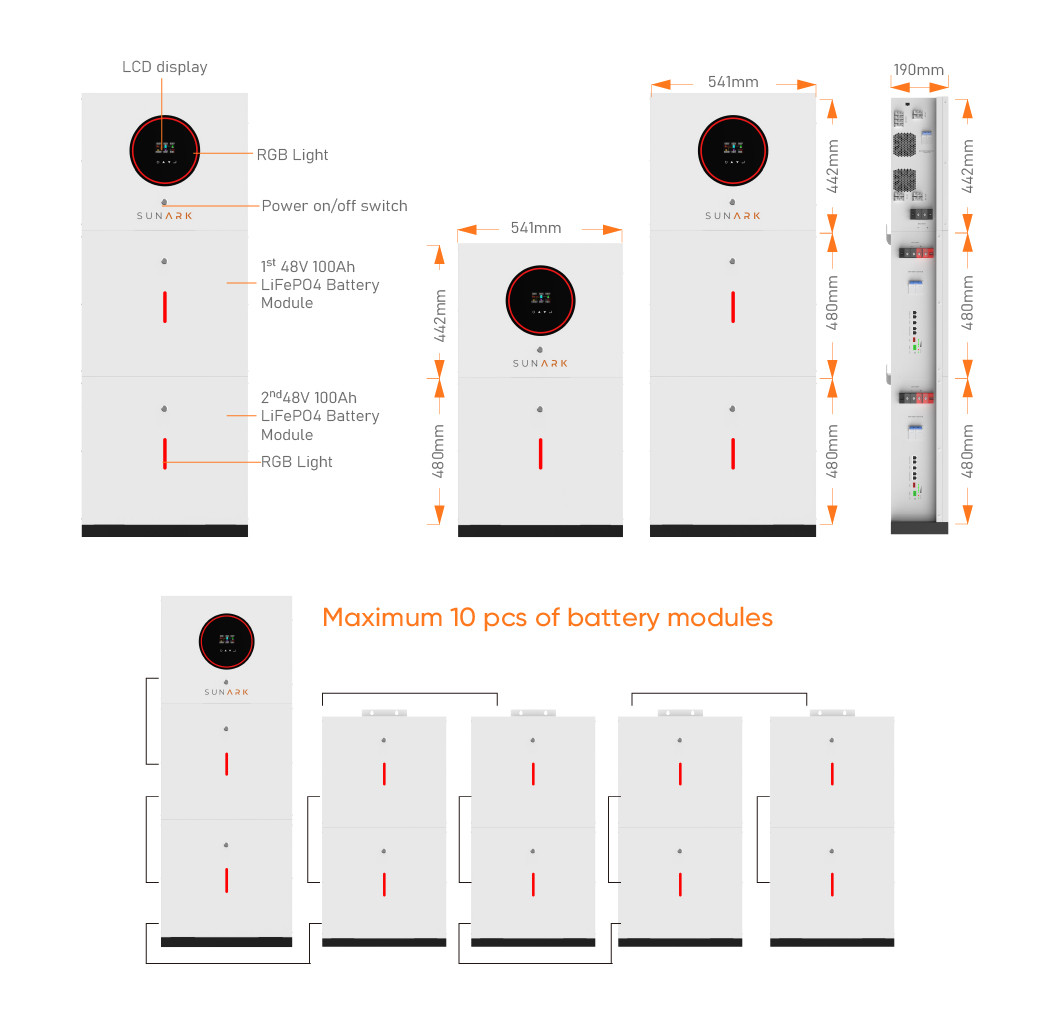

Single Battery Module Dimensions(mm)	541480190	541480190	541480190	541960190
Single Battery Module Weight (Kg)	27KG	54KG	54KG	110KG

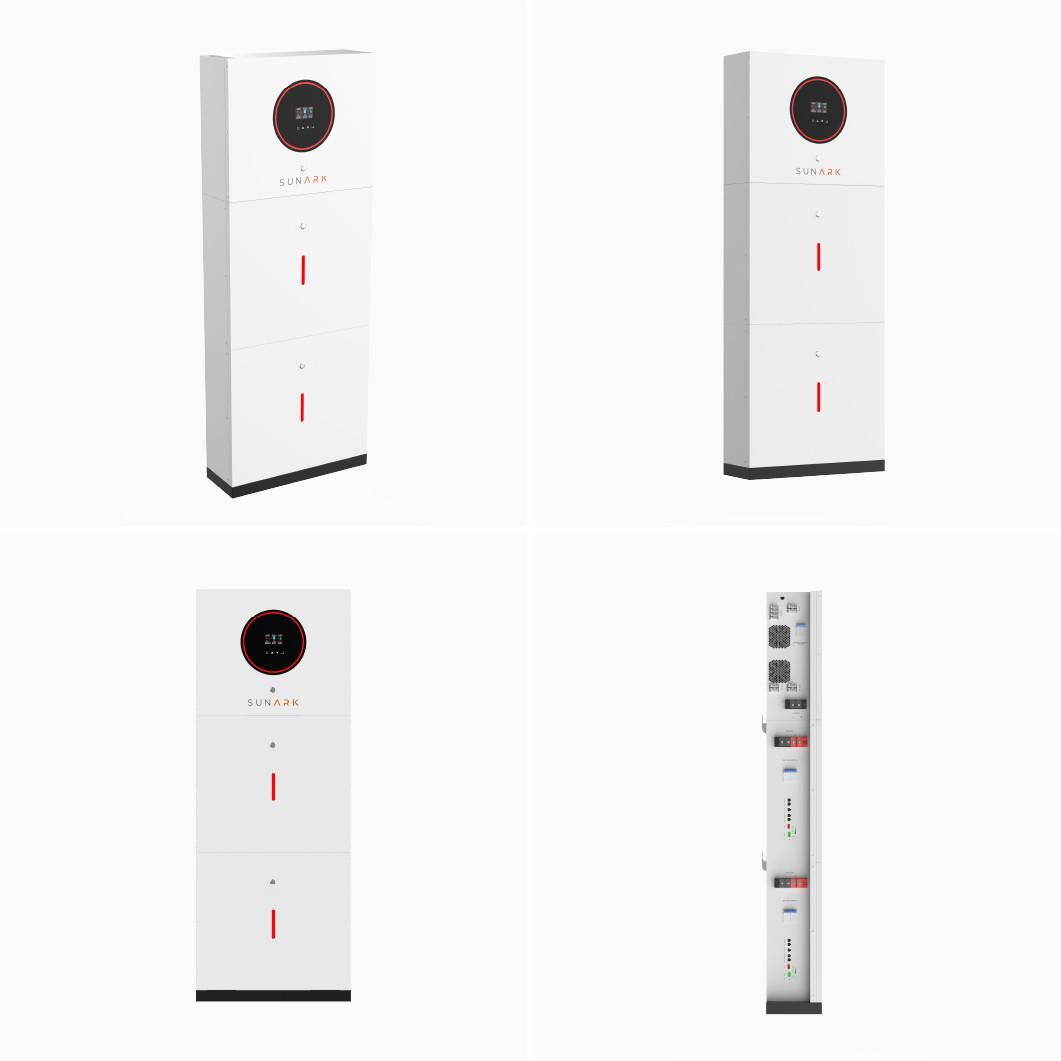

Product Detail

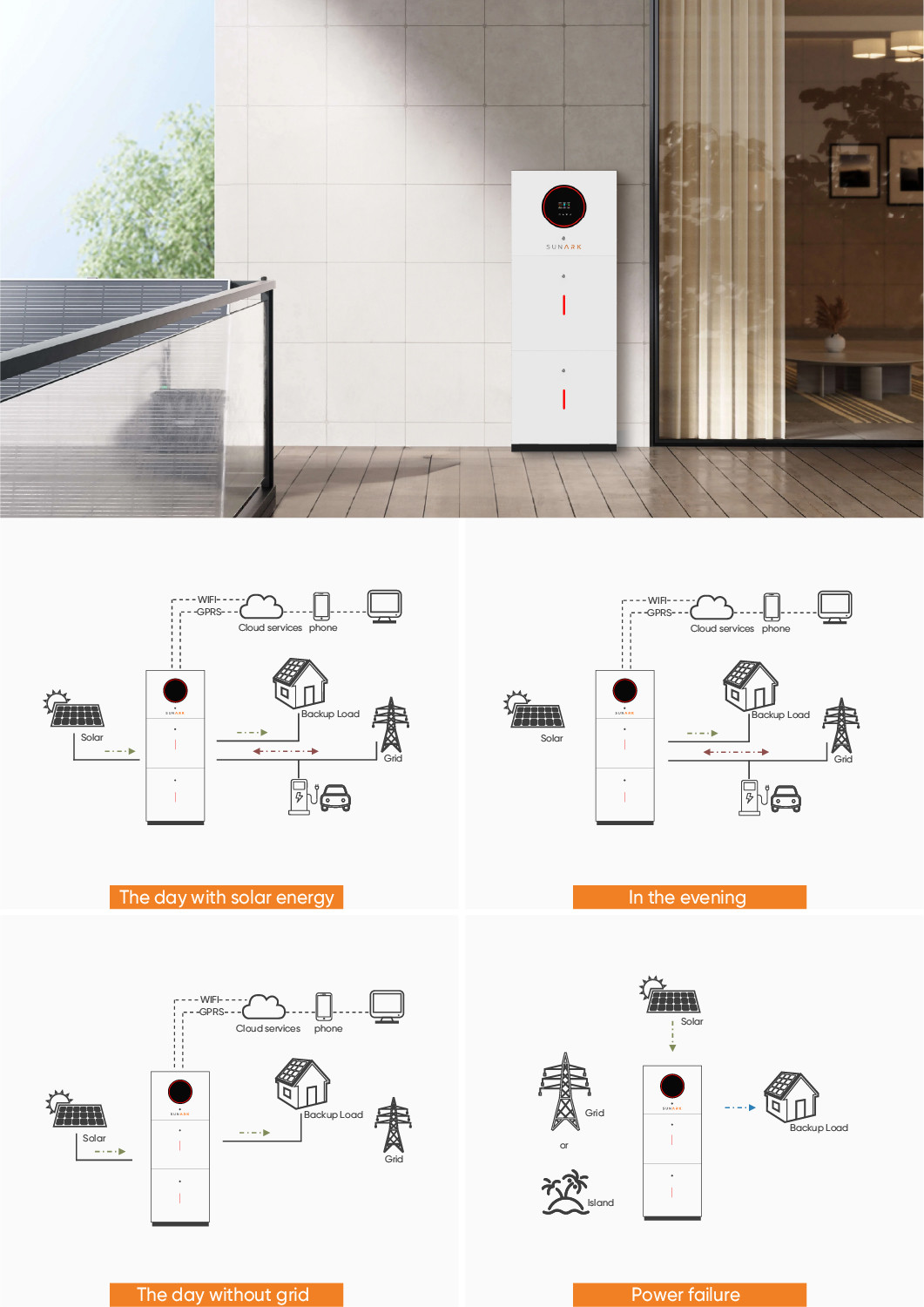

Applications

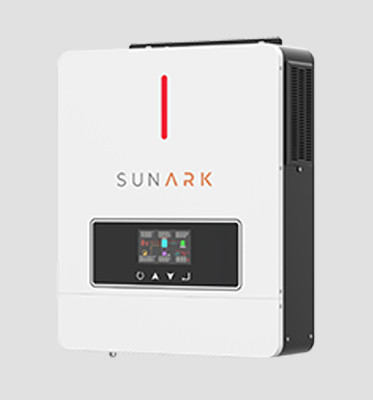

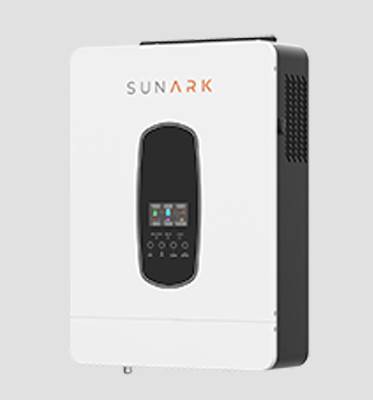

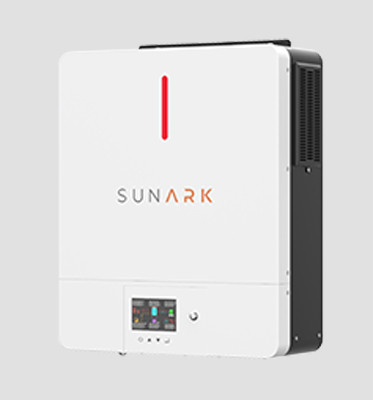

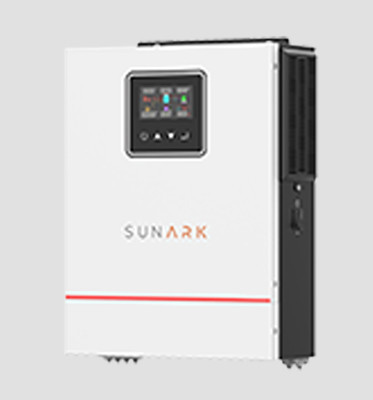

Products Series

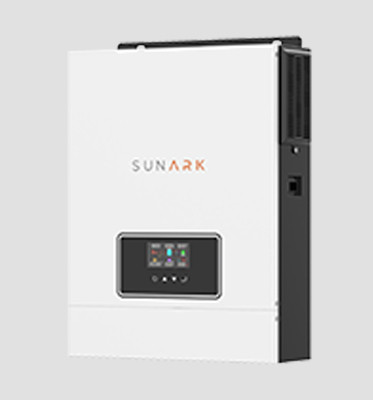

SunPilot-2000/3200

Output Power: 3.6-6.2KW Single Output Voltage: 220/230/240VAC Maximum AC charging current: 100A Maximum solar charging current:120A

Battery Voltage: 24/48VDC

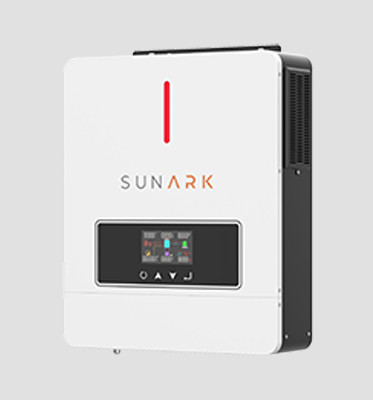

SunSmart PRO-3.6/4.2/6.2KW

Output Power: 3.6-6.2KW Single Output Voltage: 220/230/240VAC Maximum AC charging current: 100A Maximum solar charging current:120A

Battery Voltage: 24/48VDC

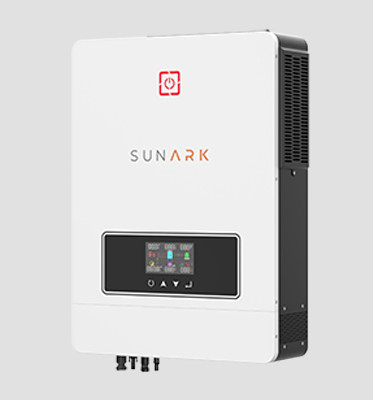

SunSmart MAX-8.2/10.2KW

Output Power: 3.6-6.2KW Single Output Voltage: 220/230/240VAC Maximum AC charging current: 100A Maximum solar charging current: 120A

Battery Voltage: 24/48VDC

SunPilot-2000/3200

Output Power: 2200-3200VA Single
Output Voltage: 220/230/240VAC
MPPT Solar Charge Controller: 80A
Battery Voltage: 12/24VDC

SunPilot ECO-2000/3200/4200/7000

Output Power: 2000-7000VA Single
Output Voltage: 220/230/240VAC
MPPT Solar Charge Controller: 60/80A
Battery Voltage: 12/24/48VDC

SunPilot MINI-1000/1500

Output Power: 1000-1500VA Single
Output Voltage: 220/230/240VAC
MPPT Solar Charge Controller: 40A
Battery Voltage: 12/24VDC

SunPilot LV-3.6/6.2KW

Output Power: 3.6-6.2KW Split
Output Voltage: 220/230/240VAC
MPPT Solar Charge Controller: 120A
Battery Voltage: 24/48VDC

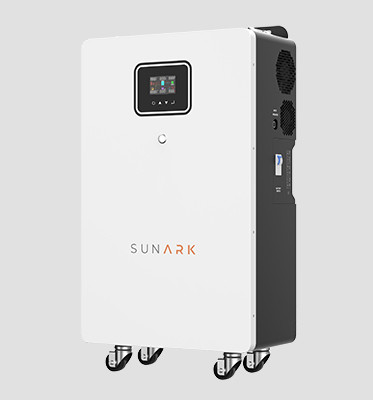

SunMaster-4.2/6.2/10.2KW

Output Power: 4.2-10.2KW Single
Output Voltage: 220/230/240VAC
Battery Voltage: 24/48VDC

SunMaster M-1.0/1.5/4.2/6.2KW

Output Power: 1.0-6.2KW Single
Output Voltage: 220/230/240VAC
Battery Voltage: 24/48VDC

Our Factory

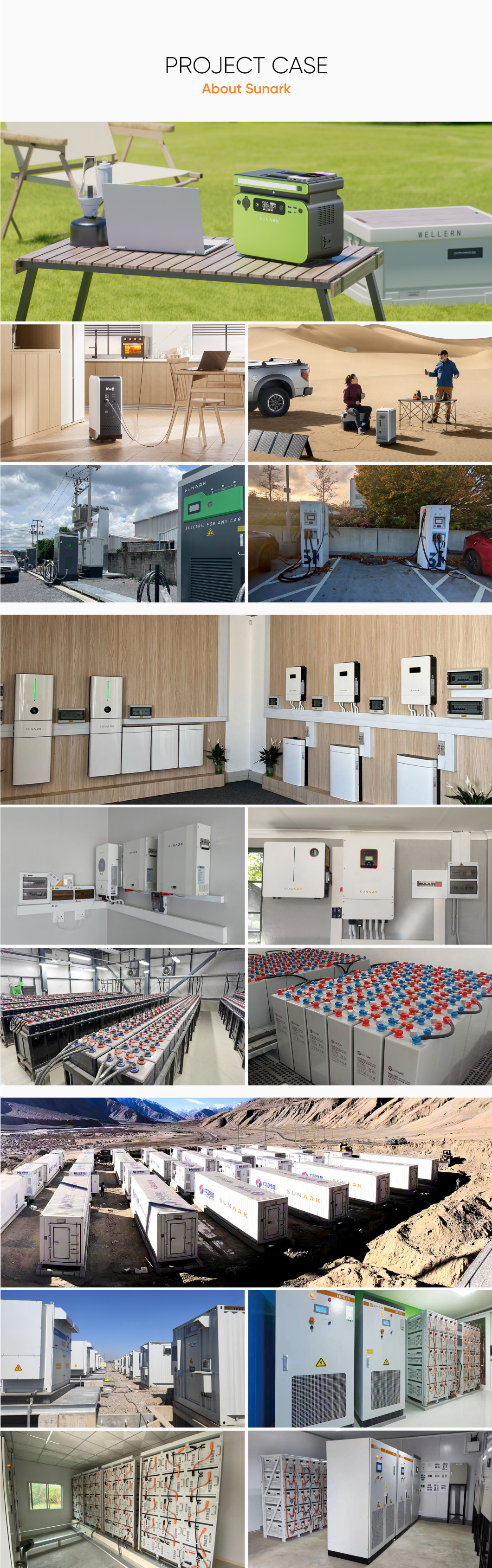

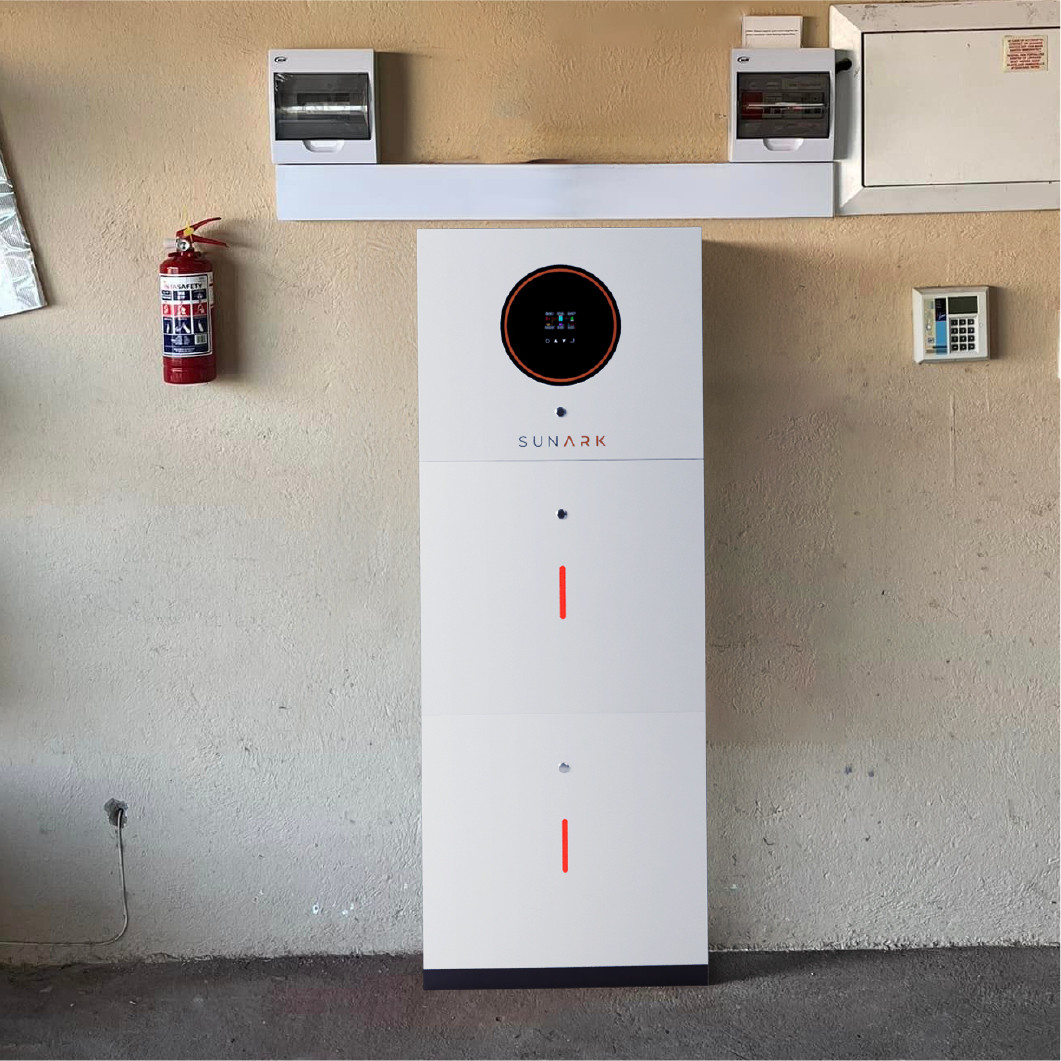

Project Case

Company Profile

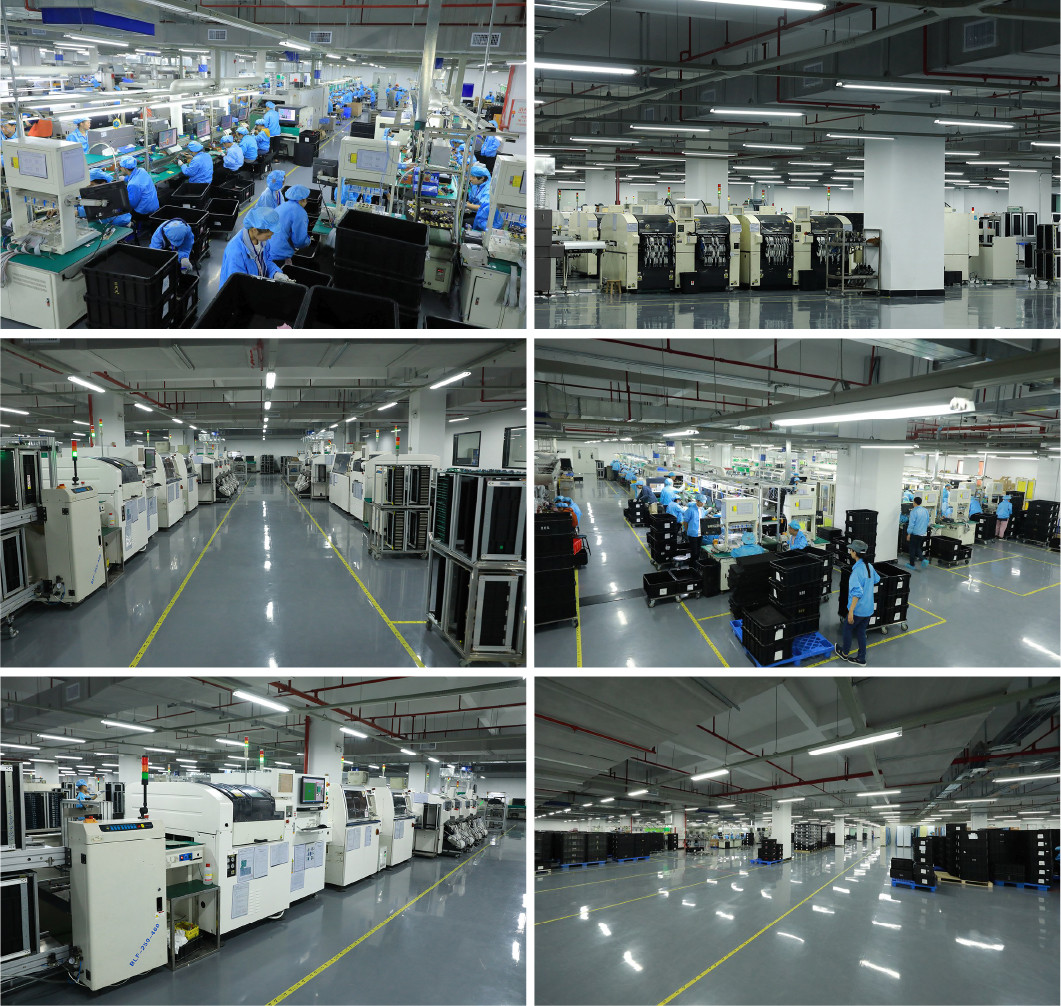

Our Factory
