GOOTU Home Energy Storage Battery Powerwall Lithium Battery LFP 10Kwh Wall Mounted Lithium Battery 48V 200Ah For Solar System

Name: GOOTU Home Energy Storage Battery Powerwall Lithium Battery LFP 10Kwh Wall Mounted Lithium Battery 48V 200Ah For Solar System
Brand: Shenzhen Jiesaiyuan Electricity Co., Ltd.
SKU: Tradewheel_2735494
Price: 630 USD
Availability: InStock

FOB Price 630 - 630 USD / pieces

Contact Now

Quick Details (View All)

Battery Type	LiFePO4	Model Number	JZJ-BK522010W
Brand Name	GOOTU	Place of Origin	Guangdong, China

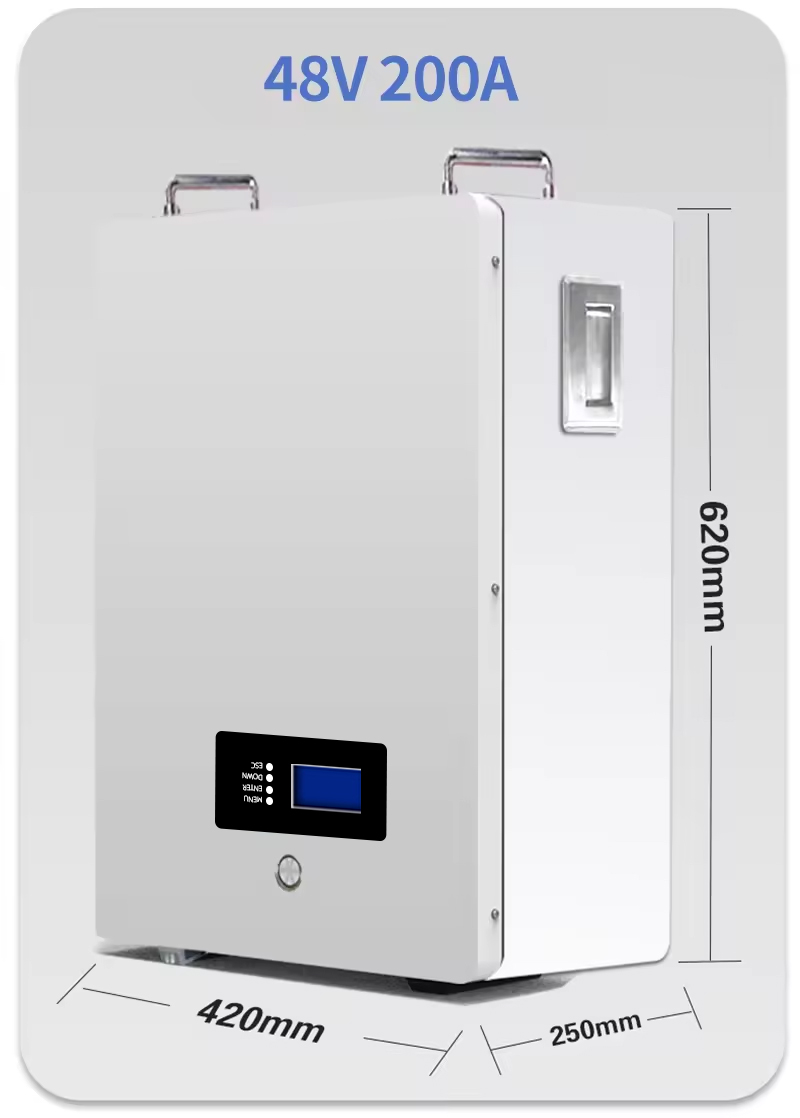

Output Power Range	10~20 kWh	Dimension (LWH)	1021605190mm
Weight	103kg	System Type	Wall-mounted
Type	Split, Li-Ion/lithium/lifepo4	Communication Port	CAN, rs232, rs485
Protection Class	IP65	Grid connection	Off grid, Hybrid grid
Product name	200Ah lifepo4 Lithium Ion Battery	Application	Home Solar Energy Storage System
Capacity	200Ah	Voltage	51.2V(48V)
Cycle life	6000 Times	BMS	Smart BMS System
Warranty	5years	Life Time	20 Years
Communication	CAN/RS-485/RS-232

Product Details

Recommend Products

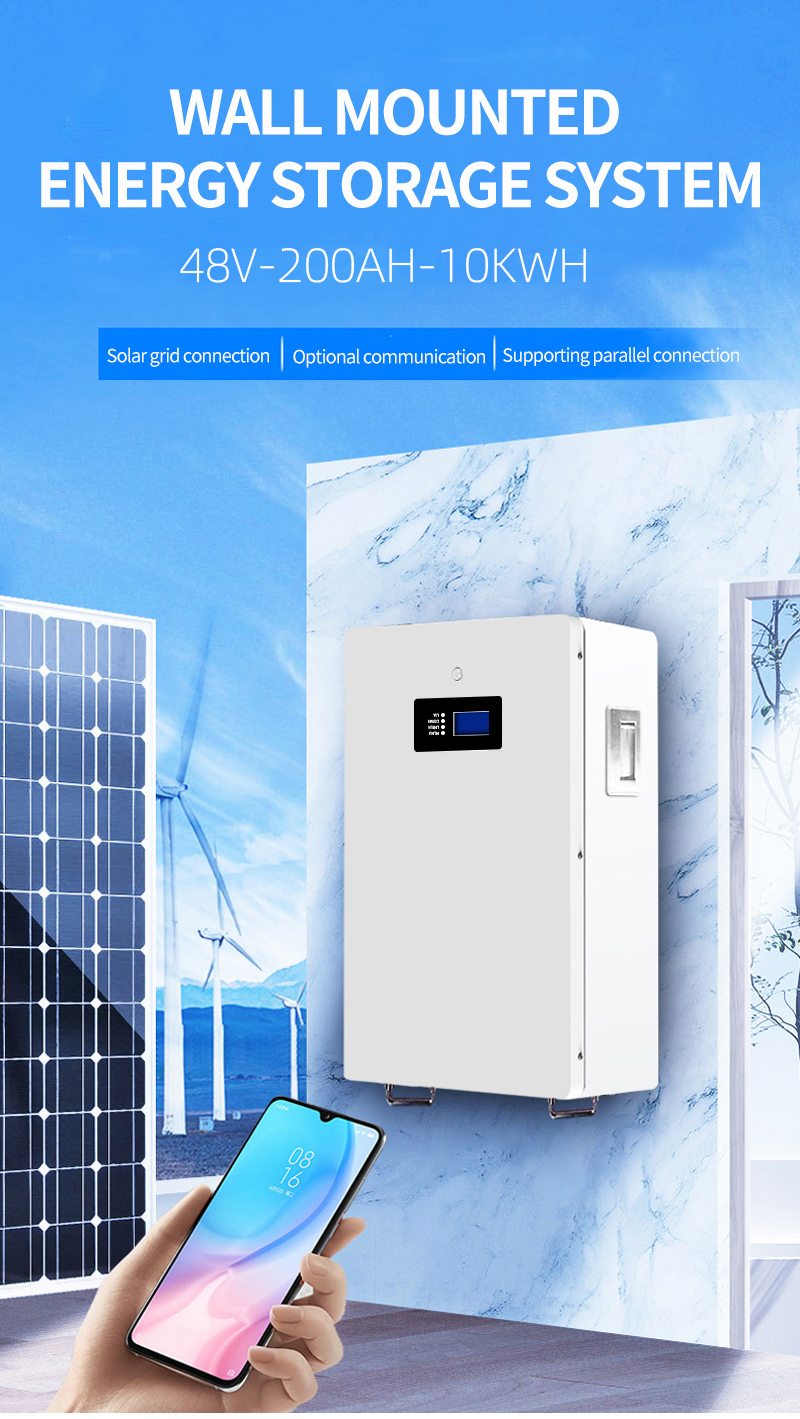

51.2V Power Wall LiFePO4 Energy Storage Battery

Top brand cells such as CATL/BYD , grade A quality

Cells cycle times 6000 cycles, 5 years warranty, 10-15 years life design

Power wall design, space saving design

High density, small size and weight

Big charge and discharge current, suitable for solar storage system

Smart BMS can communicate with Different Brand of Hybrid Solar Inverter

With maximum 1~5A cell equalizer, can balance all cells in short time.

LCD display with communication port(CAN/RS485/RS232) .

All around protectionApplication

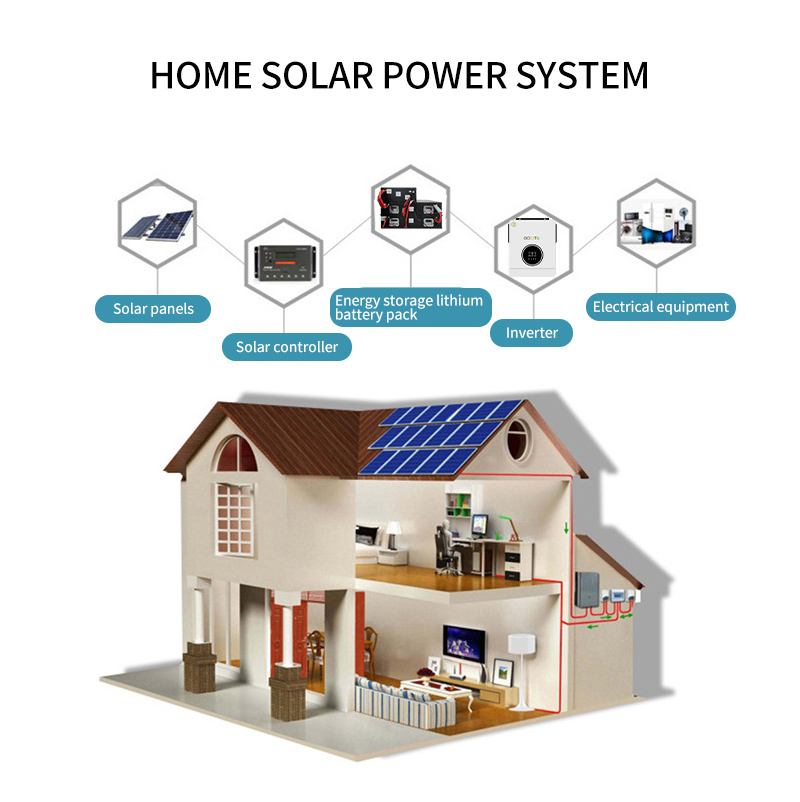

Storage solar system, UPS power bank, Inverter power bank, Railway power bank, Telecommunication

power system, Medical electronics, Commercial finance,Security communications, Transportation logistics and so on

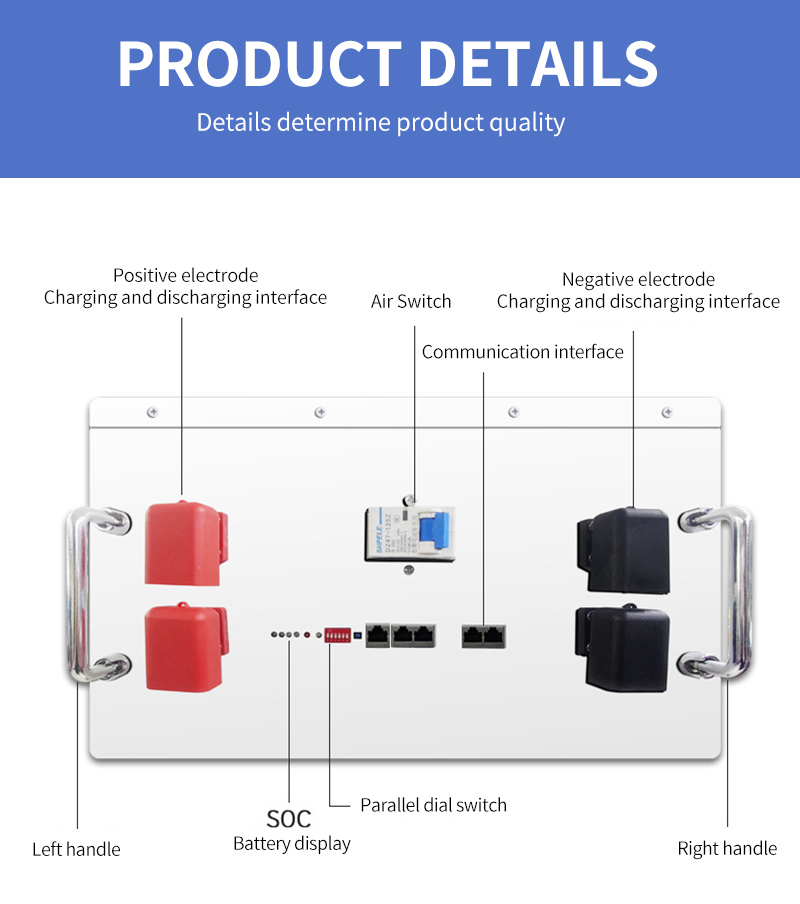

Details Images

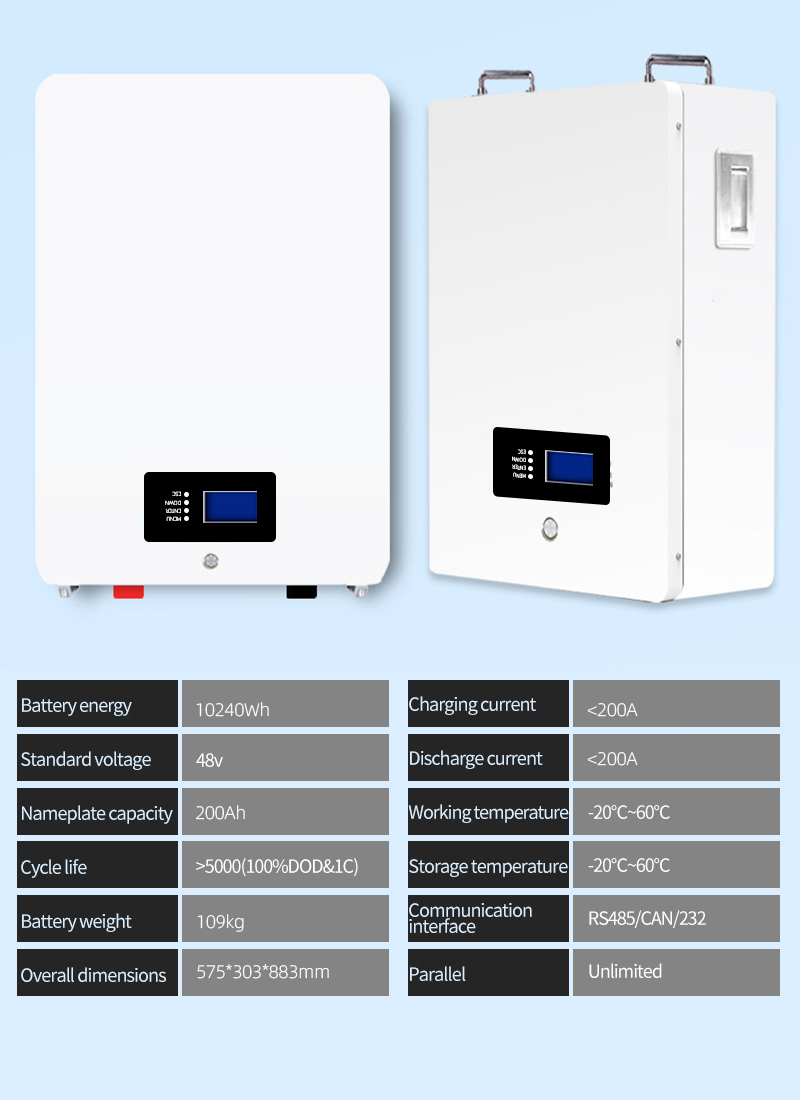

Data Sheet

Models	JZJ-BK522010W
Battery Type	LiFePO4
Battery Energy	1024kWh
Life time(25C)	20 Years
Life cycles(80% DOD, 25C)	6000 Cycles
Rated voltage	51.2V
Max. Charing voltage	57.6V
Over discharge voltage	44.8V
Communication interface	RS485/CAN/RS232
Constant charging current	200A
Peak charing current	200(3S)
Cooling Mode	Natural Cooling
Max.number of parallel	4PCS
Dimension(LWH)	575303883mm
Weight	109KG
Battery standard	CE/RoHS UN38.3,MSDS,EN55032,EN55024, EN61000-3-2,EN61000-3-3

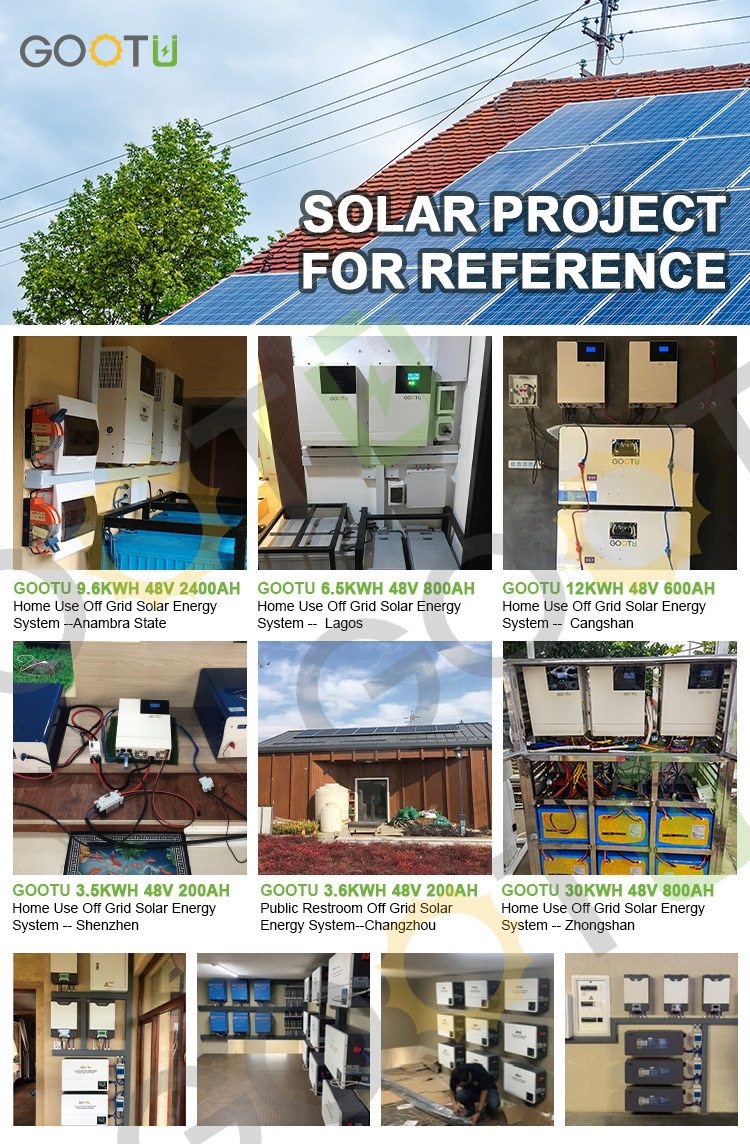

Project

Customer Reviews

Company Profile

Shenzhen Jiesaiyuan Electricity Co., Ltd.,

Shenzhen Jiesaiyuan Electricity Co., Ltd is a new energy enterprise dedicated to the R&D and manufacturing of PV inverters, energy storage battery. We always sticks to the R&D investment and technology innovation, and provides customers with premium products and services through its core inverter & battery technology, rigorous quality control and continuous improvement of customer service, and enjoys a high reputation in the industry with excellent product quality, good reputation and advanced innovation consciousness. We can provide different application systems, engineering services and optimal system solutions according to our customers requests. Our company has a professional R&D team which is composed of experienced professors, senior engineers and technical persons. We have abundant technical strength and rich experience in engineering design and construction.We always adhere to provide customers with quality products and services, and actively work with customers around the world to create a better future.

Certifications

FAQ

Q: How about the warranty? What you will do if the product in problem during 1 or 2 years? If refund should i return the goods? A: The warranty of inverter is 2 years, battery is 5 years. During the warranty we offer you free replacements for parts, no need to send back to china. The warranty period has expired , we will offer support but you need to pay for the parts component cost. Q: How long the delivery time if i order? How soon can you send out the goods? A: Some of the inverters in stock, and to make new inverters take 1-2 weeks time, ODM OEM take 4-5 weeks time for customization. Q: What happen if i meet problem during instalation? Will you support and how? A: Yes that we are 24 hours online to help, pls contact us by email or other way should anything need help,no matter technical service or after sale service. Q: What certificates do you have for your products? Can you provide sample for testing? A: Sure, please kindly contact us and we will provide sample for you. Our products has passes RoHS, CE, FCC, UL, PSE, UN38.3 test, which is able to satisfy most country’s importing requirements. Q: How do you ship the goods and how long does it take? A: Usually by DHL, UPS, FEDEX,TNT. It usually takes 3-6days to arrive. By air, by sea are also acceptable. EXW, DDU, DDP, FOB, CIF, DAP, etc. All terms are available.
