| Quantity | 1SET - 10SET | 10SET - 100SETS |
| Price | USD8000 | USD6500 |
| MOQ | 1 set |
| Port | QINGDAO |
| Packaging | veneer case |
| Lead Time | 7-10working days |
| Model No. | AOK-S130H | Applier material | Flat aluminum, Edged aluminum profile, Aluminum profile,Stainless steel, Galvanized sheet, Iron sheet |
| Material thickness | 0.4-1.5mm | Material width | 30mm -130mm |
| Feeding | Auto feeding, manipulator feeding | Slotting | Auto slotting, slotting angle 45°- 135° |
| Bending | Auto bending, mini bending radius 3.5mm | Control system | LETTRO |
| Precision | 0.05mm | Speed | 60mm/s |
| Input file format | DXF, PLT, AI | Motor | Servo*3 + reducer *1 Stepper *5 |
| Power | Total power 3500W , Working power 2000W | Voltage | 1PH AC220V 50/60HZ |
| Dimension | 2700*747*1494mm | Weight | 500kgs |
|
Photos |
Features |
|
|

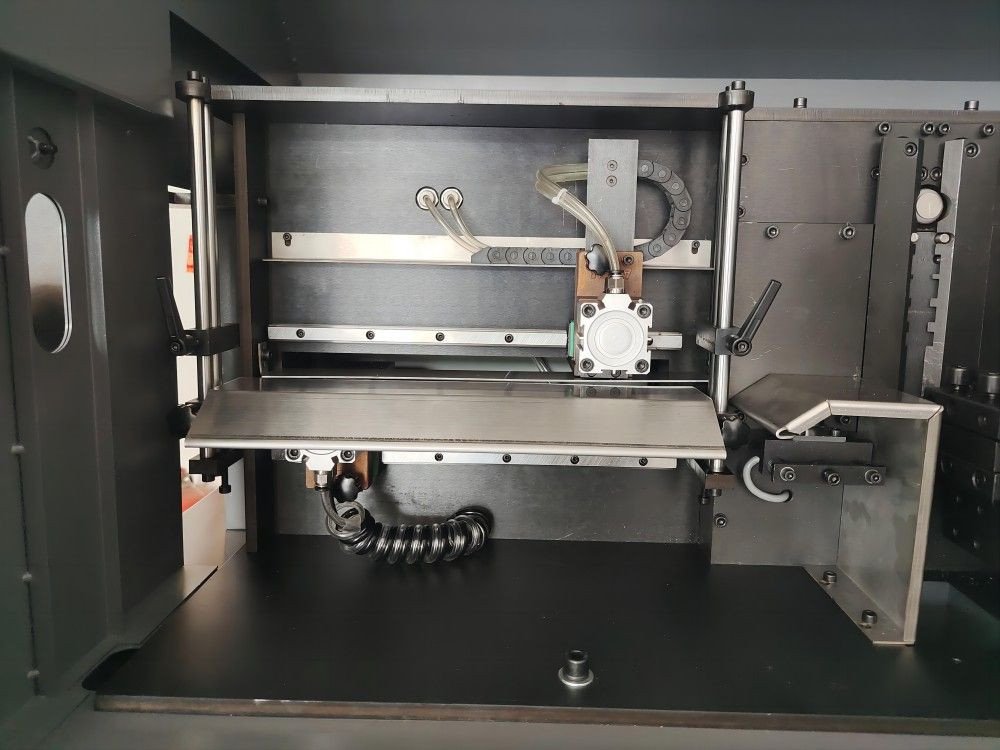

Auto Feeding manipulator feeding AC Servo motor support |
|
|

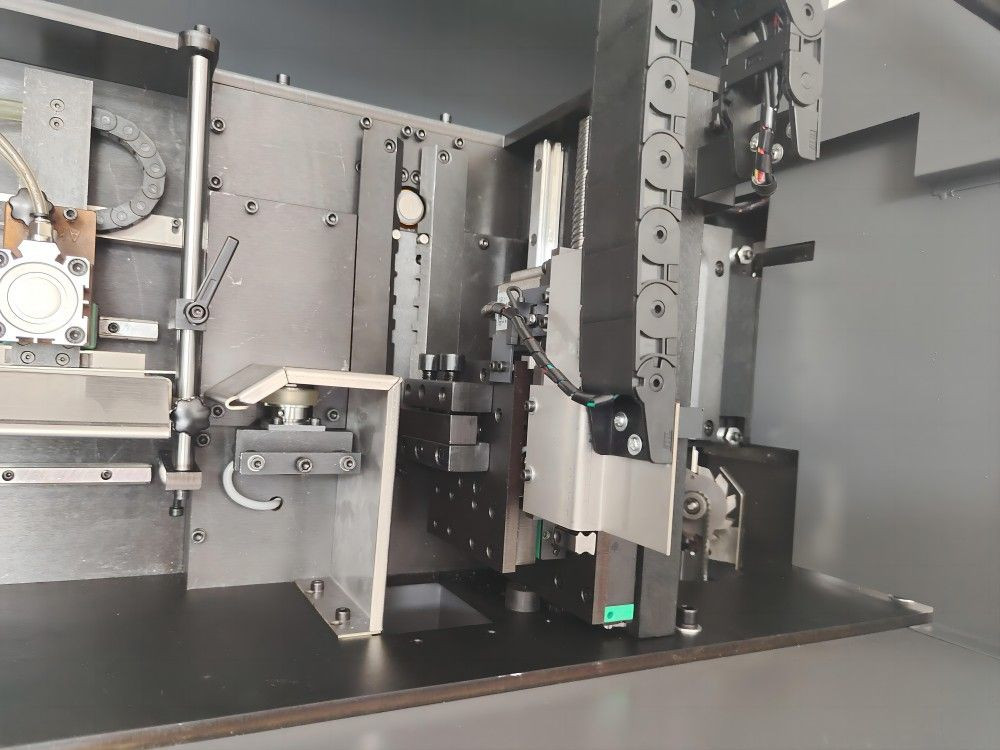

Planer knife for stainless steel, Galvanized sheet, Iron sheet. 45-135degree turning. Milling cutter for aluminum |
|
|

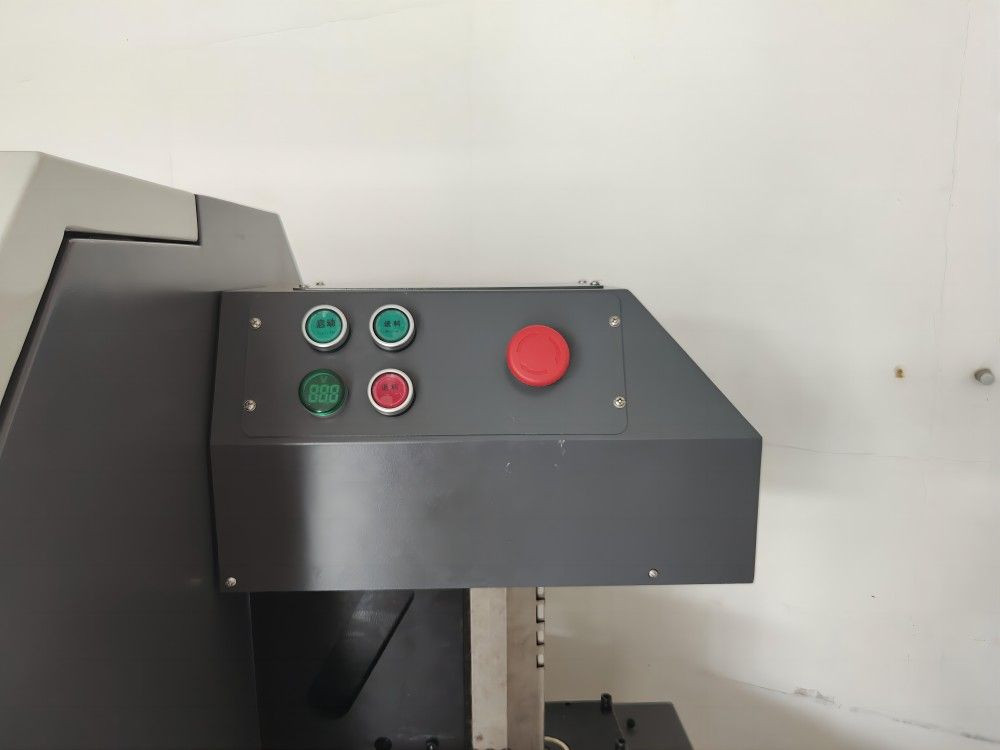

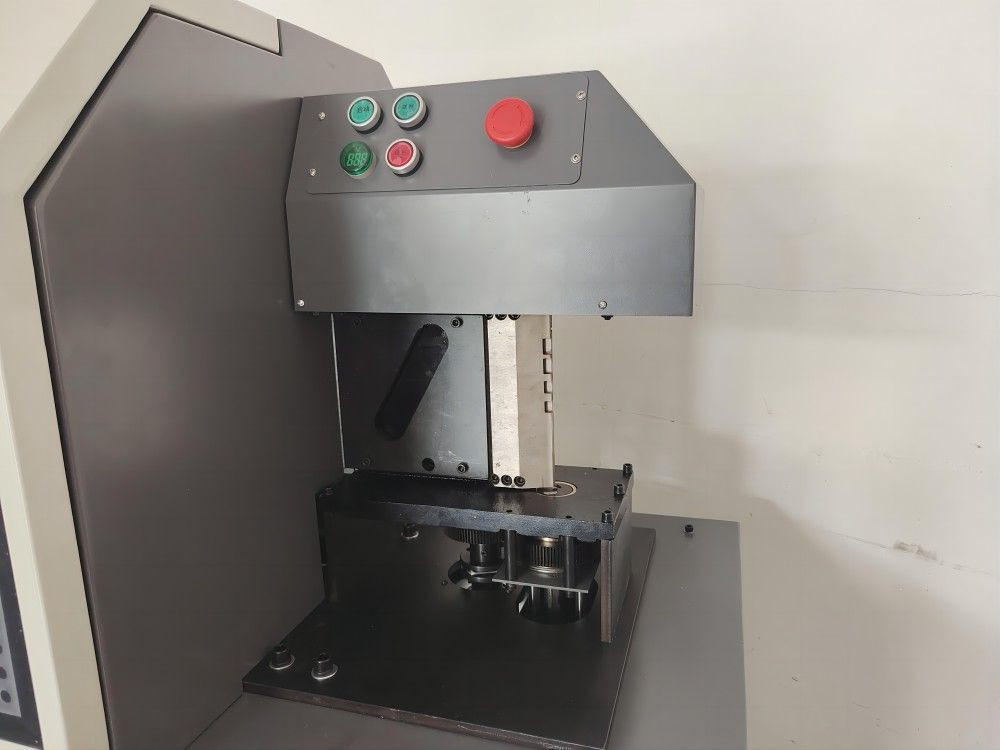

Control buttons |
|
|
Bending roller : Cast steel chrome plated |
|
|

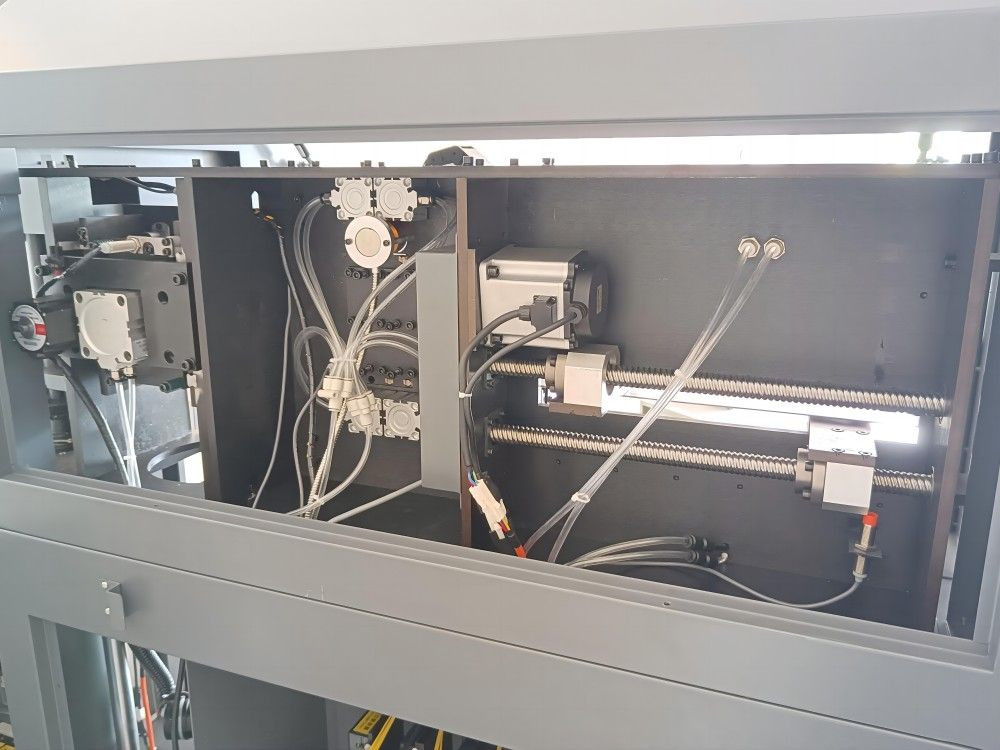

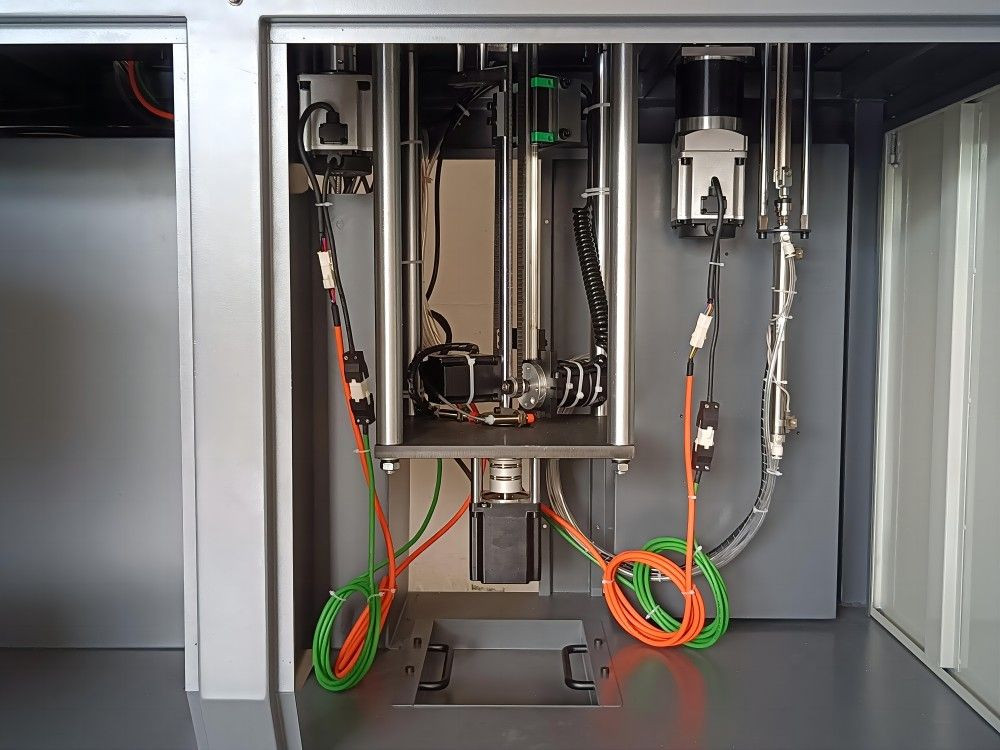

Inside structure |
|
|
Slotting : AC servo DRANA 750W Bending : AC servo +Reducer Servo: DRANA 750W Reducer : 1:16 |
|
|
Control box |
|
|
Material stand |
