| Quantity | 1SET - 10SETS | 10SET - 100SETS |
| Price | USD3100 | USD2800 |
| MOQ | 1 set |
| Port | QINGDAO |
| Packaging | veneer case |
| Lead Time | 7-10working days |
| Model No. | AOK-L180H | Applier material | Flat aluminum, Edged aluminum profile, Foam aluminum |
| Material thickness | 0.4-1.2mm / 0.4-1.5mm | Material width | 30mm -130mm / 30mm-180mm |
| Feeding | Auto feeding, 8 rolls in 4 groups | Slotting | Auto slotting, slotting angle 45°- 135° |
| Bending | Auto bending, mini bending radius 5mm | Control system | ADTECH |
| Precision | 0.05mm | Speed | 60mm/s ( It takes only 48 seconds to finish a letter “S” of 30CM ) |
| Input file format | DXF, PLT, AI | Motor | Stepper*6 / AC Servo 750w * 2+ reducer *2 Stepper *4 |
| Working Power | 1000W / 1200W | Voltage | 1PH AC220V 50/60HZ |
| Dimension | 2520*800*1450mm / 2520*800*1500mm | Weight | 240kgs / 300kgs |
1, Applier material : Flat aluminum , edged aluminum,
Foam aluminum
2, Working principle : Auto feeding, auto slotting, auto bending.
3, Cutting / bending way : auto swing double side cutting and bending.
4, Bending rollers : Cooper. Protect the material surface well, and get finished letter more beautiful.
|
Photos |
AOK-L130H |
AOK-L180H |
|
|

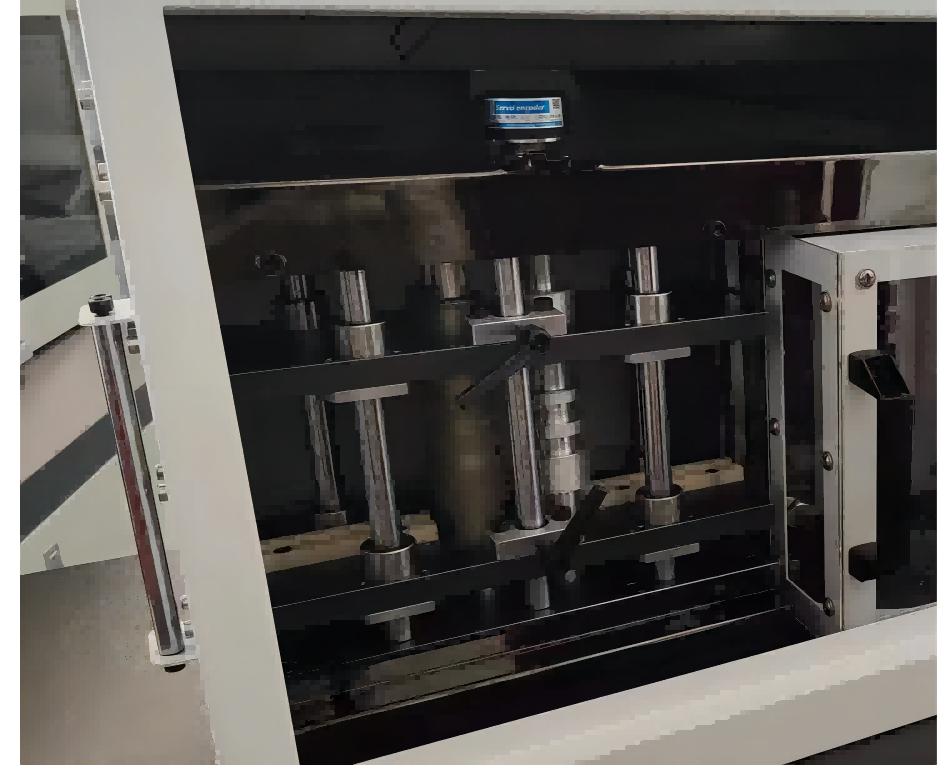

Auto Feeding 8 rollers in 4 groups ( 7 rubber rollers , 1 steel roller ) |
|
|
|
Feeding material width : 30-130mm |
Feeding material width : 30-180mm |
|
|

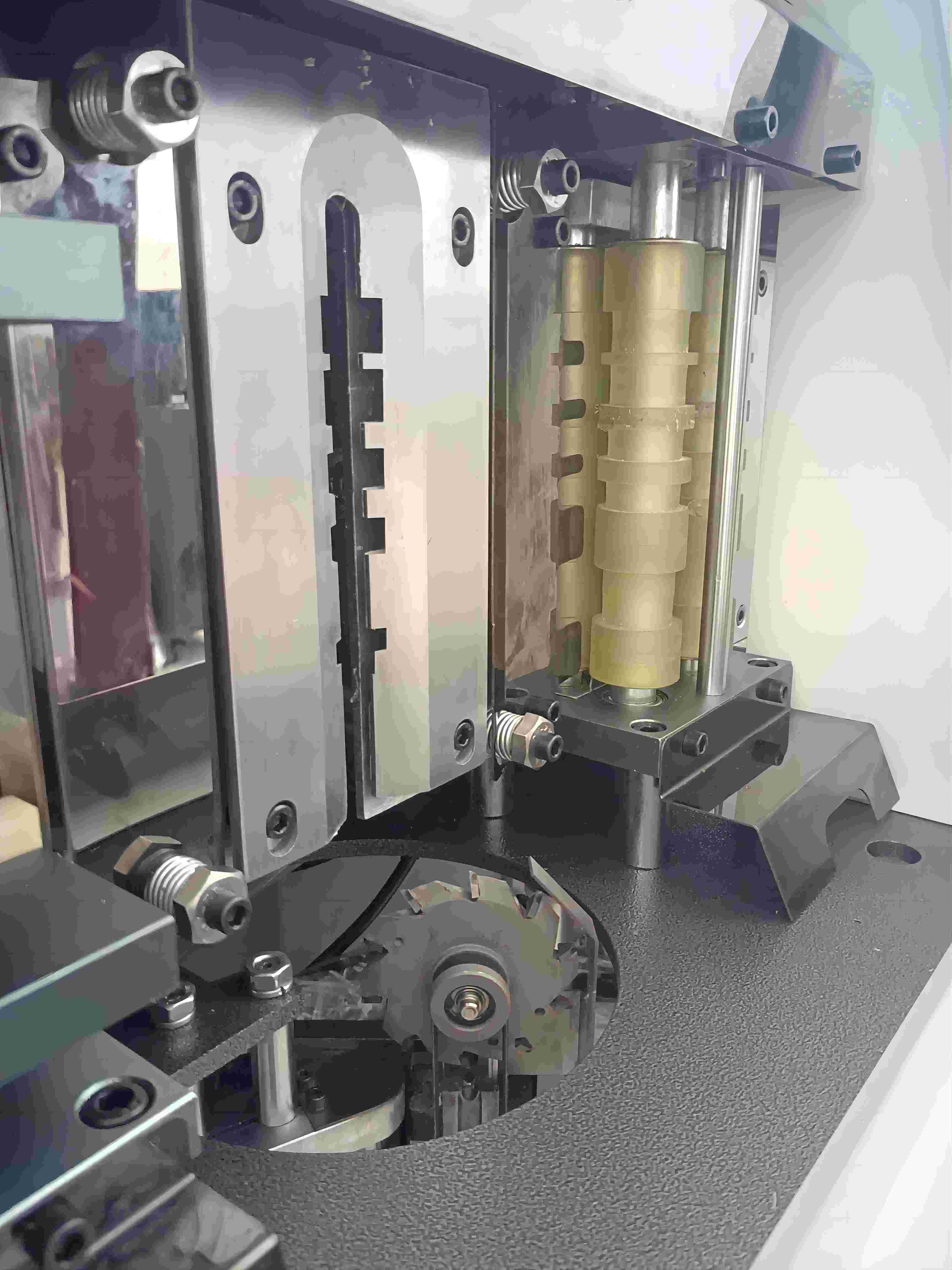

Auto slotting slotting angle 45°- 135° |
|
|
|

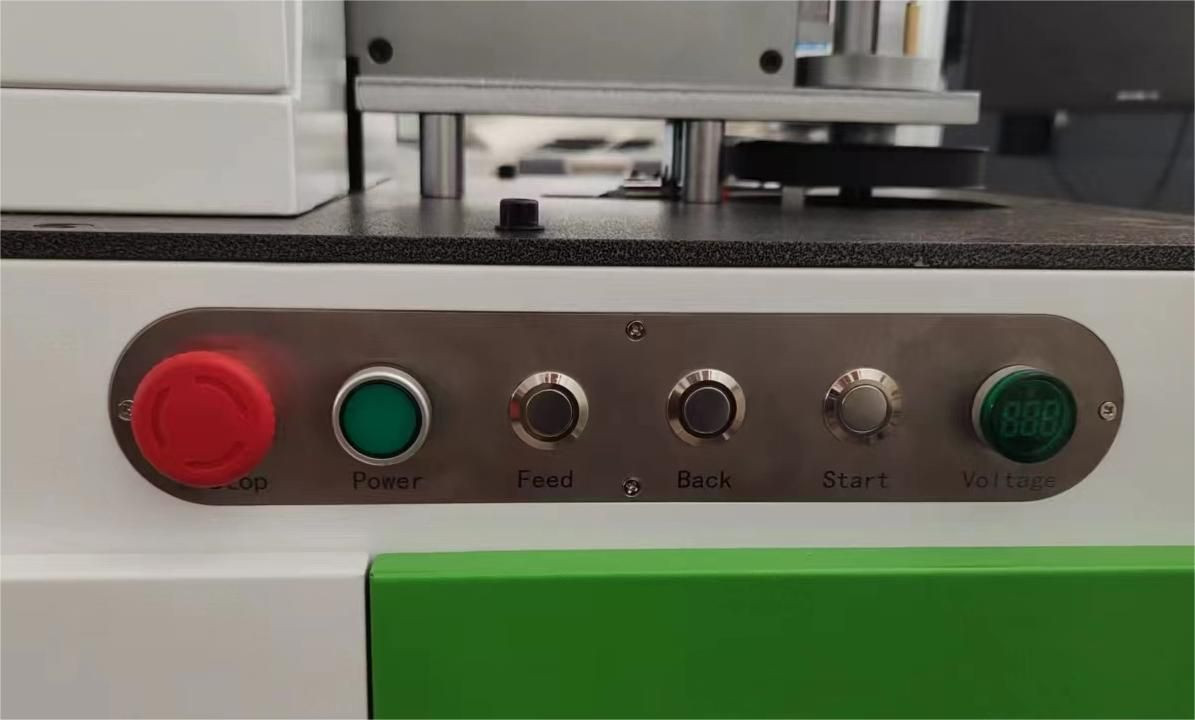

Control buttons |
|
|
|

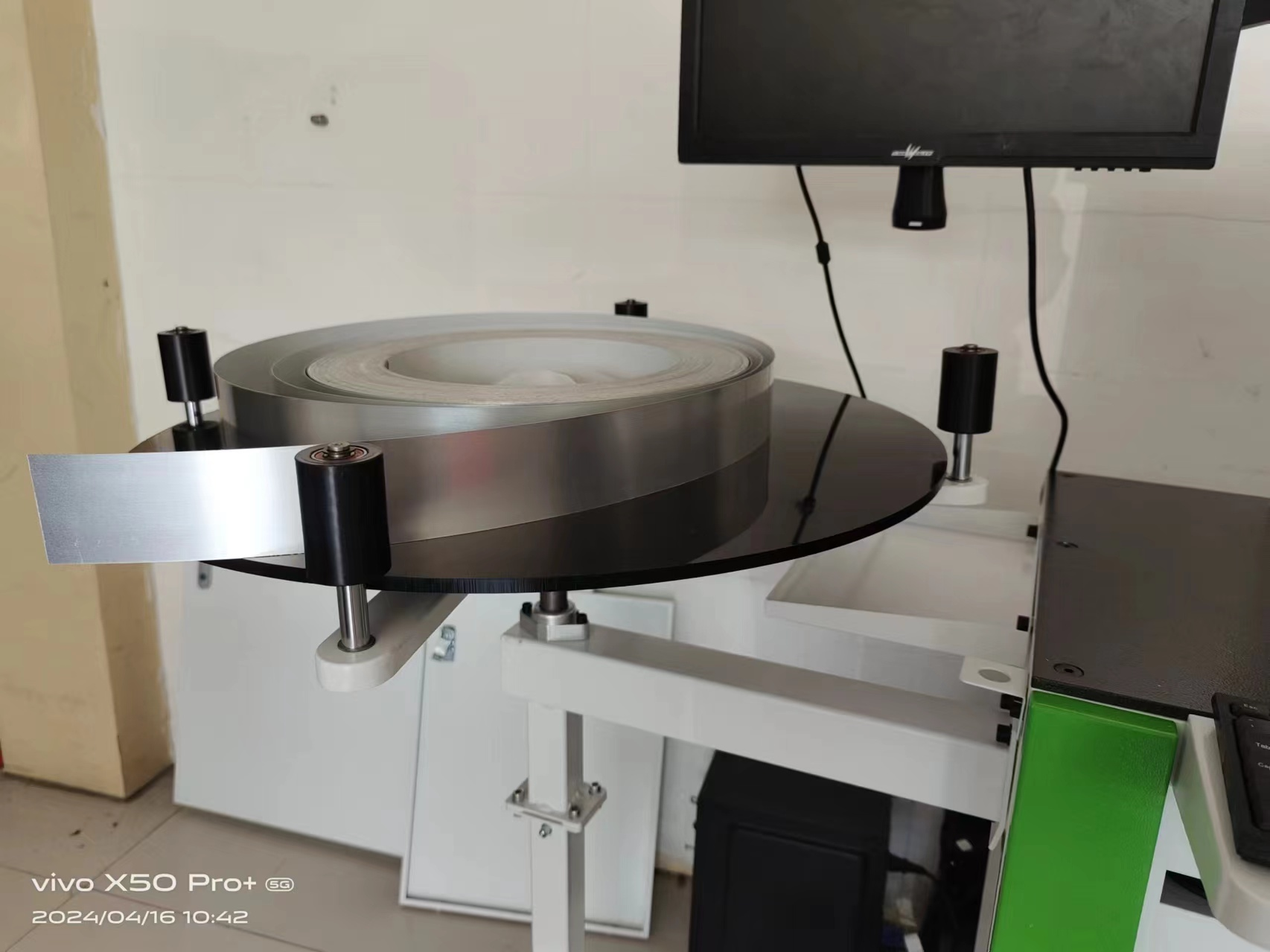

Material stand |
|
|

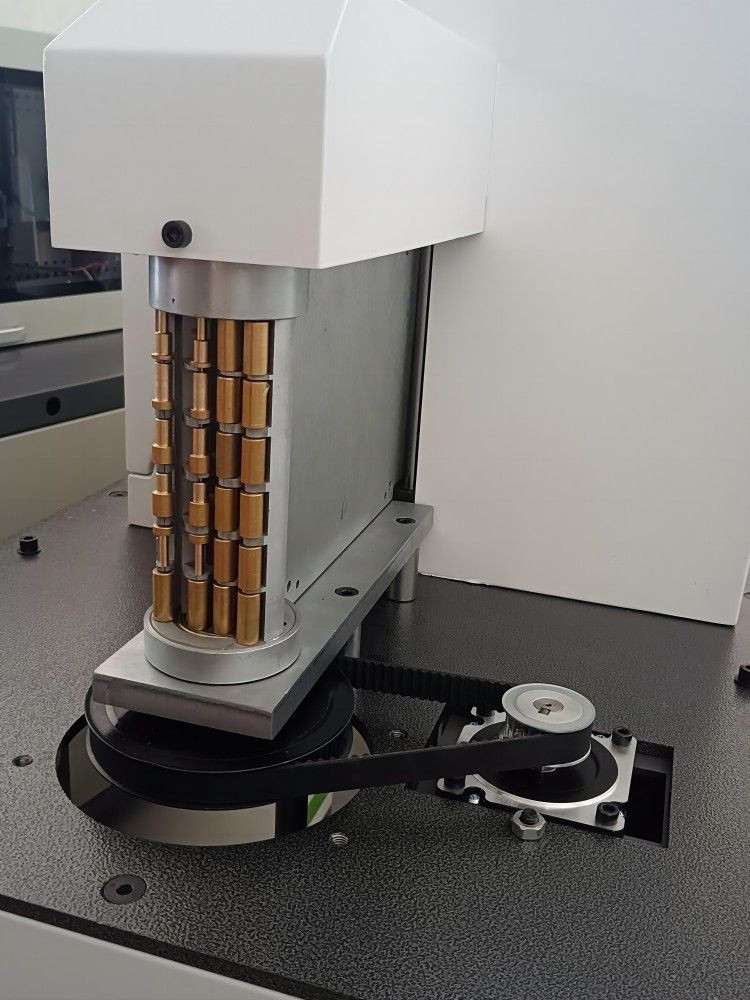

Bending roller : Cooper |
|
|
|

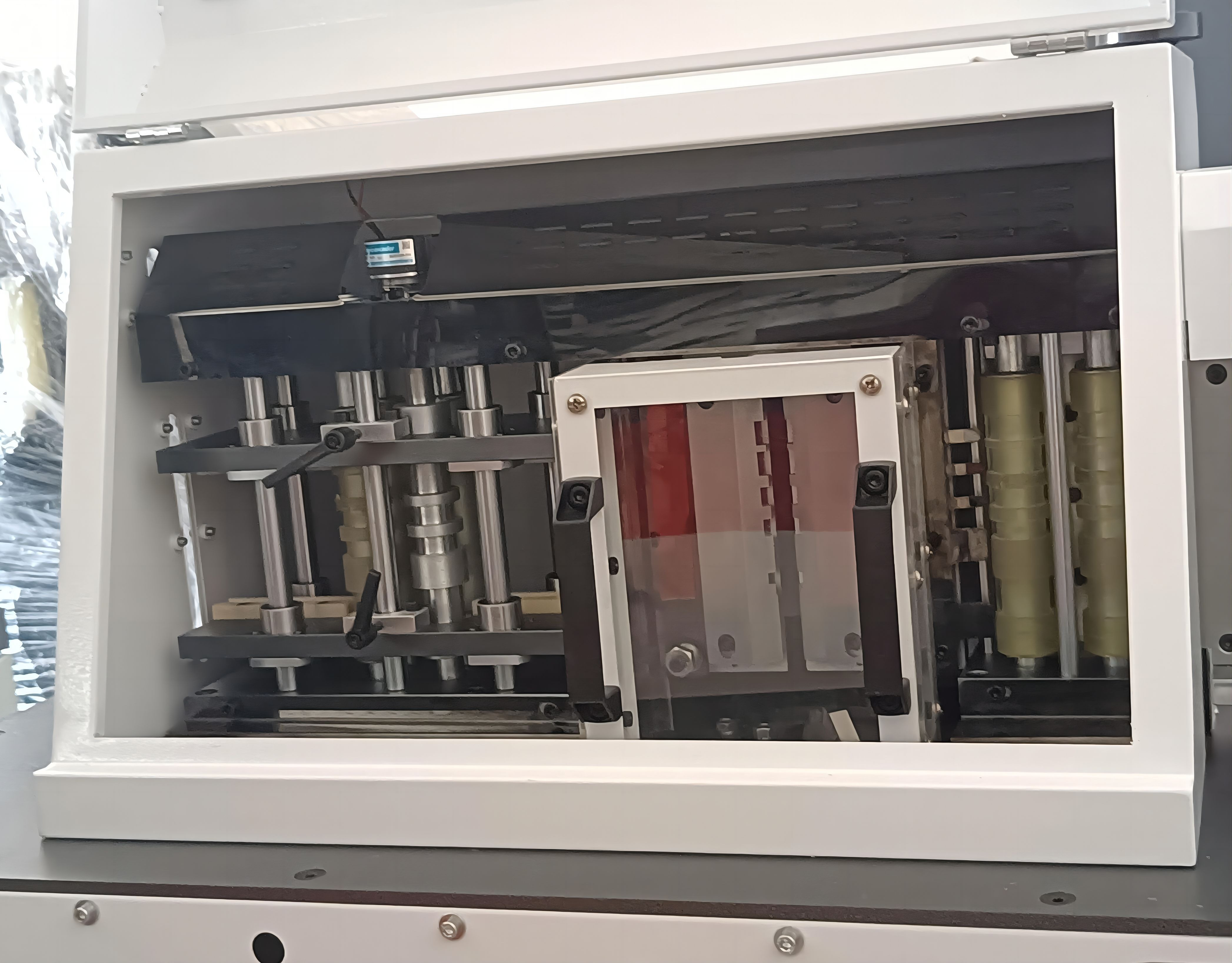

Inside structure |
|
|
|

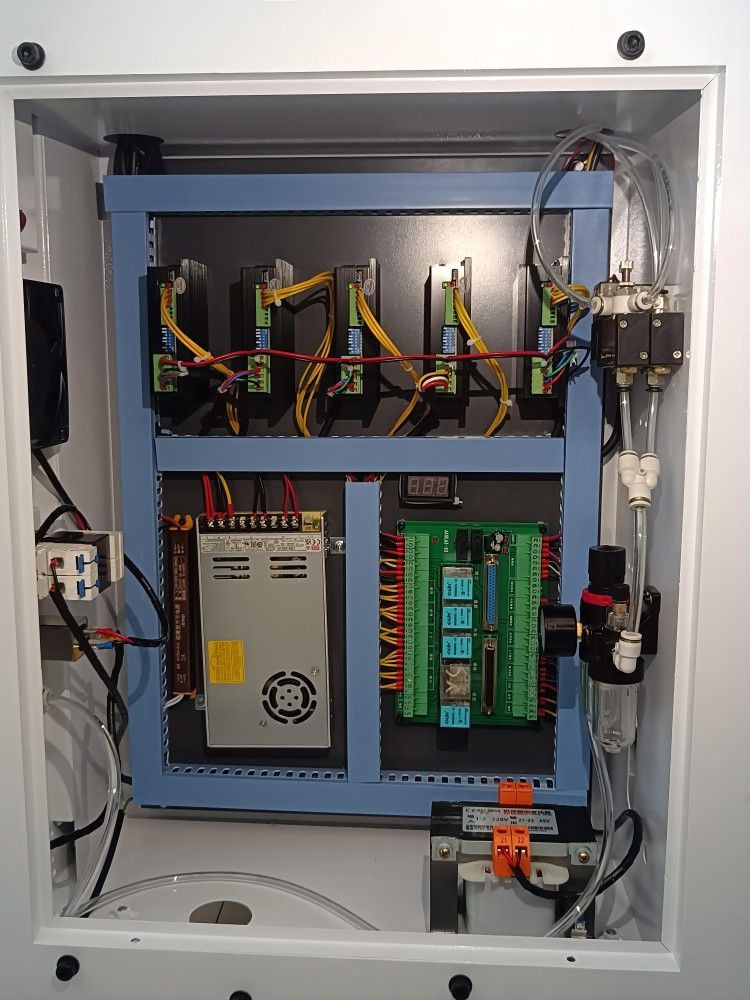

Control box |
|
|
