Stainless Steel Regulating Steam Angle Seat Valve with Diaphragm Type Pneumatic Actuator and Positioner

Name: Stainless Steel Regulating Steam Angle Seat Valve with Diaphragm Type Pneumatic Actuator and Positioner
Brand: JITAI VALVE GROUP CO., LTD.
SKU: Tradewheel_2413587
Availability: InStock

FOB Price 15 - 83 USD / pieces

Contact Now

Quick Details (View All)

Model NO.	JT	Open Manner	Regulating
Size	DN50	Usage	Sanitary Ware, Heating Pipeline
Situation	Industrial	Service Life	>10 Years
Trim	Stainless Steel	Body	Stainless Steel
Certificates	API 6D, CE, ISO9001, Eac 010/032, API 607, Sil, Is	Warranty Time	120 Days After Shipment
Pressure Rating	0-16 Bar	Bonnet Type	Bolted Bonnet
Size Range	Nps 1/2- Nps 3 (DN15-DN80)	Transport Package	Plywood Case
Specification	2′′ (DN50, 50mm)	Trademark	Jitai
Origin	China	HS Code	8481804090
Production Capacity	10000 Sets Per Month

Product Details

Overview
Product Description
Company Profile
Our Advantages
FAQ

Product Description

Introduction

Regulating type pneumatic angle seat valve is equipped with an electric positioner, which receives 4-20mA signal from the PLC control room to control the opening degree of the pneumatic angle seat valve.

Features:

1. The installation and maintenance is easy;
2. Infinitely Rotable Actuator Allows Pneumatic Connection in Any Postion
3.Compact Design and Fast Response
4. Water hammer-free
5. Y-type design,increasing flow by 30%

Parameters

Material	PC,PA,Stainless steel,silicon rubber
Power	DC 24V+/-10%
Signal input	4~20mA or 0~5/10V
Setting signal input impedance	4-20mA signal at 240Ω 0~5/10V signal at 21KΩ
Ambient temperature	-20~55ºC
Gas connection	In-line quick connector(inner diameter ∅8mm,6mm or1/4'')
Electric quick connector	M13x1.0three pin(cable diameter ∅5mm) M17x1.0nine pin(cable diameter ∅6mm) M13x1.0four pin(cable diameter ∅5mm)
Air supply	Higher than the minimum operating pressure actuator 0.5~1bar,max7.0bar
Position sensor stroke/stem stroke	5~50mm
Installation	Tend mounted actuators top m26 threaded connecton and actuators
Protection class	Ip65,comply with the requirements of EN60529
Power consumption	<5W

Jitai Valve Group is a genuine valve manufacturer.

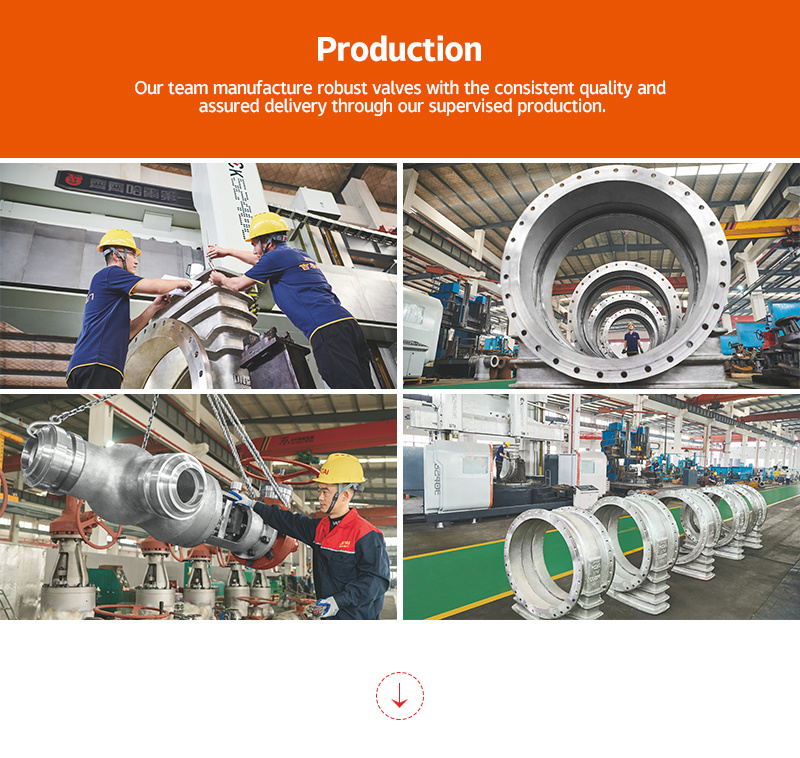

7000-sqm factory
100 employees
5+ senior engineers
30+ design patents
2 million sets of valves delivered
20 million USD annual revenue

Since 1988, we have been expert in manufacturing a wide scope of industrial valves including:

Gate valves
Globe valves
Check valves
Ball valves
Butterfly valves
API valves
Steam valves
High pressure valves
High temperature valves
Power Plant valves

Heavy-duty valve expert with proven expertise in harsh environment;
Stringent quality control and traceable reports to provide zero-defect products;
Rugged and durable configuration according to API, ASME, BS, JIS, EN standards;
All kinds of UG, PRO/E, Solidworks software simulations ensure the efficiency and robustness for tailored components;

1.Q:Are you are a trading company or manufacturer?
A:We are a manufacturer with 7000-sqm factory and 100 employees.

2.Q: Can you provide the assembly drawing for confirmation ?
A: Yes, we can give the relavant drawing within 24 hours.

3.Q: Can you do non destructive test for valve components ?

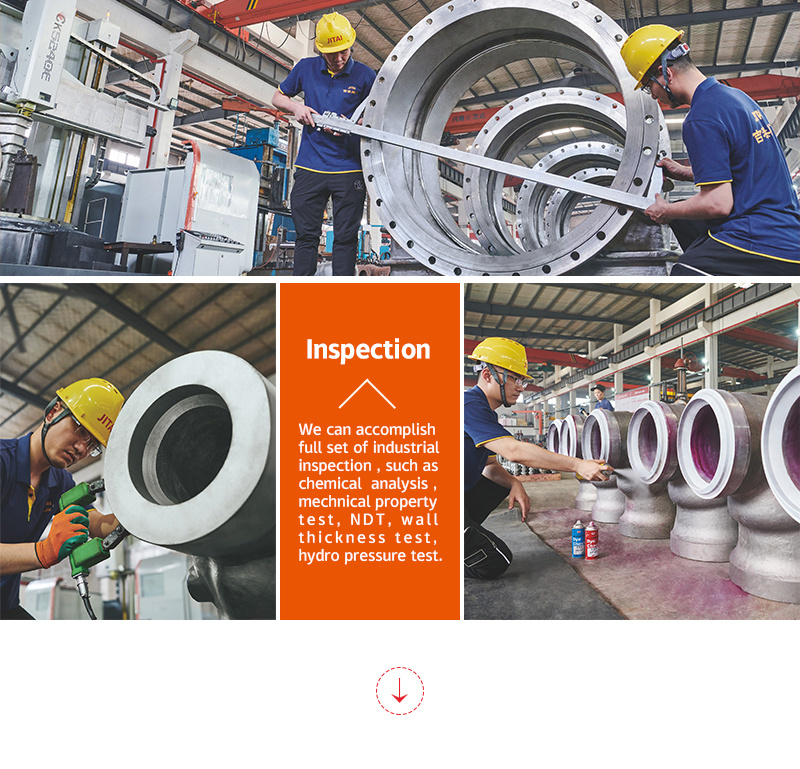

A: Yes, we can perform radiographic testing, penetration testing, ultrasonic testing, magnetic particle testing, etc

4.Q: How can I vist you when I am in China?
A: We are near the Wenzhou Airport. If you take a plane, it takes 2 hours to reach our factory from Shanghai, 2 hours from Guangzhou, 3 hours from Beijing.

5.Q: Can we take sample for quality check?
A: Definitely. You can advise the model number and we will prepare the sample within 7 days.

6.Q: How can I become your distributor or agent?
A: You can send your company profile and reference list to our sales manager.

7.Q: Can you help with site maintenance and commissioning?
A: Yes, we are glad to offer our assistance whenever you need it. We can send our after sales team to address the issue within 14 days
