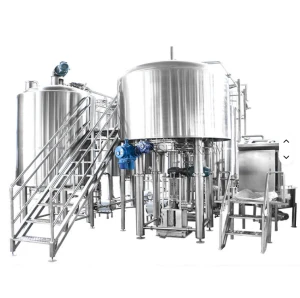

SS304 Two Vessel Brewhouse Turnkey with Heating Exchange

Product Details

Basic Info.

Model NO.

ALT-BF1002

Condition

New

Customized

Customized

Voltage

Depends

Composition

Brewhouse

Processing Material

Malt

Process

Boiling and Lautering

Material

SS304

Polish for Inner Shell

Mirror Polish or Passivated

Polish for Outer Shell

Satin Polish

Heating Method

Steam, Direct Fire, Electric

Automation

Automatic, Semi-Automatic

Total Vessel

Mash/Lauter, Kettle, and Whirlpool

Transport Package

Wooden Case for LCL and Pallet for FCL

Specification

7BBL/10BBL/15BBL/30BBL

Trademark

Aelt

Origin

China

Production Capacity

3000 Unit Per Year

P

Production Description

Aelt is your loyal partner to fulfill your brewing dreams. Whether you are purchasing your first brewhouse, expanding an existing workshop or upgrading your current equipment, we are ready to provide you with fully customized brewing solutions.

With in-depth professional experience, our dedicated team ensures all equipment is tailor-made for your demands and built for long-term service. Our standard brewhouse catalog covers 5BBL, 7BBL, 10BBL, 15BBL and 20BBL specifications. With reliable and durable system design, you can kick off your brewing business effortlessly.

Every brewing project supports full-process exclusive customization. Our professional team can conduct on-site configuration and follow your project from initial conception all the way to final commissioning and operation.

We design complete brewing systems and standardized production processes according to your investment budget and practical demands.

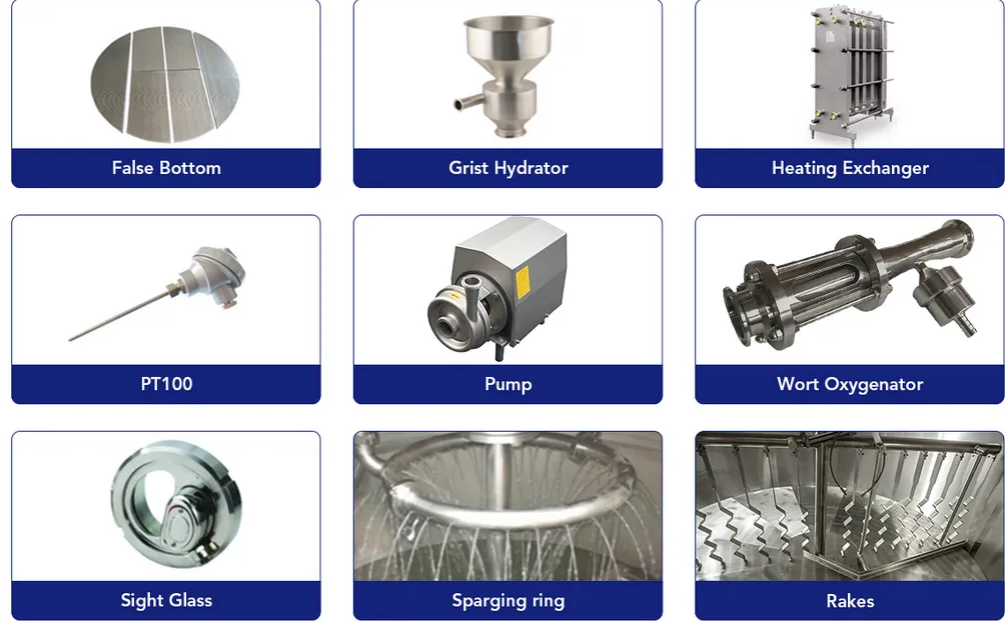

- A wide range of vessels and combined configurations are available: multi-functional tanks (combined mash agitator & lauter tank, combined boiling kettle & whirlpool tank), as well as independent process tanks including mash mixing tank, lauter tun, boiling kettle, whirlpool tank and hot & cold water tanks.

- Fully piped and wired with complete valves and sensors.

- Equipped with sanitary centrifugal pump systems.

- Separated independent CIP system configured for each single tank to effectively avoid cross-product contamination.

- Master brew interface control system with touch screen panel is available.

- Integrated operating platforms and staircases form a compact unit together with tanks. The walk-on surface adopts perforated and sectional structure to prevent slipping.

- Automatic lautering and automatic water mixing systems are equipped as standard.

- High-quality insulation materials are adopted: 80mm rock wool or PU insulation.

- Exquisite welding and polishing: full argon shielded welding with polishing precision up to Ra 0.6μm.

- World-class electrical components: PLC control system, touch screen panel, push-button circuit breakers, solenoid valves and other pneumatic parts.

- Premium wear-resistant materials: inner shell in 3.0mm SS304, outer shell in 2.0mm stainless steel.

Fermentation Unit

Standard conical cylindrical stainless steel fermenters are supplied. The quantity of fermenters is precisely calculated according to the fermentation cycle of different beer types. All manholes, valves, pressure gauges and fittings are fully included.

Bright Tank Unit

Standard stainless steel bright tanks are prepared for beer maturation, conditioning, storage and carbonation. The tank quantity is customized based on beer varieties and practical functions, complete with all necessary manholes, valves, carbonation stones, gauges and accessories.

Cooling Unit

Insulated glycol water tanks are provided with optional copper coils for glycol liquid storage and mixing. High-efficiency refrigeration chillers with Freon supply stable cooling energy. Sanitary centrifugal pumps are applied for glycol circulation between tanks and heat exchangers. All pipelines, fittings and insulation materials are included in the package.

Control Unit

Independent electrical control cabinets are configured for temperature regulation and on-off control of the brewhouse and cooling sections. Standard accessories contain temperature controllers, thermocouples, solenoid valves and other electric components. An advanced PLC touch screen control system can be installed upon special customized requests.
