MOQ | 1 Set/Sets |
Condition | New | Place of Origin | Shandong, China |
Brand Name | QIDONG | Model Number | SPH-70 |
Application | Fish | Voltage | 380V/50HZ three phase(can be changed by your requirement) |
Power | 80-120KW/H | Weight | according to the number of machine |
Dimension(L*W*H) | 27000*2500*4500mm | Certification | CE |
Installed power | 45kw | Power consumption | 25-35kw |
Main power | 22kw | Capacity | 250-400kg |
Dimension | 27000*2500*4500mm | Processing | wet extrusion |
Drying machine | hot air circulation | Commisioning | training and installation |
Motor | siemens or customised | After-sales Service Provided | Engineers available to service machinery overseas |
Warranty | 1 year |
Introduction

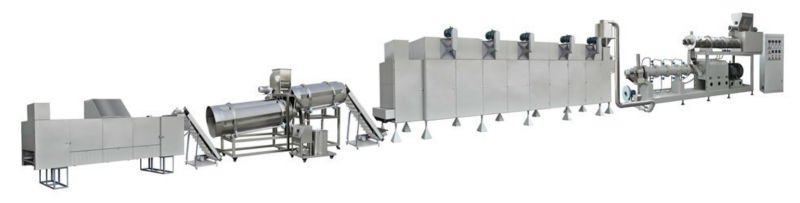

SPH-70 pet dog/fish/cat food processing line can make the pet food with various shapes,
taste and colors, with the scientific nutrition combination, keep our production always suit for
the market.
Flow Chart:
Raw material receiving system—Proportion system—Milling system—Mixing system—Extrusion system—Drying system—Coating system—Cooling system—Packing system
For the low capacity line, some of the equipment is unnecessary.
Technical parameters:
Model |
Dry type |
Wet type |
|||
SPH-65 |
SPH-70 |
SPH-70 |
SPH-90 |
SPH-130 |
|
Feeder power(KW) |
0.4 |
0.4 |
0.4 |
0.75 |
1.5 |
Conditioner power(KW) |
-------- |
-------- |
1.5*2 |
5.5 |
5.5 |
Main power(KW) |
22 |
30 |
30 |
75 |
250 |
Cutter power(KW) |
0.75 |
0.75 |
0.75 |
2.2 |
3 |
lubrication power(KW) |
0.2 |
0.2 |
0.2 |
0.75 |
0.75*2 |
Dimension(m) |
2.5x1x2 |
3x1x2 |
3.5x1.3x2.6 |
7.4x1.5x3 |
7.4x1.5x3 |
Capacity (KG/H) |
100-150 |
150-250 |
250-400 |
800-1200 |
3000-5000 |
Raw material:
Corn meal, wheat meal, rice meal, fish meal, chicken meal etc.
Sample:
