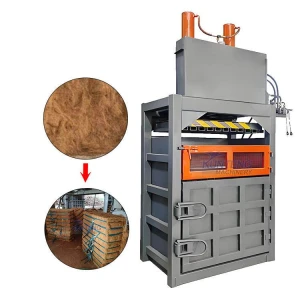

Palm Fiber Baler Machine Automatic Hydraulic Coconut Shell Fiber Briquette Press Recycling Equipment

FOB Price 6200 - 6500 USD / 1

Quantity	6200 - 6500
Price	Dollar

MOQ	1 Unit
Port	China
Packaging	container
Lead Time	15

Contact Now

Quick Details (View All)

Type	Square Baler	core components	PLC, Engine, Bearing, Motor, Pressure Vessel, Pump
key selling points	High Productivity	machinery test report	Provided
video outgoing-inspection	Provided	place of origin	Henan, China
weight	2520kg	brand name	KUNTENG
application	coconut fiber, palm, bamboo, flax, jute.etc	dimension(lwh)	160011003150mm
Product Name	vertical coconut fiber baler coconut fiber baling machine	Keywords	vertical coconut fiber baler coconut fiber baling machine
Capacity	3-6 bags/h	Power	11KW
Baler Size	1120420900mm	Bale Type	Hydraulic Rectangular Baling Press
After-sales Service Provided	Support on-site installation guidance	Compression force	200kn
Applicable Industries	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works

Product Details

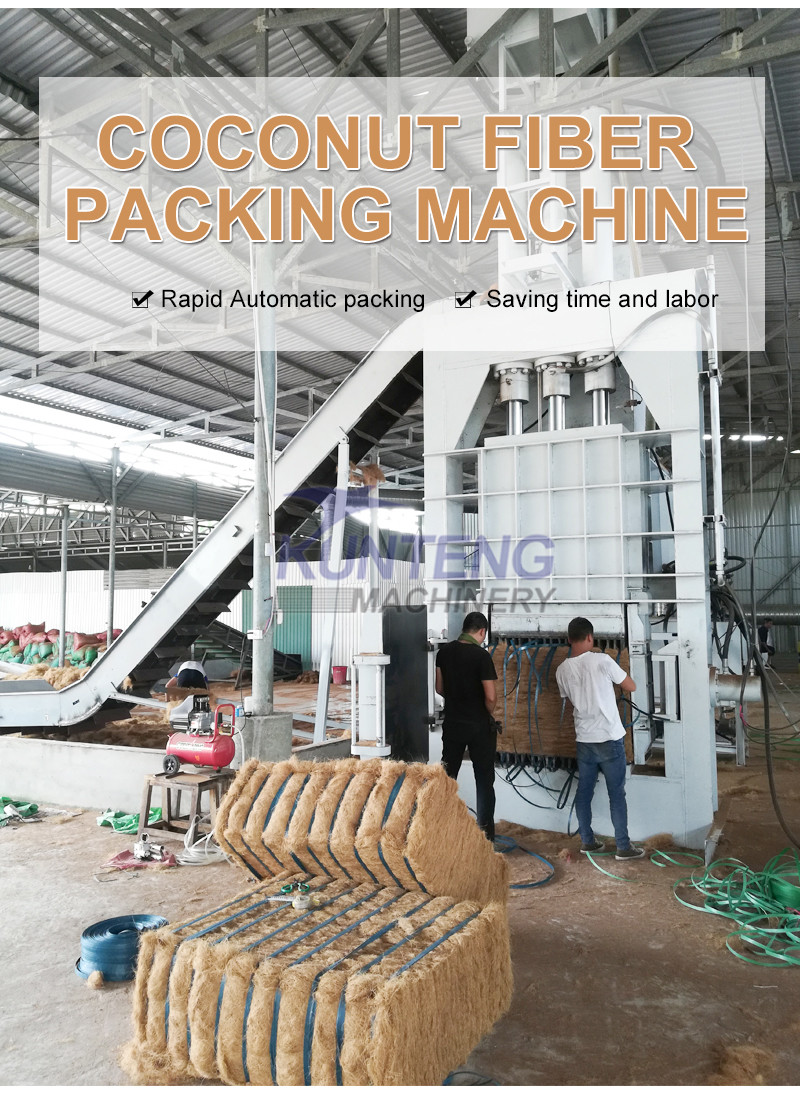

PRODUCT OVERVIEW



            Coconut fiber
            automatic baling press machine is
            designed with large press force which is from 80 tons
            to 200 tons. This baler is built with high strength and
            oriented to facilities that handle recyclable wastes of
            high fibrous, high rebounding force, or high hardness.
            It is also a good baling solution for handling normal
            soft material when there is a demand for high bale
            density to optimize container loading.



            Specification of the Coir Fiber Baling
            Machine:

Model	Motor power	Machine pressure	Output capacity	Bale size	Bale weight	Door opening method
KTDB-125	11kw	200KN	2 bales per hour	1120420900mm	70kg	Manual
KTDB-125C	11kw	400KN	4 bales per hour	1120420900mm	80kg	Hydraulic switch door
KTDB-160	18.5kw	800KN	2 bales per hour	1120420900mm	100kg	Hydraulic switch door
KTDB-220	18.5kw	800KN	4 bales per hour	1120420900mm	100kg	Hydraulic switch door
KTDB-250	18.5kw	1000KN	2 bales per hour	1120420900mm	120kg	Hydraulic switch door
KTDB-200W	22kw	2000KN	6 bales per hour	1120420900mm	130kg	Hydraulic switch door

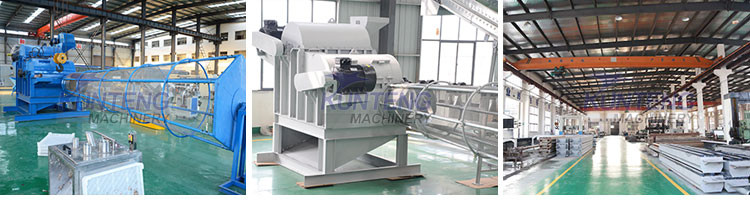

FACTORY CORNER&CUSTOMER VISIT

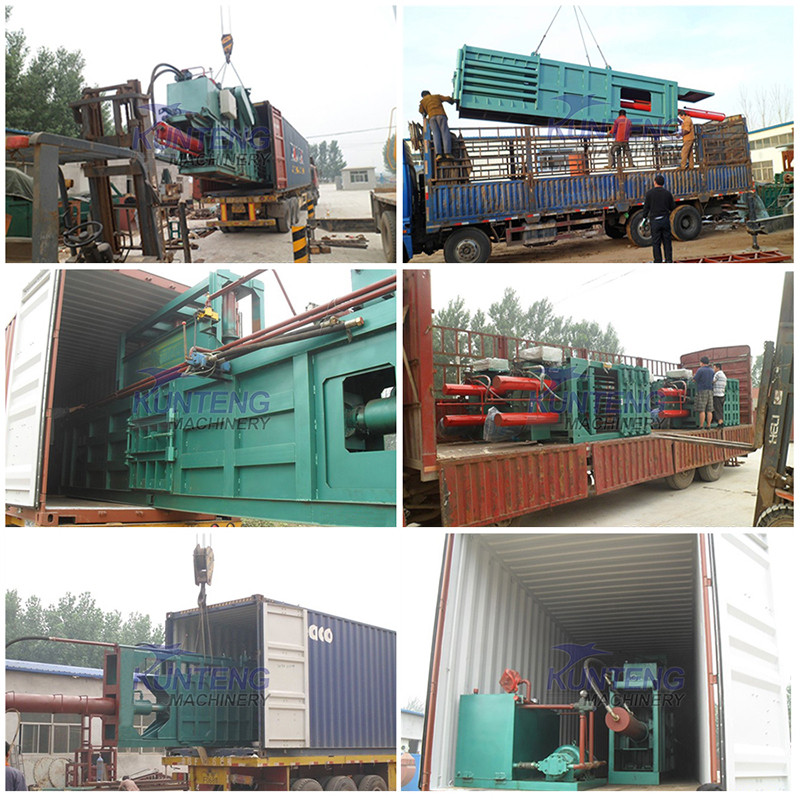

SHIPPING

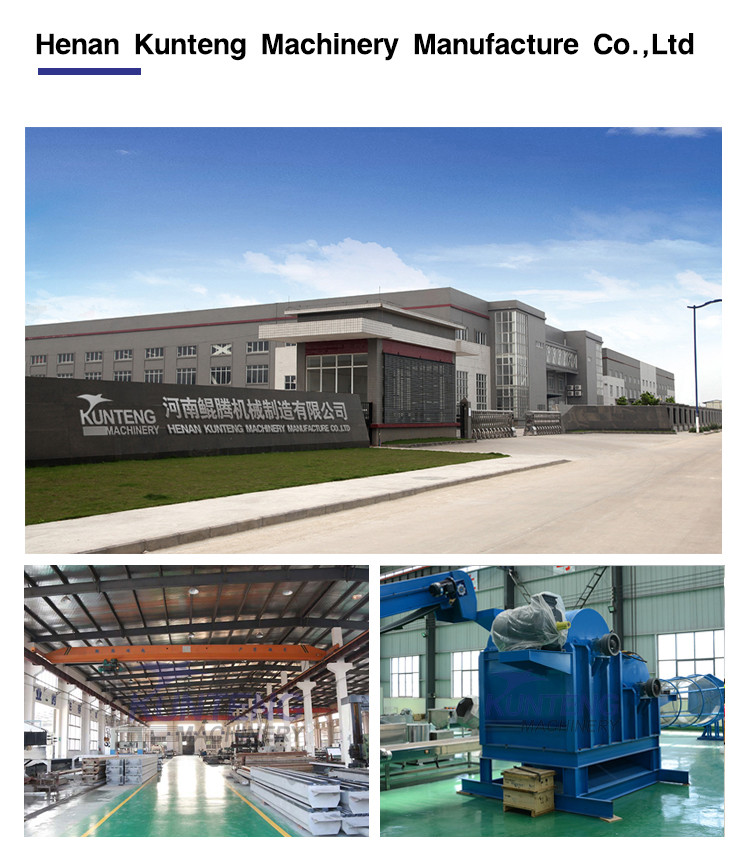

COMPANY PROFILE



        Kunten Machinery is located in Zhengzhou City, Henan
        Province, China, and we are a comprehensive enterprise
        integrating R&D, production, sales, and service. With
        independent R&D team, our own factory, and professional
        sales and service departments, we can manufacture
        high-quality machines and provide powerful technical
        support for our customers.


CERTIFICATIONS

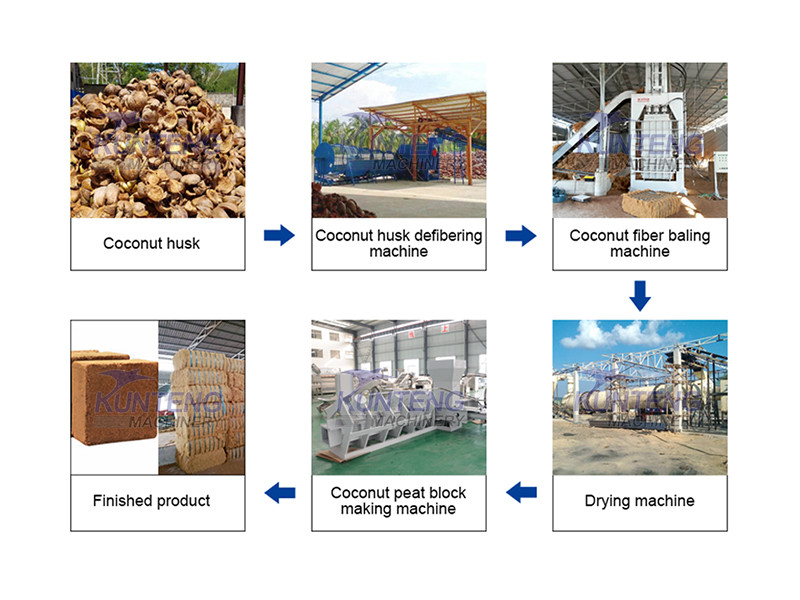

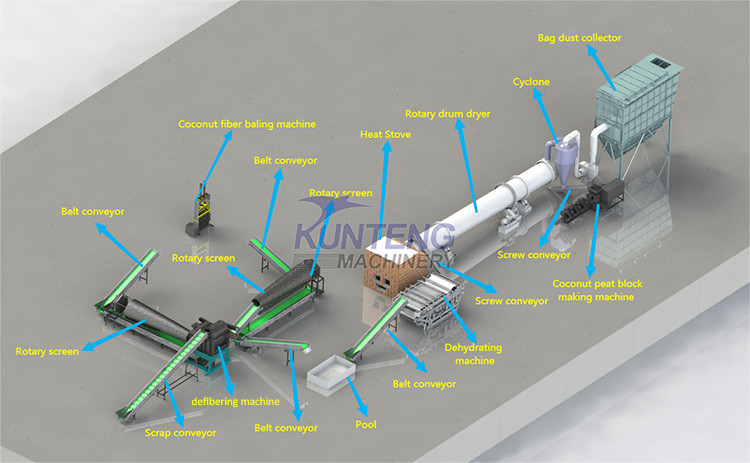

Process description of coconut hust processing line


            1. Defibering machine process coconut hust into coconut
            fiber and coconut peat.

              2. Drum rotary screen separates coconut fiber and
              coconut peat.

              3. Coconut fibers are baled.

              4. Coconut peat is desalted by the pool.

              5. The desalted coconut peat is dehydrated by
              dehydrating machine.

              6. Drying coconut peat by drum dryer.

              7. Cocomut peat briquetting.

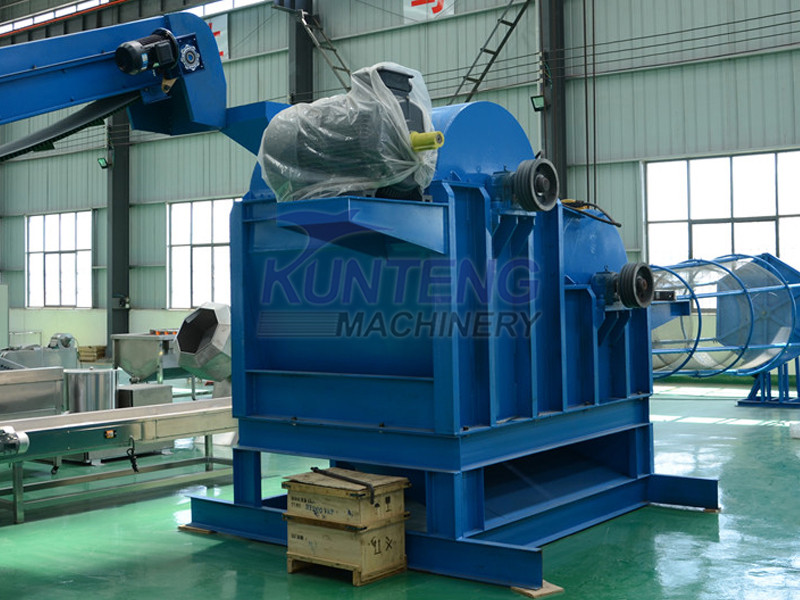

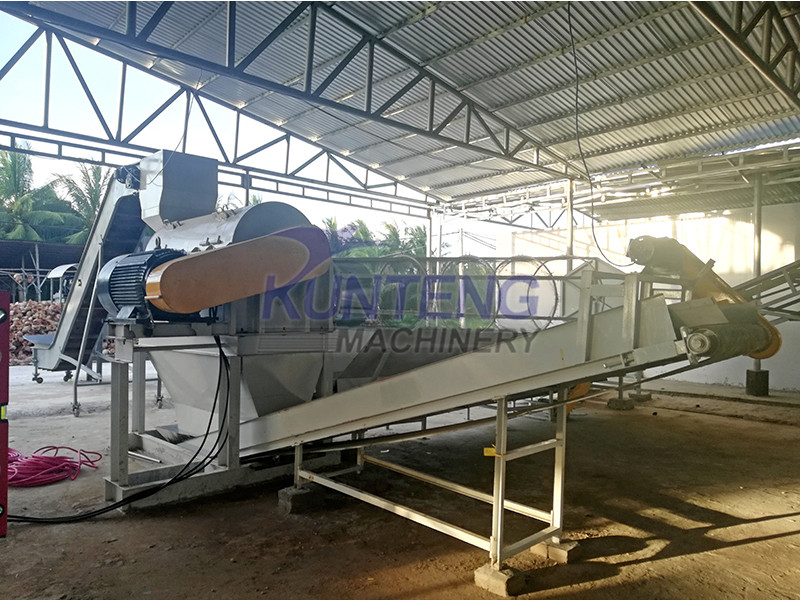

Defibering machine

                The coconut coir fiber making machine is a device
                that can process coconut husk into fiber and peat.
                The raw materials are fed

into
              the feeding port of the defibering machine through a
              conveyor or manually. After the raw materials enter
              the machine, the


              machine rotates at a high speed through the
              defibering machine shaft with multiple flying knives
              to beat coconut hust to make the


              coconut fiber and peat.

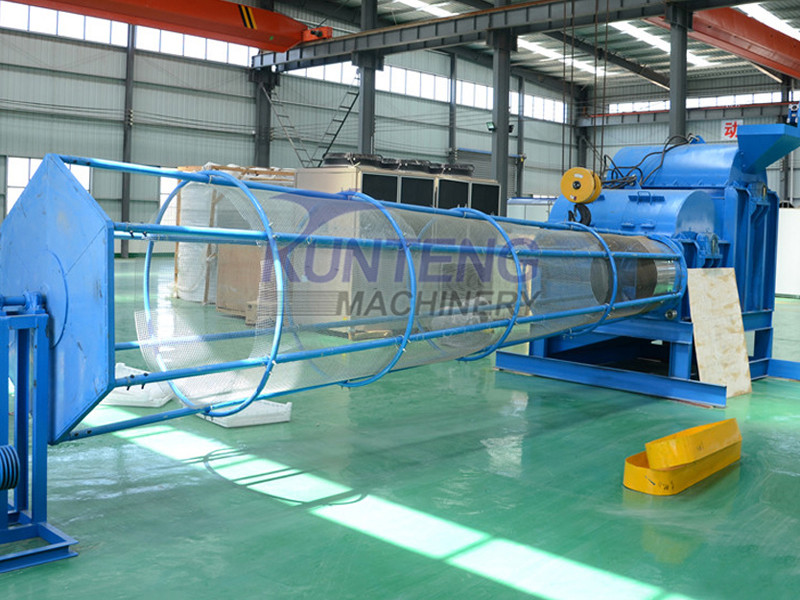

Rotary screen


The
              rotary screen is mainly used to sieve the fiber and
              peat from the defibering machine. Because the
              material is evenly screened from the inside of the
              defibering machine, there will be a small amount of
              coconut peat inside the fiber. Therefore, further
              screening is required.

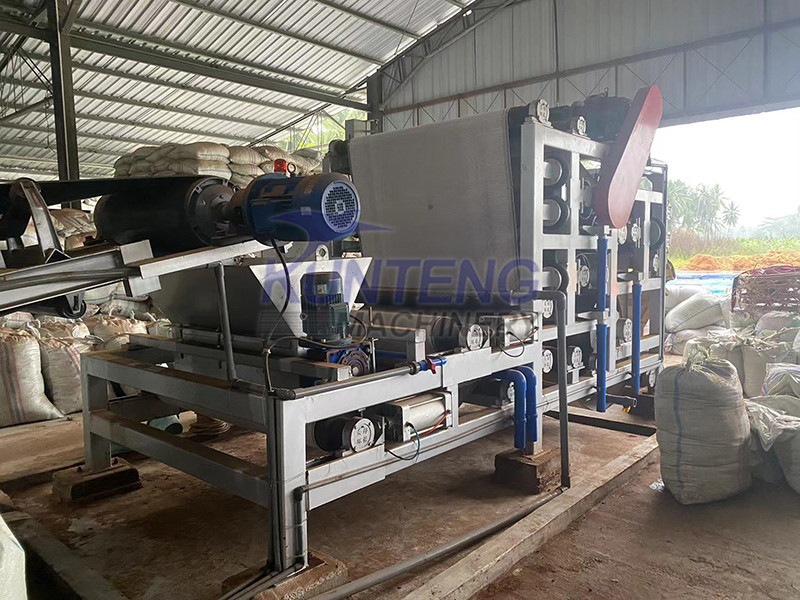

Dehydrating machine



              The dehydrating
              machine system supporting process is unique, stable,
              and reliable. The triple equalization structure can
              make the materials spread more evenly on the top of
              the filter belt, and the filter cake pressed out has
              a better effect, bigger output, and lower
              moisture.

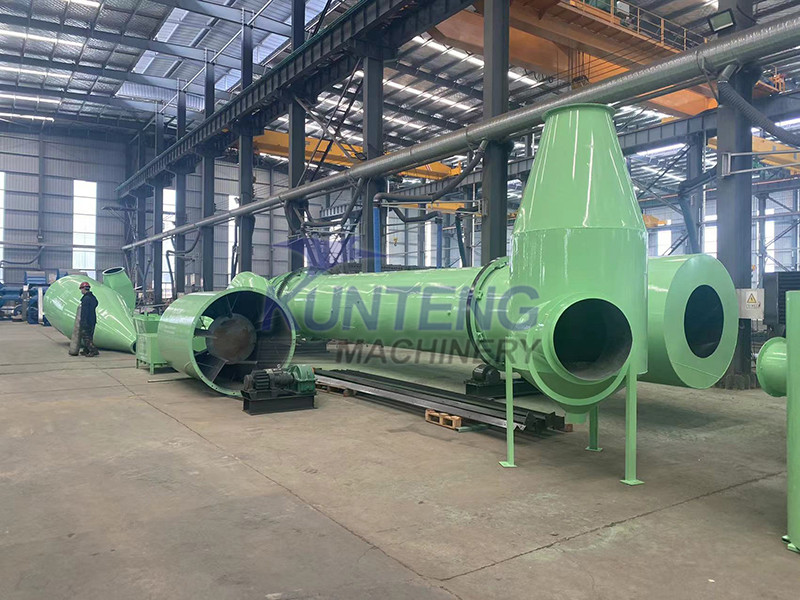

Rotary drum dryer




              Dotary drum dryer is also called rotary dryer.
              The machine is mainly composed of rotary drum,
              lifting plate, driving device, supporting device,
              sealing devices, etc. The overall structure is
              reasonably designed, well-made, with high output, low
              energy consumption, and easy operation.

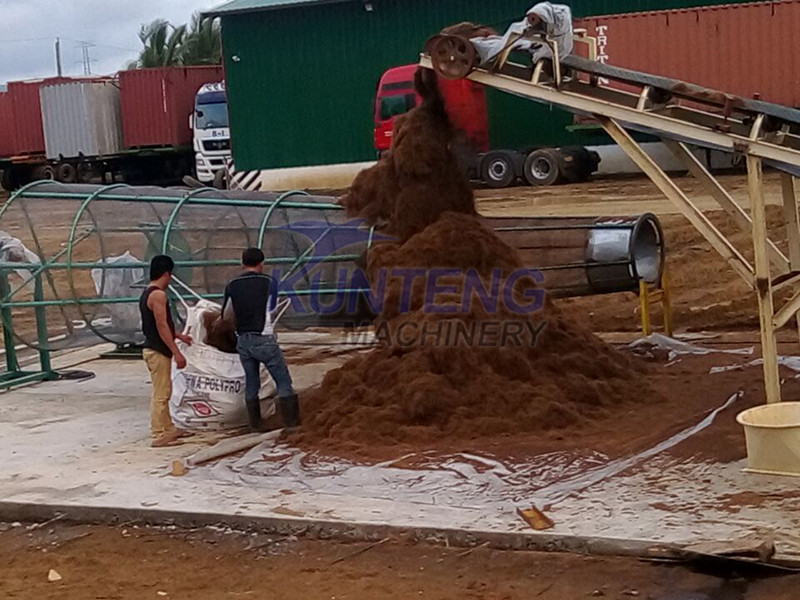

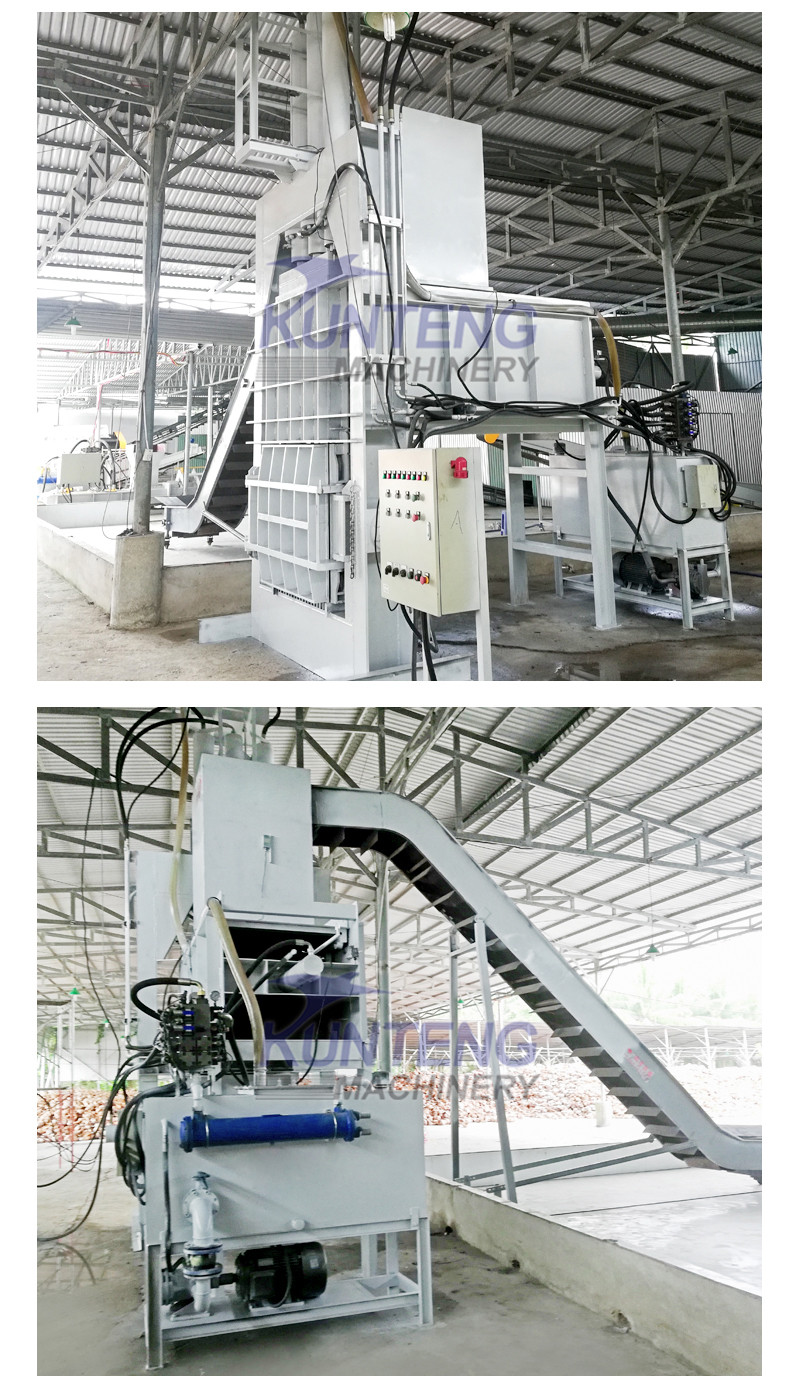

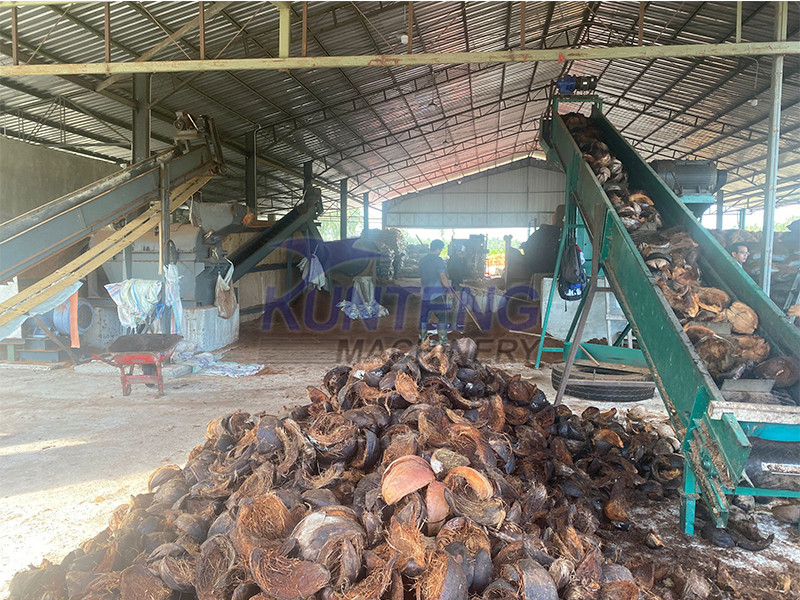

CUSTOMER CASE


            Indonesia coconut husk production line
            site


            Philippine coconut husk production line
            site


            Nigeria coconut husk production line
            site

FAQ


            FAQ

            Q1: Are you a factory or a trading
            company?

            A1: We are a professional manufacturer in China, passed
            field certification.

              Q2: How long is the warranty period?

              A2: Normally 12 months. Except for wearing
              parts.

              Q3: What’s your delivery time?

              A3: We will arrange for shipping in factory within 10
              working days after receiving the advance payment.
              When there are Coconut Fiber Extracting Machine in
              stock, it will be shorter.
