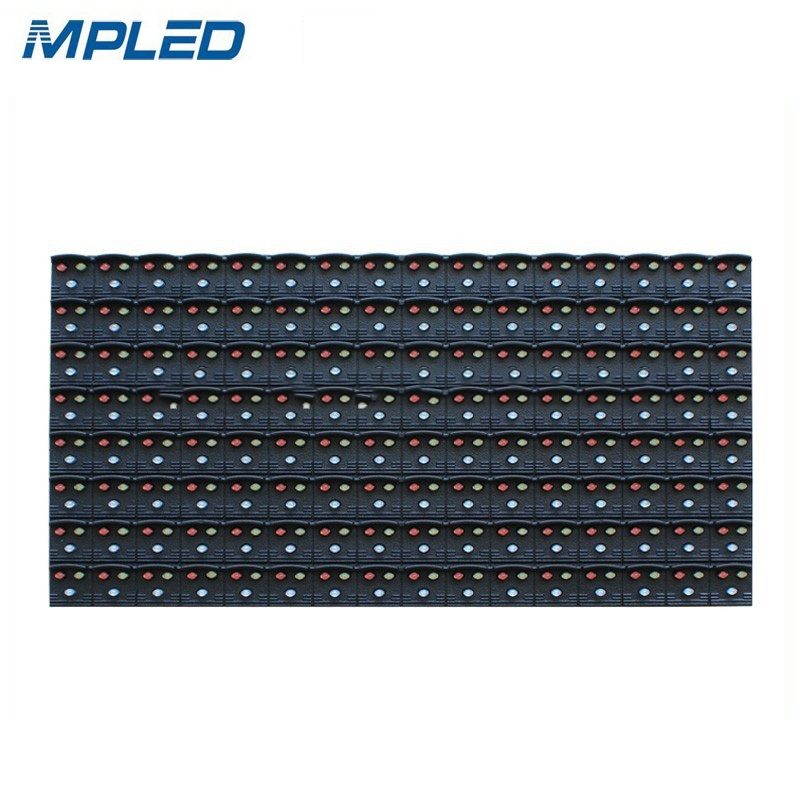

Mpled High quality PH16 RGB Full Color LED Display Module Board 256*128mm with cheap

Contact Now

Quick Details (View All)

Place of Origin	China	Model Number	P16
Brand Name	Mpled	LED Module Size	256 x 128mm
Certification	CE, RoHS	Working voltage	AC 96-264V or DC 9-36V
Net Weight	0.5KG	Usage	OUTDOOR
Tube Chip Color	FULL COLOR	Pixels	16mm
Display Function	Video,Text, Picture	Screen Dimension	Customize

Product Details

Mpled High quality PH16 RGB Full Color LED Display Module Board 256*128mm with cheap

Product Description

1.       The measurement can meet customers request, according to application environment.
2.       Can display different languages, for example: Chinese, English, Arabic, Spanish, Japanese etc.
3.       Flexible display effect, like rolling, moving, photos, etc.

4. Easily disassembled into modules and stacked for transportation.

Specification

Item	P16 outdoor Full color LED module
Pixel Pitch	16m
Pixel Configuration	DIP
LED Type	346
Module Size	256 x 128m
Module Resolution	16dots x 8dots
Module Weight	0.5KG
Grey Scale	12 bit
Refresh Rate	>1920Hz
Scan Type	1/1 Scan
Brightness	9000 nits
Viewing Angle(Horizontal/Vertical)	120/100 degree
AC Input Voltage	110-240V
AC Input Frequency	50/60 Hz
Power Consumption(Max./Ave.)	1100/330 W/m2
Storage Temperature	-40 ~ +60 degree
Operation Temperature	-40 ~ + 40 degree
IP Rating	IP65
Lifetime	100,000 hours
