Mesh Belt Papaya Shred Dryer Automatic Temperature Control Papaya Shredding Dryer Food Drying Assembly Line Equipment

FOB Price 20000 - 28000 USD / 1

Quantity	20000 - 28000
Price	Dollar

MOQ	1 Unit
Port	China
Packaging	container
Lead Time	15

Contact Now

Quick Details (View All)

type	mesh belt dryer	material	SUS304, SUS304L, SUS316, SUS316L
voltage	380 V, can be customized	core components	Bearing, Pump, Gear, Motor, Gearbox, PLC, Engine
Capacity	100-1000kg/h	place of origin	Henan, China
Weight (KG)	2000	brand name	KUNTENG
dimension(lwh)	Customized	application	Chemicals Processing, Food Processing, Fruit and vegetable processing
Product name	dryer machine for potato starch	Hemp dryer input moisture	80-85%
Heating source	Gas Heating	Hemp dryer output moisture	10-12% or customized
Dryig process	Hot air drying and Low temperature drying	Fuel	Gas,diesel,wood chips,electricity,steam.biomass pellet,etc.
Advantage	Strong hot air make material fast to dry	Keywords	potato processing machine fruit Drying machine

Product Details

生产描述

连续式胡萝卜烘干机胡萝卜输送干燥机胡萝卜去皮清洗切片干燥生产线

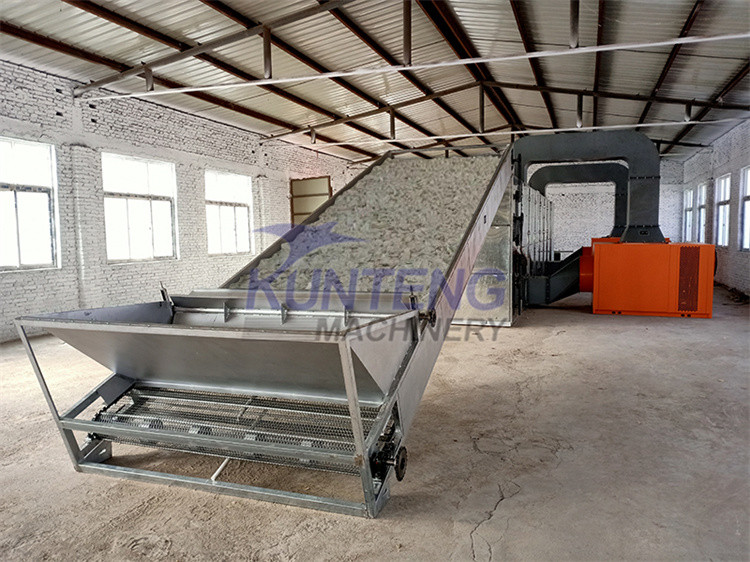

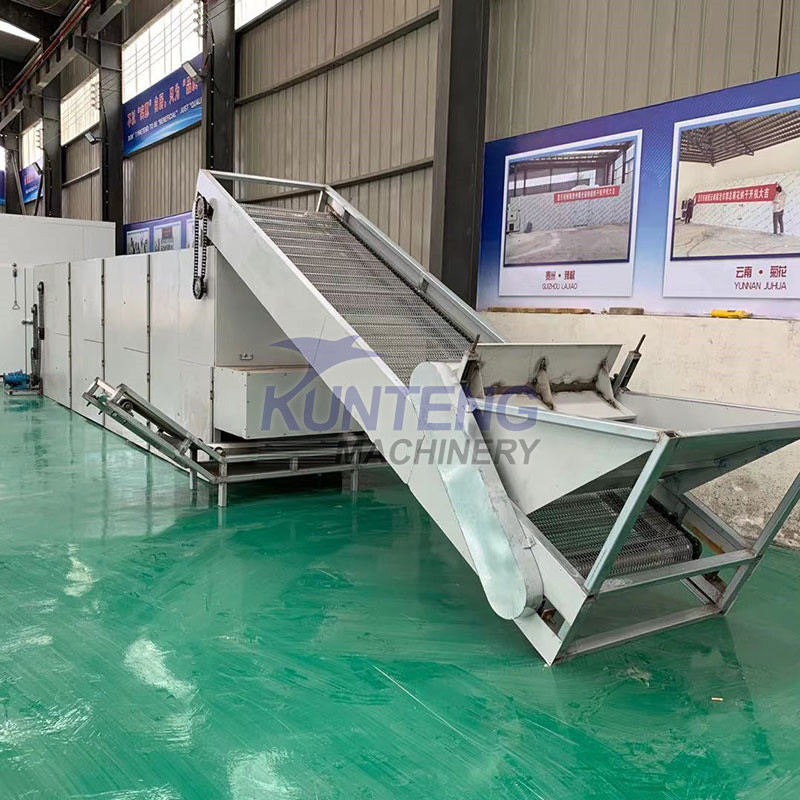

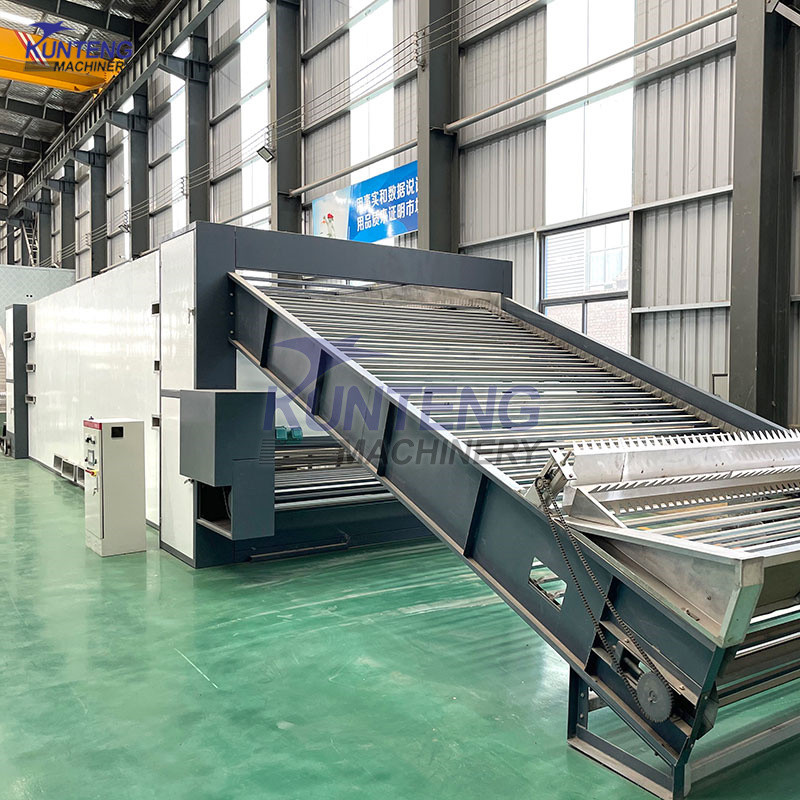

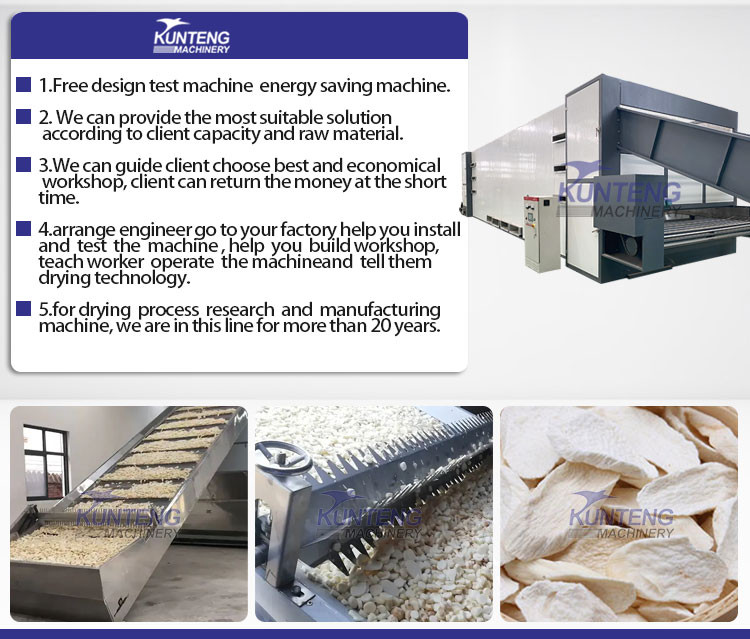

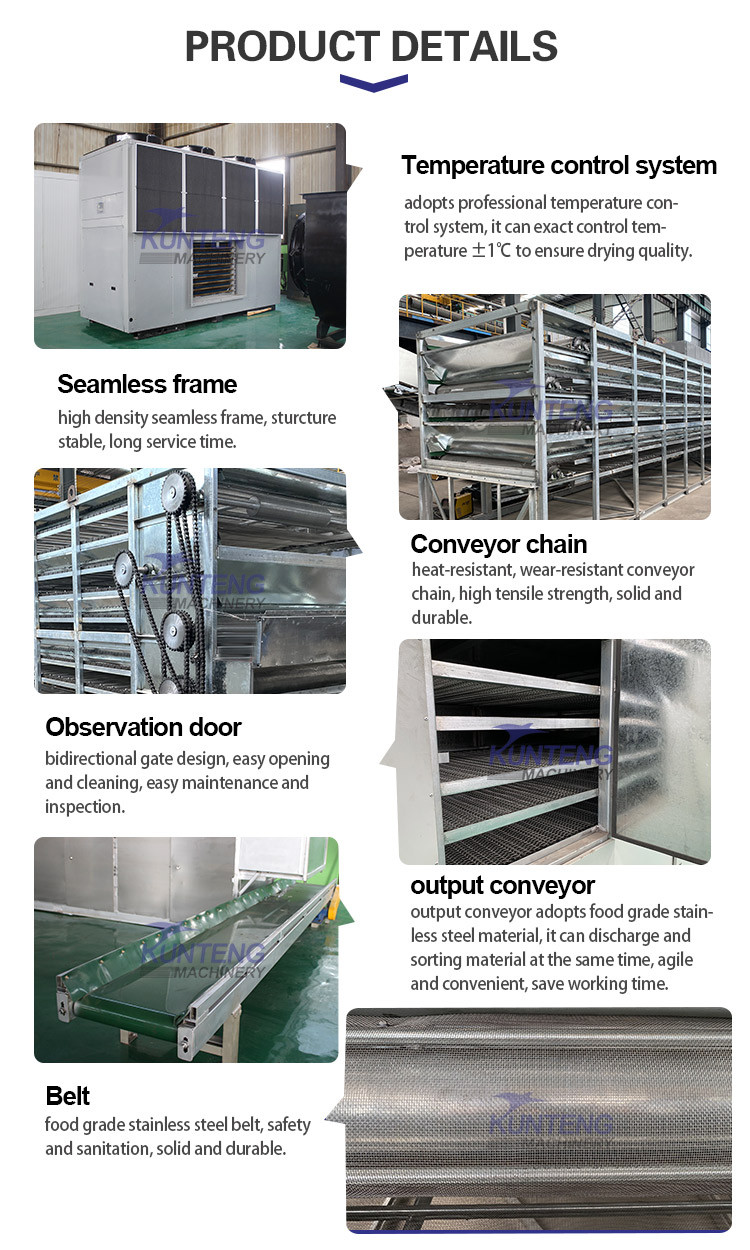

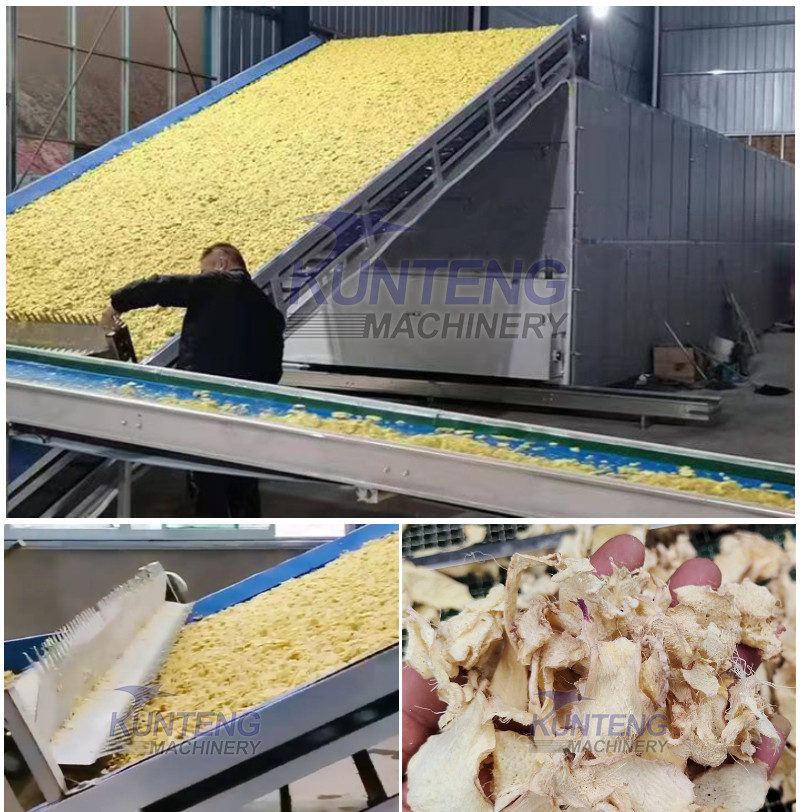

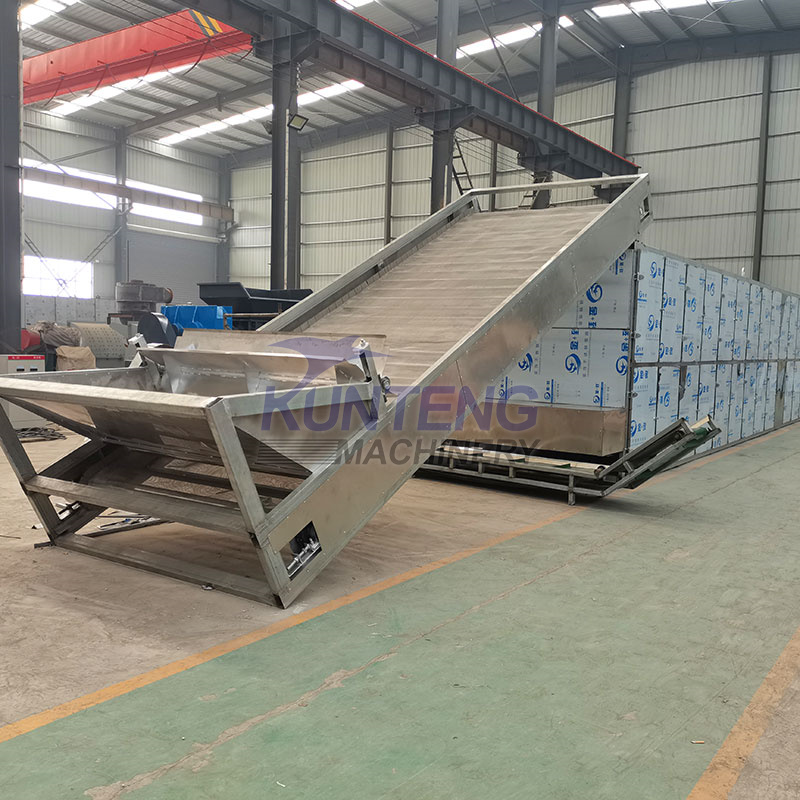

Mesh belt food dryer machine Adopts multi-layer mobile mesh belt transmission technology, inner mesh surface adopt 304 stainless steel material. the hot air flow passes through the mesh belt from bottom to top,multi-layer circulation turnover and drying layer by layer, with uniform and sufficient heat and mass exchange, high production efficiency, good product quality and large drying area, which can realize mass continuous production.

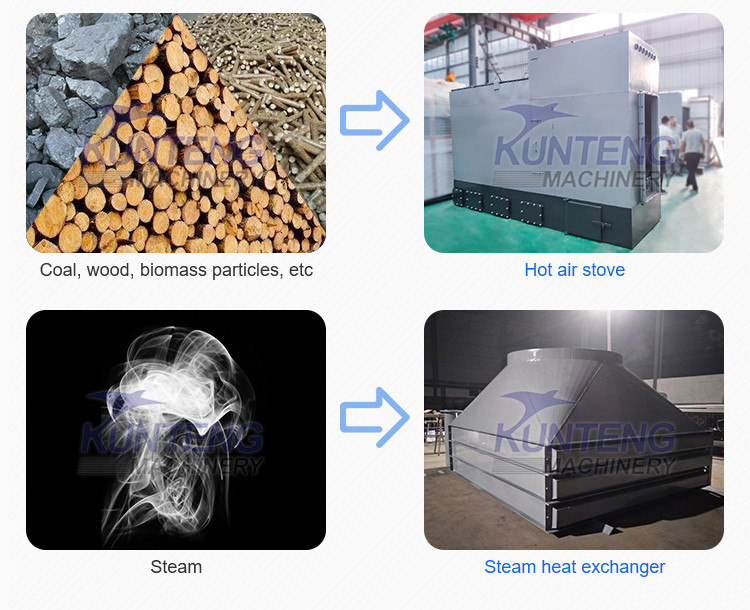

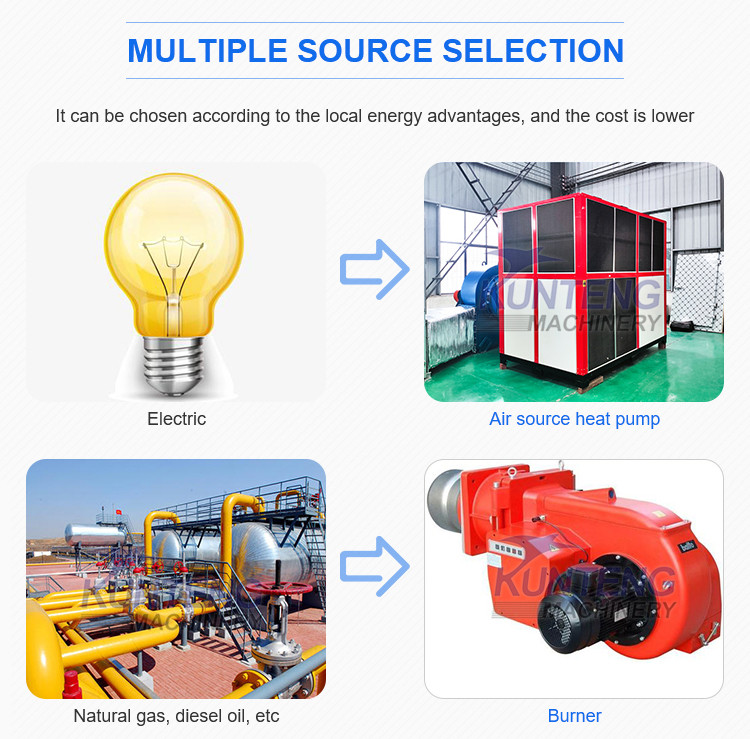

Heating source:

According to the local situation of customer. the heat source can be electric,gas,wood,coal,steam.etc.

Product Parameters

Continuous Carrot Drying Machine Carrot Conveyor Dryer Carrot Peeling Cleaning Slicing Drying Production Line
Model(Width*Length)	GX1.5-6-4	GX2-8-4	GX2-9-4	GX2-10-4	GX2-12-4
Layers	4
Drying area(㎡)	29	45	51	57	69
Spread thickness of material(mm)	50-200
Working temperature(℃)	0-120
Working time(hour)	24
Capacity(t/h)	100-150kg/h	200kg/h	250kg/h	300kg/h	500kg/h
heat exchange furnace(M)	3.212.7	3.91.263	3.91.263	4.71.53	4.71.53
Induced draft fan(kw)	11	15	15	22	22
Exhaust fan(kw)	1.5		2.2
Feeding conveyor(kw)	1.5	2.2	2.2	2.2	3
Discharge conveyor(kw)	0.55
Total power(kw)	14.55	19.25	19.95	26.95	27.75
LP gas consumption (90 degree fanrenheit)	20m³/H	25m³/H	28m³/H	30m³/H	36m³/h
Place requirement (WLH)M	4.5142.7	5192.8	4.5202.8	5.5212.8	5.5232.8

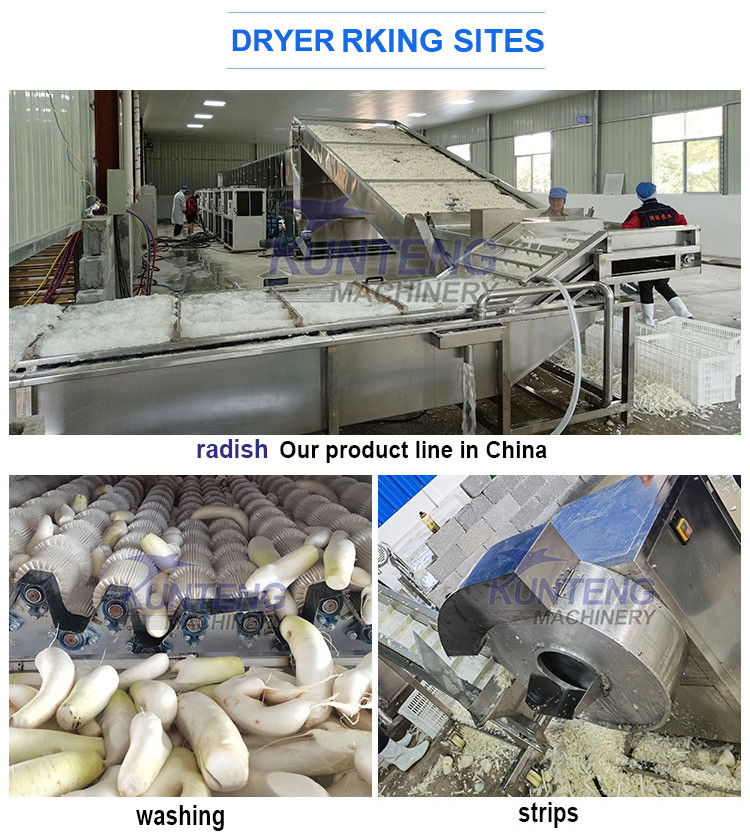

VEGETABLES DRYING PRODUCTION LINE

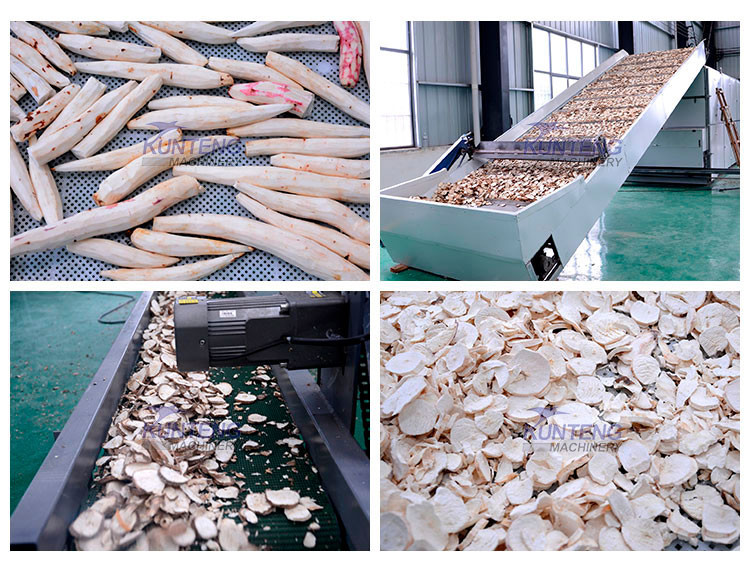

We specialize in producing fruit vegetable food dryer machine for many years. have rich industry experience and a data base of hundreds of agricultural products drying processes. can customize Potato Cassava Chips drying production line.

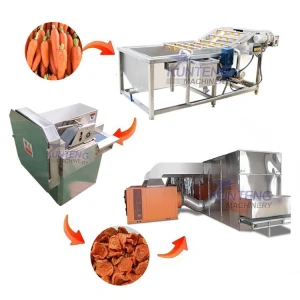

Continuous Carrot Drying Machine Carrot Conveyor Dryer Carrot Peeling Cleaning Slicing Drying Production Line:

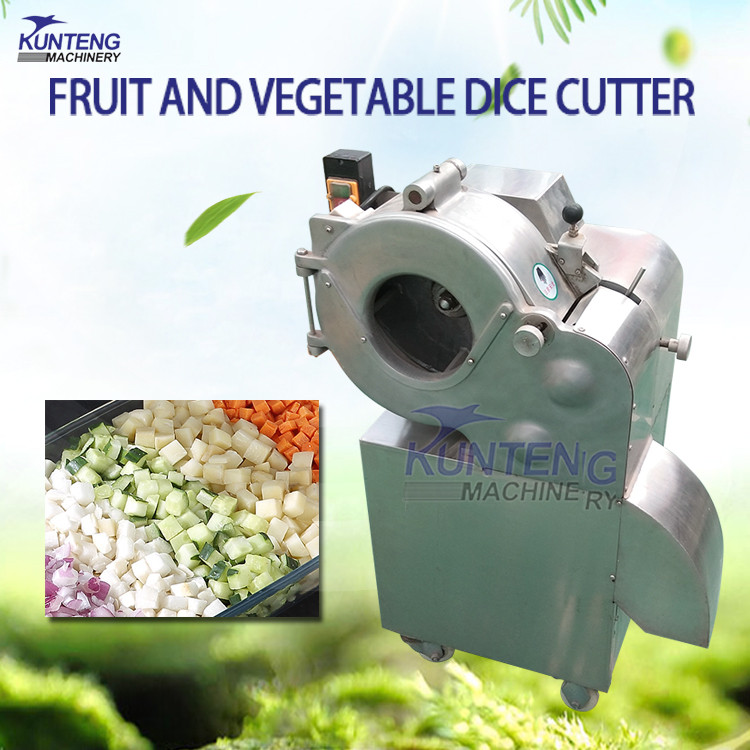

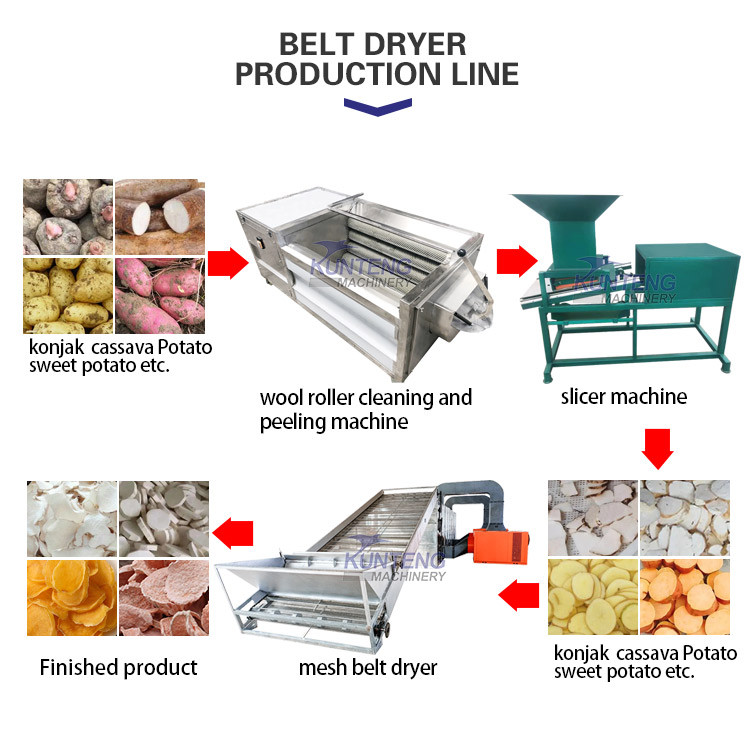

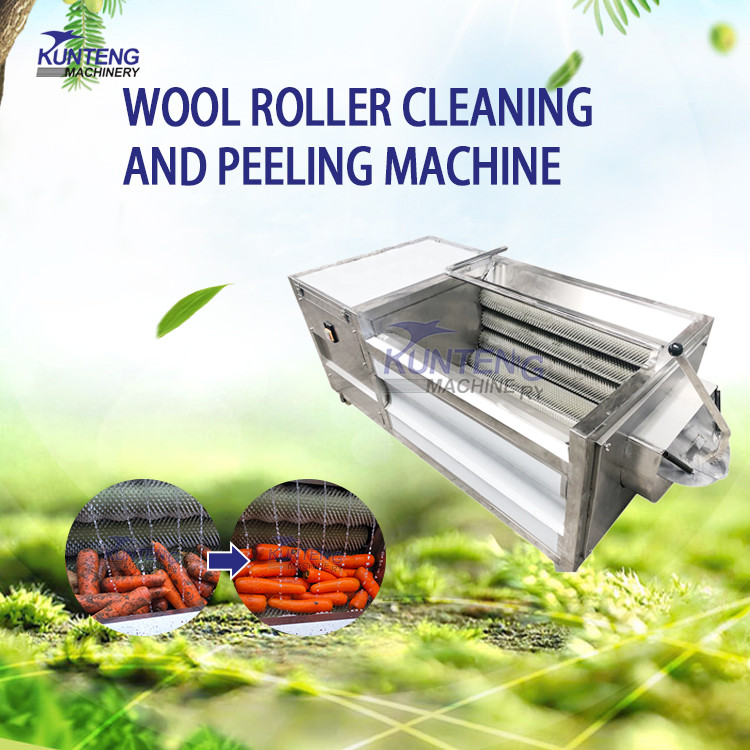

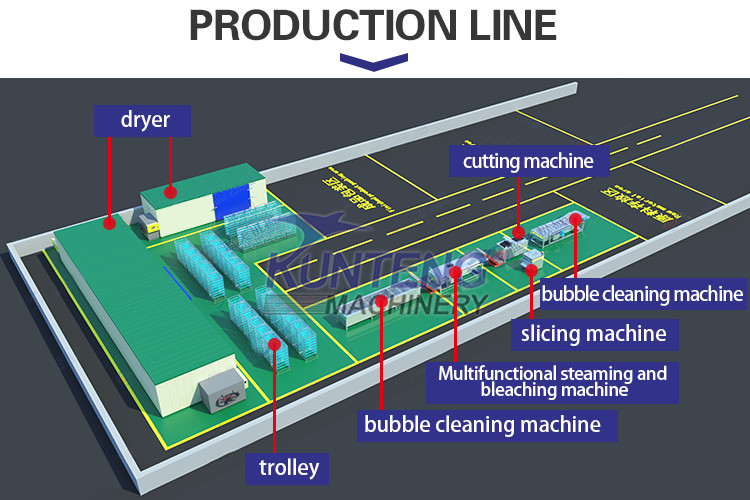

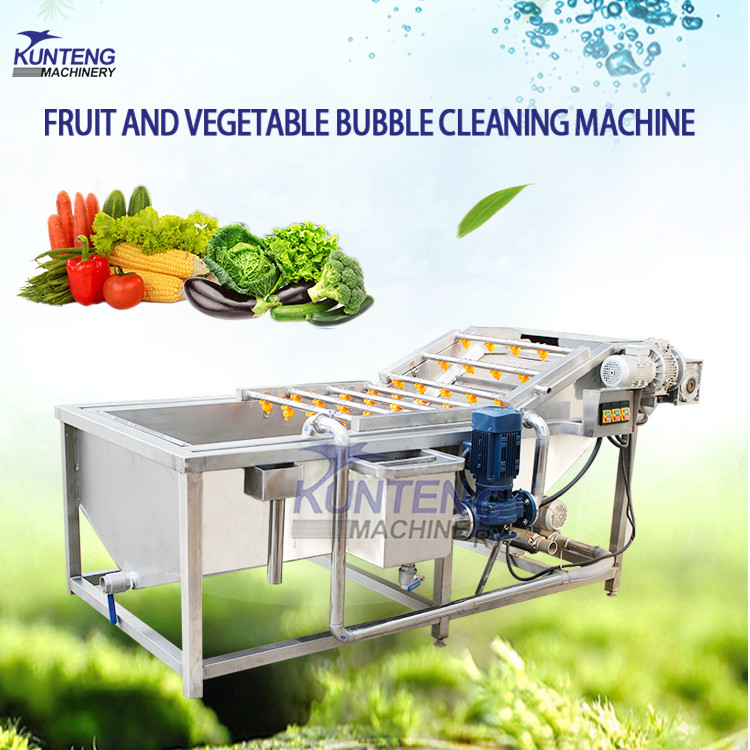

We have engaged in food dryer for many years, there is a series of related fruit vegetable processing equipment, such as vegetable washing machine,peeling machine,slicer, dryer,Grinding machine,packing machine,etc.According to your needs to design drying production line for you.

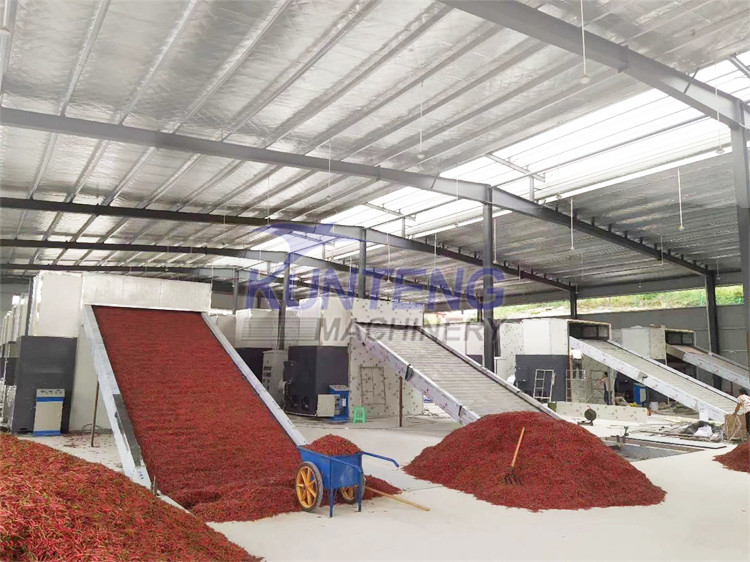

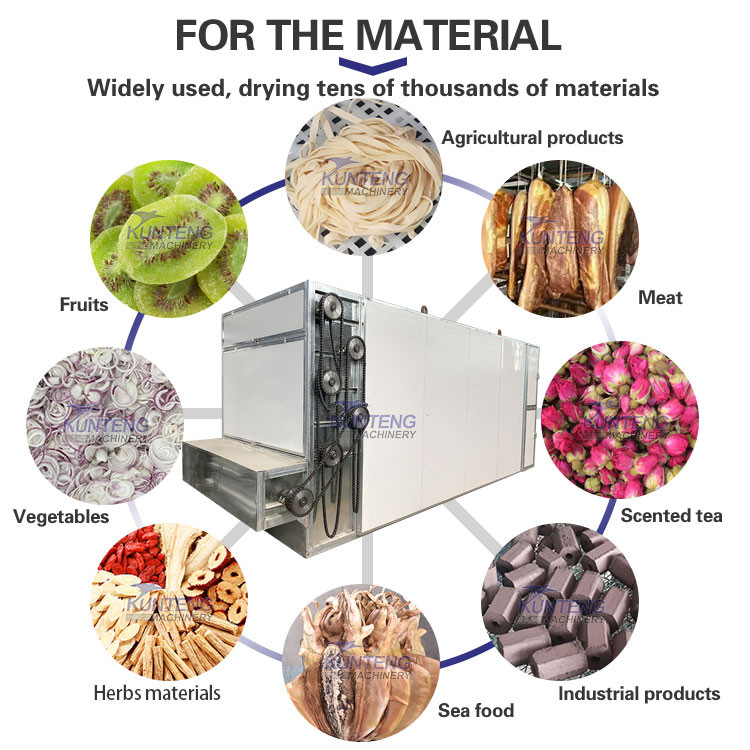

Our mesh belt food dryer adopts air drying technology and food grade stainless steel chain plate that can drying many materials, such as vegetables, fruits, herb, flower, grass, insect, shrimp, sea cucumber, grain, maize, rice, cassava, onion, red chilli, coconut copra, garlic, hemp, black soldier fly, alfalfa, mushroom, etc.
