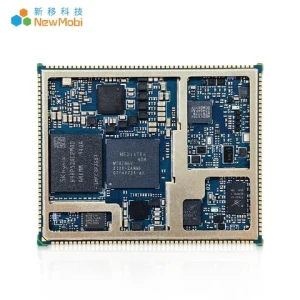

MediaTek 4G Android Smart Board MT8788 High Performance Android Development Board oem/odm android motherboard pcba custom

Name: MediaTek 4G Android Smart Board MT8788 High Performance Android Development Board oem/odm android motherboard pcba custom
Brand: Hunan Xinyi Technology Co., Ltd.
SKU: Tradewheel_2685495
Price: 65 USD
Availability: InStock

FOB Price 65 - 65 USD / pieces

Contact Now

Quick Details (View All)

Model Number	XY8788WA-F	Place of Origin	ShenZhen, China
Brand Name	XinYi	Chipset	MTK Communication module
Supplier Type	ODM/OEM	Application	Internet of Things related fields
Processor	ARM 4xCortex-A73 up to 2.0GHz + 4xCortex-A53 up to 2.0GHz	GPU	ARM Mali G72 MP3 700MHz
NPU	0.5T	OS	Android 9.0/12.0
Memory	4GB+64GB/6GB+128GB	Network support	2G/3G/4G Full Network
Wireless connection	WiFi/Bluetooth/GPS/Beidou	Camera interface	4xMIPI CSI(4 Data lanes)32MP @ 30fps
video decode	1080p 30fps H.264/H.265	video encode	1080p 30fps H.264

Product Details

Product Description

MT8788 is a 4G AI Android smart module based on MTK platform, industrial grade and high performance, running Android 9.0 OS, supporting LTE-FDD(CAT-7)/LTE-TDD(CAT-7)/WCDMA/TD-SCDMA/EVDO/CDMA/GSM, etc.; supporting WiFi 802.11 a/b/g/n/ac, BT v2.1+EDR, 3.0+HS,v4.1+HS, GPS/GLONASS/BeiDou/Galileo/QZSS, etc.; multiple audio and video input/output interfaces and rich GPIO interfaces.

specification

Networt band

Type	Network band
LTE-FDD	B1/B2/B3/B5/B7/B8/B20(B17)/B28
LTE-TDD	B34/B38/B39/B40/B41
WCDMA	B1/B2/B5/B8
TD-SCDMA	B34/B39
EVDO/CDMA	BC0
GSM	B2/B3/B5/B8
DL CCA	B1/B3/B7/B38/B39/B40/B41
DL NCCA	B3/B40/B41
Inter CA	B1+B3 B3+B5 B1+B5 B39+B41
UL CCA	B3/B38/B39/B40/B41
WiFi 802.11a/b/g/n/ac	2400~2483.5MHz/5725~5850MHz/5925MHz
BTv2.1+EDR,3.0+HS,V5.0	2400~2483.5MHz
GNSS	GPS/GLONASS/BeiDou

Main performance parameters

Performance	Description
Application Processors	4xCortex-A73 up to 2.0GHz + 4xCortex-A53 up to 2.0GHz
GPU	ARM Mali G72 MP3 700MHz
Modem Processor	MIPS32 processor ARM maximum frequency 864MHz256KB L2
Electricity supply	VBAT power supply voltage range: 3.5V~4.35V Typical power supply voltage: 4.2V
SMS	Text with PDU mode point-to-point MO and MTSMS broadcast SMS storage: default SIM
AT command	Not supported
LCM interface	4 groups of MIPI_DSI, each group supports up to 1.2Gbps rate; Supports FHD+ (2160X1080) up to 2400X1080 (4 groups of MIPI_DSI); 24bit color depth
Camera interface	4 groups of MIPI_CSI, each group supports up to 2.5Gbps rate, can support 2 cameras; rear camera using 4 groups of MIPI_CSI, supports up to 32M@30fps front camera using 4 groups of MIPI_CSI, supports up to 32M@30fps front and rear cameras can support dual recording, picture-in-picture function
Audio Interface	Audio input: 3 groups of analog microphone input 1 way as a headset MIC input, the other two are normal call noise reduction MIC audio output: AB class stereo headphone output AB class differential earpiece output AB class differential output to external audio amplifier
USB interface	Support USB2.0 high-speed mode, data transfer rate up to 480Mbps for software debugging and software upgrades, etc. Support USB OTG
USIM card interface	2 groups of USIM/SIM card interface support: 1.8V and 3V Support dual SIM card dual standby
SDIO interface	Support SD/SDHC/MS/MSPRO/MMC/SDIO2.0 or 3.0 4bit SDIO Support hot-swap
I2C interface	4 groups of I2C, maximum rate up to 400K, when using I2C DMA the maximum speed can reach 3.4Mbps, for TP, Camera, Sensor and other peripherals
ADC interface	Two channels for general purpose ADC,Input range=0.05~1.45V
Antenna Interface	MAIN antenna, DRX antenna, GNSS antenna, WIFI/BT antenna interface
Physical Characteristics	Size: 40.5±0.15×50.5±0.15×2.8±0.2 mm Interface: LCC Warpage:
