MOQ | 500 PCS |
Port | Ningbo,Shanghai |
Packaging | Standard For Package |
Lead Time | 8 |
Main line | 16-150 |
Description

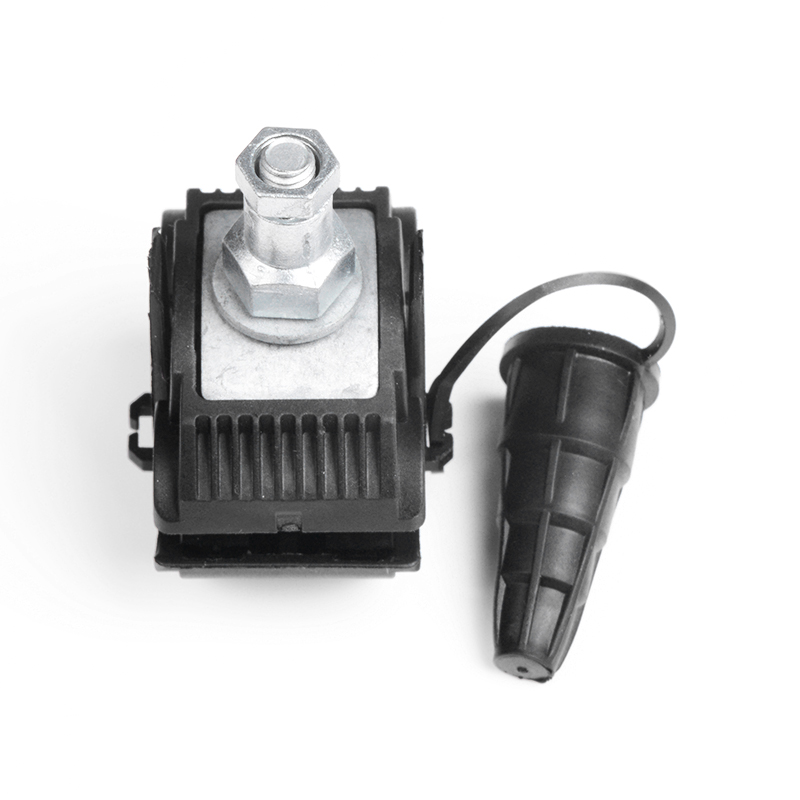

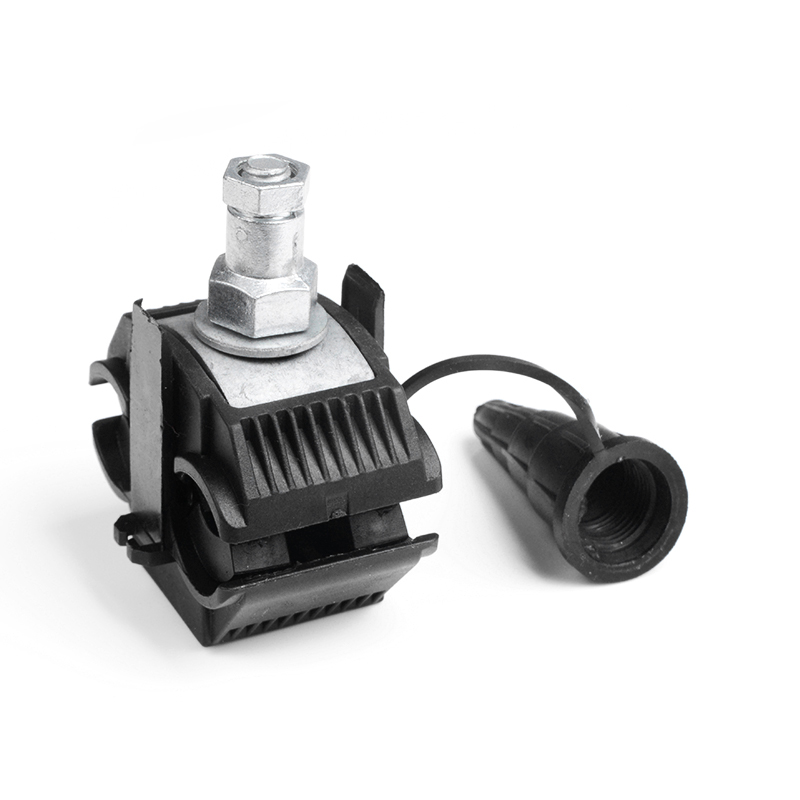

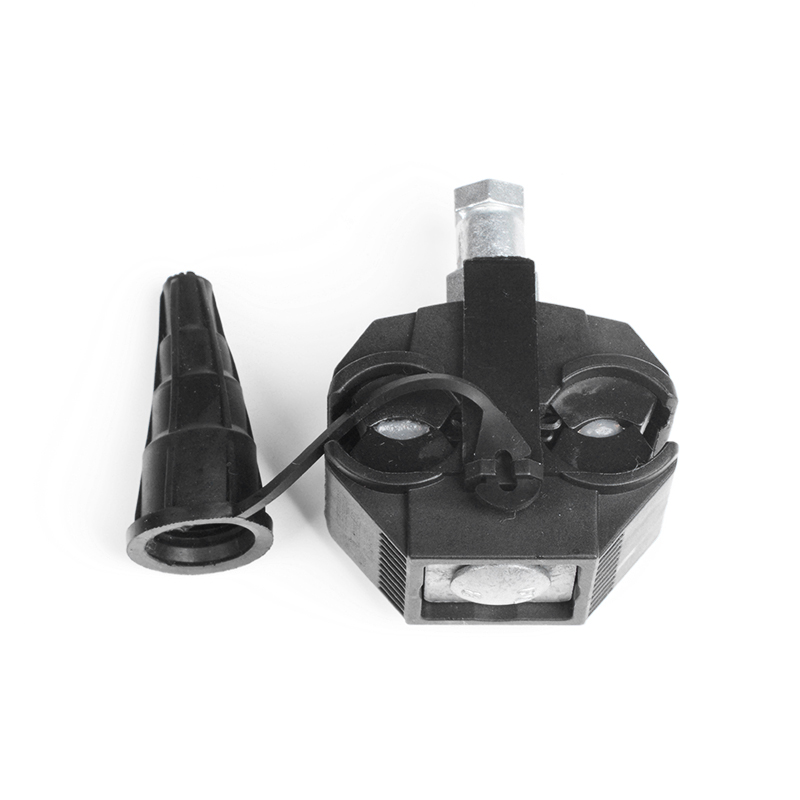

The waterproof insulation piercing connectors are suitable for
majority types of LV ABC conductors as well as connections to
service and lighting cable cores.When tightening the bolts, the
teeth of the contact plates penetrate the insulation and
establish a perfect contact. The bolts are tightened until the
heads shear off. Tightening torque guaranteed (fuse nut).
Stripping of insulation is avoided.
Service condition: 400/600V, 50/60Hz, -10°C to 55°C
Standard: IEC 61284, EN 50483, IRAM2435, NFC33 020.
Material
Body: Thermoplastic polyamide 66 with fiberglass
Connecting bridge: Copper tinned , Brass tinned, Al
Sealing parts: Flexible PVC
End cap: Flexible PVC
Grease: Silica gel
Bolt: Hot dip glavanized steel, 8.8 grade
Washer, Nut: Hot dip glavanized steel
Fuse nut: Zinc alloy
Features
• Tested for watertightness at a voltage of 6 kV for 30 min in a
waterbath
• Potential free tightening bolts allow safe installations on
life lines
• Bimetallic,suitable for aluminium and copper
conductors
• Long neck 13 mm shear head nut ensuring reliable
installations
• Components not losable, end cap attached to body
• Insulation material made of weather and UV resistant glass
fibre reinforced polymer
Models | PCT13C 150/150 | PCT13CB 150/150 |
Main Line(mm2) | 16-150 | 16-150 |
Service Line (mm2) | 16-150 | (B)16-150 |
Bolt No. | 1 | 1 |
Torque (Nm) | 23NM | 23NM |
Remarks | ISO to ISO | ISO to Bare |
