Aluminum PG clamp/ Paralle Groove Clamp/ELectrical Wire Clamp

FOB Price 0.5 - 1 USD / PCS

MOQ	500 PCS
Port	Ningbo,Shanghai
Packaging	Standard For Package
Lead Time	8

Quick Details (View All)

Model Number

PG660,661,662

Product Details

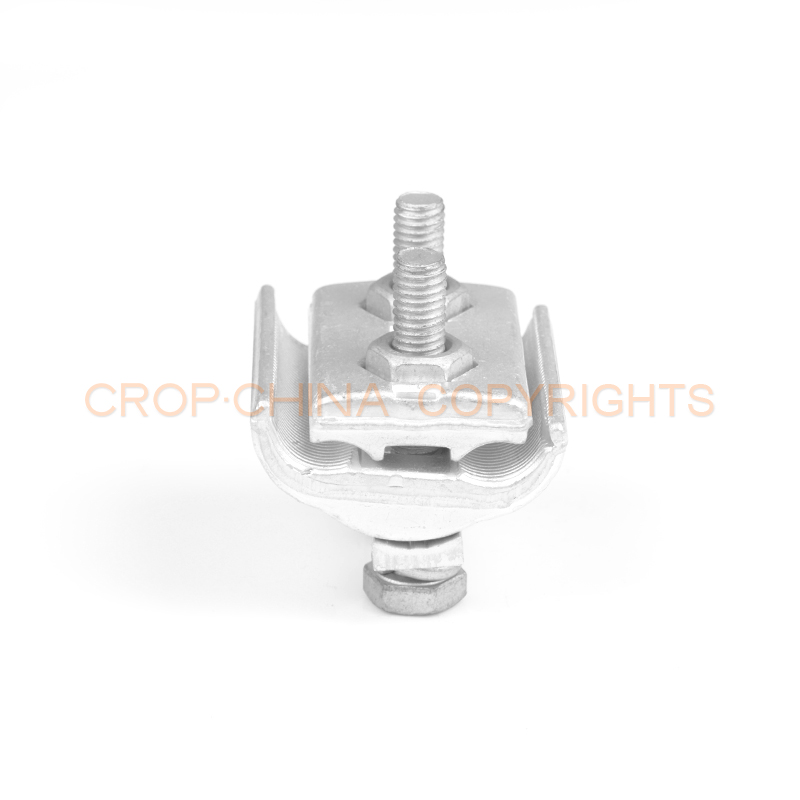

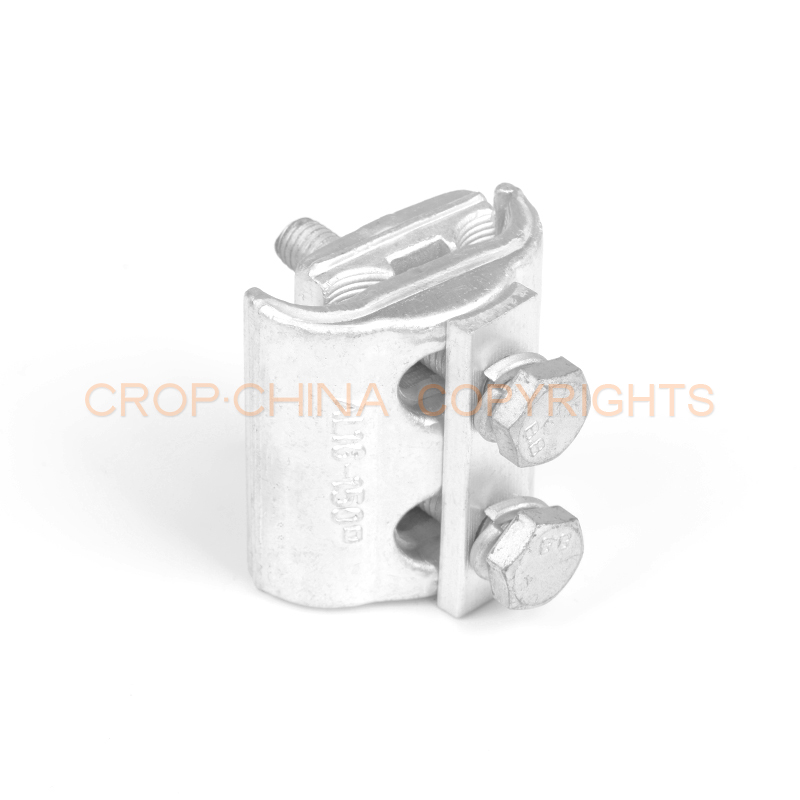

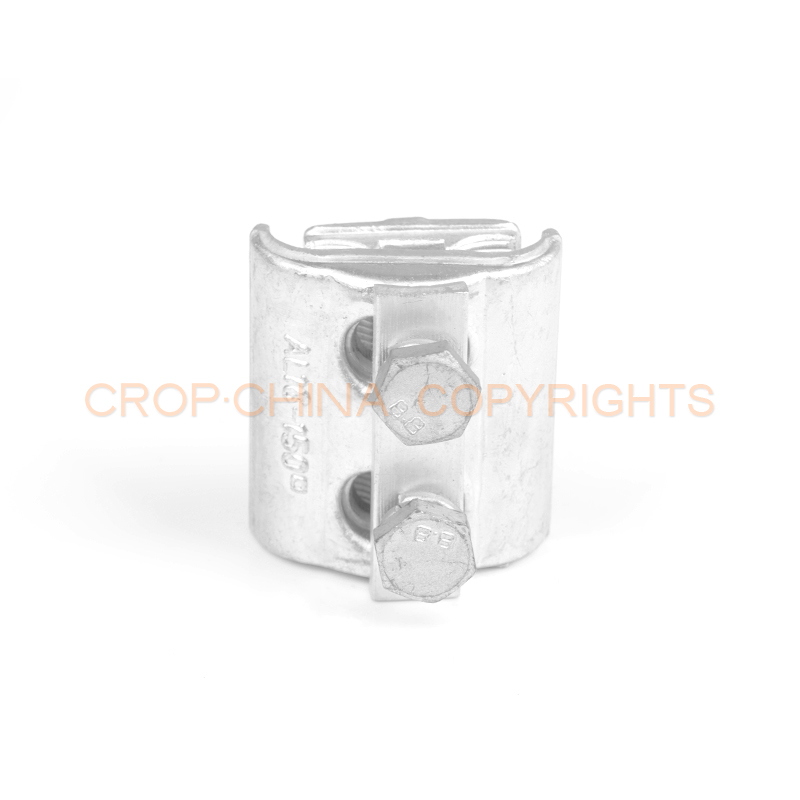

Aluminum PG clamp/ Paralle Groove Clamp/ELectrical Wire Clamp

Description
Aluminum PG clamp/ Paralle Groove Clamp/ELectrical Wire Clamp designed to connect two parallel bare conductors. Conductors can be aluminum alloy or aluminum steel reinforced.

Material

Connector bodies made of corrosion resistant, high strength aluminum alloy 99.5
Bolts: DIN 933, steel 8.8, dacromet; Nut: DIN934, dacromet, pressed into lower part
Pressure pad: aluminum alloy; Spring washer: DIN127, steel
Conical washer/Spring washers: Steel, DIN6796 corrosion-protected, dacromet
Stainless steel A2 bolts and nuts available according to order.

Features

Pressure pad ensuring uniform pressure along the clamp Cross-grooved clamp channels of universal clamp type improve mechanical pullout strength and electrical contact.

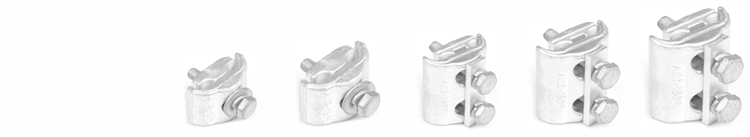

Models	PG660-11	PG660-12	PG660-22	PG660-23	PG660-24
Main Line(mm2)	16-70	16-150	16-70	16-150	25-185
Service Line (mm2)	16-70	16-150	16-70	16-150	25-185
Bolt No.	1	1	2	2	2
Remarks	Al to Al	Al to Al	Al to Al	Al to Al	Al to Al

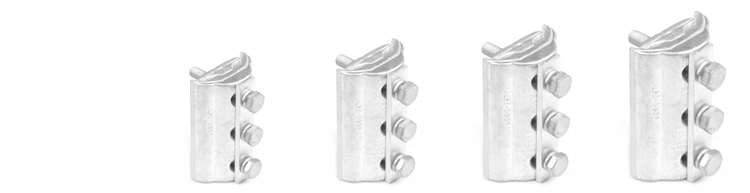

Models	PG660-31	PG660-32	PG660-33	PG660-34
Main Line(mm2)	16-70	16-150	25-240	35-300
Service Line (mm2)	16-70	16-150	25-240	35-300
Bolt No.	3	3	3	3
Remarks	Al to Al	Al to Al	Al to Al	Al to Al
