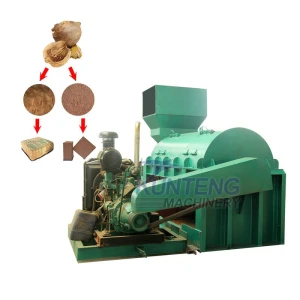

Heavy duty coconut shell fiber jute fiber extraction machine, automatic palm fiber extraction production line

FOB Price 8600 - 8800 USD / 1

Quantity	8600 - 8800
Price	Dollar

MOQ	1 Unit
Port	China
Packaging	container
Lead Time	15

Contact Now

Quick Details (View All)

core components	PLC, Engine, Motor, Pump	warranty	1 Year
key selling points	High Productivity，easy to use	machinery test report	Provided
video outgoing-inspection	Provided	place of origin	Henan, China
weight	1100	brand name	KUNTENG
Application	Coconut shell, palm, sisal, jute, pineapple leaves, etc	dimension(lwh)	3.32.11.5m
Product name	coconut coir fiber extraction machine production line	Keywords	coconut husk defibering machine
Power Type	110KW	Capacity	300-1500kg/h per set machine
Voltage	380V(can customized)	Advantage	Whole line design
Service	Provide door-to-door index guidance and installation services	Installation	Dispatch engineer to site install
Machine material	Q345 magnese steel

Product Details

Products Description

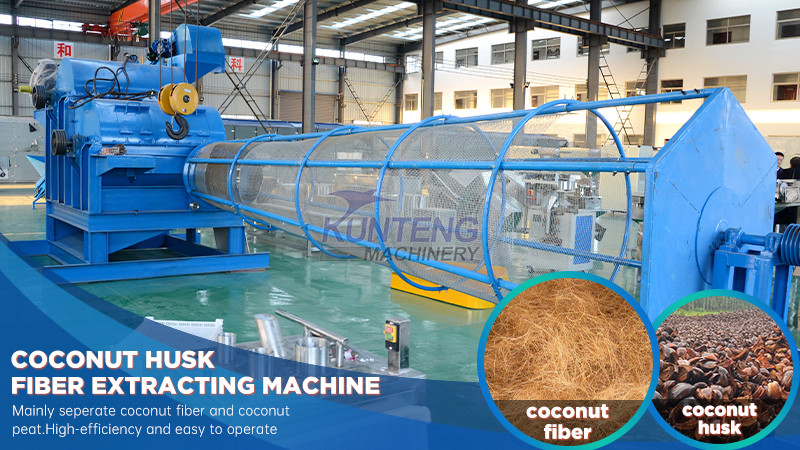

                                Description of
                                coconut husk defibering
                                machine：



                                  Coconut husk defibering
                                  machine is used to
                                  extractor the fiber silk and
                                  twists it into a filament from
                                  had skin of oil palm,palm and
                                  fresh or old coconut shell. The
                                  extracted fiber silk length can
                                  be 50-mm,which is the raw
                                  material for the production of
                                  palm mattresses, insoles and seat
                                  cushions,making rope.etc.The
                                  coconut peat can be used for
                                  compost.The coconut fiber
                                  processing making machine has
                                  high output, wide application and
                                  high economic
                                  returns.


Details Pictures

Technical Parameter

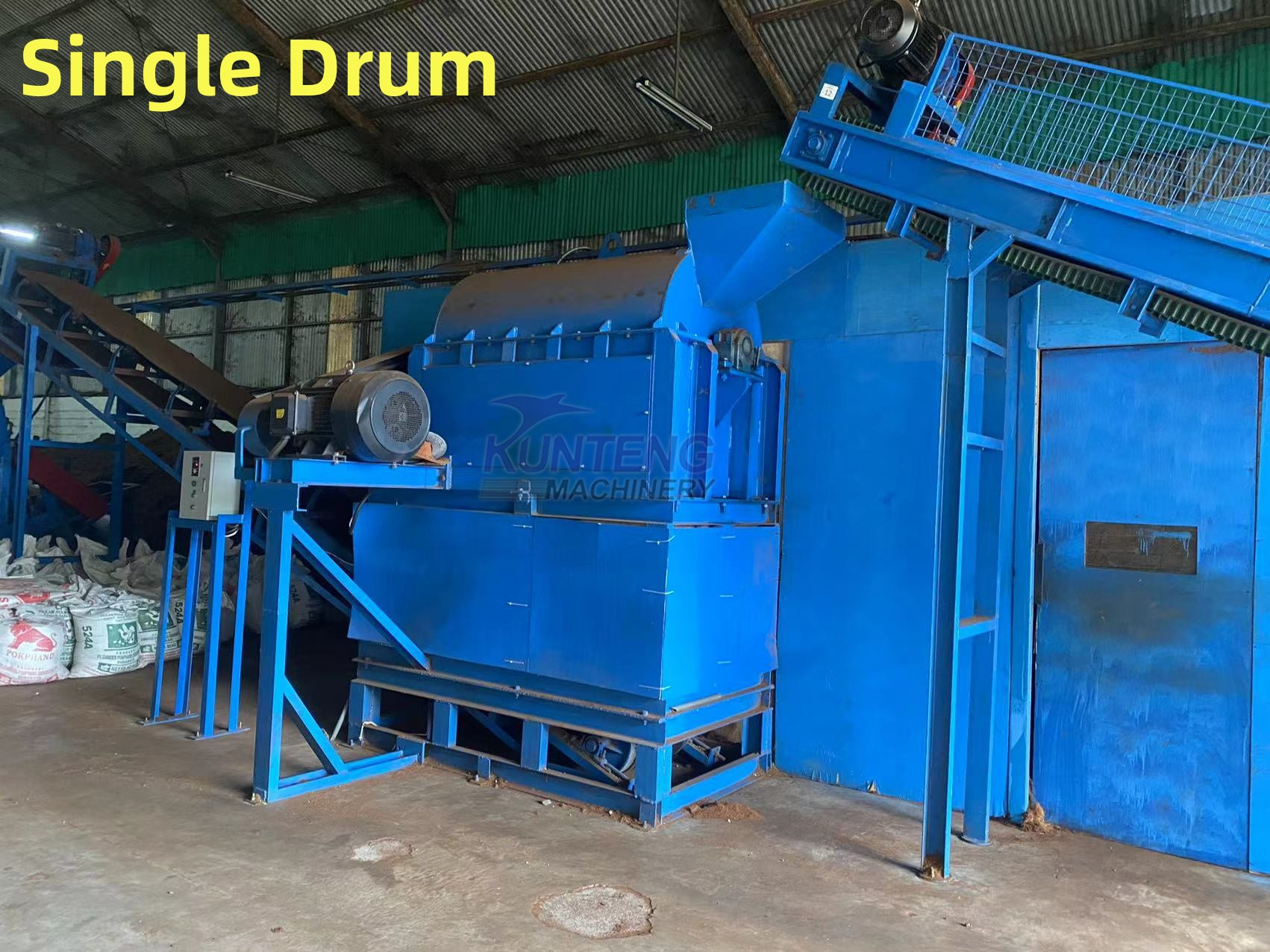

                                The Main Technical Parameters of
                                Single Drum Shredded Coconut
                                Husk Defibering
                                Machine

Model	Power	Capacity(kg/h)	Weight(kg)	Dimension(mm)
JPD-I	37	300	1800	1800×1200×1600
JPD-II	45	400	2100	2000×1500×1600
JPD-III	55	500	2500	2200×1700×1700
JPD-XI	75	600~700	3100	2500×2000×1900
JPD-XII	110	800~900	3500	2700×2100×1900
JPD-XY	110	1200~1500	4200	3100×2200×2000

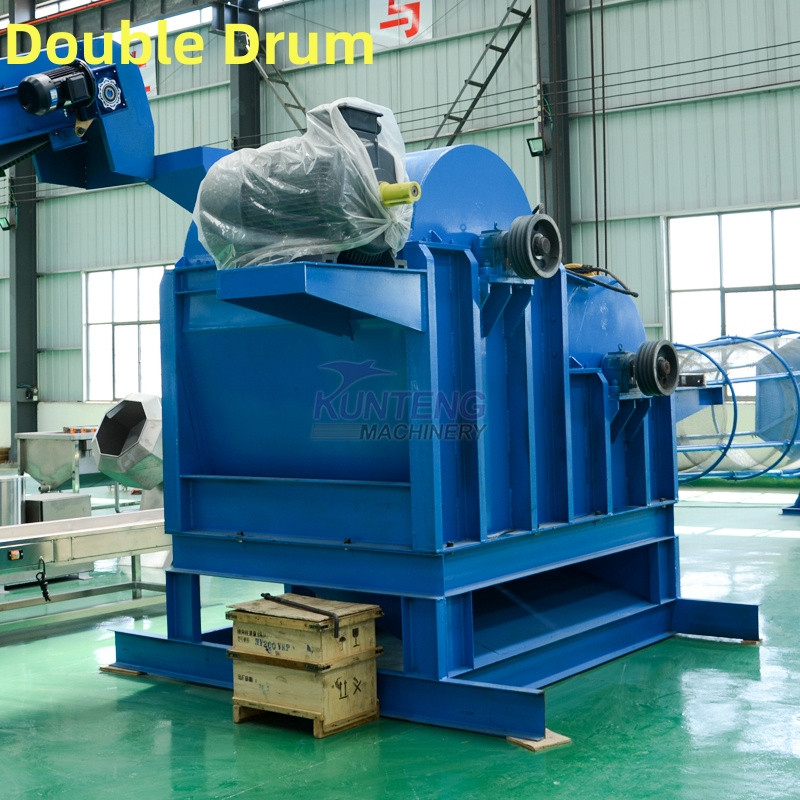

                                The Main Technical Parameters of
                                Double Drum Shredded
                                Coconut Husk Defibering
                                Machine

Model	Power(kw)	Capacity(kg/h)	Weight(kg)	Dimension(mm)
JZD-I	37+55	500	3400	3410×2300×1720
JZD-II	55+75	600-700	4100	4800×2250×1800
JZD-III	75+95	900-1000	4800	5750×2400×1900
JZD-XI	95+110	1500-1800	5100	6100×2600×2100

Application Field



                                Coconut
                                husk defibering machine is
                                mainly to process coconut husk, oil
                                palm,bamboo etc. The output fiber
                                can be used for making
                                mattress,brush etc. The peat used

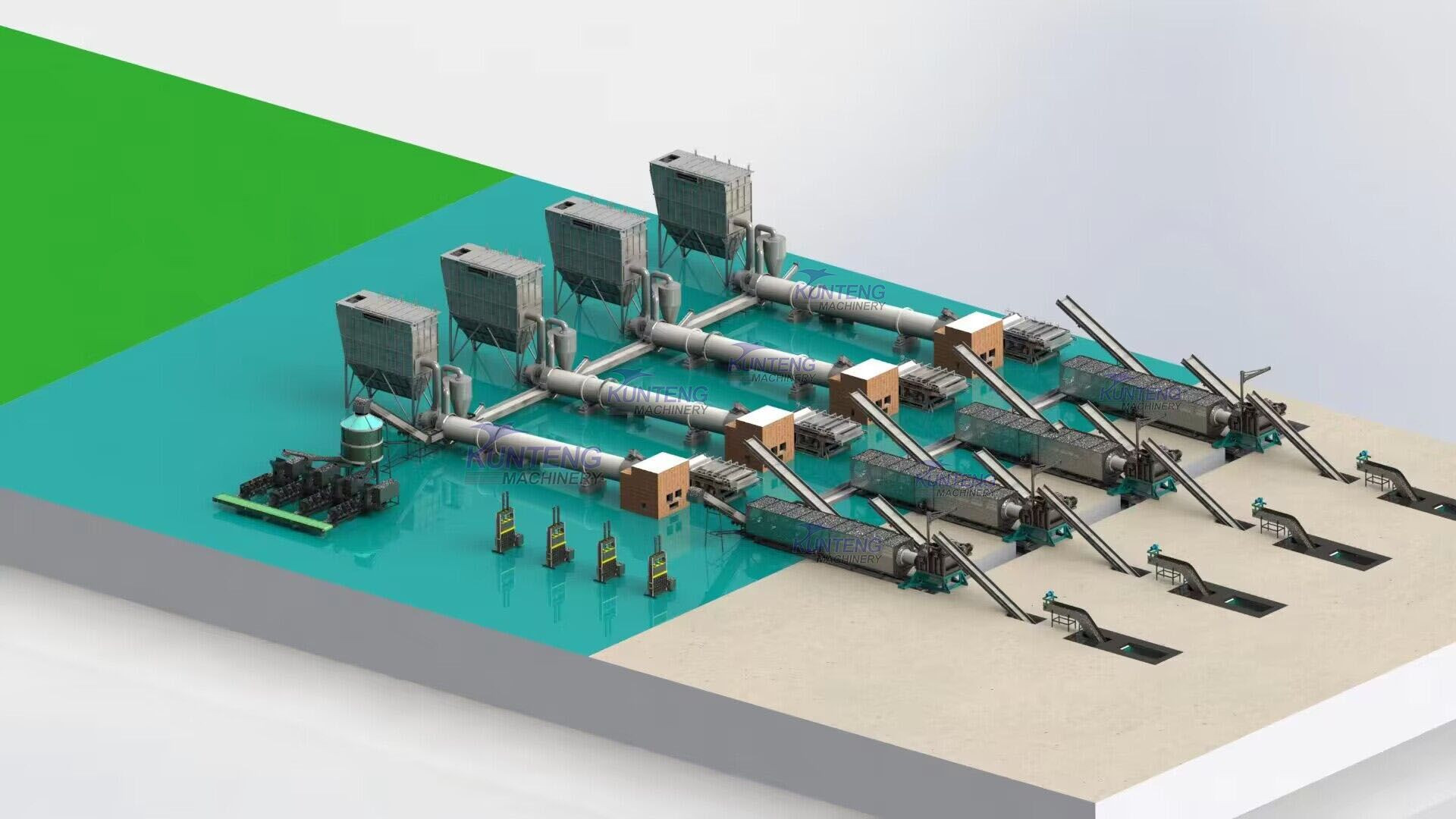

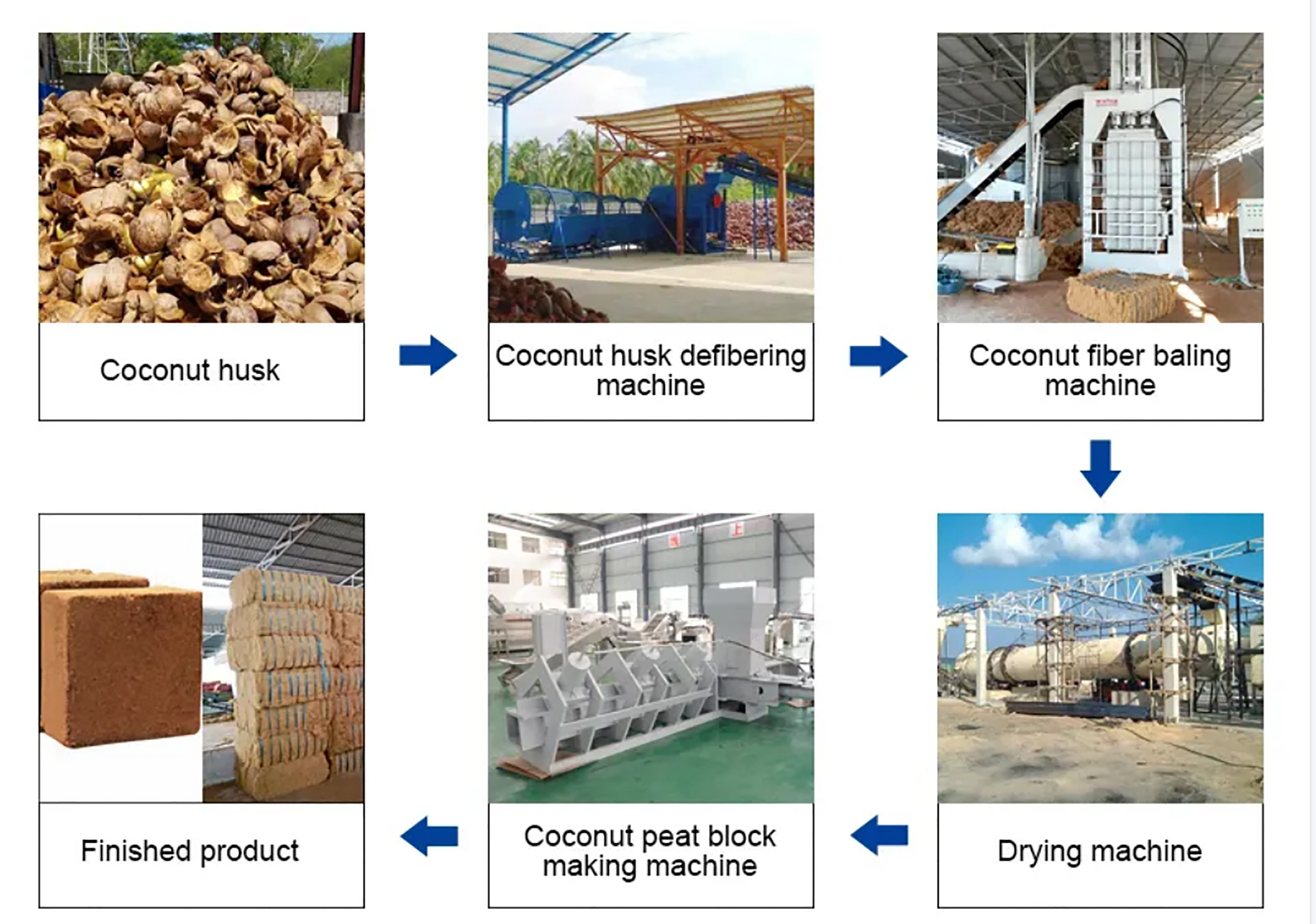

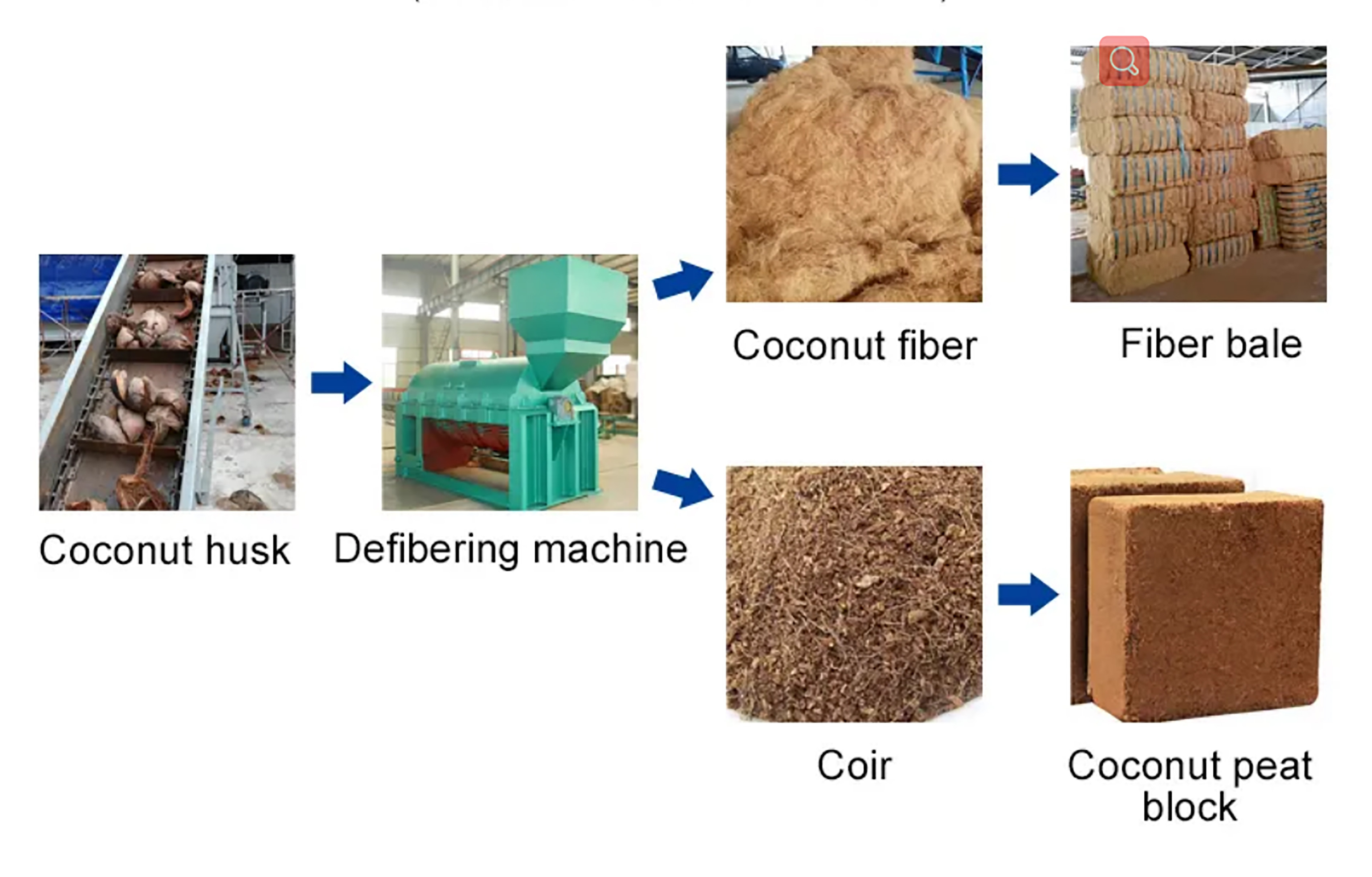

                                as fertilizer. The whole line:
                                Coconut husk defibering
                                machine(extract fiber and
                                peat)–Screen(separate the fiber and
                                peat)–Coconut fiber baling
                                machine–Wash coconut peat and
                                dewater–Coconut peat drying
                                machine–Coconut peat block making
                                machine.


Working principle


                                1. The material is conveyed to the
                                defibering machine through the
                                scraper conveyor.


                                2. Through the rapid rotation of
                                the cutter head in the equipment,
                                the coconut husk is separated into
                                coconut fiber and coconut
                                peat.


                                3. The material is kneaded into
                                fiber by rotating and stirring the
                                equipment, and then discharged
                                through the discharge
                                port.
                                Coconut peat flows out under the
                                screen of the machine.


                                  4. The shredded coconut fiber is
                                  directly blowing into the screen
                                  to further separate the fiber and
                                  peat.


                                  5. The output fiber enters the
                                  baler and compresses into bales.
                                  Coconut peat is further washed
                                  and dehydrated for making
                                  briquette or directly sell to
                                  market.

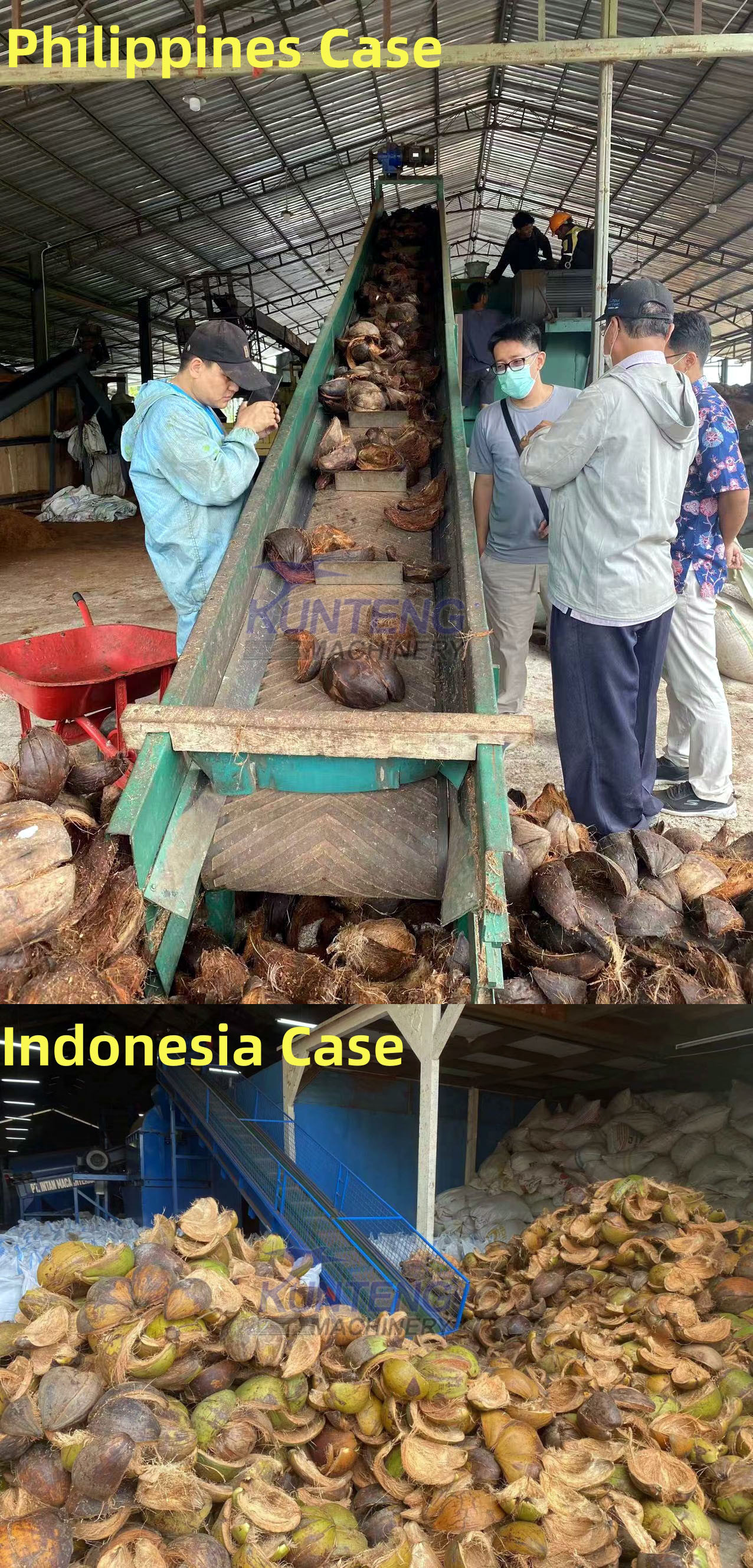

Customer Site

Company Profile





                                Company
                                Profile



                                1.Founded in 1999, KUNTENG
                                Machinery is a technology-based
                                enterprise integrating R&D,
                                manufacturing, sales and
                                after-sales.


                                2.We have our own R&D（research
                                and development）team. We have
                                ability design the factory
                                building, circuit direction, and
                                machine assemble for the entire
                                project.


                                3.The equipment is strictly
                                controlled by the quality
                                inspection department before
                                loading to the container to ensure
                                that each set of equipment work
                                smoothly.


                                4.The company's products have
                                passed more than 100 national
                                patents, and passed passed ISO, CE
                                quality system
                                certification.




CERTIFICATIONS


                                FAQ

                                Q1: Are you a factory or a trading
                                company?

                                A1: We are a professional
                                manufacturer in China, passed field
                                certification.

                                  Q2: How long is the warranty
                                  period?

                                  A2: Normally 12 months. Except
                                  for wearing parts.

                                  Q3: What’s your delivery
                                  time??

                                  A3: We will arrange for shipping
                                  in factory within 10 working days
                                  after receiving the advance
                                  payment. When there are coconut
                                  defibering machines in stock, it
                                  will be shorter.

                                  Please feel free to contact us
                                  for details.
