Factory price automatic meat marinating machine / vacuum meat tumbler for meat processing

FOB Price 1800 - 1850 USD / Set
MOQ1 Set/Sets

Quick Details (View All)

ConditionNew Applicable IndustriesFood & Beverage Factory, Food Shop, Food & Beverage Shops
After Warranty ServiceSpare parts Local Service LocationNone
Showroom LocationNone Video outgoing-inspectionProvided
Machinery Test ReportProvided Marketing TypeOrdinary Product
Warranty of core components1 Year Core ComponentsEngine, Bearing, Gearbox, Motor
Brand NameLTSS Place of OriginShandong, China
Voltage380V, 220V/380V Power1.5KW, 1.5kw
Dimension(L*W*H)1050*630*1060mm Weight170kg
CertificationCE Warranty1 Year
After-sales Service ProvidedFree spare parts, Engineers available to service machinery overseas Application fieldsMeat processing plants, Frozen food Factory, Snack food factory
Raw materialVegetables, Chicken NameVacuum meat tumbler machine
TypeMeat Processing Machinery ColorSilver
Material304 Stainless Steel FunctionMultifunction
Capacity25-55kg/time Source powerElectric power

Product Details

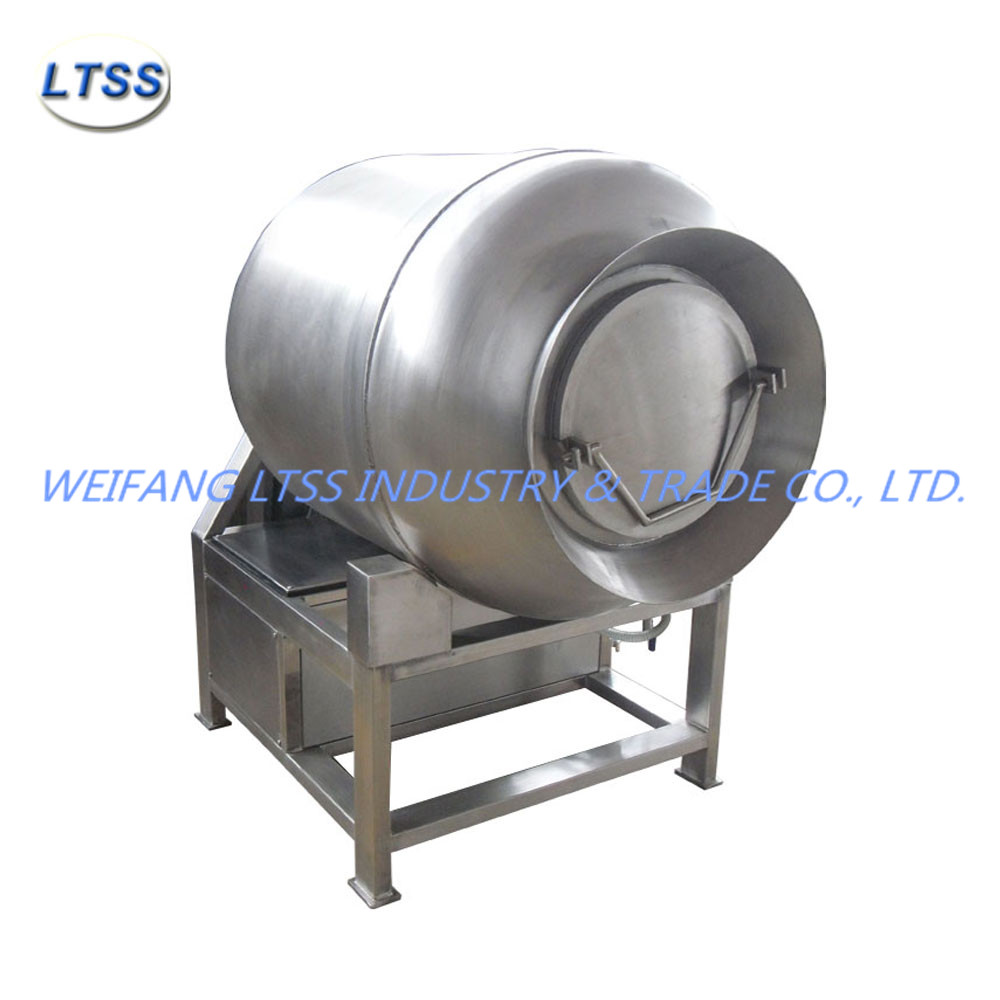

Factory price automatic meat marinating machine / vacuum meat tumbler for meat processing

Product Description

Introduce

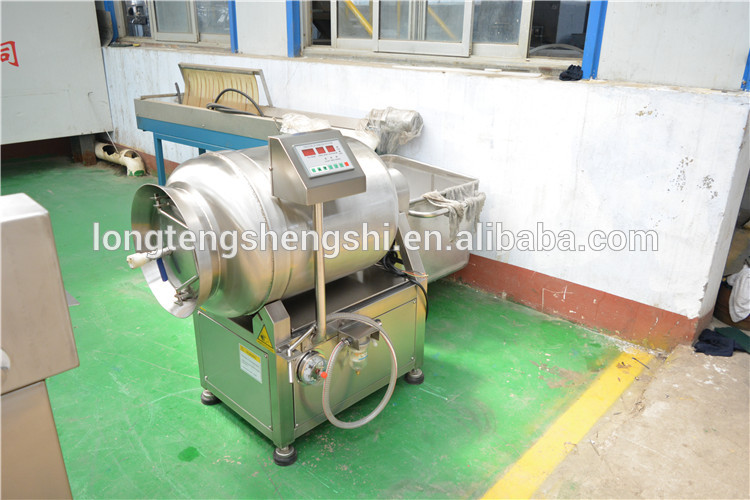

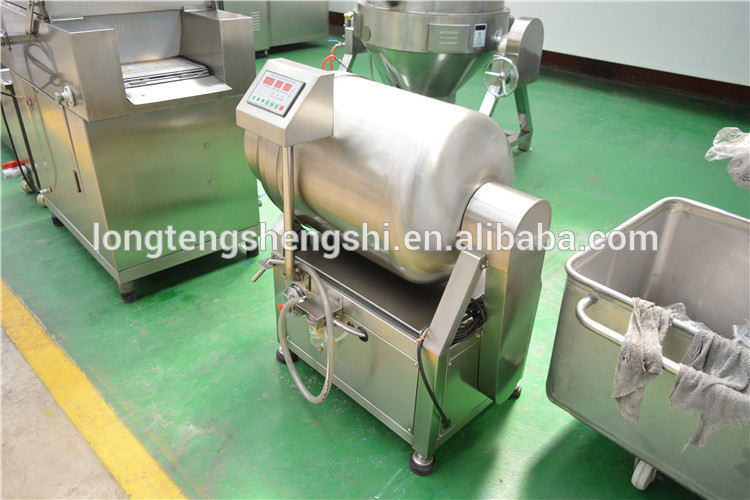

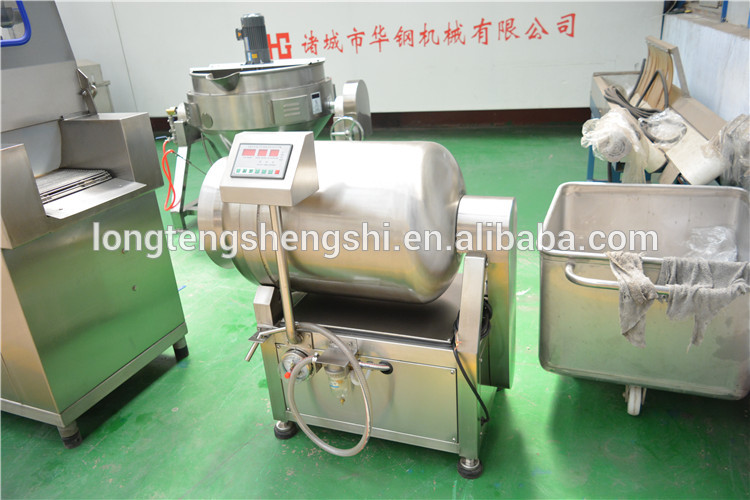

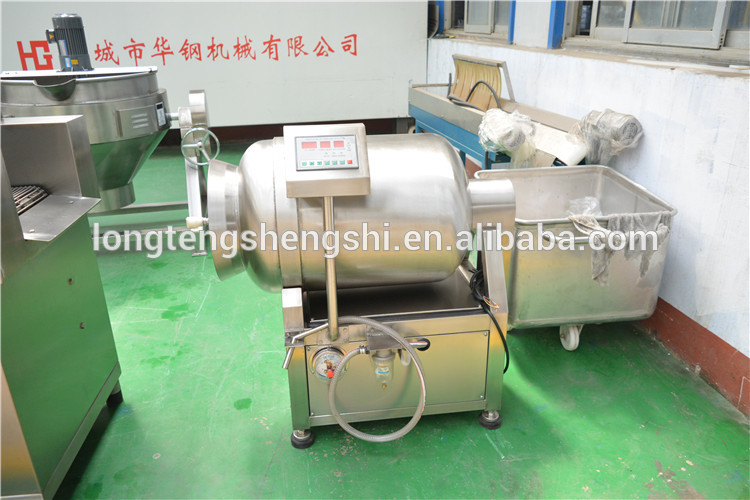

Automatic Vacuum Tumble Machine is in a vacuum state, the use of the  principle of physical impact, let the meat flip up and down in the drum, hit each other, beat, to  massage,  pickled  effect,  the meat salted evenly meat adhesive products flexibility, tumbling, massage can make the flesh  proteins into water-soluble protein, easily absorbed, add  material (starch, etc.)  and physical protein can mutually integration in order to achieve the meat is tender, good taste, high export rate.

Stainless steel meat marinator has a pulmonary respiratory function,  product  expansion in the drum, reducing the reciprocating movement to improve the organizational structure of the meat section results.

Functions

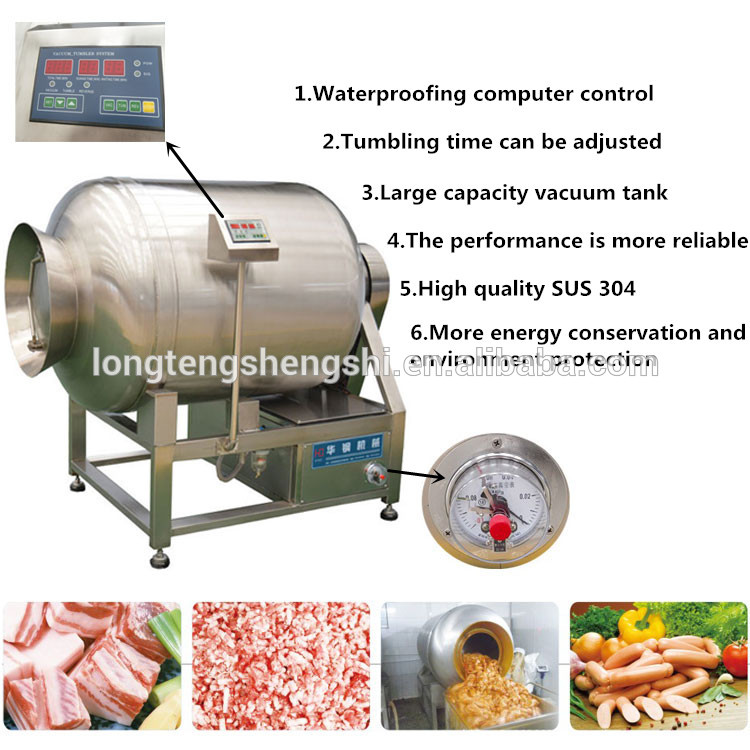

Automatic Vacuum Tumble Machine has the following characteristics:

1. Can be set freely tumbling working hours, intermittent tumbling, the vacuum tumbling time, to achieve truly continuous tumbling, intermittent tumbling arbitrarily set.

2. The control panels are made of waterproof touch screen control.

3. Both ends of the drum spinning sealing cap structure, so that the the tumbling space larger and  more reasonable.

4. The arcshaped blades made of unique design, make the marinade more uniform distribution of  the product surface damage.

Effects

Automatic Vacuum Tumble Machine get the following results:

1. Marinated the liquid raw meat evenly absorption

2. Enhancement of the binding force of the meat, elastic improve meat

3. Ensure that the meat slices, slice prevent crushing gap

4. Increase water retention, improve the production rate

5. Improve the suppleness and the structural stability

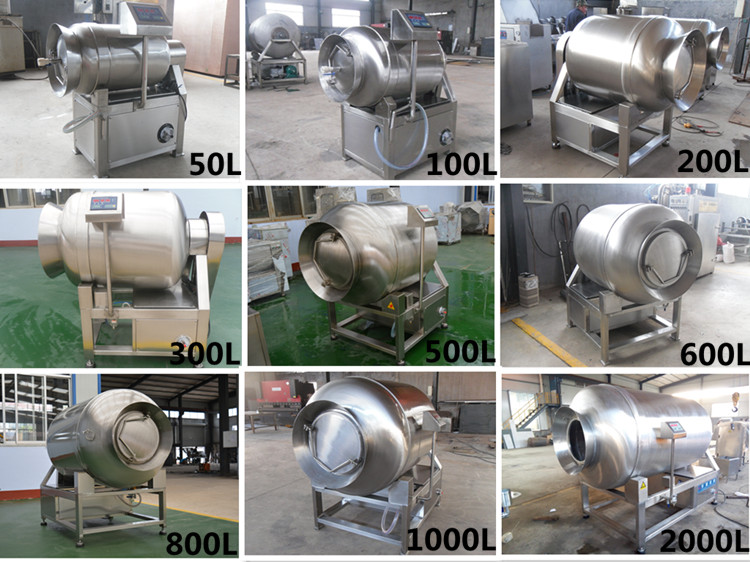

Model  HGGR-50 HGGR-100 HGGR-200 HGGR-300 HGGR-500
Roller volume(L) 50 100 200 300

500

Charge(kg) 25 50 100 150 250
Roller speed(n/min) 13 13 8 8 8
Roller diameter(mm) 400 500 700 800 900
Power(kw) 1.0 1.5 1.5 2.25 2.25
Dimension(L*W*H)mm 920*535*980 1050*830*1060 1350*830*1350 1400*930*1350 1420*1025*1410
Weight(kg) 100 140 200 260 320
