Port | FOB Ningbo or Shanghai |
Packaging | for customer's requirement |
Lead Time | 7 days |
Rated Current | 1-63A | Pole Number | 1P/2P/3P/4P |
Breaking Capacity | 4.5ka/6ka | mechanical life | 20000TIMES |
Rated Voltage | 230/400V |
1.DZ47-63(C45) series used in lighting distribution system or motor distribution system for protection overload and short-circuit in the system.
2. Neoteric in structure, light in weight, reliable, and excellent in performance.
3. High breaking capacity, can trip quickly, and its case and items are adopted by high fire-resistant and shockproof plastics.
4. It is mainly used AC 50/60Hz single-pole 230V or two,four-pole 400V circuit for overload and short-circuit protection as well as for unfrequented on-and-off switching electric equipment and lighting circuit in normal case.
5. Standard IEC 60898-1 GB10963.1
Rated Current(A) | Type(P) | Voltage(V) | Breaking Capacity(A) |
1~40 | 1P | 240 | 6000 |
1~40 | 2P,3P,4P | 415 | 6000 |
50~60 | 1P | 240 | 4500 |
50~60 | 2P,3P,4P | 415 | 4500 |

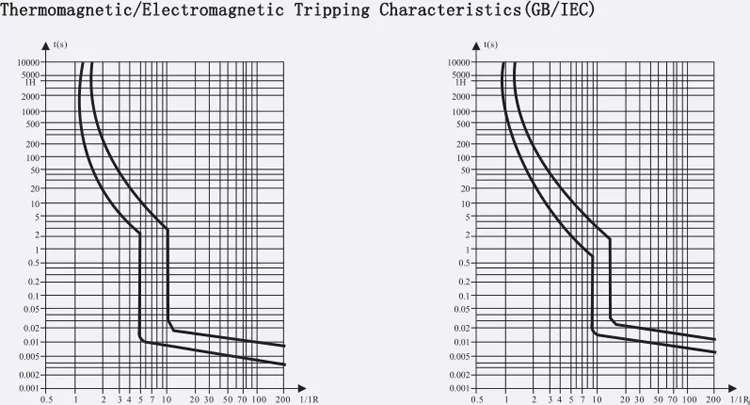

Performance Characteristic of Tripper | Time-delay |
1.13In≥1h No Tripping |
|
1.45In<1h Tripping |
|||
2.55In.1~60s Tripping |
|||
Instantaneous |
5In≥0.1s No Tripping |
||
10In<0.1s Tripping |
Rated Temperature of Protection Feature |
30℃ | ||
Rated Voltage | 240V/415 AC | ||
Rated Current DZ47-63(C) | (1,2,3,4,5)6,10,16,20,25,32,40,50,63A | ||
DZ47-63(D) | 1,2,3,4,5,6,10,16,20,25,32,40,50,63A | ||
Electrical Life | ≥6000 Times | ||
Mechanical Life | ≥20000 Times | ||
Tepidity Test | Type 2(95%RH,55℃) | ||
Weight(g) | 1P:102; 2P:208; 3P:308; 4P:408 |
