ACB Air Circuit Breaker for Panel Box Intelligent Circuit Breaker 1600A 4p drawer&fixed type

Product Details

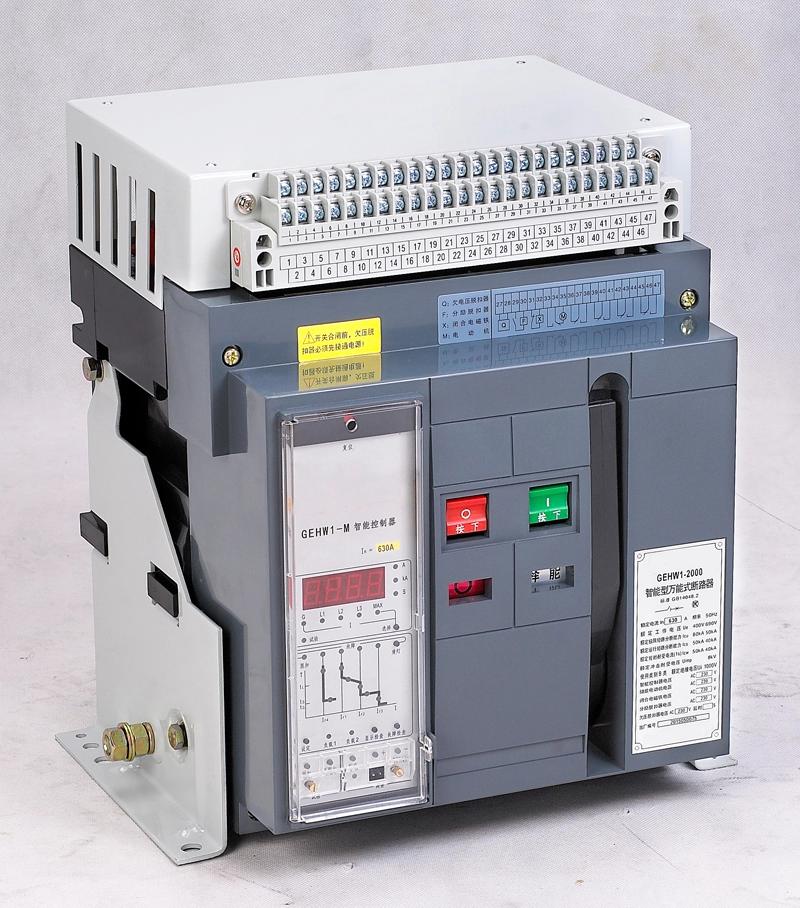

Introduction CFW45 air circuit breaker CFW45 intelligent air circuit breaker ACB
CFW45 series air circuit breakers (ACB) is used in a power distribution system to distribute power, protect wire and equipment from the damage of overload, voltage shortage, short-circuit, single-phase grounding default. it can also be used for infrequent changeover of the circuit under normal conditions. Specification

Type		CFW45-2000A	CFW45-3200A	CFW45-4000A	JKW45-6300A
Frame rated current In(A)		2000	3200	4000	6300
Number pole		3.4
Rated current In(A)		630,800,1000,1250,1600,2000A	2000,2500,3200	2000,2500,3200,4000	4000,5000,6300
Icu(KA)	400V	80	100	100	120
	690V	50	65	65	80
Ics=Icw(KA)	400V	50	80	80	100
	690V	40	50	50	65
Rated current at N-pole In(A)		50%In,100%In
Inhere making &breaking time		23-32ms
Operational performance	Electric life	500
	Mechanical life	Maintenance-free 2500 Maintenance 10000
Mounting mode		Fixed /draw out
Intelligent controller		Standard type M, telecommunication type H

Pictures DELIVERY
