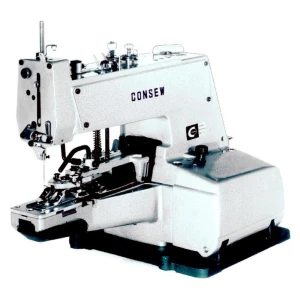

Consew Model 241 1K Button Sewing and Tacking Machine

Product Details

Button Sewer, Single Needle, Single Thread, Chainstitch, Cylinder Bed, Button Sewing and Tacking Machine. Features include Vibrating Clamp, Single Pedal Operation, 8-16-32 Parallel Stitches, Two or Four Hole Button Sewing Operation.

Applications

• Designed to sew two and four hole buttons on light to medium material
• Suitable for sewing snap fasteners, shank, flat and metal buttons; hooks and eyes and label tacking with use of suitable attachments
• Thread severed by automatic clamp lift upon completion of sewing cycle
• Has automatic scissor action thread trimmer with stationary and moving knife. Cutting action simultaneous with last stitch
• Particularly suitable for use with heavy cotton and synthetic threads

Features

• Vibrating clamp
• Single pedal operation
• Automatic clamp lift after sewing cycle
• Stitch range - 8-16-32 parallel stitches - no cam changes
• Change from 2 hole to 4 hole operation by lever at operator's fingertips
• Attachments easily installed
• Interchangeable clamps for flat, shank, metal buttons, snap fasteners and label tacking

Specifications

• Number of Needles: 1
• Work Space: Standard Workspace
• Standard or Full Function: Standard Functions
• Stitch Type: 101
• Speed, Max (S.P.M.): 1500
• Needle Bar Stroke: 1 59/64" (48mm)
• Needle: 175 x 7
• Number of Stitches: 8-16-32 parallel stitches
• Looper: B-372-213
