MOQ | 10 sqm |
Port | shanghai |
Packaging | 100m |
Thickness:1.2mm, 1.4mm, 2.0mm, 3.0mm
Density: 1.6g/cm³
Packing: 100 meters/roll
Width: 50mm, 100mm or to be customized.

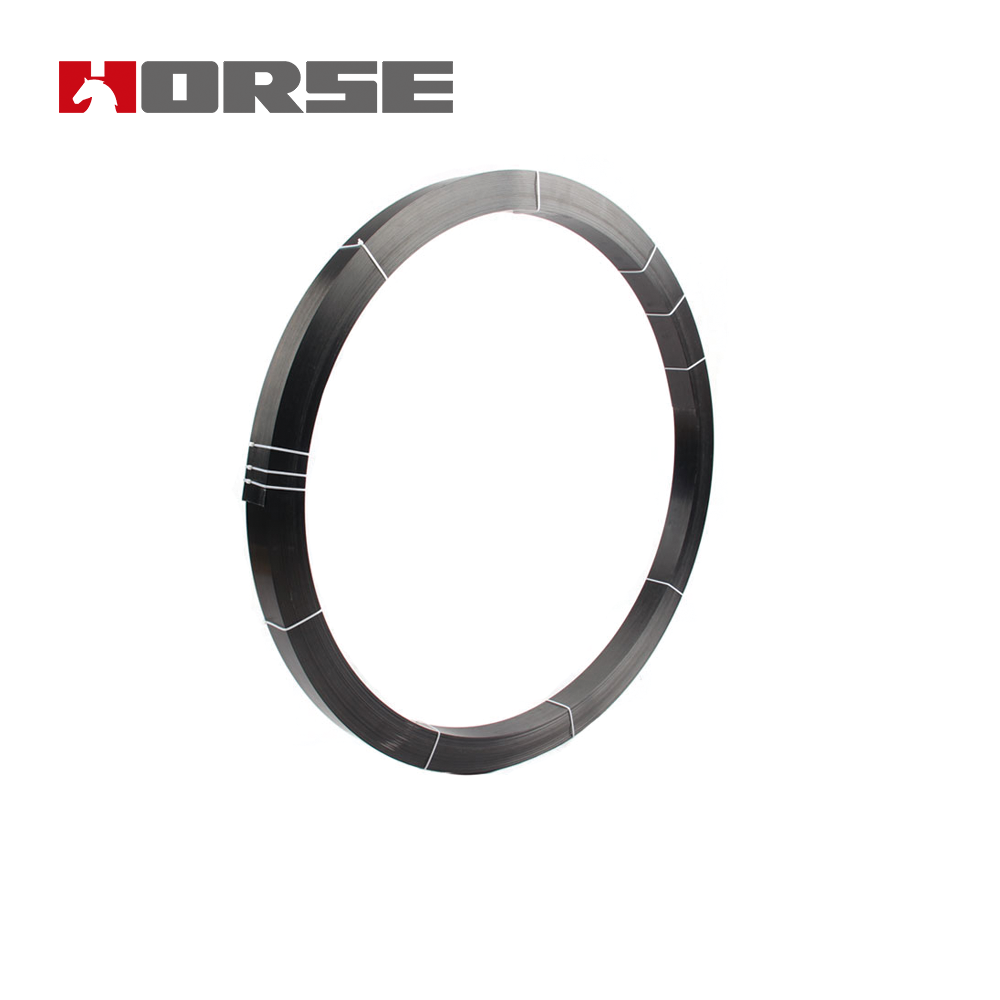

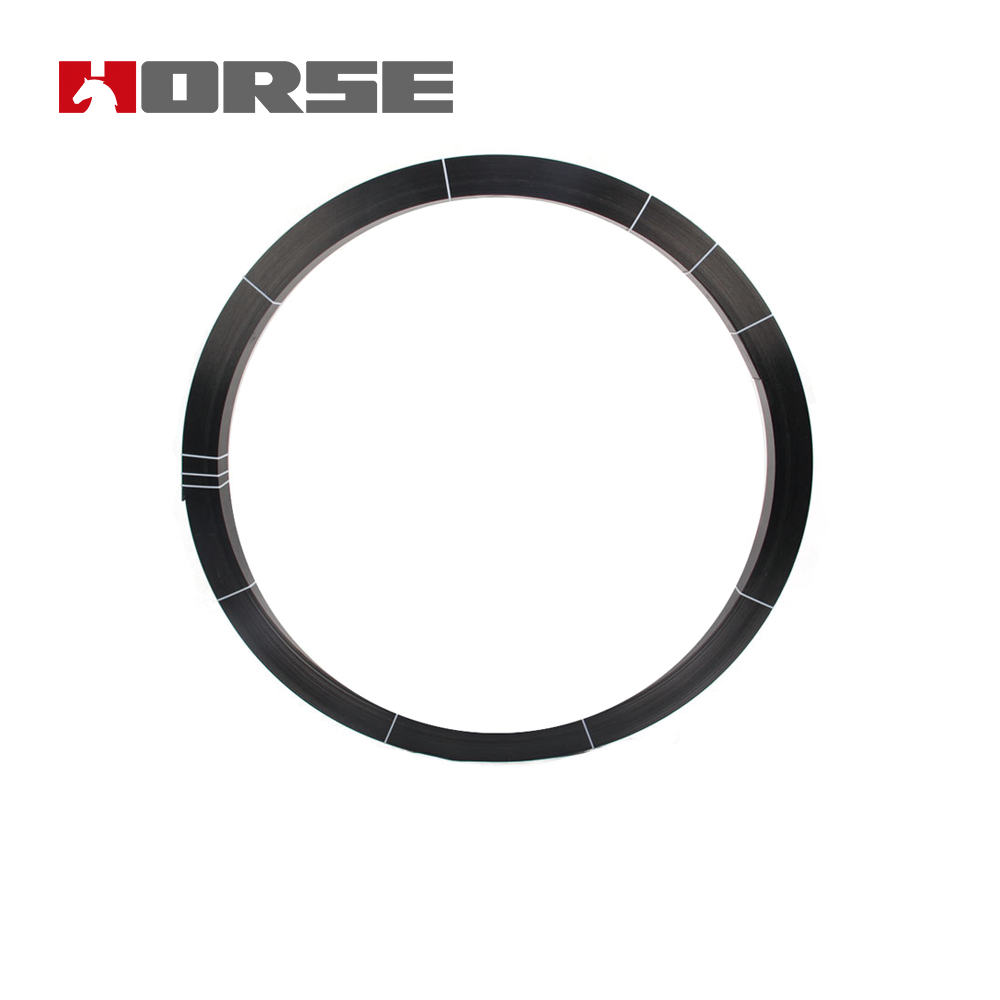

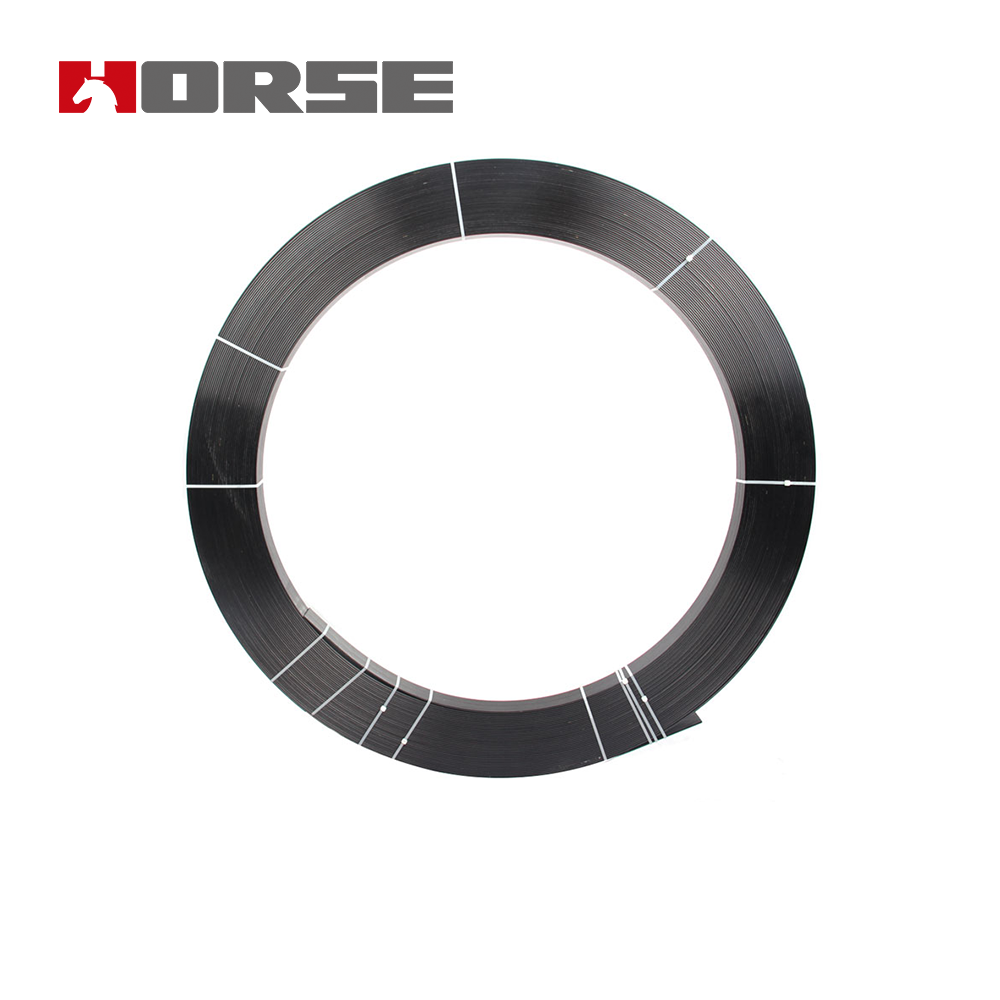

Carbon fiber reinforced polymer(CFRP) strip/plate/laminate is pre-cured composite laminates, bonding onto the structure as externally reinforcement using HM-120CP epoxy resin as the adhesive.
Advantages of CFRP Plate Strengthening
• Short construction period
• No maintenance required
• Easy installation, low installation cost
• Light weight, no influence to original structure
• Corrosion resistance, long-term effect of 50 years
• Cost effective compared with other retrofitting
method
• 1 layers of CFRP laminate is equivalent to 4-8 layers of CFRP
fabric
Application Range
• Load increases
• Seismic reinforcement
• Improve structural state
• Damage of structural parts
• Change the structural function
• Remit mistakes in design and construction
