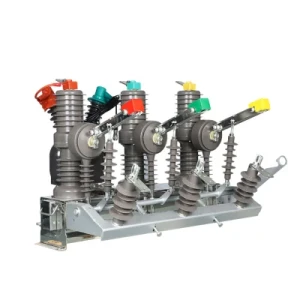

Zw32-12 Standardized Outdoor Pole Type Recloser From China Manufacturer Electric Vacuum Interrupter Circuit Breaker

Name: Zw32-12 Standardized Outdoor Pole Type Recloser From China Manufacturer Electric Vacuum Interrupter Circuit Breaker
Brand: Zhejiang Jugao Power Equipment Co., Ltd.
SKU: Tradewheel_2510282
Price: 2000 USD
Availability: InStock

FOB Price 2000 - 6000 USD / pieces

Contact Now

Quick Details (View All)

Model NO.	ZW32-12	Poles Number	1
Type	Circuit Breaker	Function	Conventional Circuit Breaker
Certification	VDE, ISO9001:2008	Product Name	Zw32c-12
Rated Current	630	Application	Electric Power Transmission
MOQ	1 Piece	Rated Voltage	12
Trademark	GGAOE	Origin	Zhejiang, China
HS Code	7201500010	Production Capacity	100000 Piece/Pieces Per Month

Product Details

Product Description

Company Info.

Overview
Products Description
Felds of Application

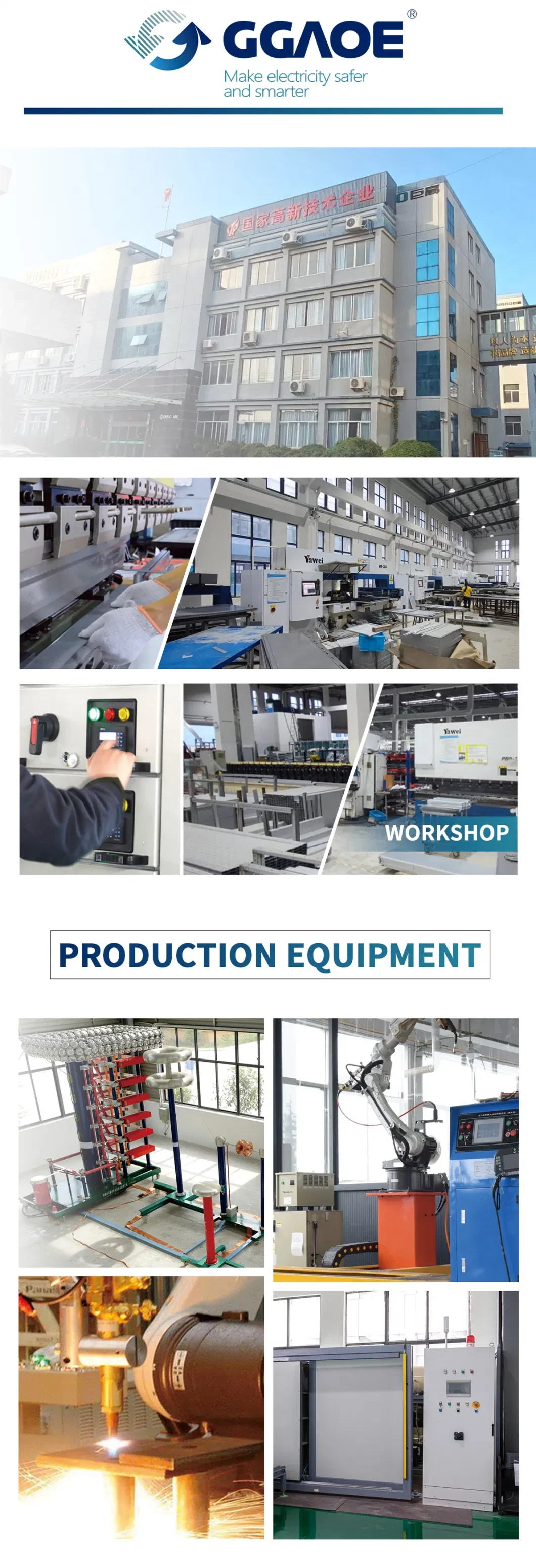

Company Profile
Certifications
Delivery
FAQ

Product Description

overview

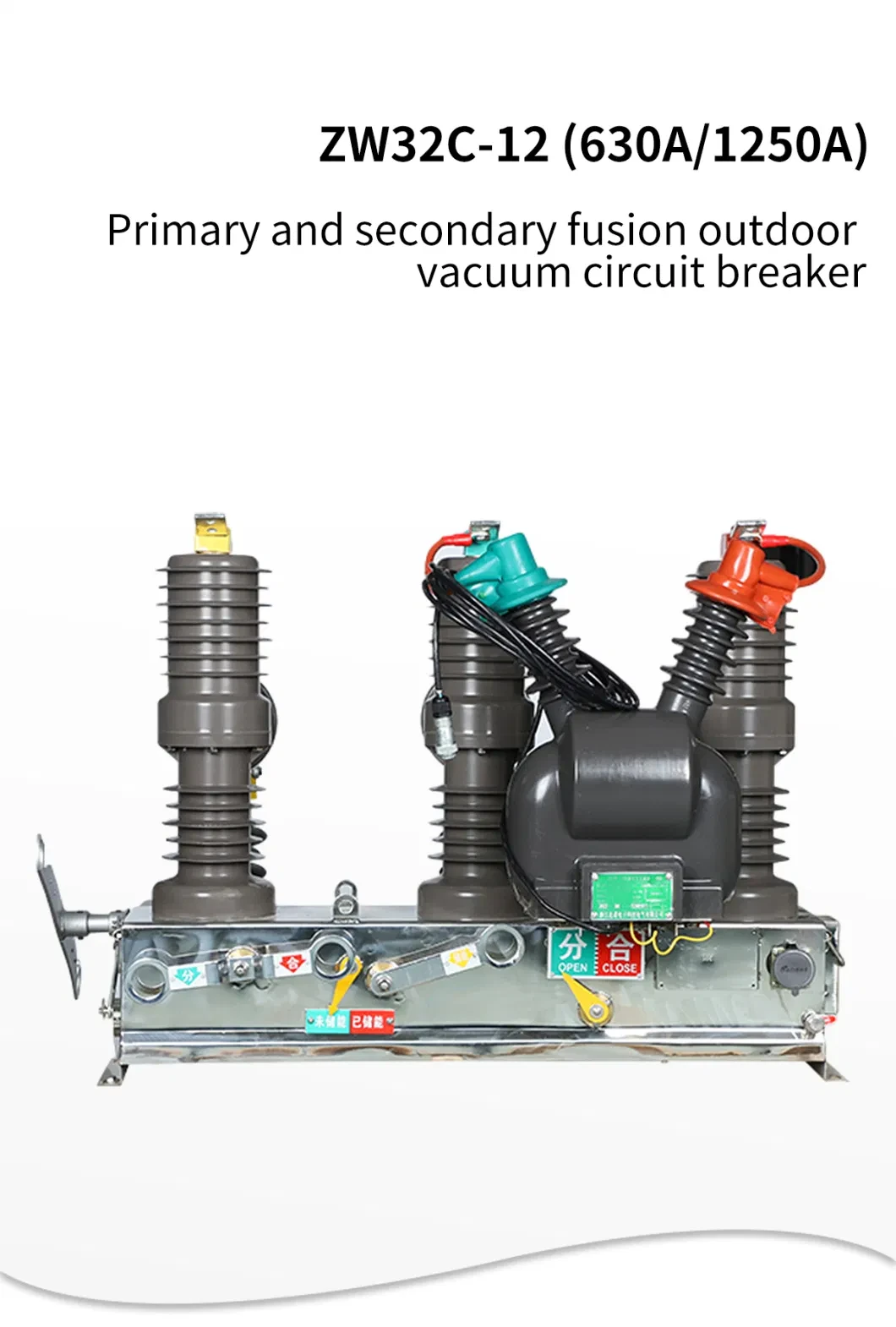

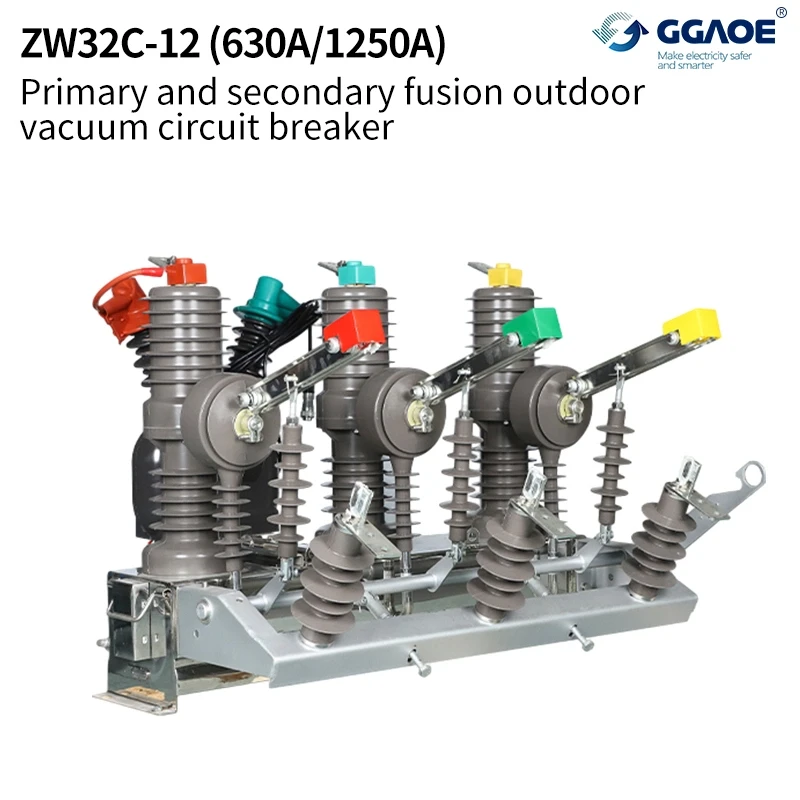

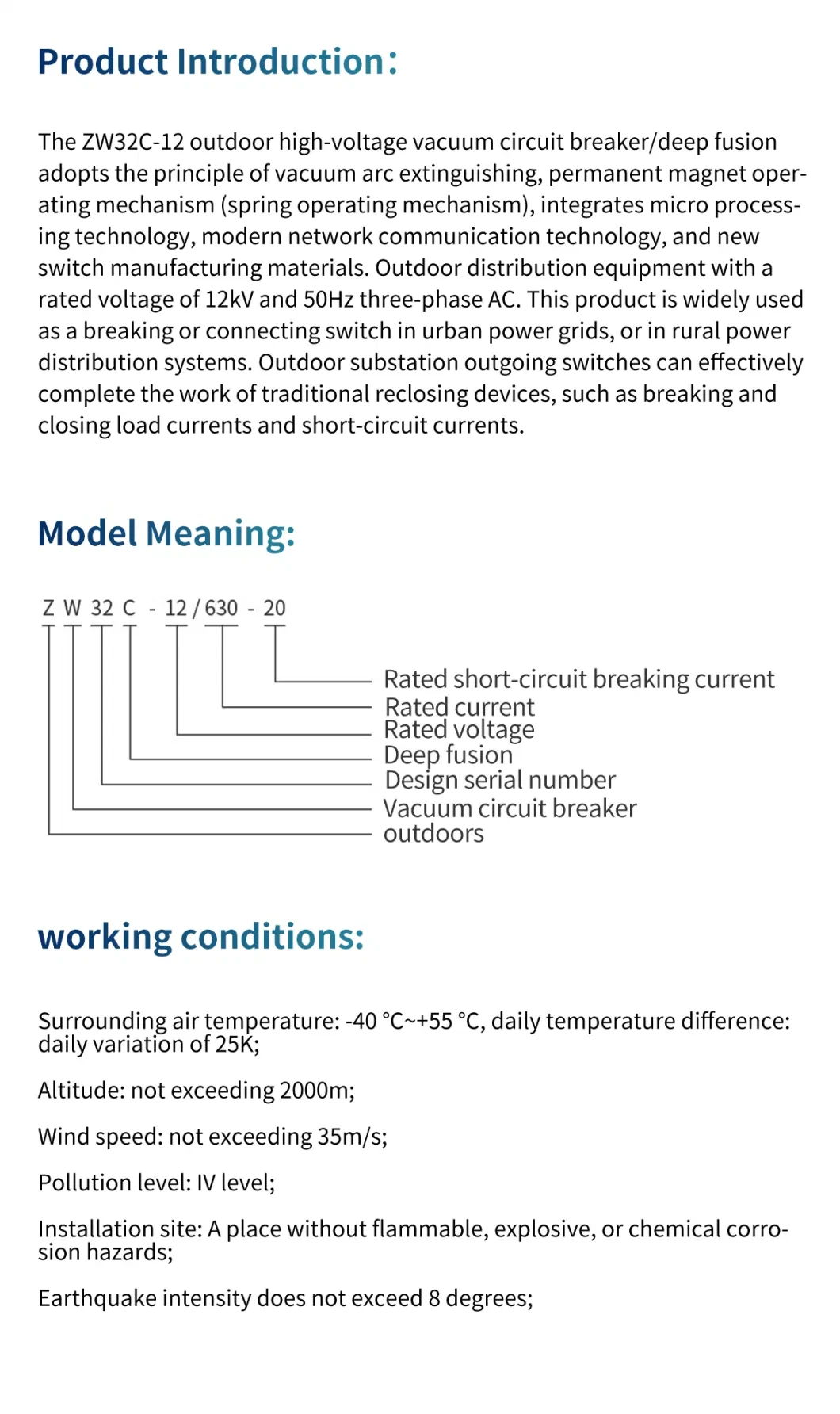

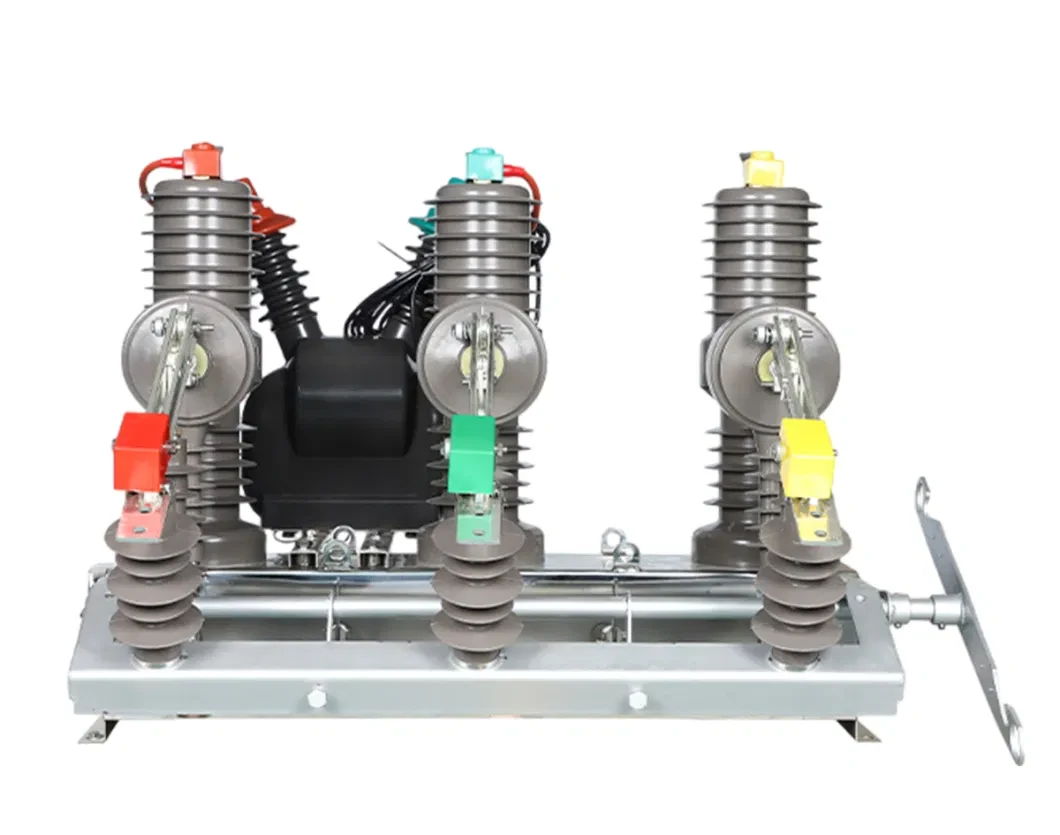

ZW32C-12 Series outdoor AC vacuum circuit breaker is 12kV distribution equipment of 3 phase,50Hz. Its used to connect and break load current,over-load current, and short-circuit current. Its applicable for substations, industry, mining, and urban and rural electric power networks, especially applicable on occasions with frequent operation and automatic power distribution network.

Main Technical Parameters
No.	Item			Unit	Data
1	Rated frequency			Hz	50
2	Rated voltage			kV	12
3	Rated current			A	630	1250
4	Rated short-time power frequency withstand voltage	Interphase, to earth(wet)	kV/min	34/1
					Interphase, to earth(dry)		42/1
					Fracture (dry)		48/1
					Secondary circuit to earth		2/1
5	Rated lightning impulse withstand voltage	Interphase, to earth	kV	75
				Fracture		85
6	Rated short-circuit breaking current			kA	20/25
7	Rated short-circuit making current(peak)				50/63
8	Rated short-time withstand current and duration			kA/s	(20/25)/4
9	Rated peak withstand current			kA	50/63
10	Rated short-circuit breaking current breaking times			Times	30 (E2 Level)
11	Gas Rated Gauge Pressure			MPa	0
12	Main circuit resistance			μΩ	≤120
13	Rated Operating Voltage and Rated Voltage for auxiliary(control) circuit			V	AC/DC220,DC48,DC24
14	Mechanical life			Times	10000 (M2 level)
Note: If the altitude is over 1000m, the rated insulation level should be modified as appropriate.

Ordering Instructions:

The following technical information should be provided when placing an order: Main wiring scheme number, purpose and single line system diagram, rated voltage and rated current rated short-circuit breaking current/distribution room layout plan and arrangement and configuration diagram of switchgear;
Requirements for control measurement and protection functions of switchgear, as well as requirements and schematic diagrams for other interlocking and automatic devices;
The models specifications and quantities of the main electrical components inside the switchgear;
When the switchgear is used in special environmental conditions; detailed instructions should be provided when placing an order;

Q:whats your major products?
A: oil immersed transformer, dry type transformer, Transformer Substation, High and Low Voltage Switchgear

Q: Can your product be customized?
A: Considering differences in voltage, frequency and other special transformer product in different countries and regions, our product can be customized according to your requirements.

Q: When can I get the price?
A:Usually we quote within 24 hours after we get your inquiry.

Q: What about lead or shipping time?
A: The lead time depends on the quantity you ordered, generally within 15 days upon receipt of advance payment.

Q: What is the price of shipping?
A: Depending upon the port of delivery, prices varies.

Q: Do you offer guarantee for the products?
A: Yes. We offer at least one years guarantee for all of our transformers.

Q: Your Advantage?
A: 15 years experience, Advanced production equipment, Stable quality, Fast delivery, Professional & good & Prompt service. Also some free parts can be provided for you.
