Condition | New | Application | mining , bridge , road costruction |
Power Type | Electric | Capacity(t/h) | 70-140 |
Place of Origin | Shandong, China | Brand Name | SDSY |
Model Number | ZDW70x350 shanghai vibratory bowl feeders | Power | 15 |
Dimension(L*W*H) | 3500*1460*950 | Weight | as the different model |
Certification | ISO9001-2000 | factory visit | welcome |
after-sale service | installation,commissioning,training | color | as client required |
Performance | Perfect | spare part | standard part |
After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 1 year |

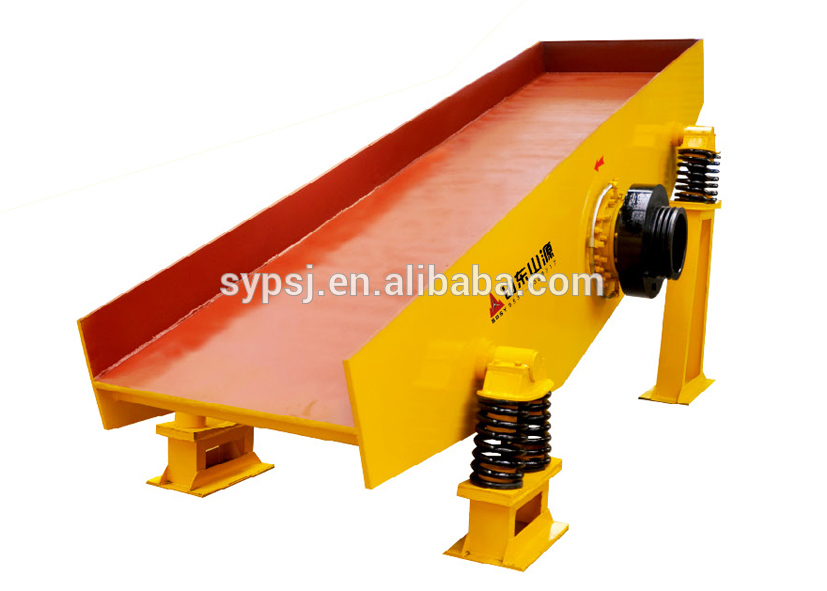

Shanghai Vibratory Bowl Feeders
ZDW series vibration feeder is widely used to transport of all kinds of ores,rocks and other similar block materials.It is mainly used in ore,rock and other massive materials matching use before the crushing.
Shanghai Vibratory Bowl Feeders Shanghai Vibratory Bowl Feeders Shanghai Vibratory Bowl Feeders Shanghai Vibratory Bowl Feeders
Models and specification
Model |
Feed size(mm) |
Processing capacity(t/h) |
Power(kw) |
Groove face inclination(º) |
Overall dimension(L*W*H)(mm) |
ZDW70*250 |
≤400 |
70-140 |
15 |
18 |
3500*1460*950 |
ZDW90*400 |
≤500 |
120-250 |
18.5 |
18 |
4000*1689*1000 |
ZDW106*500 |
≤600 |
150-300 |
22 |
18 |
5000*1806*1050 |
ZDW120*600 |
≤700 |
180-350 |
30 |
18 |
6000*1945*1160 |
Shanghai Vibratory Bowl Feeders Shanghai Vibratory Bowl Feeders Shanghai Vibratory Bowl Feeders Shanghai Vibratory Bowl Feeders
Note:The data list in the table are by the standards of the loose density of feeding material is 1.6t/m³,and the humidity is below 5%. The price above incuding motor,motor roller,vee belt,spring machine seat.
Model |
Feed opening size(L*W) |
Max. Feed Size mm |
Capacity (t/h) |
Rotation Speed (r/min) |
Power (kw) |
Overall dimension (L*W*H)mm |
ZSW-380×96 |
3800×960 |
500 |
70-140 |
500-720 |
11 |
3882×1467×1325 |
ZSW-490×110 |
4900×1100 |
600 |
120-250 |
500-800 |
15 |
4980×1654×1345 |
ZSW-490×120 |
4900×1200 |
700 |
150-300 |
500-800 |
18.5 |
4980×1754×1345 |
ZSW-590×120 |
5900×1200 |
700 |
180-350 |
500-800 |
22 |
6058×1925×1563 |
ZSW-590×130 |
5900×1300 |
750 |
250-450 |
500-800 |
30 |
6058×2025×1563 |
Shanghai Vibratory Bowl Feeders Shanghai Vibratory Bowl Feeders Shanghai Vibratory Bowl Feeders Shanghai Vibratory Bowl Feeders
Product Pictures
