WSME-250D Digital AC DC TIG Pulse Welding Machine

Product Details

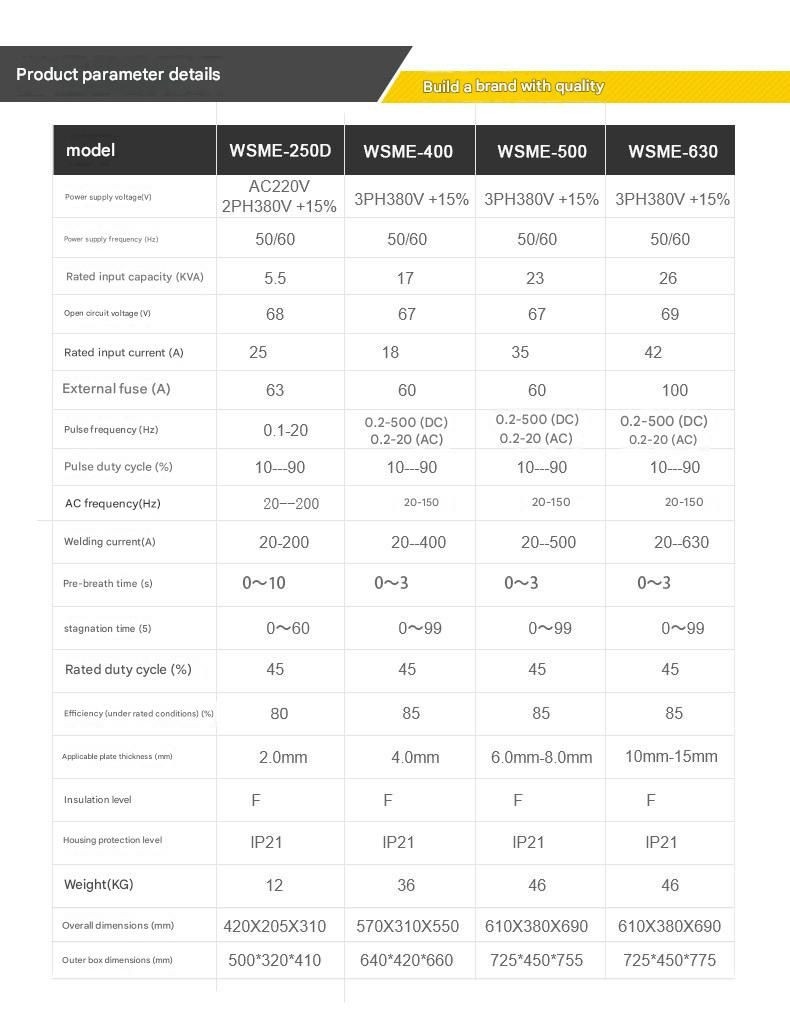

WSME-250D Digital AC DC TIG Pulse Welding Machine Product Parameters:

Rated input voltage(V): AC220V/2PH380V +15%

Frequency(HZ): 50/60Hz

Rated input current (A): 25A

Rated input power (KVA): 5.5KVA

External fuse(A): 63A

No-load voltage(V): 68V

Pulse frequency(Hz): 0.1-20

Pulse duty cycle(%)l 10-90

AC frequency (Hz): 20--200

AC cleaning width (%): -50～+50

AC cleaning range (%): 10-90

Welding current (A): 20-200

Current ramp up time (s): 0～10

Current slow down time (s): 0-10

Lead time (s): 0-10

Stagnation time (s): 0-60

Rated load duration (%): 45

Efficiency (under rated conditions): 80%

Plate thickness(mm): 2.0mm

Insulation level: F

Enclosure protection level: IP21

Net Weight(Kg): 12KG

Product sizes(mm)： 420*205*310

Packing size（mm）：500*320*410

Accessories comes with machine:

3 meters gas pipe, 4 meters argon arc welding gun WP-18 with connector, 1 ground clamp 2 meters ground wire, 2 fast joints, 2 meters welding cable + welding pliers, English Manual
