MOQ | 1 set |
Port | Qingdao |
Packaging | plastic film |
Lead Time | 10-15 days |
Power | 132KW | Capacity | 1.5-2Ton/h |
Ring die | stainless steel |
Introduction:
XGJ wood pellet machine is our main product which has adopted the essence of pellet mill in oversea market.
The heart parts
"double layer die" has unique structural assembly and "rollers"
are made of high wearable alloy materials. These two parts have
the following characters: Particular design, reasonable
structure, low energy, high efficiency, long life and so on.
Through many technical experts' hard work, our company has
developed this typical patent product which comes forth firstly
in domestic market. The new machine has filled the country blank
in vertical feeding for ring die pellet mill and reached the
international advanced level.
Wood pellet machine is mainly applicable for difficult molding
materials with low adhesion rate,for example rice husk, sunflower
husk, peanut shell and fruit shell; branch, stem, bark and other
wood waste; a variety of crop stalks; rubber, cement, ash and
other chemical materials.
Wood Pellet making Machinery can be used in feed mill, wood processing plants, fuel plants,fertilizer plants, chemical plants etc.Since it requires less investment and yield quicker result and that no risk,Vertial Ring-die Wood Pellet Machine is an ideal dense compression molding equipment.
Mainly Parameters:
Model |
Power (kw) |
wood pellets making Capacity (kgs/h) |
Weight of the machine(kgs) |
Dimension of the machine (mm) |
XGJ460 |
55+1.5+0.55+1.5 |
500-800 |
4200 |
2600x1100x1850 |
XGJ460P |
55+1.5+0.55+1.5 |
500-800 |
3200 |
2300x1100x1500 |
XGJ560 |
90+1.5+0.75+0.55+2.2 |
1000-1500 |
6100 |
2600x1300x2300 |
XGJ560P |
132+1.5+0.75+0.55+2.2 |
1500-2000 |
4600 |
2600x1250x1600 |
XGJ700P |
160+1.5+0.75+0.55+2.2 |
2000-2500 |
14500 |
3300x1400x3100 |
XGJ850 |
220+3+0.75+0.55+3 |
2000-3000 |
9600 |
2600x1600x1950 |
XGJ850P |
220+3+0.75+0.55+3 |
2500-3500 |
13500 |
2650×1850×2100 |
XGJ850P |
250+3+0.75+0.55+3 |
3000-4500 |
15000 |
2750×1850×2100 |

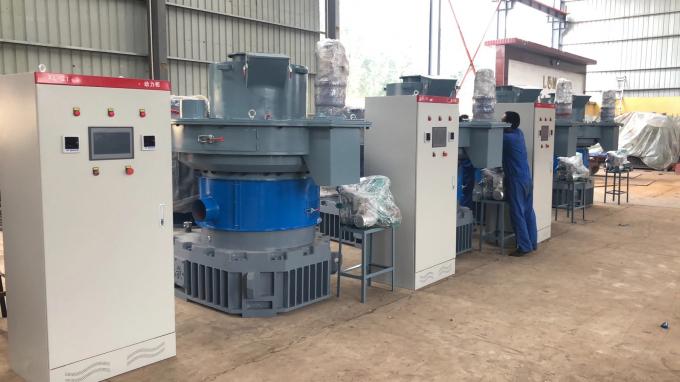

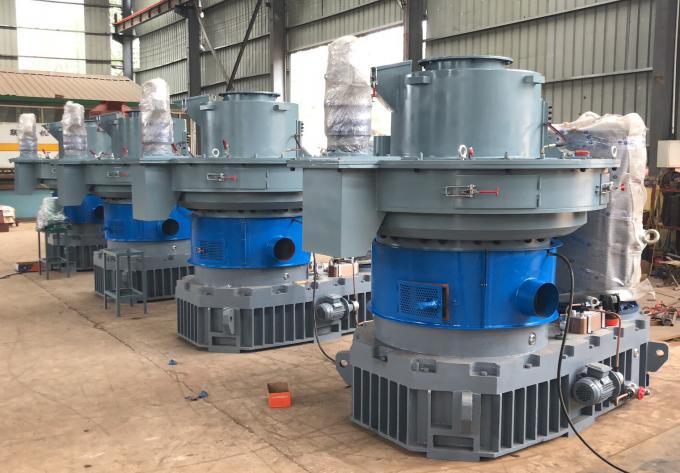

Photos of Machine:

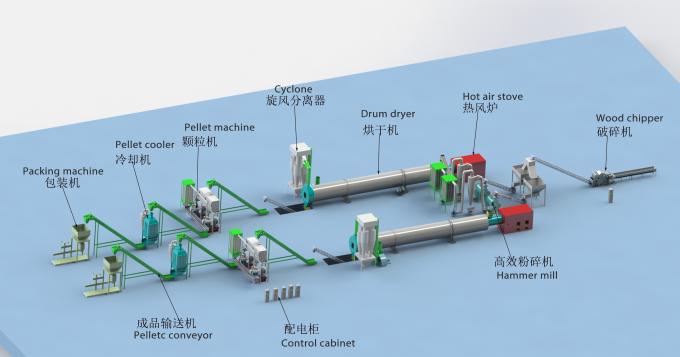

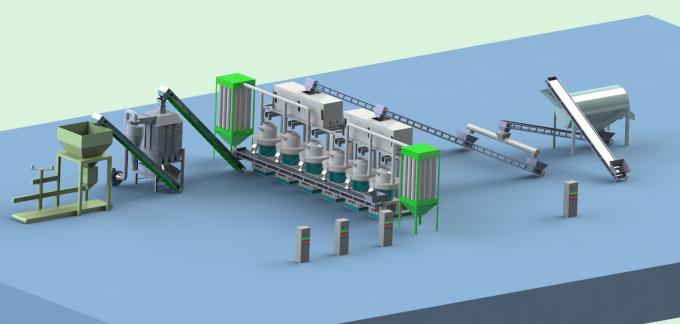

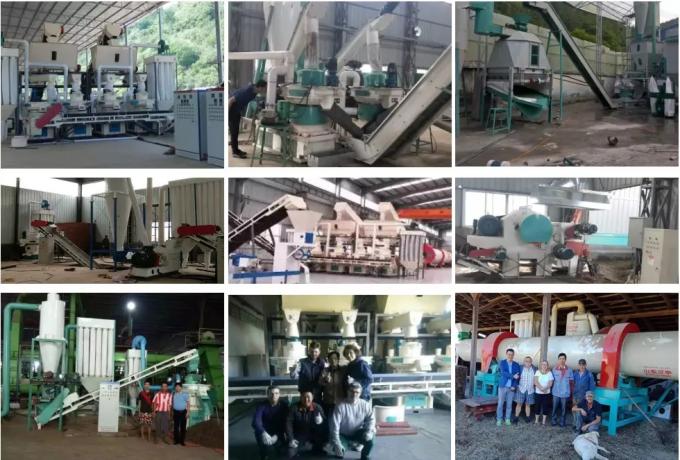

Sucessful Case:
We have installed many complete pellet production line in domestic and oversea, such as pellet making line in Malaysia, India, Indonesia, Vietnam, Myanmar....
Customers Visiting:
Welcome you visiting our company for more deply communication about the machines.
There are many photos for our cusotmer visited us before, hope it can give you a rougly idea about us.
