Willett 640 Continuous Inkjet Coding Marking Machine Industrial Ink Jet Coder Manufacturing Expiry Date Batch Cij Printer

Quantity	1 - 5	6 - 10	11+ - 11+
Price	US $2,878.00	US $2,851.00	US $2,825.00

Contact Now

Quick Details (View All)

Model NO.	W640	Application of Classification	Small Character Inkjet Printer
Working Patterns	On-Line	Supplies	Ink
Packaging	Box	Nozzle	60u03bc 70u03bc
Condition	New	Classification	Continuous Ink Jet Printer
Approximate Weight	17kg	Application	Glass Metal Paperboard Plastic Rubber Textile Wood
Transport Package	Carton	Specification	535276cm
Trademark	Videojet	Origin	China
HS Code	8443322100	Production Capacity	10000/Month

Product Details

Product Description

Company Info.

Overview
Product Specification
Our Product Ranges

Product Description

Specification	Value
Printheads	1
Inks	Dye Based
Maximum Lines of Print	3
Maximum Line Speed (1)	Can print 1 to 3 lines of print at speeds of up to 150 m/min (10 characters per inch, single line of print)
Environmental Protection	IP43: Stainless Steel Cabinet
Core Life (Maintenance Interval)	Up to 3000 hours
Umbilical Length	6.56ft (2 m)
Message Storage Capability	100
Smart Cartridge™	Included
USB	Included
Display (User Interface)	8" touchscreen interface

Line speed capability	More than 100 complex messages
Can print 1 to 3 lines of print at speeds of up to 492fpm (150mpm)	USB storage available
(10 characters per inch, single line of print)	Environmental protection
Font matrix configuration	IP43 standard, no plant air required, stainless steel cabinet

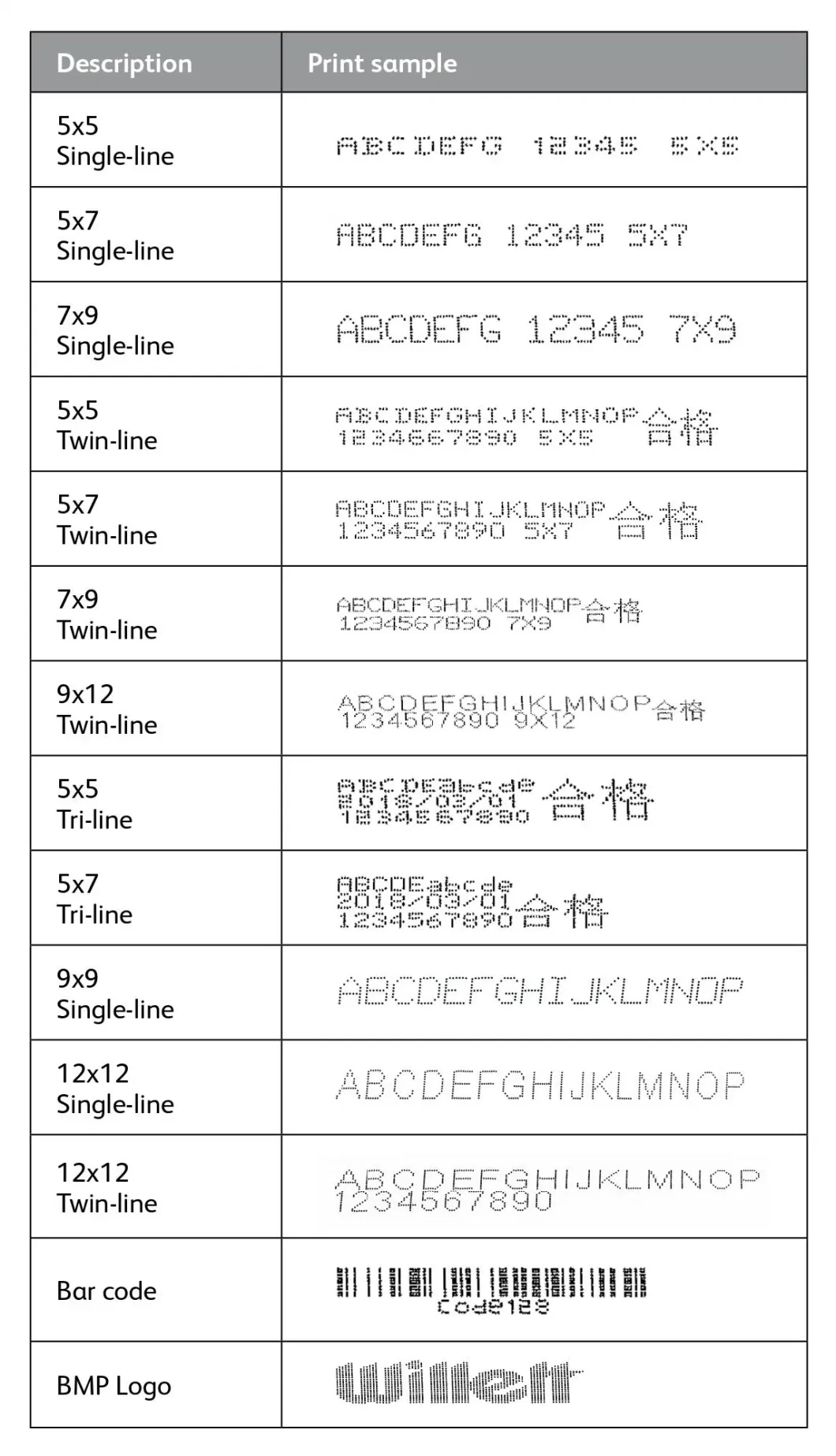

Single-line: 5x5, 5x7, 7x9, 12x12, 12x16	Printhead
Twin-line: 5x5, 5x7, 7x9, 12x12	Heated printhead
Tri-line: 5x5, 5x7	Positive air, no plant air required (optional)
Linear bar codes	Diameter: 1.63" (41.3mm)
UPC A&E; EAN 8 & 13; Code 128 A, B & C; UCC/EAN 128;	Length: 9.47" (240.6mm)
Code 39; Interleaved 2 of 5;2D DataMatrix, GS1	Printhead umbilical
Custom logo/graphics	Ultra flexible
Can be imported from USB	Length: 6.56 (2m) optional 9.84 (3m)
Nominal character height	Diameter: 0.91" (23mm)
Selectable from 0.079" (2mm) to 0.30" (7.5mm), depending on font	Bend radius: 4.0" (101.6mm)
Throw distance	Fluids containers
Optimal: 0.472" (12mm)	Ink and Make-up Smart Cartridge™ 0.793 qt. (750ml)
Range: 0.197" (5mm) to 0.591" (15mm)	Temperature/humidity range
User interface	41°F to 113°F (5°C to 45°C)
8" high-response TFT-LCD touch screen, WYSIWYG touch to edit message editing	10% to 90% RH non-condensing
Character sets	Electrical requirements
English, Simple Chinese, Traditional Chinese	Nominal supply power 100-240 VAC at 50/60 Hz, 70W
Input/output	Approximate weight
Product detect input	Unpacked and dry: 33.1lbs (15kg)
Encoder input	Options
USB	RS232 connector kit
Message storage	Wide range of accessories

1. Inkjet Printers, including Continuous Inkjet Printer (CIJ), High Resolution Inkjet, Thermal Inkjet Printer (TIJ), UV Curable Inkjet Printer, Handheld Inkjet Printer, Case Coding Printer, Barcode Inkjet Printer, 2D Code Inkjet Printer, Variable Code Inkjet Printer.
2. Laser Marking Machines, including CO2 laser marking machine, fiber laser marking machine, and UV laser marking machine.
3. Thermal Transfer Overprinter (TTO) of international brands and our own brands.
4. Industrial printing solutions, including Visual Inspection and Rejection System, Anti-counterfeiting & Anti-channeling Management System and varies of printing solutions.
5. Consumables, including Ink, Make-up, Cleaning solutions and Ribbons for all brands of CIJ Printer and TTO, such as Videojet, Domino, Markem-Imaje, Linx, Leibinger, Cyklop, Citronix, Hitachi, KGK and so on.
6. Spare parts for all brands of CIJ Printers, including ink core, keyboard, CSB, pressure sensor, nozzle, valve module, printhead module, ETH, filter, pump, gutter pump, chip, ink core board, empty cartridge and etc.
