Product Description

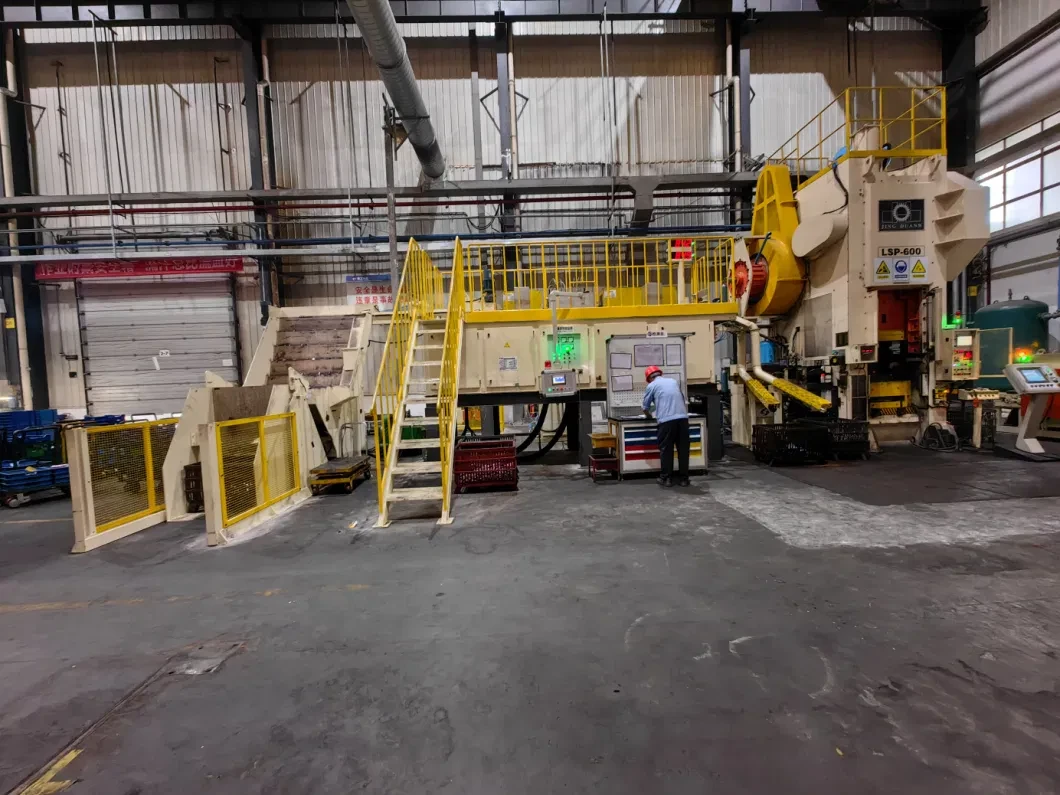

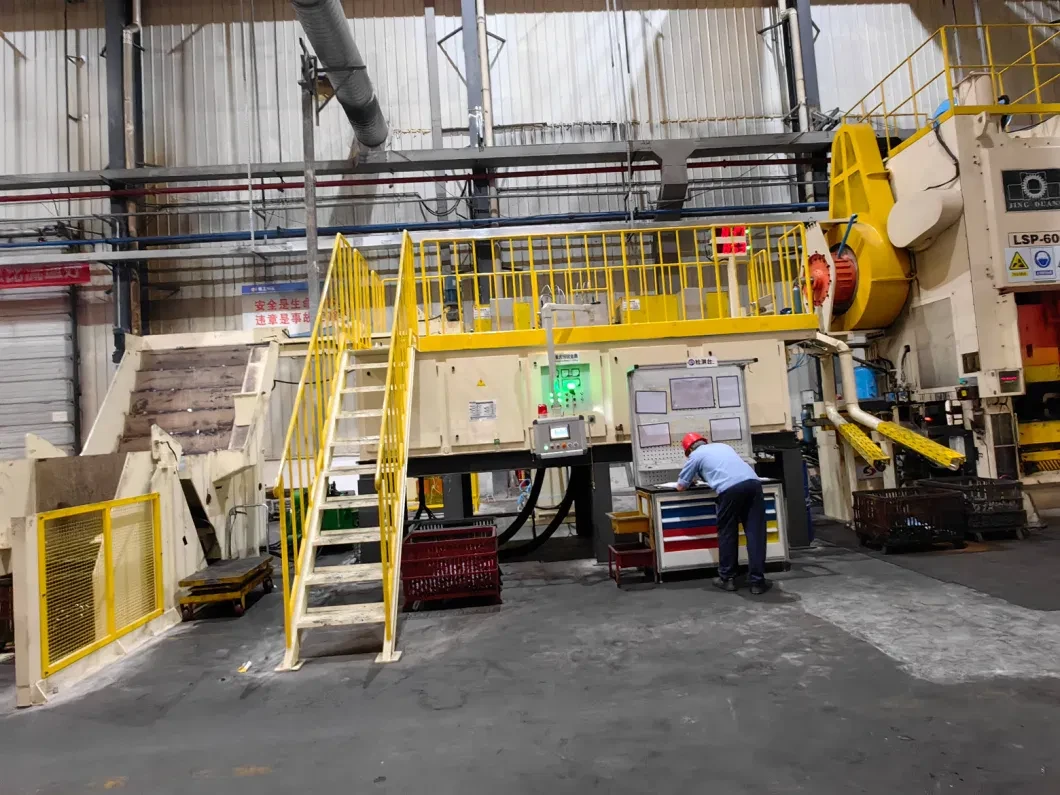

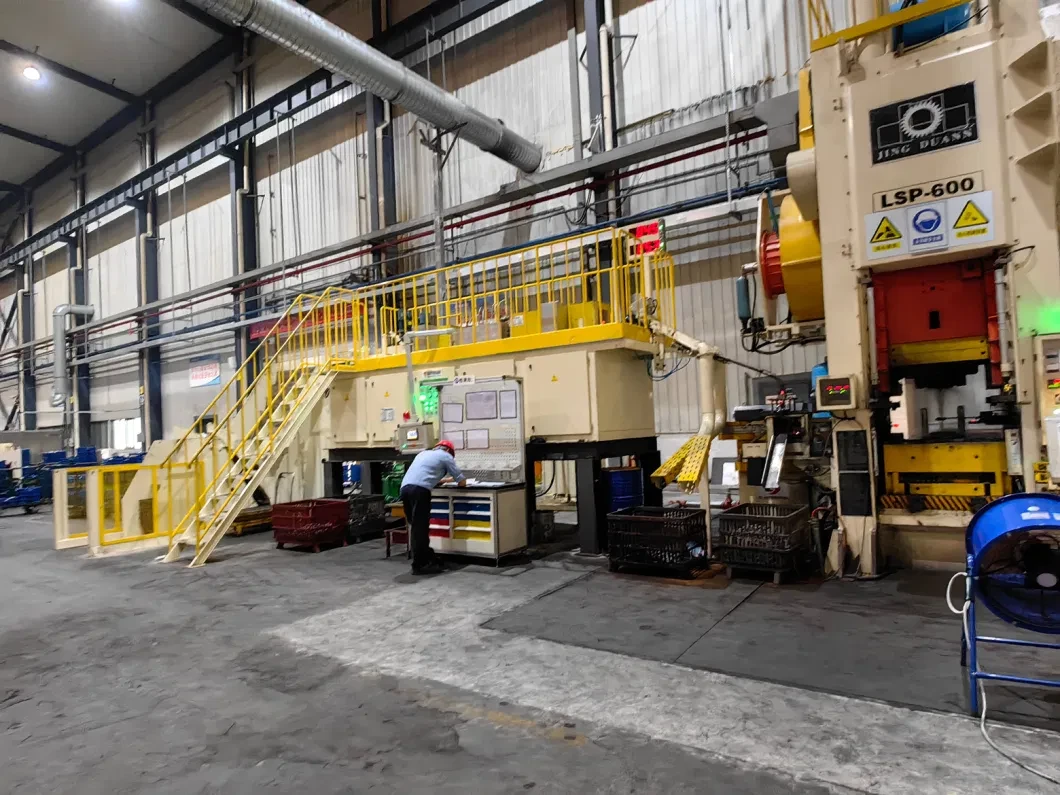

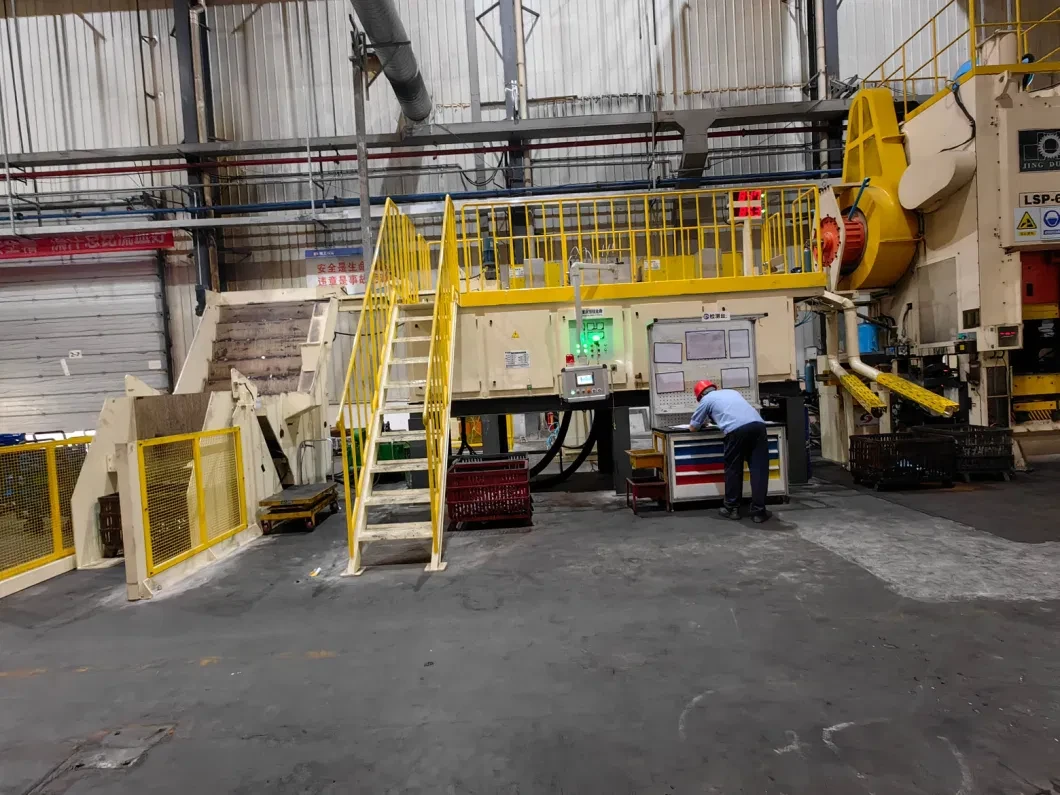

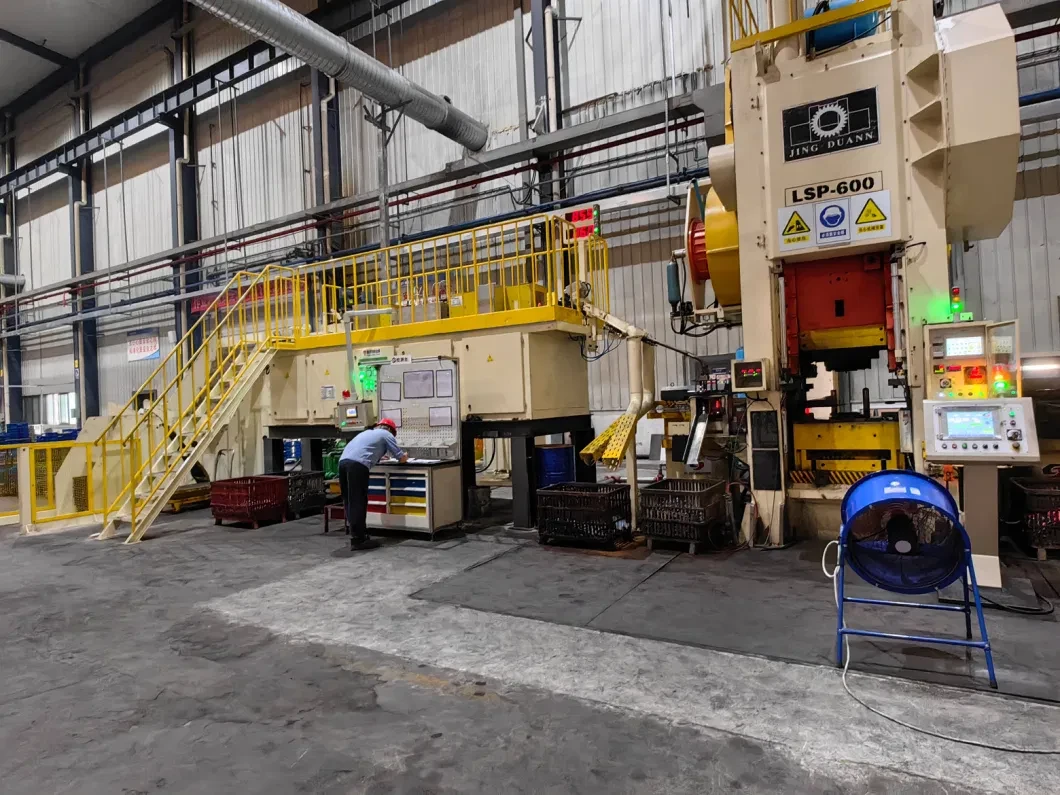

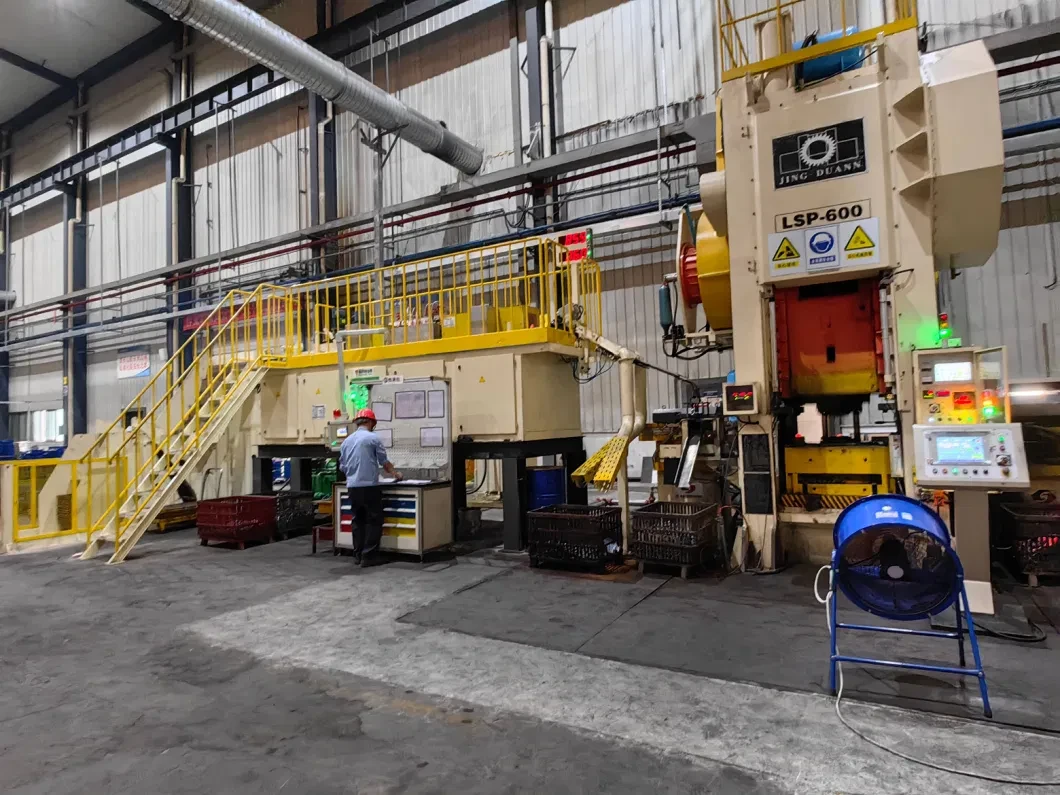

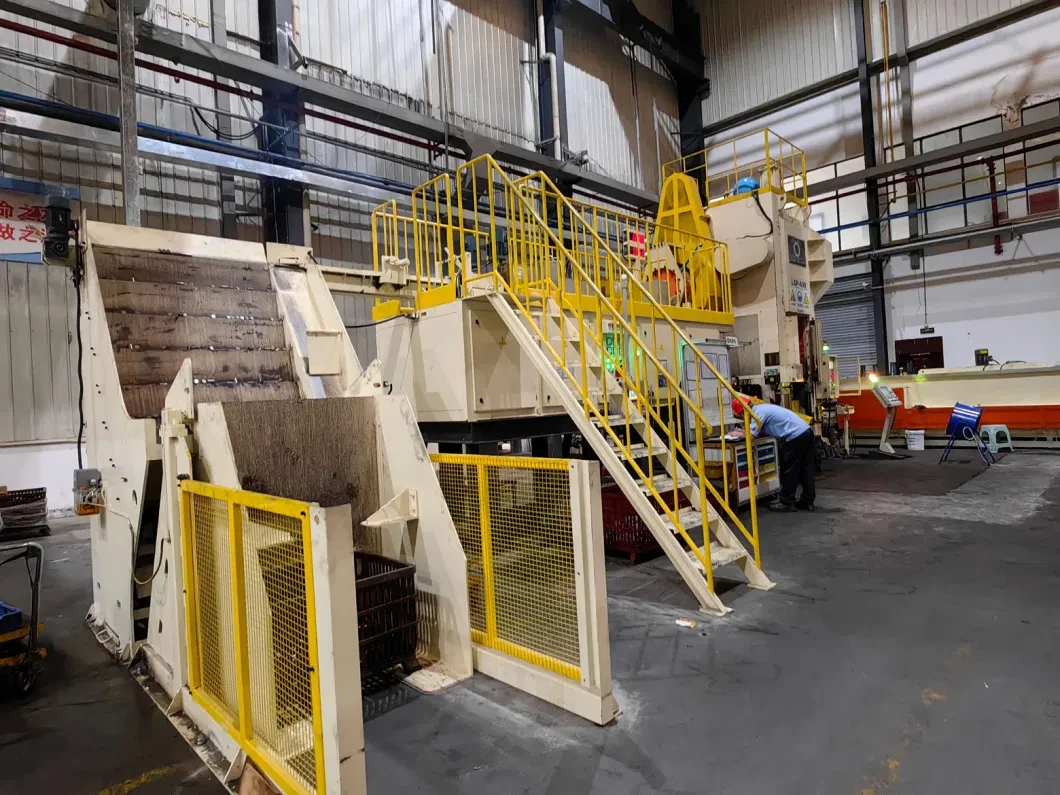

Detailed Photos
Multiple
Supply
Power Type
IGBT/MOSFET medium and high frequency
power
Power: 50KW-2000KW ; Frequency :
200HZ-100KHZ
IKGPS medium frequency
power
Power: 50KW-6000KW ; Frequency :
200HZ-8000HZ
Mechanical
structure
Automatic upender device, automatic step
loader device
Servo, stepper, constant speed feeding
mechanism;Stall detection device;Rapid discharge
device
Various types of cleanup
device
Intelligent control
system
Man-machine dialog real time, digital
setting
Temperature automatic closed-loop control
system; Energy monitoring system
Measurable and traceable technology and
process
Remote management, control and
troubleshooting
Descaling device,Various transmission
devices
Application:forging blank heating, parts
hardening,tempering
Product Parameters
|
Model
NO.
|
250KW
Induction Heating
Machine
|
Type
|
Electric Holding
Furnace
|
|
Usage
|
Steel
Melting
|
Product
Name
|
Induction Heating
Machine
|
|
Voltage
|
380V
|
Unit of
power
|
250KW
|
|
Machine
|
Heating
machine
|
Brand
|
Hengrui
|
|
Transport
Package
|
Plywood
|
Specification
|
international
standard
|
|
Trademark
|
Hengrui
|
Origin
|
China
|
|
HS
Code
|
********
|
Production
Capacity
|
2000/year
|

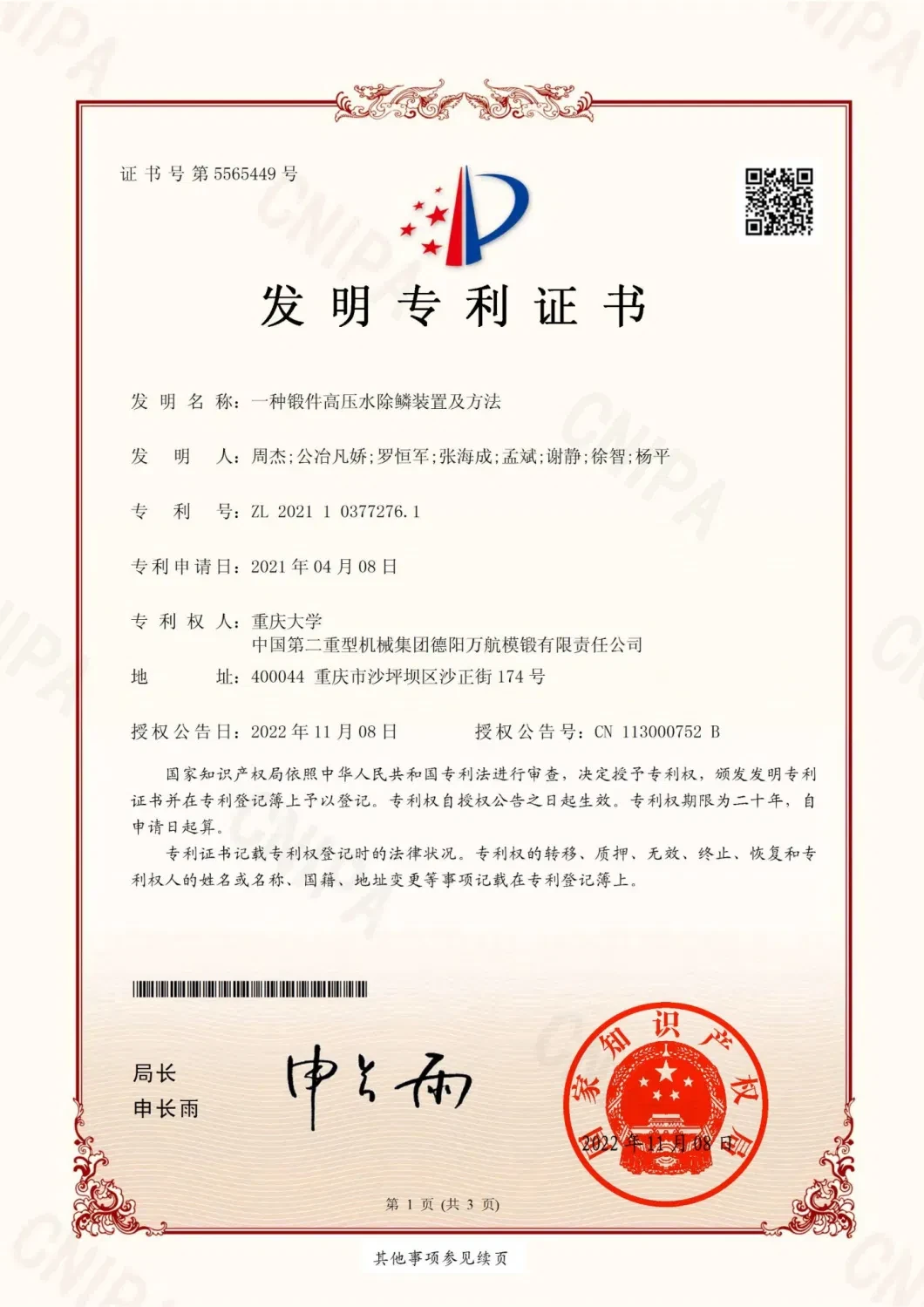

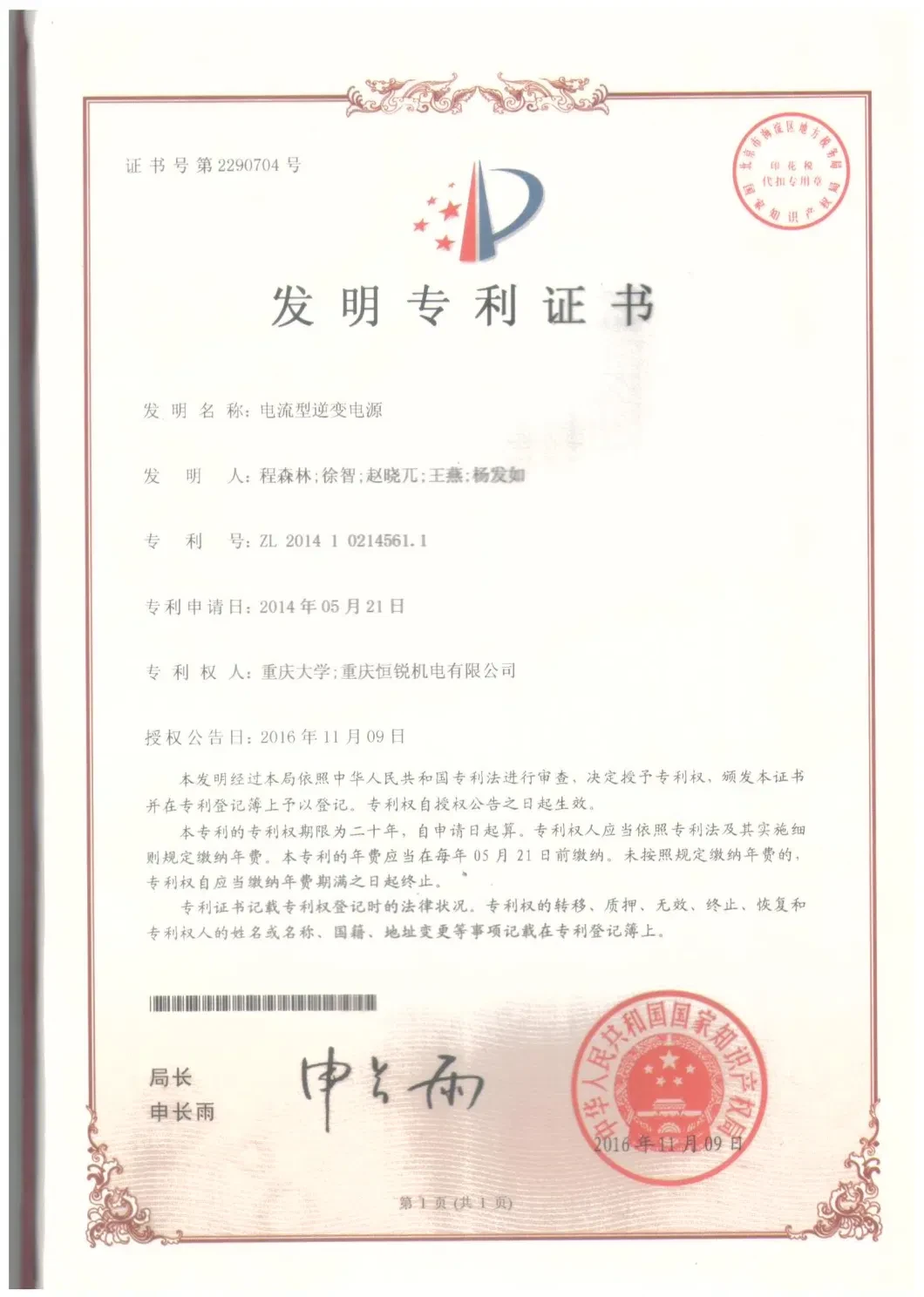

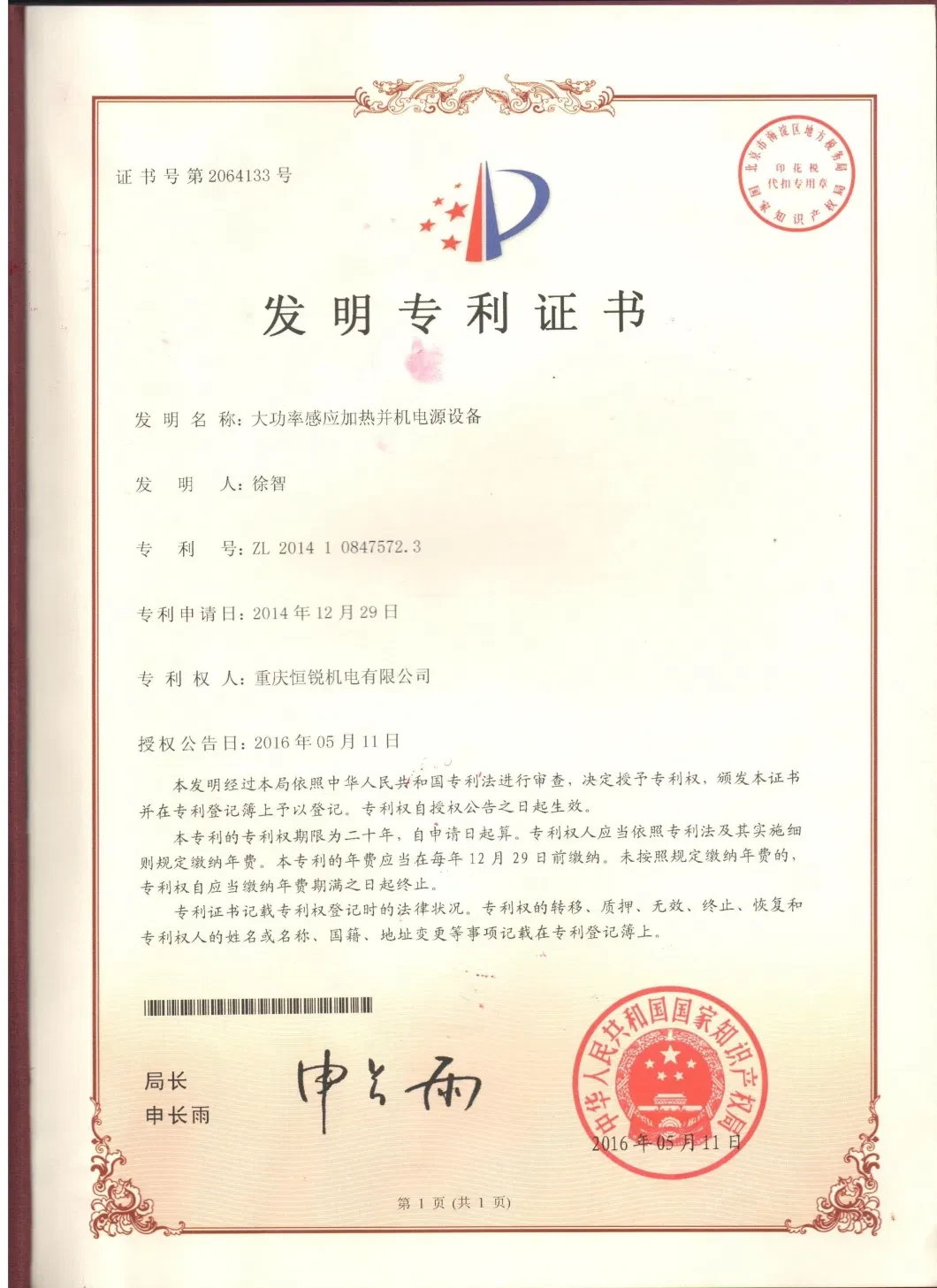

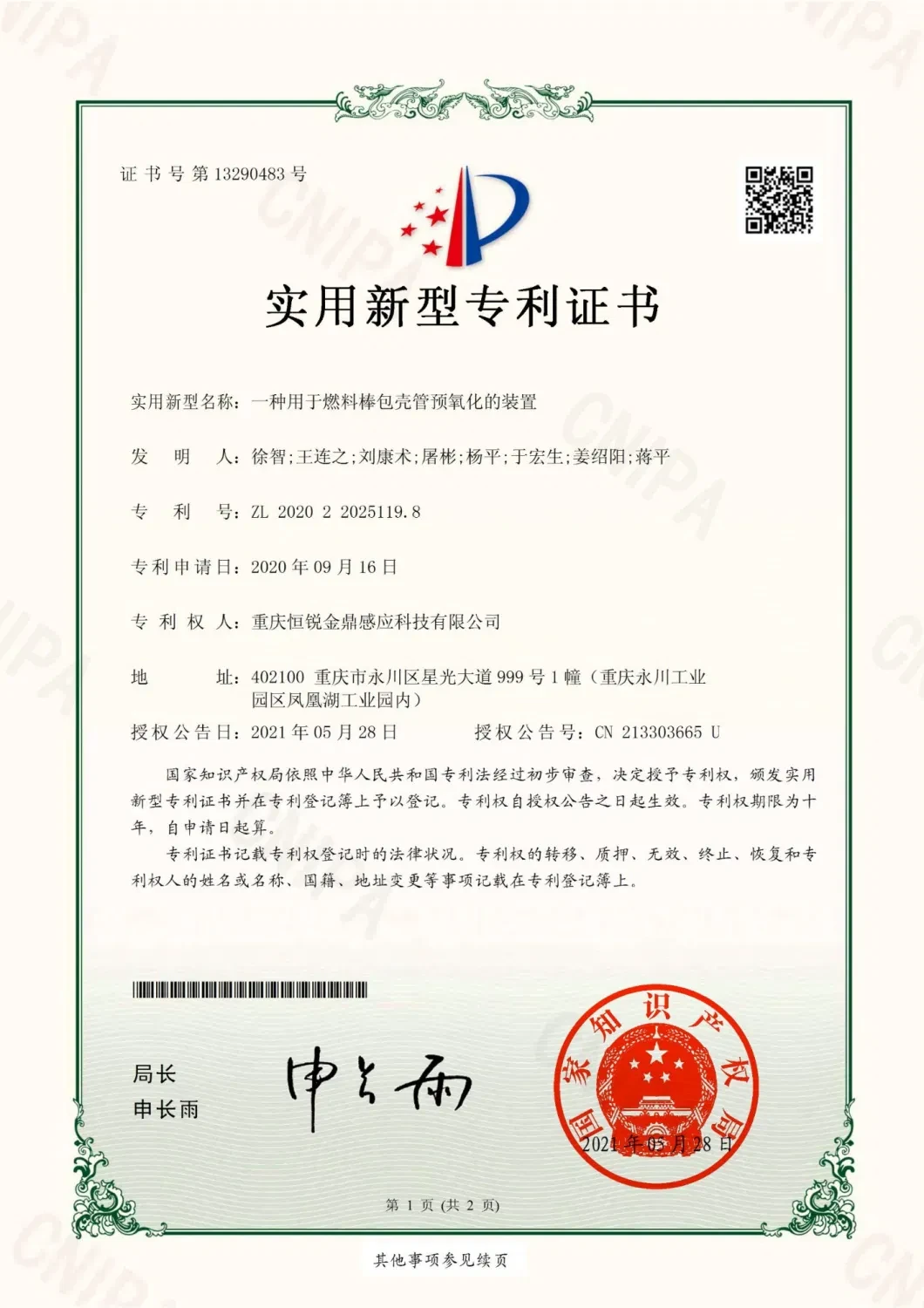

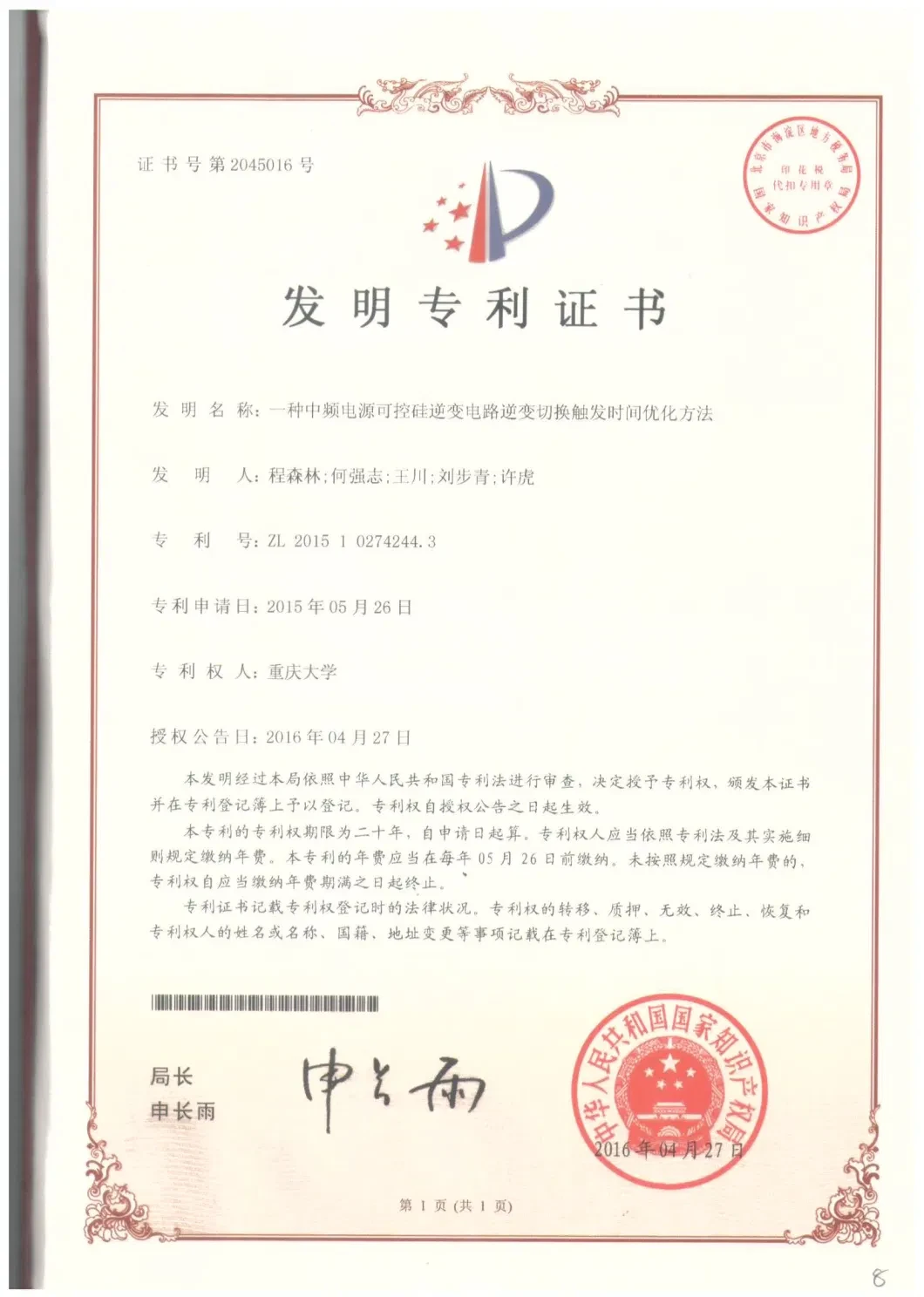

Certifications
Packaging & Shipping

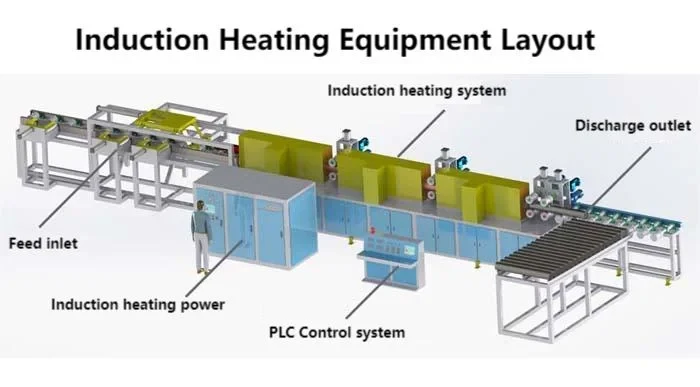

Installation Instructions
The buyer
can compose the treatment line flexibly due to different
demands.
(1)
Determine the diameter of the rod to select the position
of heating furnace body, this induction furnace design
adopts dual holes type furnace body(?30~?45,?45~?60),
move the induction furnace radially is
OK.
(2) Put
the steel rod need heating to expected on the loading
material platform(can load 3ton to
5ton)neatly.
(3) All
programs are controlled by the PLC programming, the whole
control system can be divided into manual and automatic,
convenient to different rod material, different process
requirements of programming and
debugging.
(4)
Induction heating section is composed of low temperature
section, medium temperature section, high temperature
section, after using infrared thermometer to measure rod
material temperature and setting temperature calculation,
to control output power of high temperature zone power
supply, to ensure that the outlet temperature in constant
state.
(5) The
operation of complete set of device is controlled by
programme, workers just need put the steel rod need
heating to expected on the loading material platform, rod
material out of the furnace disposed by the users
themselves
Company Profile
OKLY have been dedicated to customization service for
twenty years. With experienced professional engineers and
technicians team, we are specializing in custom made
premium quality and high precision non-standard parts and
equipment in machinery industry, communications industry,
Civil Aviation industry, Medical equipment, energy industry
and auto parts industry etc. Meanwhile, our customizing
service covered all common and special materials, such as
stainless steel, carbon steel, titanium alloy, copper,
iron, aluminum, plastic wooden etc. Our engineers are
skilled at operating 2D & 3D software. We are able to
deliver your drawings and requirements into precise
parts.
As an ISO and SGS certified ODM/OEM manufacturer, OKLY have
a sheet metal fabrication plant of upper grade laser
cutting, bending, forming, stamping, welding machines, and
a CNC machining plant of high-end Horizontal/vertical CNC
centers of 5/4/3 axis to meet all your custom made demands,
plus a well trained QA team are enable tolerance within ±
0.005mm and to ensure your perfect
components!
Under the guidance of Four-H (High Efficiency, High
Performance, High Accuracy, High standard), we could be
your precise custom made parts manufacturer, be your
reliable one-stop customizing service provider, and be your
long term reliable partner!
FAQ
1. Q: Are you factory or trading company?
A: Yes, we
are factory and have 8 production lines.
2. Q: Can we
use our own forwarder to transport the products?
A: Yes,
sure. We can ship to them.
3. Q: Can we
print our own brand?
A: Yes, of
course. Will be our pleasure to be one your good OEM
manufacture in China to meet your requirements.
4. Q: Whats
the payment method?
A: T/T, 30%
deposit before production, the balance before
delivery.
5. Q: How to
place an order?
A: Please
kindly send us your order by email, we will confirm the
PI with you. We wish to get your email address, phone
number, destination, transportation way. And product
information, size, quantity, logo, etc.
Anyway,
please contact us directly by email or online
message.
