Voice Control HLK-V20 Wireless Module for Smart Home with 2MB Flash Offline Voice Module Accept Words Customization

Name: Voice Control HLK-V20 Wireless Module for Smart Home with 2MB Flash Offline Voice Module Accept Words Customization
Brand: Shenzhen Cool-Young Technology Co., Ltd.
SKU: Tradewheel_2701331
Price: 1.29 USD
Availability: InStock

FOB Price 1.29 - 1.83 USD / pieces

Contact Now

Quick Details (View All)

Model Number	HLK-V20	Place of Origin	Guangdong, China
Brand Name	Hi Link	Supplier Type	Manufacturer
Application	Voice Control	Type	Voice Control
Function	Wireless Control	Warranty	1 Year
Support	USB connect	Noted	Only support Chinese and English

Product Details

Product Name	HLK-V20
Material	PCB Board
Function	Voice Control
Package	Box

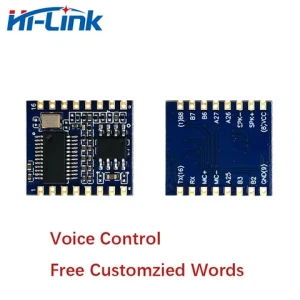

HLK-V20

HLK-V20 is a high-performance pure offline voice recognition module newly launched by Hi-link Electronics according to a large number of pure offline control scenarios and products.

It can be widely and quickly applied to smart homes, various smart small appliances, 86 boxes, toys, lamps, Industrial, medical,Internet of Things, automotive, security and lighting products that require voice control.

The module uses a 32bit RSIC architecture core, and adds a DSP instruction set specifically for signal processing and speech
recognition, an FPU operation unit that supports floating point operations, and an FFT accelerator. The audio signal is trained
and learned through the neural network to improve the voice signal Recognition ability.

The solution supports offline recognition of 150 local commands, free configuration of wake-up words, command words, and broadcast reply words through the background, supports lightweight RTOS systems, rich peripheral interfaces, and simple and friendly customized tools.

Packing List

V20 Voice module *1
Development Board *1
Speaker *1
USB cable *1

Processing kernel:

● 32bit RISC core, running frequency 240M
● Support DSP instruction set and FPU floating point operation unit
● FFT accelerator: supports up to 1024 points of complex FFT/IFFT operations or 2048 points of real FFT/IFFT operations
● Customized voice algorithm operator

Storage:

● Built-in high-speed SRAM
● Built-in 2MB FLASH Audio input and output:
● Support 1 analog Mic input, SNR≥94db
● Support 4 digital Mic input
● Support dual channel DAC output
● Support I2S input/output

Power supply and clock:

● Built-in 5V to 3.3V, 3.3V to 1.2V LDO to power the chip
● RC 12MHz clock source and PLL phase-locked loop clock source
● Set POR (Power on Reset), low voltage detection and watchdog

Peripheral interface:

● Support up to 10 GPIO
● All GPIOs can be configured as external interrupt input and wake-up sources
● 1 standard SPI Master interface, the highest rate is 30MHz
● 1 SPI Slave interface with a maximum rate of 30MHz
● 1 full-duplex UART with a maximum rate of 3Mbps
● 1 I2C master/slave controller with a maximum rate of 400kHz
● 2 PWM outputs
● 1 12-bit SAR-ADC with a maximum sampling rate of 450Khz

Custom voice:

● Customize the startup announcement
● Custom voice wake-up words
● Customize voice command words
● Custom TTS voice broadcast
● Support no wake-up words (no need to wake up, direct recognition of command words)

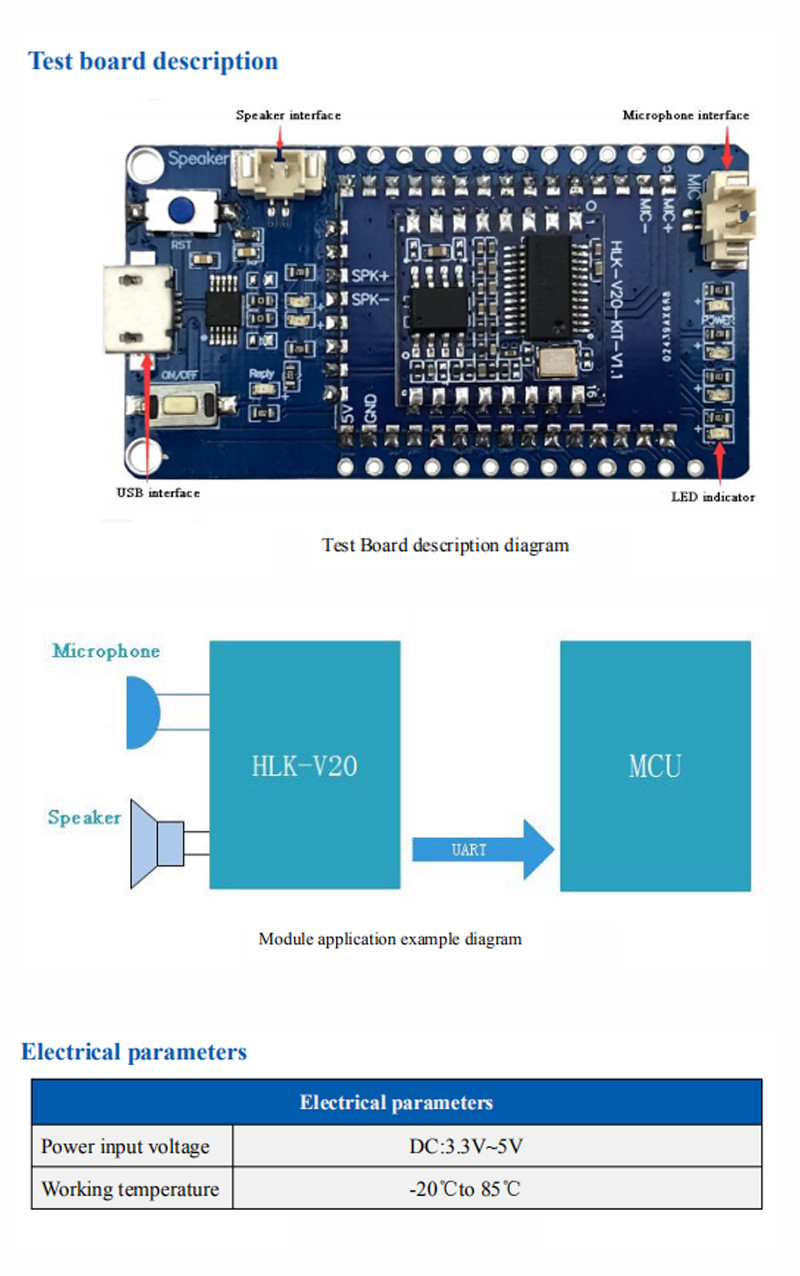

The module has rich system peripherals, including UART/I2C/SPI/PWM/I2S/DAC/GPIO/ DMic/AMic. The following figure shows the functional block diagram of the module system.

Contact me please if you need the user manual of it .
