VIVID Solar Volt Series Modern Energy Detachable Conservation Durability Waterproof 120W Solar Street Light For Smart Cities

Name: VIVID Solar Volt Series Modern Energy Detachable Conservation Durability Waterproof 120W Solar Street Light For Smart Cities
Brand: Vivid Energy Technology
SKU: Tradewheel_2752601
Price: 20 USD
Availability: InStock

FOB Price 20 - 20 USD / sets

Contact Now

Quick Details (View All)

Place of Origin	Jiangsu, China	Brand Name	Vivid
Model Number	Solar Radiance Type 3	Application	ROAD
Color Temperature(CCT)	6000K (Daylight Alert)	IP Rating	IP65
Input Voltage(V)	DC 12V	Lamp Luminous Efficiency(lm/w)	150
Lamp Luminous Flux(lm)	18000	Warranty(Year)	5-Year
Working Temperature(u2103)	-20 - 75	Color Rendering Index(Ra)	70
Certification	CCC, ce	Power Supply	Solar
Light Source	LED	Support Dimmer	Yes
Lighting solutions service	Lighting and circuitry design, auto CAD layout	Lifespan (hours)	50000
Product name	Solar Lamp Solar Radiance	Material	Aluminum Alloy
Power	90w/120w	Efficiency (Lm/W)	150LM/W
CRI (Ra)	u2265 70	LED Chip	108pcs 5050 SMD
Light Fixture material	Aluminum+PC	Packing size	825370140mm
Waterproof	IP65	Lamp Sizes	L785mmW320mmH75mm
Working Time (hours)	50000	CRI (Ra>)	70

Product Details

Specification

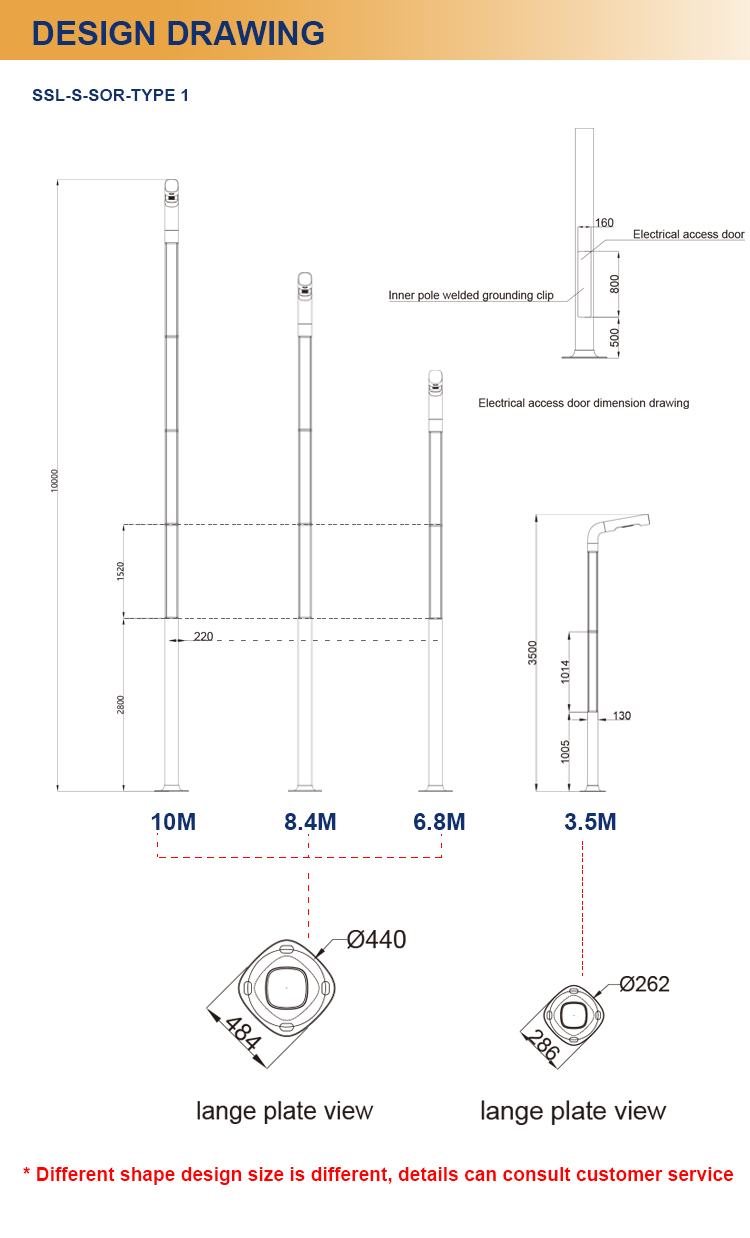

	Parameter/ Item	SSL-S-SOR-Type1-10m	SSL-S-SOR-Type1-8.4m

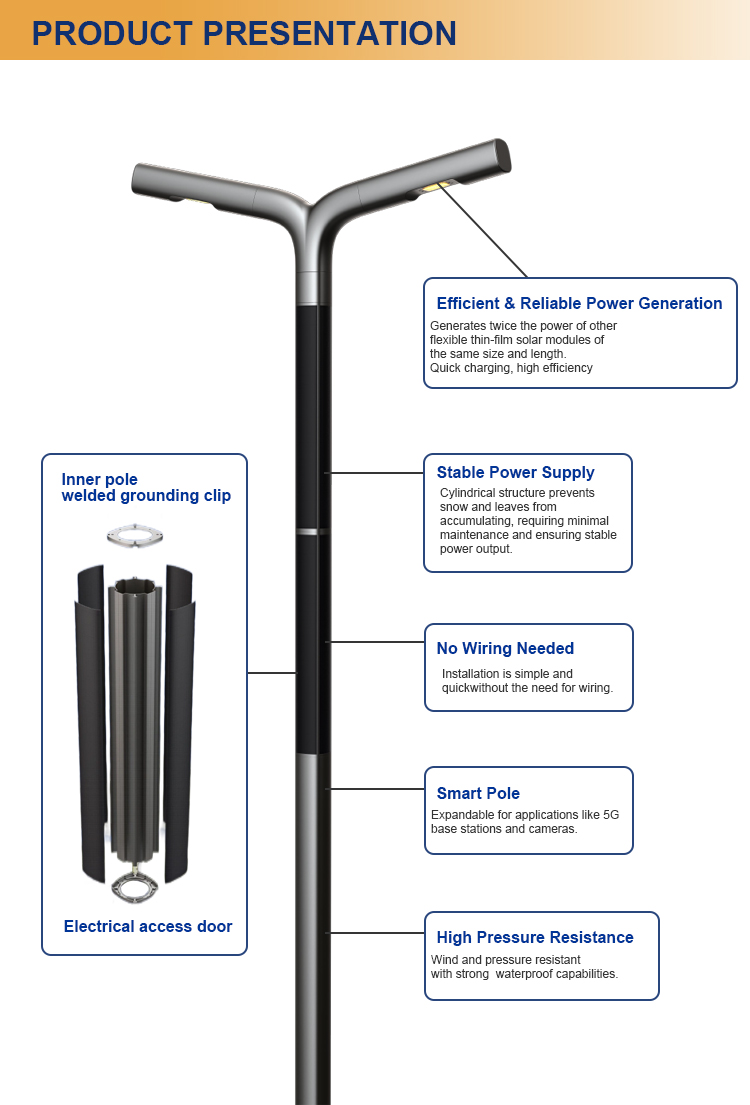

Pole Structure	Material	6063 Aluminium Profile		6063 Aluminium Profile
		Dimensions	Φ 220mm4mm10000mm	Φ 220mm4mm10000mm
		Shape	Squircle		Squircle
		Coating	Hot-dip galvanized/electrostatic spray (color customizable)
Lighting Performance	Material	Aluminum Alloy
		Power(W)	120W	90W
		CCT(K)	5000K
		Efficiency (Lm/W)	150LM/W
		CRI (Ra)	Ra ≥ 70
		Integral Luminous Flux	18000LM	13500LM
Battery Technology	Material	Lithium-Ion
		Capacity	12V/120Ah	12v90Ah
		Operating Temperature	-20° C to 75° C

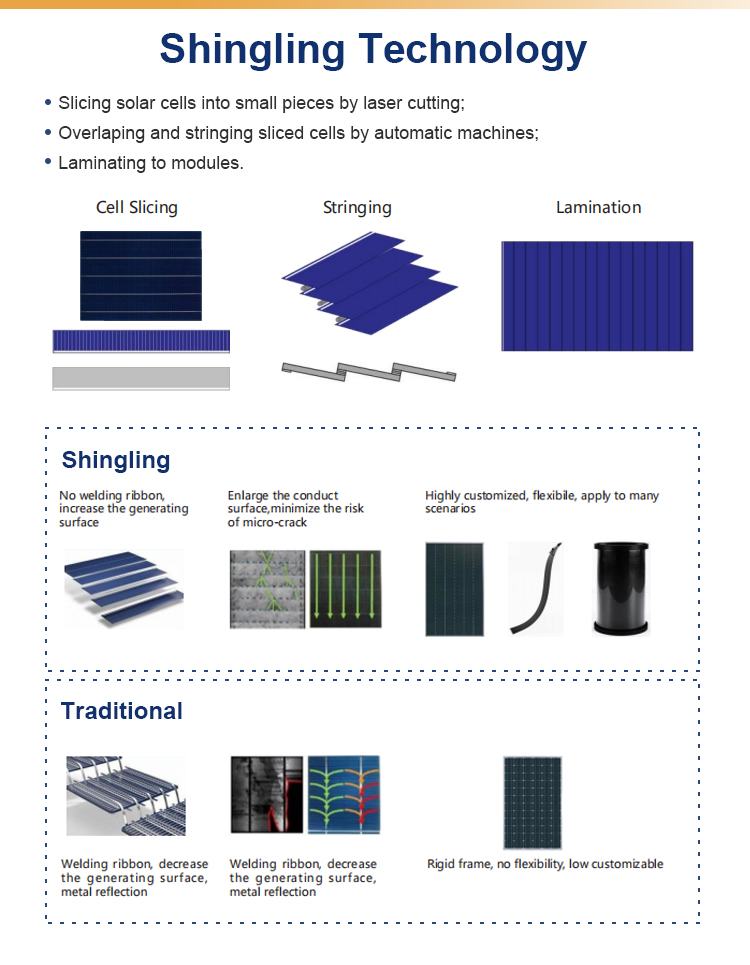

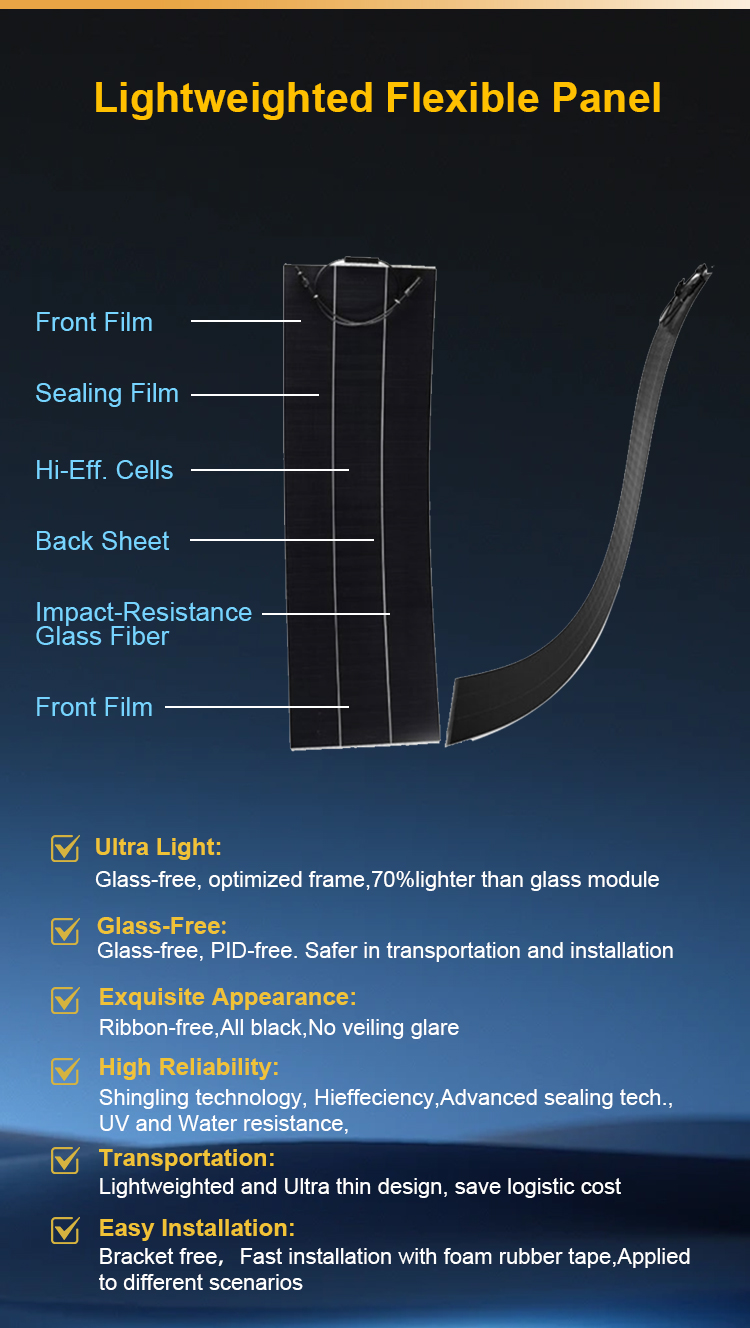

PV Components	Type	Shingling Technology
	Efficiency	≥ 15.6%
	Open Circuit Voltage	40.2V
	Operating Voltagev	33.4V
	Short-Circuit Current	1.59A
	Operating Current	1.5A
	Operating Temperature	-30° C to 85° C	-40° C to 85° C
