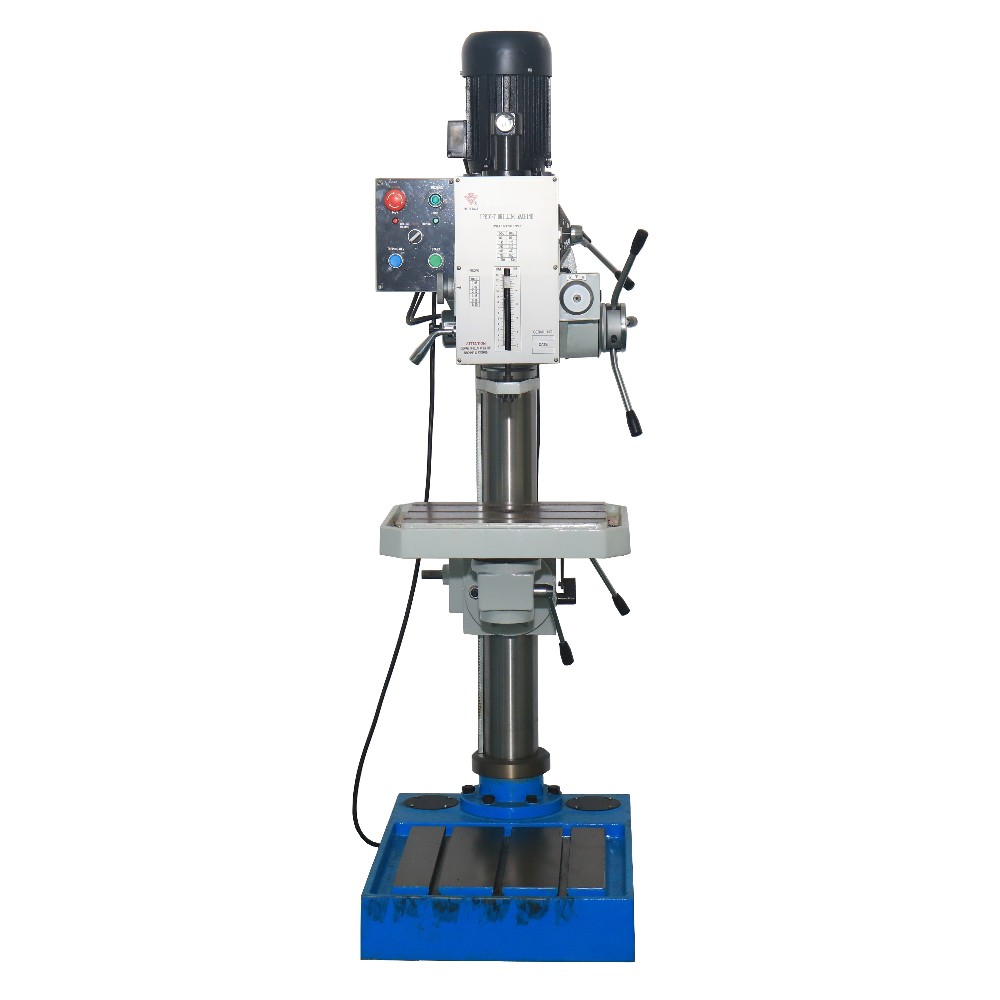

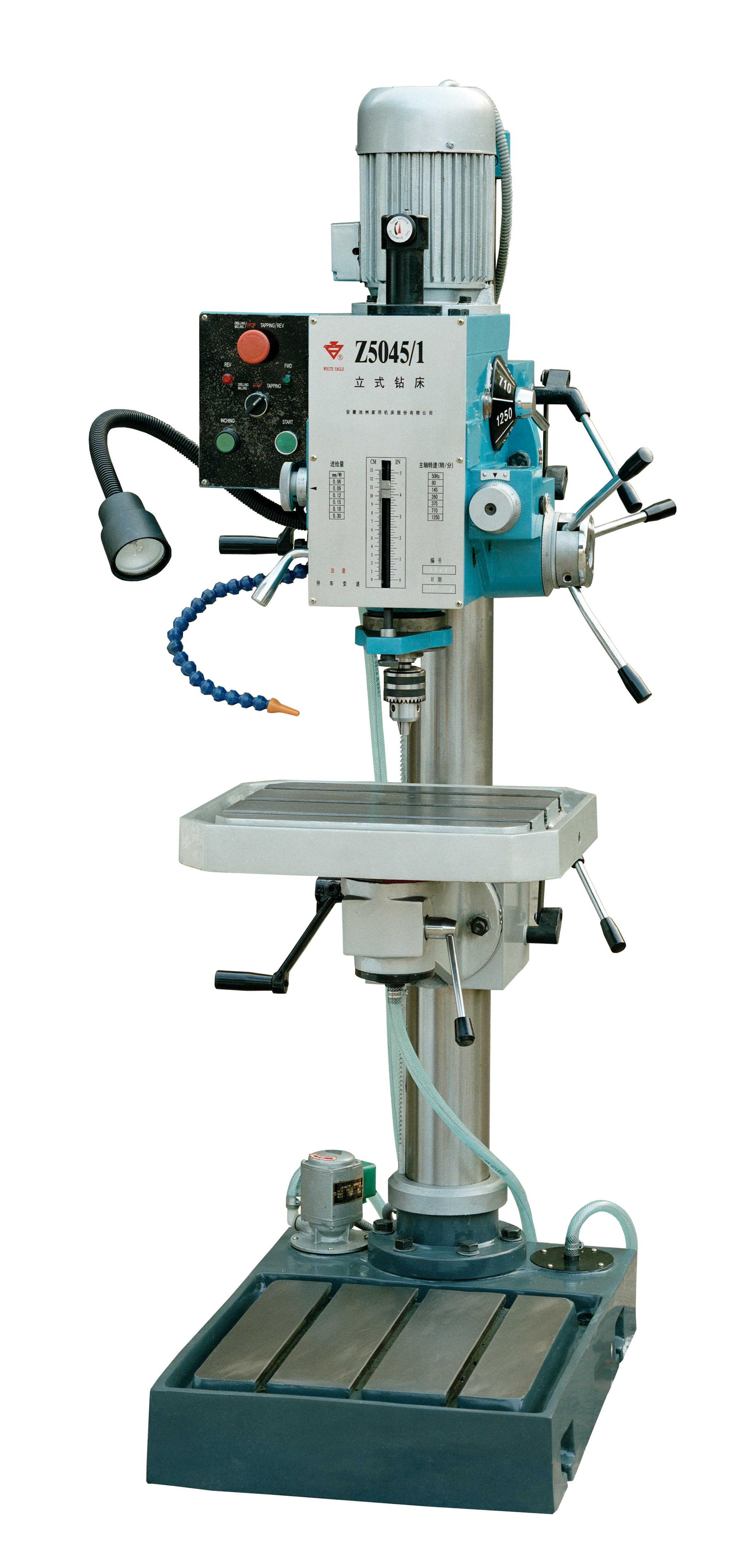

Vertical Drill Press

FOB Price 1072 - 2540 USD / Set

MOQ	1 Set/Sets

Condition	New	type	CLASSIC
Max. Drilling Dia. (mm)	32	Range of Spindle Speed(r.p.m)	95 - 1500
CNC or Not	Normal	Drilling Speed	95-1500 r.p.m
Place of Origin	Anhui, China	Brand Name	White Eagle
Model Number	Z5032	Voltage	Customed

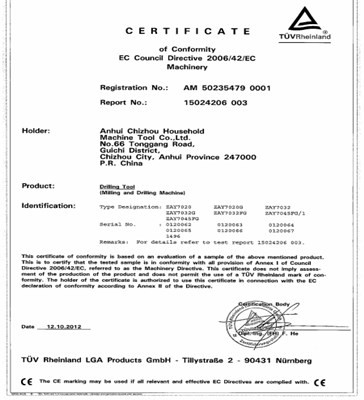

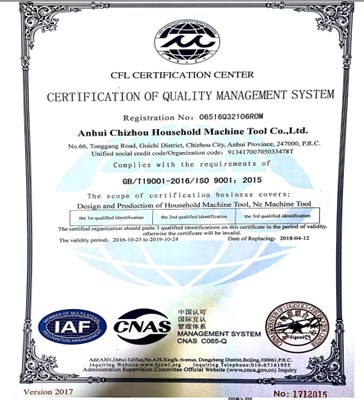

Dimension(LWH)	1845745995mm	Certification	ISO9001,CE,TUV
Weight (KG)	430	Warranty	1 Year
After-sales Service Provided	Online support, Video technical support, Free spare parts, Field installation, commissioning and training	Key Selling Points	Micro precesion feed
Applicable Industries	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction w	Product name	Vertical Drill Press
Max.driving capacity	Diameter=32mm	Step of spindle speed	6
Distance from spindle nose to worktable	725mm	Spindle travel	130mm
Range of spindle speed	95-1500r.p.m	Worktable size of avaliablity	380*300mm
Table leaned	±45°	Spindle taper	MT3/R8
Weight	430KGS	Power	750

Product Description

Features:

1. Drilling,milling and tapping

2. Head swivels 360' horizontally

5. Headstock and worktable up & down perpendicularly

6. Super high column

7. Precision micro feed

8. Positive spindle lock

7. Distinct auto device for releasing tools,operate very easily

7. Gear-driven,lower noise

Specification

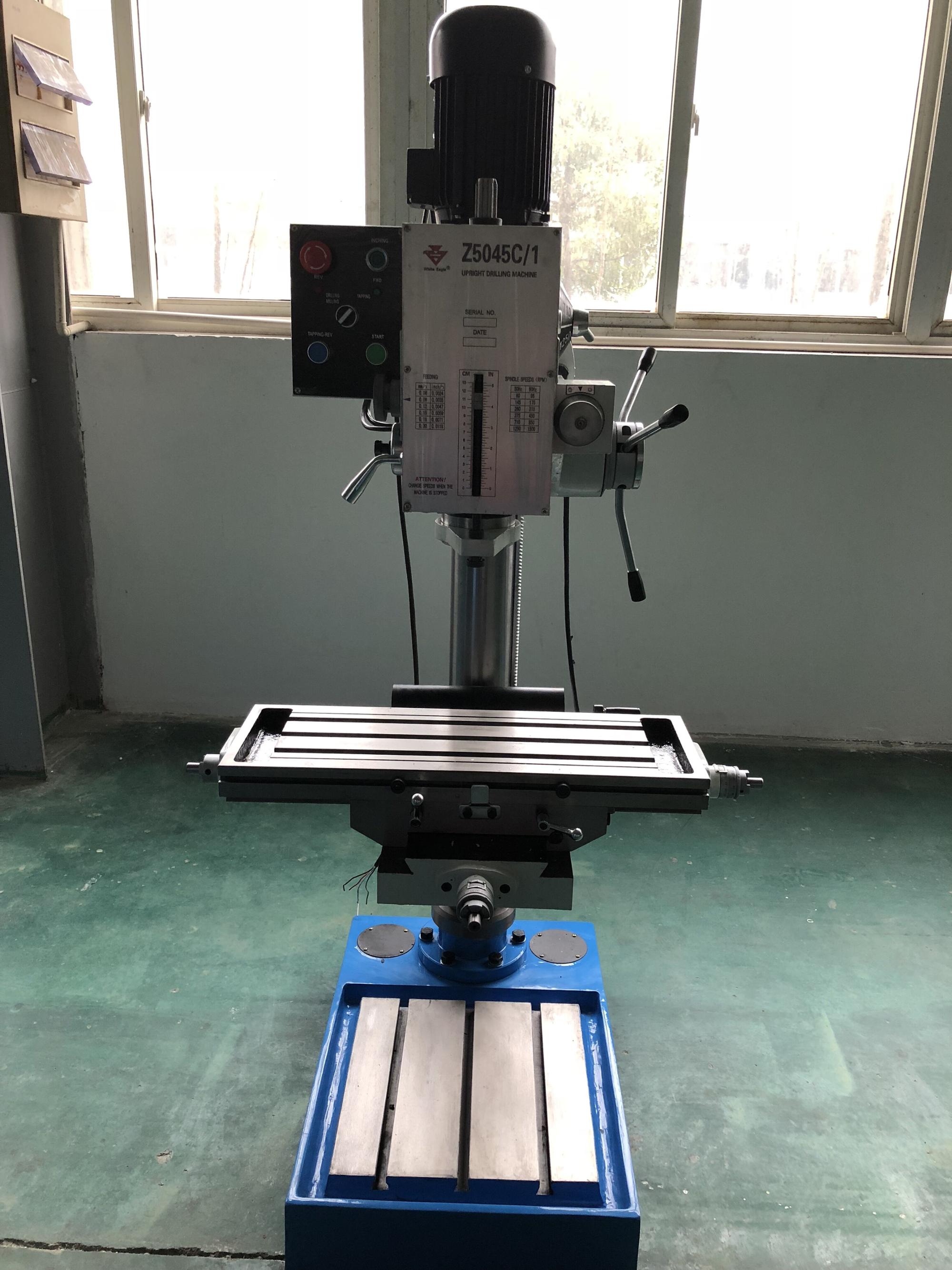

Model	Z5032/Z5040/Z5045	Z5032C /Z5040C/ Z5045C
Drilling capacity	φ32mm/φ40mm/φ45mm	φ32mm/φ40mm/φ45mm
Spindle taper	M.T.3 or R8/M.T.4 or R8/M.T.4 or R8
Spindle travel	130mm
Step of spindle speed	6
Range of spindle speed 50Hz	80-1250 r.p.m
60Hz	95-1500 r.p.m
Min.distance from spindle axis to column	283mm
Min.distance from spindle nose to worktable	725mm	700mm
Min.distance from spindle nose to stand worktable	1125mm
Max.travel of headstock	250mm
Swivel angle of headstock (horizontally)	360° ±45°
Max.travel of worktable bracket	600mm

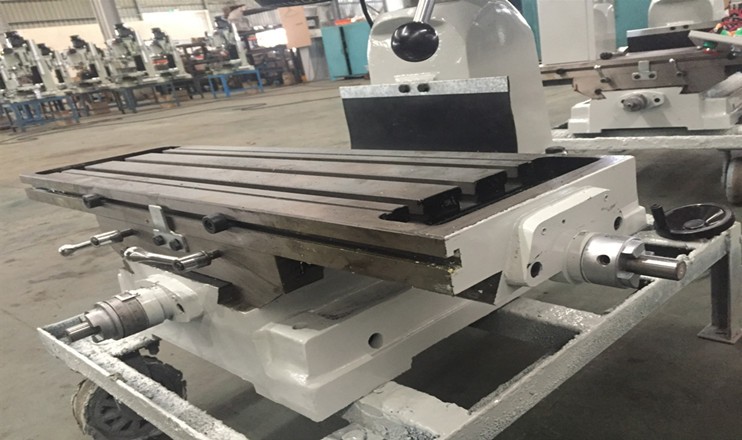

worktable size of avaliablity	380×300mm	730×210mm
Swivel angle of table horizontally	360°
Table leaned	±45°	/
Size of stand worktable of avaliability	417×416mm
Table leaned	±45°
Size of stand worktable of avaliability	417×416mm
Work travel (X/Y)	/	500mm/205mm
Verical travel of worktable	/	570mm

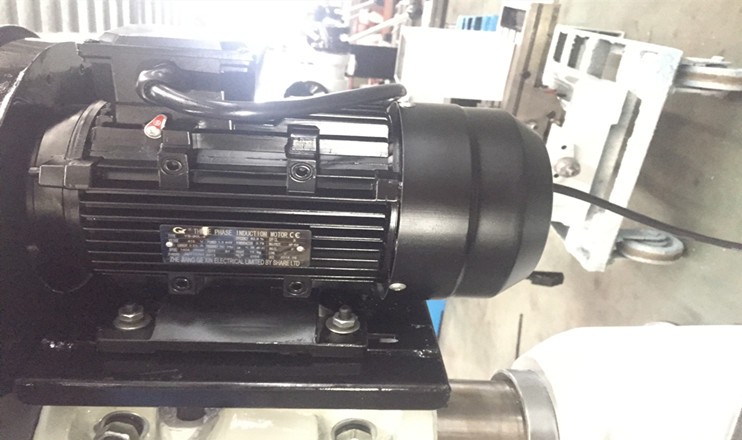

Motor Power	0.75KW/1.1KW/1.5KW	0.75KW/1.1KW/1.5KW
speed of motor	1400r.p.m	1400r.p.m
Net weight/gross weight	430kg/480kg	430kg/480kg
Packing size	1850×750×1000mm	1850×750×1000mm
