Ultra Fine 304 316L Stainless Steel Filter Fine Wire Mesh Screen

FOB Price 39 - 45 USD / Roll

MOQ	100 Rolls
Port	Tianjin
Packaging	Water proof paper and carton
Lead Time	50Days

Contact Now

Quick Details (View All)

Place of Origin	Hebei, China	Type	Weave Wire Mesh
Weave Style	Plain Weave	Usage	Protection
Hole shape	Square Hole	Width	0.5m-2m
Material	Stainless Steel Wire	Application	Woven Wire Mesh
Color	Silver	Feature	Corrosion Resistance
Length	1-30m

Product Details

What is woven wire mesh?

Woven wire mesh or woven wire cloth, is woven by machine. It is similar to the process of weaving clothing, but it is made of wire. The mesh can be woven in different weave styles. Its purpose is to produce solid and reliable products to adapt to various complex application environments.High precision technology makes the production cost of woven wire mesh higher, but it also has a very wide range of uses.

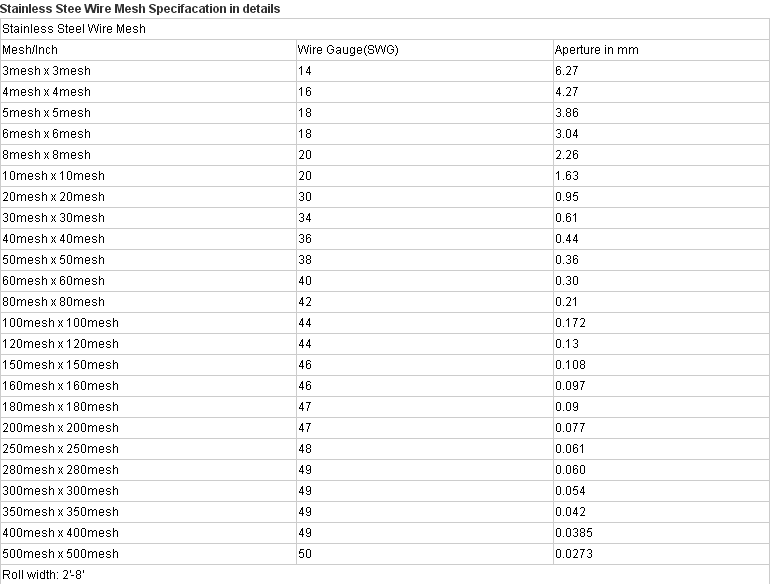

Product Specification

Main Material	SS 304, 304L, 316, 316L, 904L, 430, etc.
More Material	Monel Wire Mesh, Titanium Wire Mesh, Pure Nickel Mesh, and Pure Silver Mesh, etc.

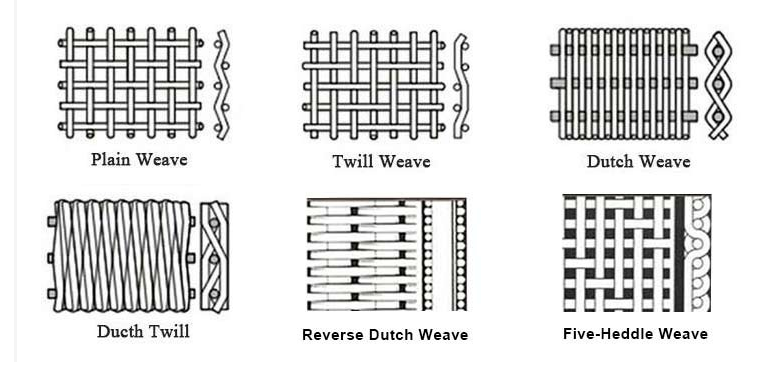

Weave Styles	Plain Weave, Twill Weave, Plain Dutch Weave, Twill Dutch Weave, Reverse Dutch Weave
Weave Styles	Rectangular or “Off-Count” Weave, Five-Heddle Weave, Multiplex Weave
Wire Diameter	0.02-6.30 mm
Mesh Size	1-3500 mesh
Width	Standard less than 2000 mm.
Length	30 m rolls or cut to length, minimum 2 m.
Sample	It's usually A4 paper size. If it's more than 1 square meter, you need to pay the corresponding sample fee.
Delivery Time	5 -10 days. Based on purchases and our inventory.
Export Experience	USA, EU, Japan, Australia, India, Southeast Asia, etc.

Woven Mesh Material

The main materials are 304 stainless steel wire mesh, 316 stainless steel wire mesh, 310 stainless steel wire mesh, 904L stainless steel wire mesh, 430 stainless steel wire mesh, and other stainless steel materials. The most popular ones are 304 stainless steel wire mesh and 316 stainless steel wire mesh, which can be used in most application environments and are not expensive.

And some special materials are used to meet the high requirements of the use environment, such as Monel Wire Mesh, Titanium Wire Mesh, Pure Nickel Mesh, and Pure Silver Mesh, etc.
