UF Membrane

Port

JNPT

Contact Now

Quick Details (View All)

Membrane Type	Hollow Fiber (Outside-In)	Membrane Material	PVDF (Polyvinylidene Fluoride)
Pore Size	~0.01–0.03 µm	Nominal Filtration Rating	100,000 – 300,000 Daltons
Operating Pressure	0.1 – 0.3 bar

Product Details

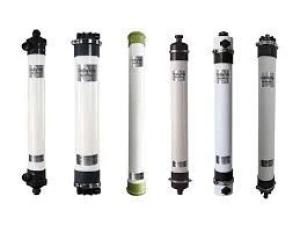

UF Membrane Modules

Application: Tertiary Treatment, Pre-RO Filtration, Water Recycling, Surface & Groundwater Purification

Product Overview:

Our Ultrafiltration (UF) Membrane Modules are engineered for high-efficiency separation of suspended solids, bacteria, and viruses from water and wastewater. Built with durable hollow fiber PVDF membranes, these modules operate on an outside-in filtration mode, offering high permeability, excellent mechanical strength, and consistent performance even under varying water qualities.

UF membranes are ideal as pre-treatment before RO, or as a standalone tertiary treatment step in sewage and effluent recycling systems.

Key Features:

✅ Microbial Barrier: Pore size ~0.01–0.03 µm ensures removal of bacteria and viruses
✅ Consistent Output Quality: Turbidity < 0.1 NTU even with fluctuating feed water
✅ Durable PVDF Construction: High tensile strength and long lifespan
✅ Outside-In Filtration: Handles higher solids loading with reduced fouling risk
✅ Chemical Resistance: Compatible with standard CIP protocols for extended life
✅ Modular Design: Easy to integrate into existing or new treatment systems

Technical Specifications:

Parameter Specification


Membrane Type	Hollow Fiber (Outside-In)
Membrane Material	PVDF (Polyvinylidene Fluoride)
Pore Size	~0.01–0.03 µm
Nominal Filtration Rating	100,000 – 300,000 Daltons
Operating Pressure	0.1 – 0.3 bar
Permeate Flux	30 – 120 LMH (depending on feed quality)
pH Range (Operation)	4 – 10
pH Range (Cleaning)	2 – 12
Maximum Operating Temp.	Up to 45°C
Typical Module Size	6 m² – 80 m² (customizable)
Air Scouring Rate	0.15 – 0.3 Nm³/h/m²
Life Expectancy	4–6 years (with periodic cleaning)
