Trigger-Type Classic Airbrush – CH-GP2

Product Details

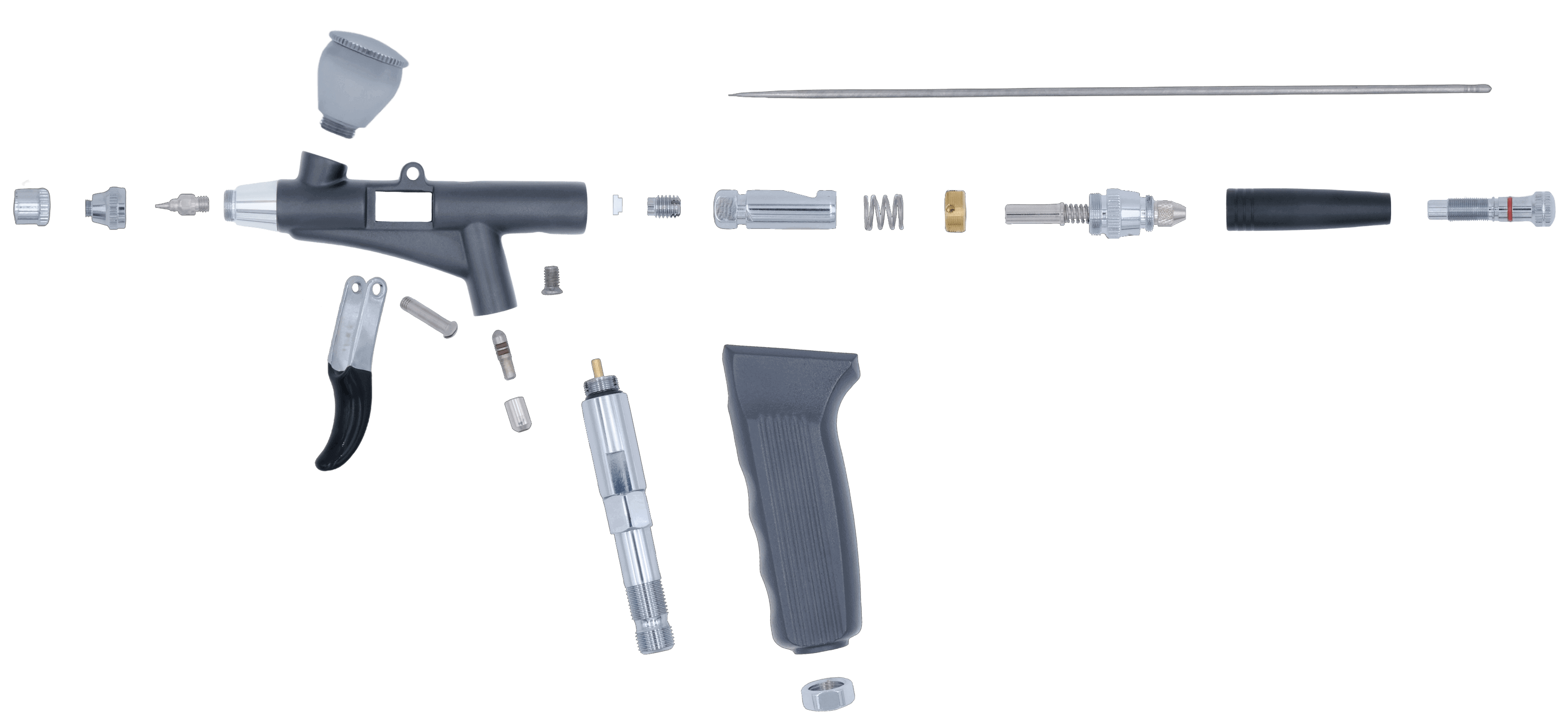

CYC Airbrush CH-GP2_Exploded View

Classic design

Offering a lightweight new option

Paint Stop Screw

Needle Guide Assembly

Tail Cap

Tail Rod

Body

Trigger Tip

Phillips Screw

Trigger

Piston

Valve Stem Guide

Air Inlet Valve Stem Assembly + Air Inlet Tube

Paint Cup (Link)

Nozzle

Needle cap

Nozzle Cap

Needle

Paint Stop Washer

Slider

Slider Spring

Slider Fixing Screw

Handle

Handle Screw

Specification

Type Nozzle & Needle Paint Cup Color Working Pressure Body Dimensions Weight
Dual-Action Trigger
Sizes: 0.2 mm, 0.3 mm, 0.5 mm, 0.7 mm
Material: Stainless Steel
Capacity: 2 ml, 7 ml, 15 ml
Finish: Electroplated
Blue, Green, Black, Red
20 ~ 40 Psi (1.38 ~ 2.76 Bar)
Body Dimensions
Length: 154.8 mm
Height: 101.9 mm
Note: Dimensions may vary slightly depending on machining and accessories.
Weight
135 g (Aluminum body)
185 g (Brass body)
Note: Weight may vary depending on material and configuration.

Customization Options

Customizable Components Customization Details Laser Engraving
Needle cap, body, trigger, and plastic grip can all be customized.
Create your unique design with a minimum order quantity of 1,000 pieces.
Custom brand logo engraving available for enhanced visual identity.

Manufacturing Information

Origin
All components are made in Taiwan.

CYC Co., Ltd.

No. 17, Ln. 446, Sec. 2, Zhangmei Rd., Hemei Township, Changhua County 508, Taiwan (R.O.C.)

Taiwan
